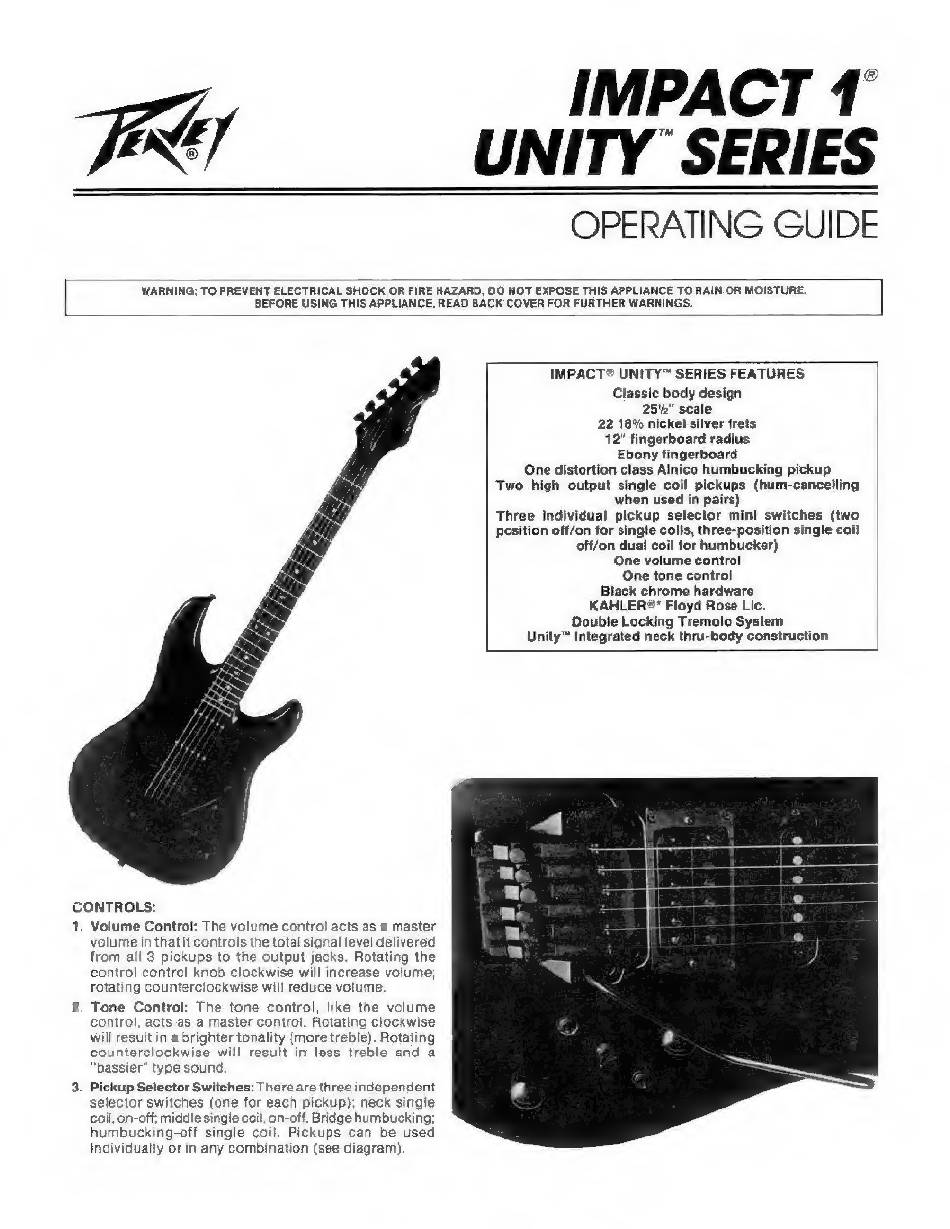

Peavey IMPACT 1 UNITY Series Operating Manual

IMPACT 1
ad UNITY SERIES
OPERATING GUIDE
WARNING: TO PREVENT ELECTRICAL SHOCK OR FIRE HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
BEFORE USING THIS APPLIANCE, READ BACK COVER FOR FURTHER WARNINGS,
IMPACT® UNITY™ SERIES FEATURES.

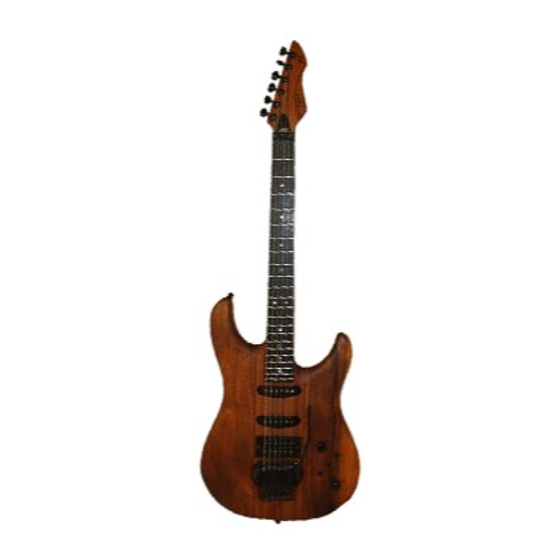

Classic body design
2510" scale
22 18% nickel silver frets
12" fingerboard radius
Ebony fingerboard
One distortion class Alnico humbucking pickup
Two high output single coil pickups (hum-cancelling
when used in pairs)
Three individual pickup selector mini switches (two
position off/on for single coils, three-position single coil
off/on dual coil for humbucker)
'One volume control
One tone control
Black chrome hardware
KAHLER®* Floyd Rose Lic.
Double Locking Tremolo System
Unity" Integrated neck thru-body construction
SONTROLS:
1. Volume Control: The volume control acts as a master
volume in thatit controis the total signal level delivered
from all 3 pickups to the output jacks. Rotating the
control control knob clockwise will increase volume,
rotating counterclockwise will reduce volume
2. Tone Control: The tone control, like the volume
control, acts as a master control. Rotating clockwise
will result in a brighter tonality (more treble). Rotating
counterclockwise will result in less treble and a
bassie" type sound.
ckup Selector Switches: There are three independent
selector switches (one for each pickup), neck single
coll, on-off; middle single coil, on-off, Bridge humbucking;
humbucking-off single coil. Pickups can be used
individually or in any combination (see diagram).
