All LED ASC/WIFI/RMT/CCT Installation Manual & User Manual

Safety
• Do not cover the ground contact.
• Do not place any material over the lens or LED diode/chip.
• Do not insert objects into the luminaire.
• Do not clean using any solvent based abrasive or aggressive product.
• Do not pull any cables connected to the product.
• Do not direct the luminaire into a persons eyes, as this unit may have an intense light output,
which if incorrectly used may cause eye damage.
• Light engines/LED'S and other light sources may heat up, please take care when handling the
products.
• The manufacturer will not be deemed liable or held responsible for any damages caused by
faults or manufacturing defects that may be present in any of its products or the misuse or incor-
rect installation of this device. Please refer to our trouble shooting guide for further information.
• The manufacturer will not be held liable for any death(s) or injuries caused by misuse or poor
installation or any unreported faults of this product version or versions thereof.
• LED's are sensitive to electrostatic discharge. Do not touch the surface of the LED module.
• Do not connect to a temporary electricity supply, this may damage the electronics.
• Light fittings with an integrated emergency option are with a separate installation and wiring
leaflet. Please refer to this manual for further details. If the manual is unavailable please contact
an ALL LED representative for assistance.
Returns & Faulty Items
• If any problem is encountered during or after installation, please call ALL LED technical
department to get the problem resolved ASAP.
• Please do not just return the item to the outlet you purchased it from, as you are only entitled to
a replacement or refund after the unit has undergone testing and the unit has been confirmed
as having a manufacturing defect/fault. Your statutory rights are not affected.
• The manufacturer will not be deemed liable or held responsible for any damages caused
by faults or manufacturing defects that may be present in any of its products or the misuse
or incorrect installation of this device. Please refer to our trouble shooting guide for further
information.
• All goods are supplied under the terms and conditions of ALL LED LTD, a copy of which may be
obtained upon written request.
Environmental Protection
Waste electrical products
should not be disposed of
with household waste. Please
recycle where facilities exist.
Check with your Local Au-
thority or retailer for recycling
advice
This product supplied with a limited 3 year guarantee, subject to terms and conditions.
The manufacturer will not be deemed liable or held responsible for any damages caused
by faults or manufacturing defects that may be present in any of its products or the misuse
or incorrect installation of this device
Your statuatory rights are not affected.
3
INSTALLATION GUIDE & USER MANUAL
ASC/WIFI/RMT/CCT
ENSURE POWER SUPPLY IS OFF WHEN HANDLING ANY ELECTRICAL
• This product may need to be installed by a qualified electrical installer.
• Please read this guide in its entirety to fully understand the products before attempting any
install.
• All electrical work should be completed in accordance with the latest IET regulations, and/
or any other relevant rules, regulations or laws of the country in which it is being installed.
• The item must be installed in isolation from any insulating material and is adequately
ventilated to prevent premature failure.
• Ensure power supply is isolated prior to installation, maintenance or performing any other
form of electrical work.
• In the event of incorrect or improper function with specific regard to any of ALL LED's
products and contact ALL LED for further advice.
Technical Specifications
Product Code ASC/WIFI/RMT/CCT
RF Signal
Output
3V (1x CR2025 battery)
Power Supply
Operating Temperature 0-40°C
Dimensions 137 x 39 x 11mm
Range 30m Uninterrupted
Safety & Warnings
• Stored and dispose of properly.
• DO NOT expose the device to moisture.
• DO NOT use near or through Metal Mesh as it may effect range.

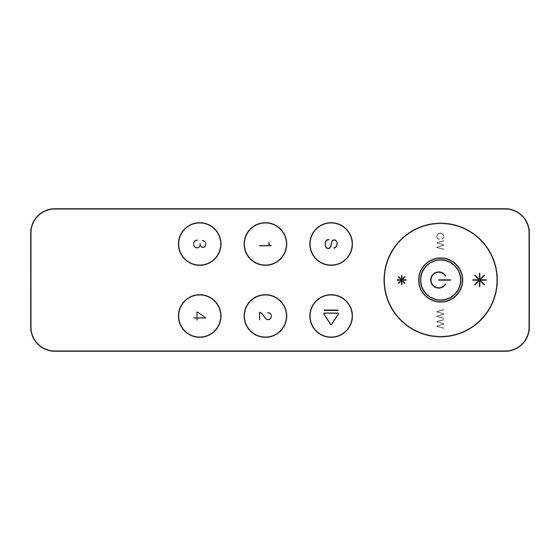

Dimensions
137mm
39mm
Front view
WARNING
EQUIPMENT
98mm
15mm
Side view
!
PLEASE READ
BEFORE USE!
1
