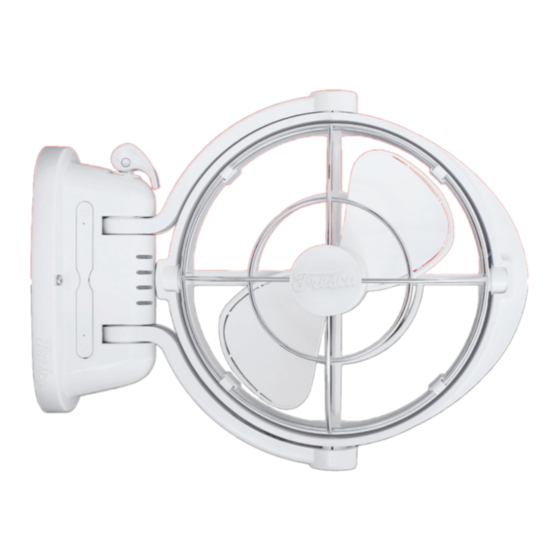

Summary of Contents for Fresca ONE X RV ORA-01

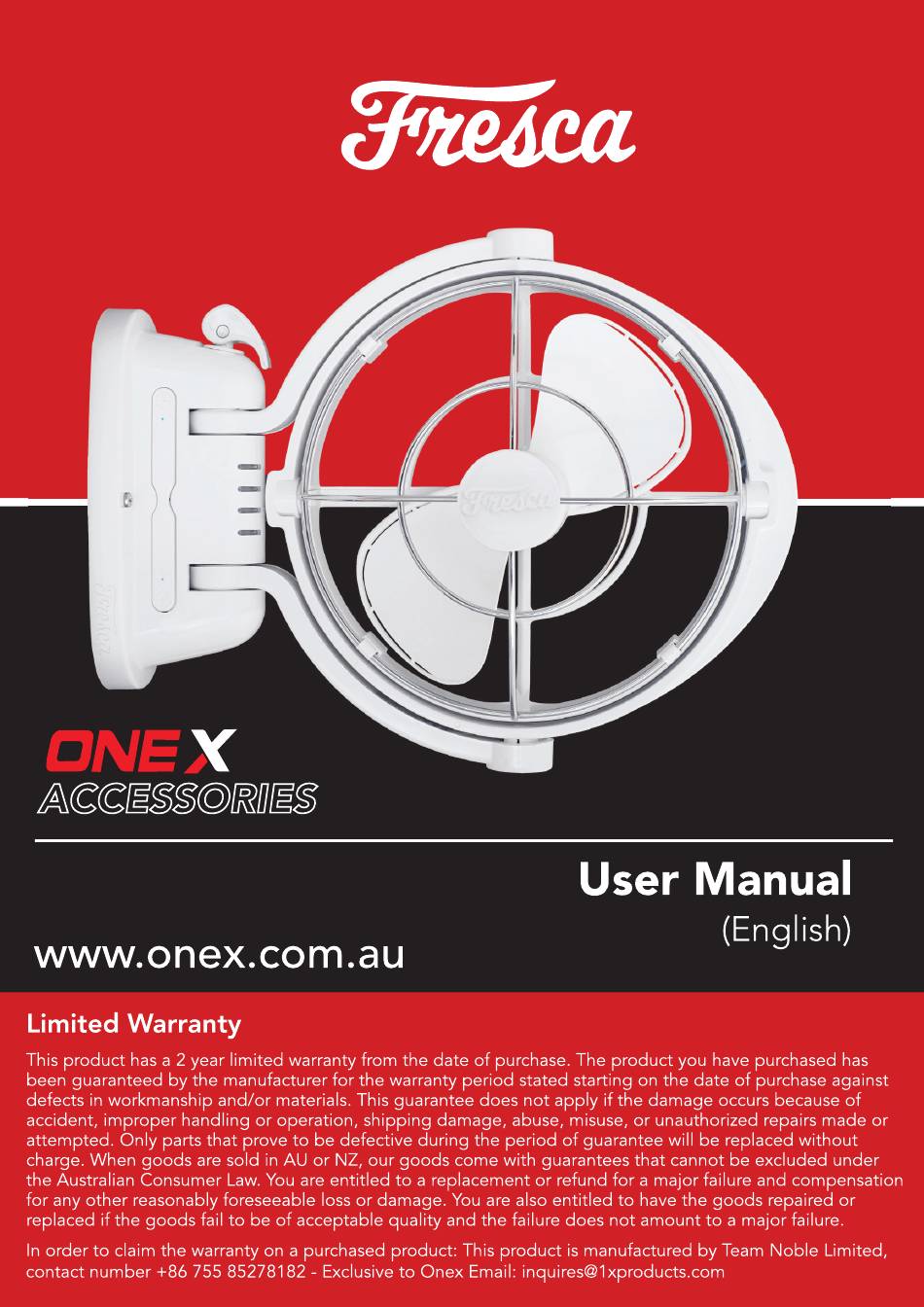

  • Page 1 ORA-01 The fan for your RV...
  • Page 2 Items supplied in package Unpacking the product Carefully unpack the box and confirm that the following items are included: 1. 01 x Main Fresca Fan unit 2. 01 x Back mounting plate Mounting 3. 02 x Screws parts 4. 02 x 3.2 mm stainless steel nuts 5.

  • Page 3: Installation

    Installation - Preparing back mounting plate 1. Preparing of back mounting plate a. Identify the intended mounting location for the fan. b. Insert the 2 stainless steel (Item 4) nuts into the nut recess holes on both sides of the back mounting plate. c.
  • Page 4 Installation - Mounting of back mounting plate 2. Mounting of back mounting plate a. Place the back mounting plate with the double sided tape facing towards the mounting location and stick the back mounting plate in place. Use 6 mm screws (not supplied) suitable for use in mounting of fan b.

  • Page 5: Electrical Wiring

    Installation - Connecting the power cables 3. Electrical wiring a. Locate the two DC power terminals at the bottom of the fan unit marked (+) Positive and (-) Negative. - Negative + Positive (Red dot marking) Take Note: Marking to be used in fan orientation during mounting b.
  • Page 6 Installation - Routing the cable and mounting d. There are three options to routing of the DC power cables, depending on how you are wiring the power cables. Option 2: Via top groove notch (Red dot marking) Option 3: Via hole on the back Take Note: mounting plate...
  • Page 7 Operation - Using the fan Keep the fan blades clear of any obstructions during operation. The fan MUST be locked in position before turning on. 3. Fan directional angle adjustment Locking Lever Adjust the fan and lock in place by locking the Locking Lever Timer indicator...

  • Page 8: Care And Maintenance

    Safety • The Fresca fan unit includes an over-current protection that protects the motor from short circuit. • The Fresca fan unit includes a reverse polarity protection that protects the fan against any accidental reverse polarity. Care & Maintenance • The Fresca fan unit is designed for low maintenance.
