Summary of Contents for Baroness VM60

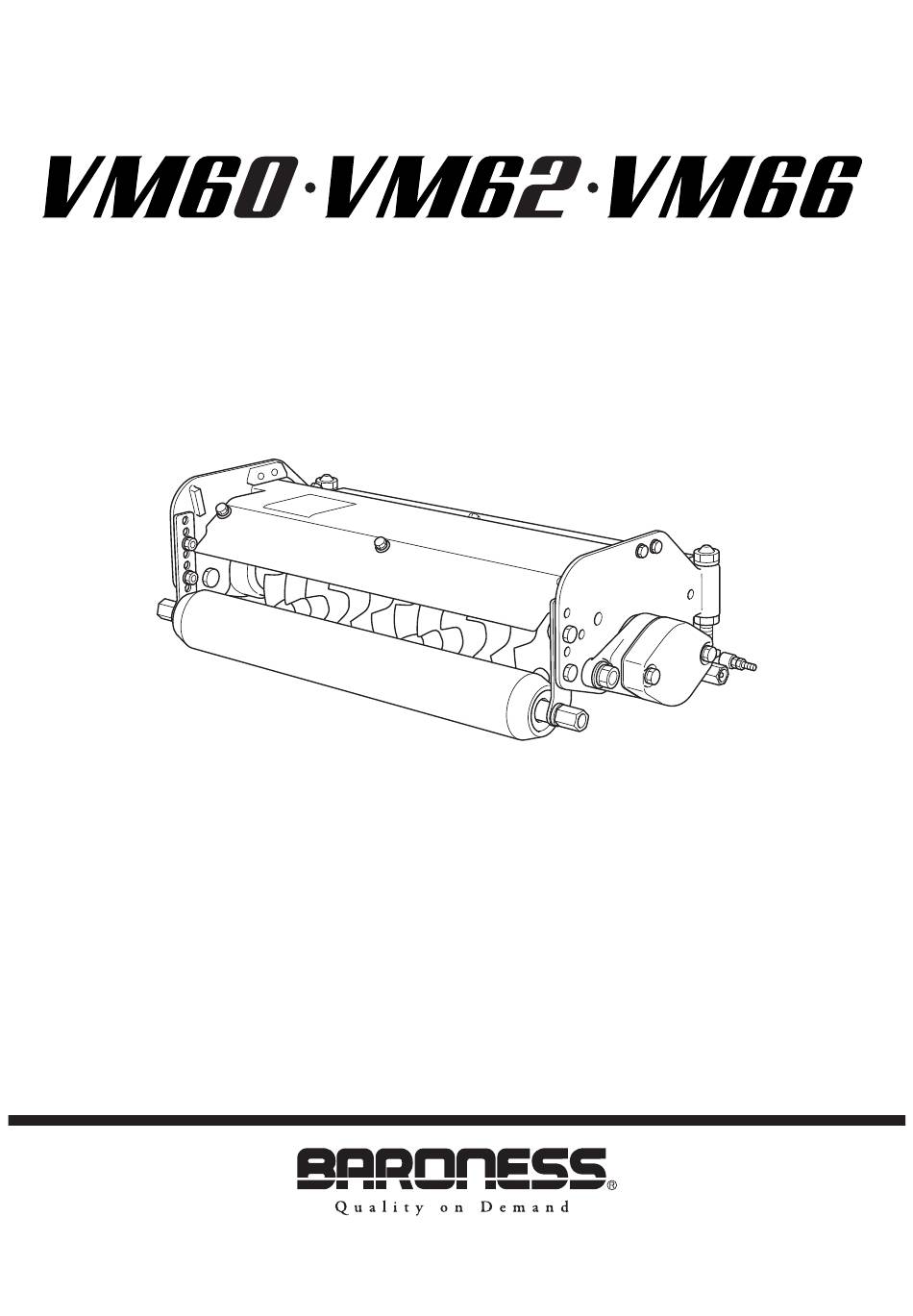

- Page 1 Verti Cutter Owner's Operating Manual Serial No. VM60: 10001-・VM62: 10001-・VM66: 10001- "Required reading" Read this manual before using the machine. Original Instructions Ver.1.0...
- Page 2 VM60・VM62・VM66 Greeting Thank you for purchasing the Baroness product. VM62: https://doc.baroness-international.com/ This manual describes the proper handling, manuals/VM62 adjustment, and inspection of your product. We hope you will use the product safely, and take advantage of its best performance. For details on the handling, adjustment and inspection of the main vehicle, refer to the Owner's Operating Manual for the main vehicle.
- Page 3 The operator is responsible for operating the product properly and safely. Maintenance service for this machine should be performed by a mechanic with expertise. If you have any questions concerning maintenance or genuine parts, please contact a Baroness dealer or Kyoeisha.
- Page 4 When replacing parts, be sure to use genuine Baroness parts or parts designated by Kyoeisha. Note that the Baroness product warranty may not apply to defects caused by the use of parts from other companies. Prior to use, carefully read the following manuals to thoroughly understand the contents for safe and correct operation.
-
Page 5: Table Of Contents
VM60・VM62・VM66 Contents Safety .............. Page 1-1 Safe Operating Practices .......Page 1-2 Disposal ............Page 2-1 Recycle and Waste Disposal ......Page 2-2 Product Overview .......... Page 3-1 Specifications ..........Page 3-2 Names of Each Section ......... Page 3-4 Regulation Decals ..........Page 3-4 Safety Signs and Instruction Signs .... - Page 6 VM60・VM62・VM66 Contents...
-
Page 7: Safety
VM60・VM62・VM66 Safety Safe Operating Practices ...... Page 1-2 Page 1-1... -
Page 8: Safe Operating Practices
Observe the following safety instructions to ensure safe operation. Safe Operating Practices Read Safe Operating Practices described in the Owner's Operating Manual of Baroness main vehicle equipped with this mower unit thoroughly. Page 1-2 Safe Operating Practices... -
Page 9: Disposal
VM60・VM62・VM66 Disposal Recycle and Waste Disposal ....Page 2-2 About Recycle ........Page 2-2 About Waste Disposal ......Page 2-2 Page 2-1... -
Page 10: Recycle And Waste Disposal
VM60・VM62・VM66 Disposal Recycle and Waste Disposal About Recycle Recycling battery etc. is recommended for environmental conservation and economical use of resources. It may be required by local laws. About Waste Disposal Make sure that waste generated when servicing or repairing the machine is disposed of in accordance with local regulations. -
Page 11: Product Overview
VM60・VM62・VM66 Product Overview Specifications ........Page 3-2 Specifications List ........Page 3-2 Features of Verti Cutter ......Page 3-3 Names of Each Section ......Page 3-4 Regulation Decals ........Page 3-4 Positions of Regulation Decals ....Page 3-4 Description of Regulation Decals ..Page 3-4 Safety Signs and Instruction Signs .. -
Page 12: Specifications
VM60・VM62・VM66 Product Overview Specifications Specifications List VM60 Model VM60 Name Verti Cutter30 Total length 364 mm 14.33 in Dimensions Total width 955 mm 37.60 in Total height 220 mm 8.66 in Weight 44.0 kg 97.00 lb Operating width 575 mm 22.64 in... -
Page 13: Features Of Verti Cutter
VM60・VM62・VM66 Product Overview VM66 Model VM66 Name Verti Cutter26 Total length 364 mm 14.33 in Dimensions Total width 847 mm 33.35 in Total height 220 mm 8.66 in Weight 40.0 kg 88.18 lb Operating width 498 mm 19.61 in Operating height -6.0 - 20.0 mm... -
Page 14: Names Of Each Section
VM60・VM62・VM66 Product Overview Names of Each Section Regulation Decals Positions of Regulation Decals E7C31F64 Positions of Regulation Decals_001 Serial number plate Description of Regulation Decals Serial Number Plate The serial number plate indicates the model and serial number of the machine. -
Page 15: Safety Signs And Instruction Signs
If they are damaged, become dirty, or injured. peel off, replace them with new ones. Part numbers for decals that need to be replaced are listed in the parts catalog. Order them from a Baroness dealer or Kyoeisha. Positions of Safety Decals and Instruction Decals STOP... - Page 16 VM60・VM62・VM66 Product Overview Page 3-6 Safety Signs and Instruction Signs...
-
Page 17: Handling Instructions
VM60・VM62・VM66 Handling Instructions Handling Precautions ......Page 4-2 Inspection Before Use ......Page 4-2 Mower Unit ..........Page 4-2 Operations ..........Page 4-3 Vertical Cutting Procedure ..... Page 4-3 Cleaning After Use .........Page 4-4 Mower Unit ..........Page 4-4 Page 4-1... -
Page 18: Handling Precautions
VM60・VM62・VM66 Handling Instructions Handling Precautions Inspection of Covers Warning Important If you have removed a protective cover during This manual contains descriptions for handling inspection, be sure to securely install it in its the mower unit. original position. For details on handling the main vehicle, refer... -
Page 19: Operations
VM60・VM62・VM66 Handling Instructions Depress the traveling pedal to start cutting Operations work. Note: Vertical Cutting Procedure During the work, the vertical blades will rotate or stop in sync with the up and down motion Caution of the mower units. Cutting work must be performed at an LM351 appropriate speed for the site and location. -
Page 20: Cleaning After Use
VM60・VM62・VM66 Handling Instructions Set the reel rotation switch to the "Rotation" Release the lock for the brake pedal. position to rotate the vertical blades of all Set the 2WD/4WD selector switch to the mower units. "4WD" position. Shift the mower unit up/down lever to the Important "Down"... -
Page 21: Maintenance
VM60・VM62・VM66 Maintenance Precautions for Maintenance ....Page 5-2 Greasing ..........Page 5-2 About Greasing ........Page 5-2 Greasing Points ........Page 5-2 Adjustment and Replacement ....Page 5-4 Mower Unit ..........Page 5-4 Storage ........... Page 5-8 Long-Term Storage ........ Page 5-8 Page 5-1... -
Page 22: Precautions For Maintenance
First, learn well the operations you plan to perform. Important Use tools appropriate for each operation. Important Use Baroness genuine parts for replacement and accessories. Our product warranty may be void if you use non-genuine parts for replacement or accessories. - Page 23 VM60・VM62・VM66 Maintenance Housing Rear roller shaft There is one point on the reel housing side. There is one point each on the left and right of the rear roller shaft. Left end of rear roller A74C958C Greasing Points_002 Front roller shaft...
-
Page 24: Adjustment And Replacement
VM60・VM62・VM66 Maintenance Adjust the cutting depth to the desired Adjustment and Replacement position by using the scale of the gauge. Mower Unit Choose the cutting depth by applying the vertex of the arc of the vertical blade to Adjustment of Cutting Depth the scale of the gauge. - Page 25 VM60・VM62・VM66 Maintenance Bring the gauge into contact with the front Adjustment of Rear Scraper (Wire Type) roller and rear roller at the left and right ends of the mower unit again to check the Note: cutting depth is at the required position.
- Page 26 VM60・VM62・VM66 Maintenance Remove the slotted special nut. Change of Vertical Blade Warning Be sure to stop the engine before change of the vertical blades. Caution The vertical blade is an edged tool. Take extra care in handling since they could cut your hands or legs.
- Page 27 VM60・VM62・VM66 Maintenance Rotate the blade shaft counterclockwise Frame by one of its six sides, and install a Vertical blade Assy collar B and a vertical blade. Reel housing Each time inserting one vertical blade Hydraulic motor housing into the blade shaft, rotate the blade shaft counterclockwise by one of its six Disassemble the vertical blade Assy.
-
Page 28: Storage
VM60・VM62・VM66 Maintenance Install the bolt for the reel housing cover. Frame Vertical blade Assy Reel housing Hydraulic motor housing End collar Hex nut Hollow screw Install the vertical blade Assy to the frame. Install the nuts and bolts on the housing... -
Page 29: Appended Table
VM60・VM62・VM66 Appended Table Tightening Torques ........Page 6-2 Standard Tightening Torques ....Page 6-2 Daily Check List ........Page 6-4 Maintenance Schedule ......Page 6-4 List of Adjusted Values ......Page 6-4 Page 6-1... -
Page 30: Tightening Torques
VM60・VM62・VM66 Appended Table Tightening Torques Important Refer to the Tightening Torque table. Note that the Baroness product warranty may not apply to defects caused by incorrect or overtorque tightening, etc. Standard Tightening Torques Bolts and Nuts Important A number of bolts are used in each part of this machine. - Page 31 VM60・VM62・VM66 Appended Table General bolt Strength classification 4.8 Nominal diameter tib3yb-001 kgf-cm lb-in 3 - 5 30.59 - 50.99 26.55 - 44.26 7 - 9 71.38 - 91.77 61.96 - 79.66 14 - 19 142.76 - 193.74 123.91 - 168.17 29 - 38 295.71 - 387.49...
-
Page 32: Daily Check List
VM60・VM62・VM66 Appended Table Daily Check List ●・・・Inspect, adjust, supply, clean (first time) ○・・・Inspect, adjust, supply, clean ●・・・Replace (first time) △・・・Replace Maintenance Item Remarks Check Reel cutter and Bed knife ○ Check roller ○ Check cover ○... - Page 33 1-26, Miyuki-cho, Toyokawa-city, Tel : +81 - 533 - 84 - 1390 Head Office Aichi-pref, 442-8530 JAPAN Fax : +81 - 533 - 84 - 1220 VM66----UM--GBZ/24C-00-S.K...
