Erickson 07708 Quick Start Manual

250 lb. ladder rack
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

Item no: 07708
250 lb. LADDER RACK
READ ALL SAFETY WARNINGS AND INSTRUCTIONS.
Failure to follow the warnings and instructions may result in serious injury.
Save all warnings and instructions for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 07708 and is the answer not in the manual?

Questions and answers

Summary of Contents for Erickson 07708

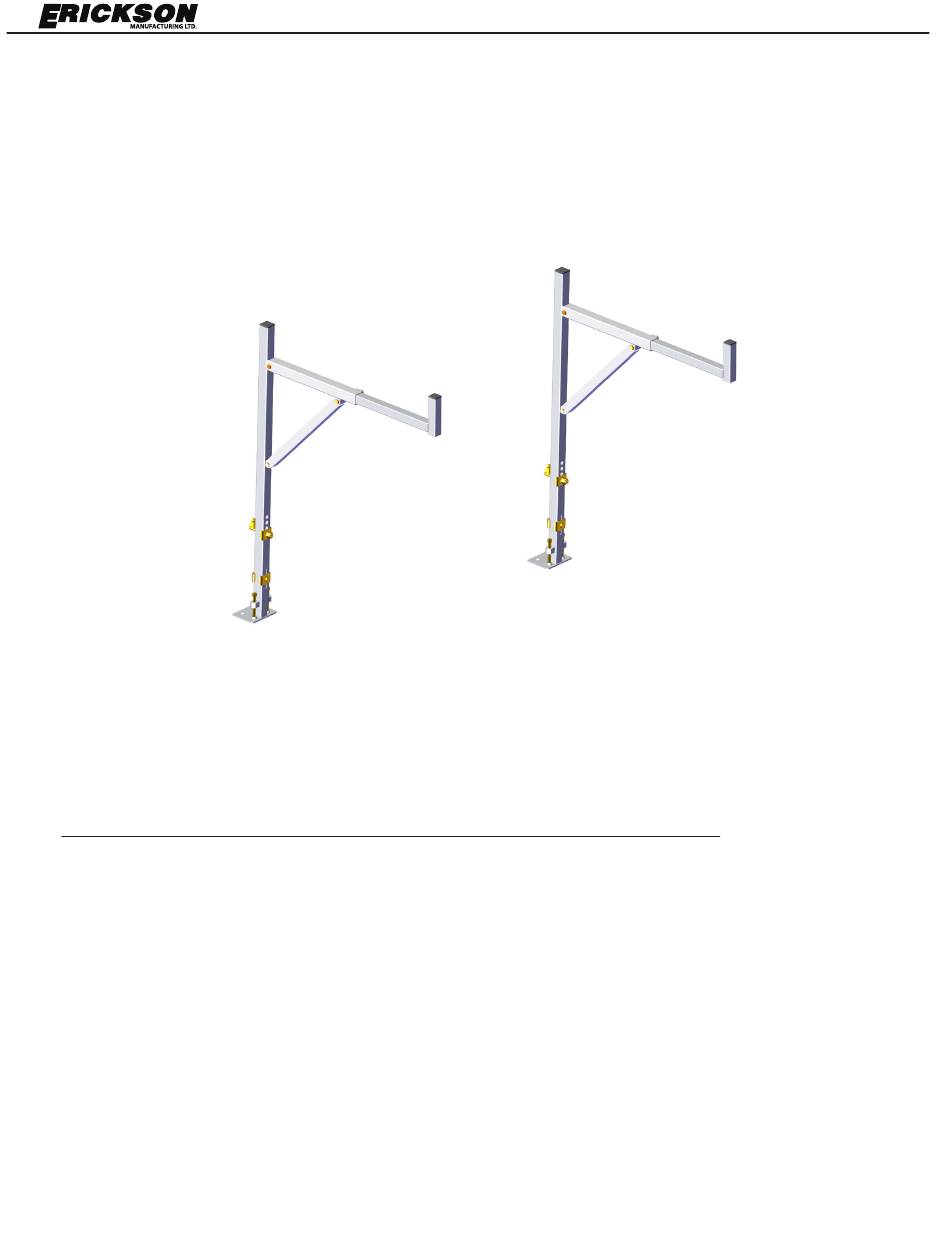

  • Page 1 Item no: 07708 250 lb. LADDER RACK READ ALL SAFETY WARNINGS AND INSTRUCTIONS. Failure to follow the warnings and instructions may result in serious injury. Save all warnings and instructions for future reference.
  • Page 2 Item no: 07708 M16* 85 Bolt 8x base 2x M12x100 socket 16 U bolt 2x 16 Spring Washer 2x head screw bolt M 16 nut 2x Stop bolt 2x 1. Secure the frame with 2pcs M12X100 Socket Head Screw Bolts (7).
  • Page 3 Item no: 07708 4. Once you are satisfied with the placement and mounting, use two self tapping screws (supplied) to secure to the base of the bed. 12-U bolt 4x 12 spring washer 2x M12*75 hexagon M12 nut 2x bolt 2x 5.
  • Page 4 Item no: 07708 parallel support frame 2x M12 locknut 6x M12*55 hexagon bolt supporting arm 2x 6. Attach the supporting arm(13) and Parallel supporting frame(16) to the post, tighten with M12 lock nut(17) and M12*55 hexagon bolt(2). Extended arm 2x M12* 30 hexagon bolt 2x 7.
  • Page 5 Item no: 07708 EXPLOSION DIAGRAM AND PARTS LIST Item# Description Q’ty Item# Description Q’ty Frame M16 nut M12*55 hexagon bolt 16 spring washer Stop bolt 16-U bolt 12-U bolt Supporting arm M12 nut Extended arm 12 spring washer M12*30 hexagon bolt...

  • Page 6: Installation Precautions

    Item no: 07708 READ ALL SAFETY WARNINGS AND INSTRUCTIONS. Failure to follow the warnings and instructions may result in serious injury. Save all warnings and instructions for future reference. INSTALLATION PRECAUTIONS 1. Follow DOT regulations regarding installation and use. 2. Park truck on a flat, level, hard surface well away from traffic. Place transmission in park/ neutral and set parking brake.

  • Page 7: Warranty Exclusions

    Item no: 07708 WARRANTY EXCLUSIONS This warranty does not cover the following repairs and equipment: NORMAL WEAR This warranty does not cover the repair when use has exhausted the life of a part or the equipment as a whole. INSTALLATION, USE AND MAINTENANCE...
