Beale Street Audio VCRV100 Manual

Limited Warranty
With the exceptions noted in the next paragraph, Vanco warrants to the original
purchaser that the equipment it manufactures or sells will be free from defects in
materials and workmanship for a period of 2 years from the date of purchase. Should
this product, in Vanco's opinion, prove defective within this warranty period, Vanco,
at its option, will repair or replace this product without charge. Any defective parts
replaced become the property of Vanco. This warranty does not apply to those
products which have been damaged due to accident, unauthorized alterations,
improper repair, modifications, inadequate maintenance and care, or use in any
manner for which the product was not originally intended.
Items integrated into Vanco products that are made by other manufacturers, notably
computer hard drives and liquid crystal display panels, are limited to the term of
the warranty offered by the respective manufacturers. Such specific warranties
are available upon request to Vanco. A surge protector, power conditioner unit, or
an uninterruptible power supply must be installed in the electrical circuit to protect
against power surges.
If repairs are needed during the warranty period the purchaser will be required to
provide a sales receipt/sales invoice or other acceptable proof of purchase to the
seller of this equipment. The seller will then contact Vanco regarding warranty repair
or replacement.
Technical Support
Please read this product manual prior to calling or installing this unit, since it will
familiarize you with the capabilities of this product and its proper installation.
Vanco Tech Support
Phone: 1-800-626-6445
Email: techsupport@vanco1.com
Web: www.vanco1.com
Please have the part number, serial number,
and invoice available when requesting support.
VCRV100 & VCSV100 Product Manual
VCRV100 & VCSV100 Manual

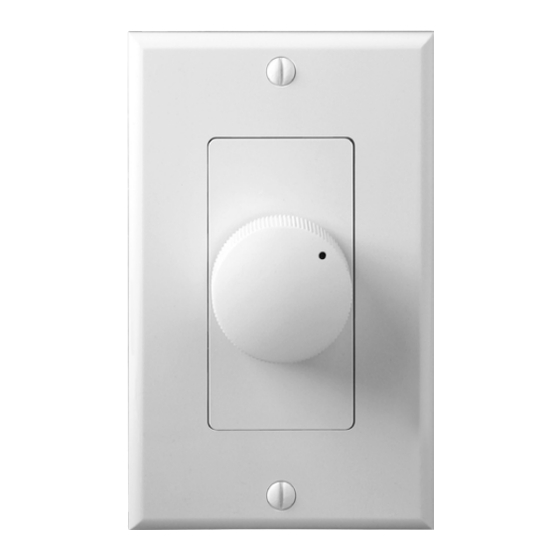

Rotary Knob & Slider
70/100V In-Wall Volume Controls
Safety Instructions
For optimum performance and safety, please read these instructions carefully
before use and keep this manual for future reference.
• To prevent electric shock, please ensure that all apparatus is properly grounded.
• Do not expose this apparatus to rain or place it near water. Any liquid that goes
into the apparatus may cause a failure, fire, or electric shock.
• Never insert anything metallic into the open parts of this apparatus. This may
cause a danger of electric shock.
• If a third-party power supply is used, please ensure that the power supply
specifications meet the product requirements.
Product Specifications
Peak RMS power rating (both)
Continuous RMS power (both)
Frequency response
Mounting depth
Electrical box junction
Speaker
Connection
350W
105W
DC to 500kHz +/- 0.1db
Rotary: 1.8" (45mm) / Slider: 1.6" (42mm)
Single gang junction box
70V or 100V (single or multiple speakers)
Removable screw terminals
