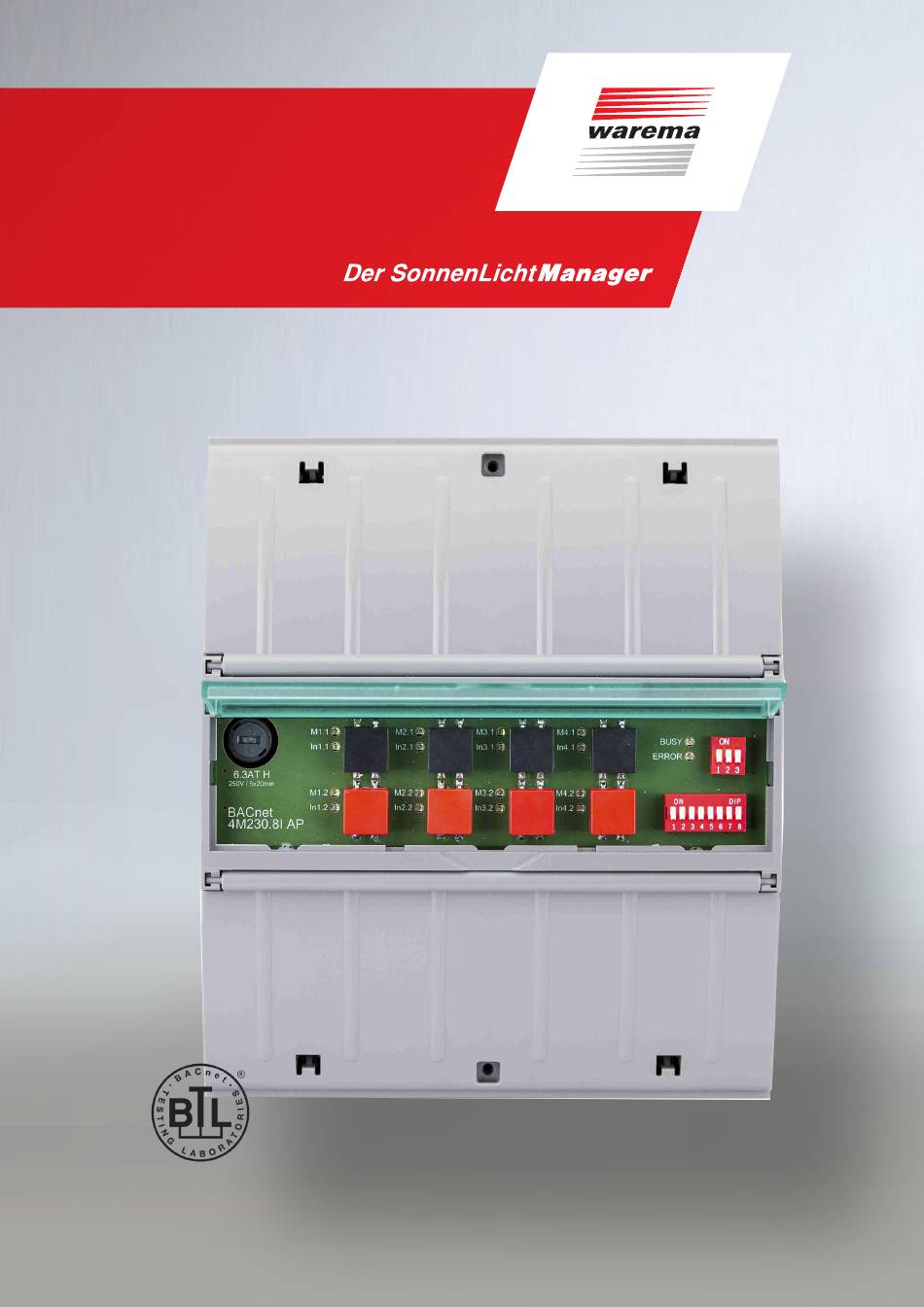

- Page 1 WAREMA BACnet 4M230.8I AP Manual Valid from 1st October 2023 warema_2051515_alhb_en_v2...
- Page 2 Operating instructions, manuals and software are protected by copyright. All rights to the software are specified in the licence agreement included. WAREMA and the WAREMA logo are registered trademarks of WAREMA Renkhoff SE. All other brand or product names included in this document are registered trademarks of their respective owners.
-
Page 3: Table Of Contents
Contents Table of contents Overview ......................5 General information on the BACnet sun shading actuators ......5 Device models .......................5 Additional documentation ...................5 Safety instructions ................... 6 Meanings of symbols and pictograms .............6 Intended use ......................7 Target group ......................8 General safety instructions ..................8 Description ....................... - Page 4 BACnet 4M230.8I AP We reserve the right to make technical modifications warema_2051515_alhb_en_v2•2023-10-01...
-
Page 5: Overview
The number of outputs depends on the respective device model. Up to four 230 V AC drives 1.2 Device models WAREMA offers the BACnet sun shading actuators in surface-mounted housing (AP). 1.3 Additional documentation Further information about installation and commissioning of the BACnet sun shading actuators can be found in the associated installation instructions. -
Page 6: Safety Instructions
BACnet 4M230.8I AP 2 Safety instructions We have developed and tested the BACnet sun shading actuators in compli- ance with the basic safety requirements. Residual risks nevertheless remain. For this reason, please read this manual before commissioning and operat- ing the control. It is very important that you adhere to the safety instructions listed in this section and the warnings contained in this manual. -
Page 7: Intended Use
Safety The i symbol designates important information and helpful tips. Example The term Example denotes an example. The square denotes an instruction or a prompt for action. Perform this ac- tion. The triangle denotes an event or the result of a preceding action. The black triangle is a bullet point for lists or selections. -
Page 8: Target Group
BACnet 4M230.8I AP 2.3 Target group These instructions are intended for persons who are commissioning a sun shading system in BACnet MS/TP technology as well as for qualified techni- cians. Knowledge of BACnet MS/TP technology is essential. WARNING Commissioning and operation by persons who are not sufficiently qualified and informed can cause severe damage to the unit or may even cause personal injury. -
Page 9: Description
Description 3 Description The actuator controls 4 drives for venetian blinds. There are several possi- bilities for control, which have different priority and are listed in the following chapters. The priorities are, from highest to lowest: Safety run Internal push buttons Calibration Inputs for external push buttons Move commands... -
Page 10: Sonderfunktion Motorgruppierung
Safety run/ BACnet 4M230.8I AP Calibration 4.1 Special function: Motor grouping This function applies to the external buttons, where one button controls sev- eral motors or several buttons control one motor, or a combination thereof. It works just like an electrical parallel connection of one button to several inputs or several buttons to one input. -
Page 11: Safety Run
Move commands 5 Safety run The activation via binary value object Safety_run applies to all 4 drives to- gether. The actuator switches all drives to move to their upper limit positions for their parameterised run time (analogue value Run_time_UP_N). The binary value remains active after this. -
Page 12: Move Commands
Setpoint position BACnet 4M230.8I AP 7 Move commands The following move commands can be given with the multi-state value Blind_N. OFF state command = 1 No move command is active. This is also true once control is carried out with a higher priority. STOP state command = 2 The current move command is stopped, specifically also a run to the setpoint position. -
Page 13: Setpoint Position
Control 8 Setpoint position Moving to a setpoint position occurs when writing the analogue values Blind_ length_N and Slat_position_N. The drive's run times are determined with the help of the parameterised values. Run_time_DOWN_N → = 90 s → (Total run time downwards) Slat_min_angle_N →... -
Page 14: Control With Multiple Steps
Movement BACnet 4M230.8I AP 9 Control with multiple steps The control options presented in the previous chapters lead to short pro- grammes for the movement that are processed step by step. Whenever a new programme is activated, the previous one is deleted, i.e. cancelled, be- forehand. -
Page 15: Reporting Movement, Position And Angle
Configuration file 11 Reporting movement, position and angle The binary value Blind_N_in_motion reports whether the drive is in motion or not. The analogue values Blind_lengthFB_N and Slat_positionFB_N report the current position in percent and the current slat angle in degrees. They have already been mentioned above in the preparation of the control programmes. -
Page 16: Configuration File
The following lines each contain a property with a perma- nently stored value, first the property name and then the value after an equal sign. The block for the device object comes first. ; Configuration of BACnet 4M230.8I AP, automatically gener- ated [device]... - Page 17 File access The COV increment and present value lines only exist for permanently stored values. [binary-input 1] object-name= description= inactive-text=off active-text=on These properties contain texts with UTF8 encoding. See above. [binary-value 1] object-name= description= inactive-text=stopped active-text=running These properties contain texts with UTF8 encoding. See above. present-value=0 The present value line only exists for objects with permanently stored values.
-
Page 18: File Access With Baceye/Sc
PC). Restoring factory setting A config file is provided on the WAREMA homepage for this purpose. It must then be imported via config upload, after which all parameter values and de- scriptions / names are reset to factory settings. -
Page 19: Baudrate, Ms/Tp-Adresse, Werksreset
Notes Restoring configuration file Select "Data transfer / Restore" in the menu. Then enter the file name (on the PC). Then select the device or several devices and click "Restore". This access works with BACeye/SC v3.0.4.4. This access does NOT work with BACeye/SC v3.0.3.6 and BACeye/SC v3.0.2.5. - Page 20 WAREMA Renkhoff SE • Hans-Wilhelm-Renkhoff-Strasse 2 • 97828 Marktheidenfeld • Germany www.warema.de • info@warema.de...
