Summary of Contents for rulmeca EPS-AS1

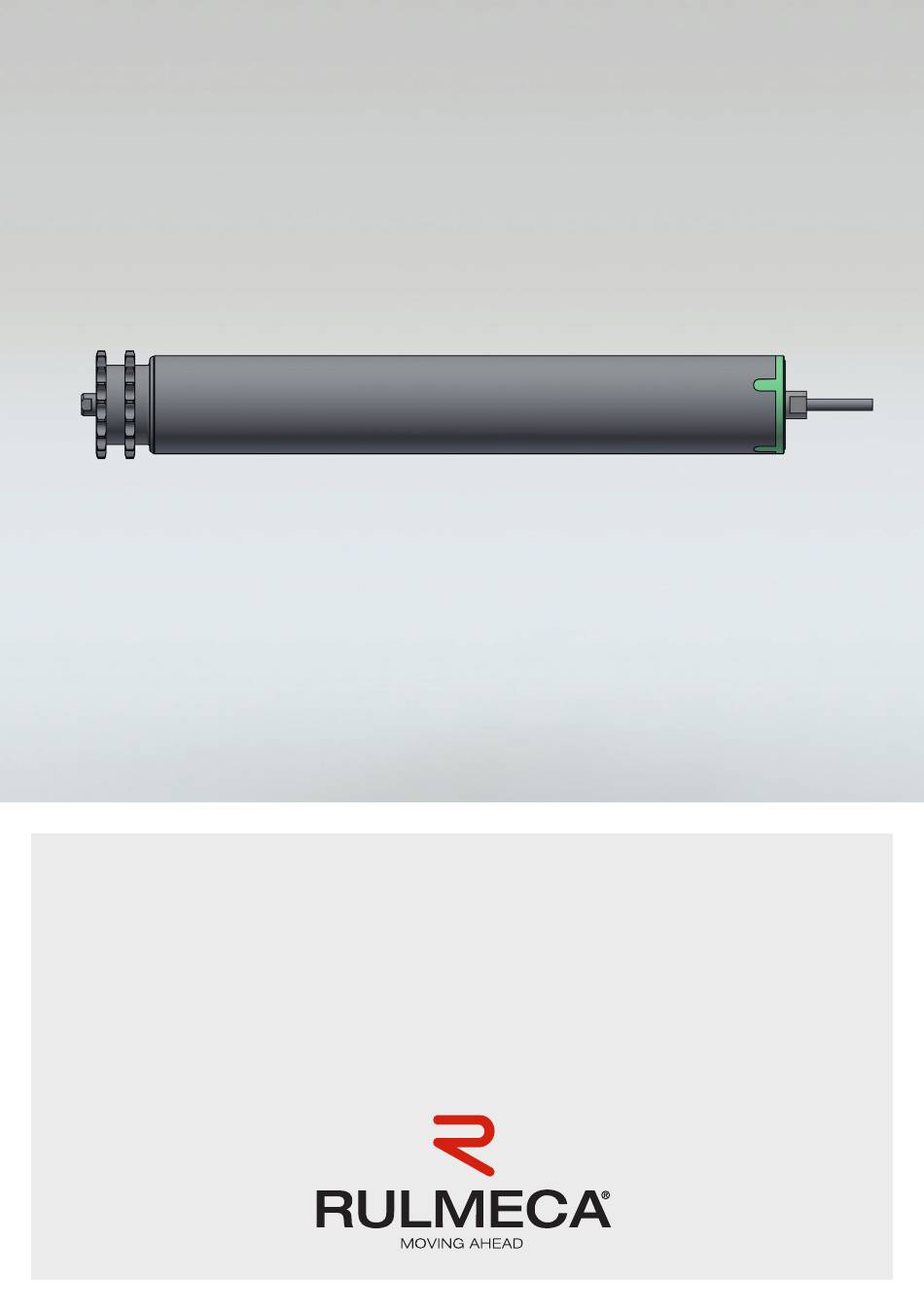

- Page 1 USER MANUAL EPS-AS1 PALLET ROLLER...
- Page 3 1. This Technical Manual is protected 12. Operation by copyright 12.1 General Information 2. Information on using the technical manual 12.2 Installation of EPS-AS1 3. Legislation adopted in mounting brackets 4. Basic safety instructions 12.3 Ambient Temperature 5. General Information on This Manual 13.
- Page 4 The owner of the copyright for this Technical This technical manual contains instructions for Manual is Rulli Rulmeca S.p.A. choosing and installing the EPS-AS1 Pallet Roller. This document contains design instructions and Read this technical manual carefully before applicational and technical drawings.
-
Page 5: Basic Safety Instructions
3. LEGISLATION ADOPTED 5. GENERAL INFORMATION ON THIS MANUAL The EPS-AS1 roller is classified like a partly completed machinery following the Machinery This document refers to the Rulmeca EPS-AS1 Directive 2006/42/EC (Annex II B) Roller. All information can be accessed in electronic format at https://www.rulmeca.com/... -
Page 6: Warning Information
• in conveyor systems • in material handling • in unit handling The EPS-AS1 roller must be integrated into a conveyor unit or system in industrial environments. The EPS AS1 is designed exclusively for the described range of use. - Page 7 The EPS-AS1 is not designed for continuous conveyor to move (including EPS-AS1 roller). rotation (S1 cycle, S2 cycle). Do not walk on the EPS-AS1 roller or on the Do not use the EPS-AS1 in ATEX conveyor / facility in which it is installed.
-
Page 8: Product Description
The EPS-AS1 roller must The EPS-AS1 roller runs oilless and can be used in not be exposed to accidental impacts different environments with fine dust exposure. - Page 9 Connection Diagrams EPS-AS1 brake version ye/gn ye/gn EPS-AS1 std version ye/gn ye/gn...
-
Page 10: Product Information Label
International Electrotecnichal Commission: Poles number Poles number standard for drum motors Duty cycle Duty cycle Brake data (optional) Rated frequency Rated frequency Manufacturer address Rated power Rated power Serial numbers Power factor Power factor Rated voltage Rated voltage EPS-AS1 PALLET ROLLER... - Page 11 10. DIMENSIONS All length-related dimensions in the catalog and in the manual comply with the requirements of DIN/ISO 2768 (medium quality). Pinion Type P2C 5/8" Z=15 Ø47/89 P2C 5/8" Z=15 Ø47/89 P2C 5/8" Z=18 Ø47/89 P2C 5/8" Z=18 Ø47/89 Stationary brake Standard version version C min...
-
Page 12: Assembly And Installation
20 H7 ( 20.02 • Using the mounting bracket included with EPS-AS1 is recommended • Please check that 100% of the EPS-AS1 key flats are supported by the braket (cable side) • Please check that the distance between the flats and the holder is free of play. -
Page 13: Installation
11.2 Installation 11.5 Electrical connection The electrical installation/connection must • Connect the EPS Roller according to the be carried out by a licensed electrician and connection diagram. comply with local electrical standards. 1. Check that the motor protection is set The motor must be connected and secured correctly. -
Page 14: Operation
Check parallelism and right distance among elements. 100% of the key surfaces of the EPS-AS1 are inside the brackets, free from play. The EPS-AS1roller can also be installed... - Page 15 • Make sure that all metal parts (roller support • All EPS Roller are reversible. profiles, rollers, EPS-AS1 rollers and any - Design the conveyer drive control movable parts of the roller conveyor) are system so that the EPS Roller comes to grounded.
-
Page 16: Transport And Storage
30 min • Do not stack more than four cardboard boxes on top of each other. • Store the EPS-AS1 in a clean, dry and enclosed location at +15 to +30 °C; EPS-AS1 PALLET ROLLER... -
Page 17: Maintenance
17. MAINTENANCE 18. REPLACEMENT PARTS AND ACCESSORIES Always bring the system up to the latest technical safety standard during/after maintenance work or 18.1 Motor Thermal Protection when replacing the EPS Roller. All EPS Roller motors are supplied with a Caution: Risk of injury due to improper built-in thermal protector. - Page 18 To prevent any malfunctions, screen and properly fix the motor cables from the motor to the frequency inverter in accordance with the European Directive for Electromagnetic Compatibility EMV - 2014/30/EU EPS-AS1 PALLET ROLLER...
-
Page 19: Troubleshooting
- Too many frequent start/stops. Reduce number of start/stops or utilize an inverter for optimized operation. Short circuit Send the EPS Roller back to RULMECA for inspection. Replace EPS Roller ■ EPS ROLLER OPERATES NOISY Cause Solution Mounting play Check mounting. -
Page 20: Warranty Terms
RULMECA grants a manufacturer’s warranty up against unfavorable conditions, unless specified to 24 months for the RULMECA product from the in writing and signed by RULMECA. date of invoice, against defective materials and/ • wear of shaft seals, rubber lagging and/or other or manufacturing failure. -
Page 21: Conformity Declaration
VII B are available and will be presented to the competent national authorities electronically, if required. Person authorized to prepare the technical documents: ***name”””, Rulli Rulmeca. The partly completed machinery complies with the following EC directives: • Low Voltage Directive 2014/35/EU •... - Page 22 NOTES EPS-AS1 PALLET ROLLER...
- Page 24 Rulmeca Holding S.p.A Via A. Toscanini 1 - I-24011 Almè (BG) Italy - Tel. 035 430 0111 - export-it@rulmeca.com Please contact your local Rulmeca Company, you will find our contact details in our web site: rulmeca.com...
