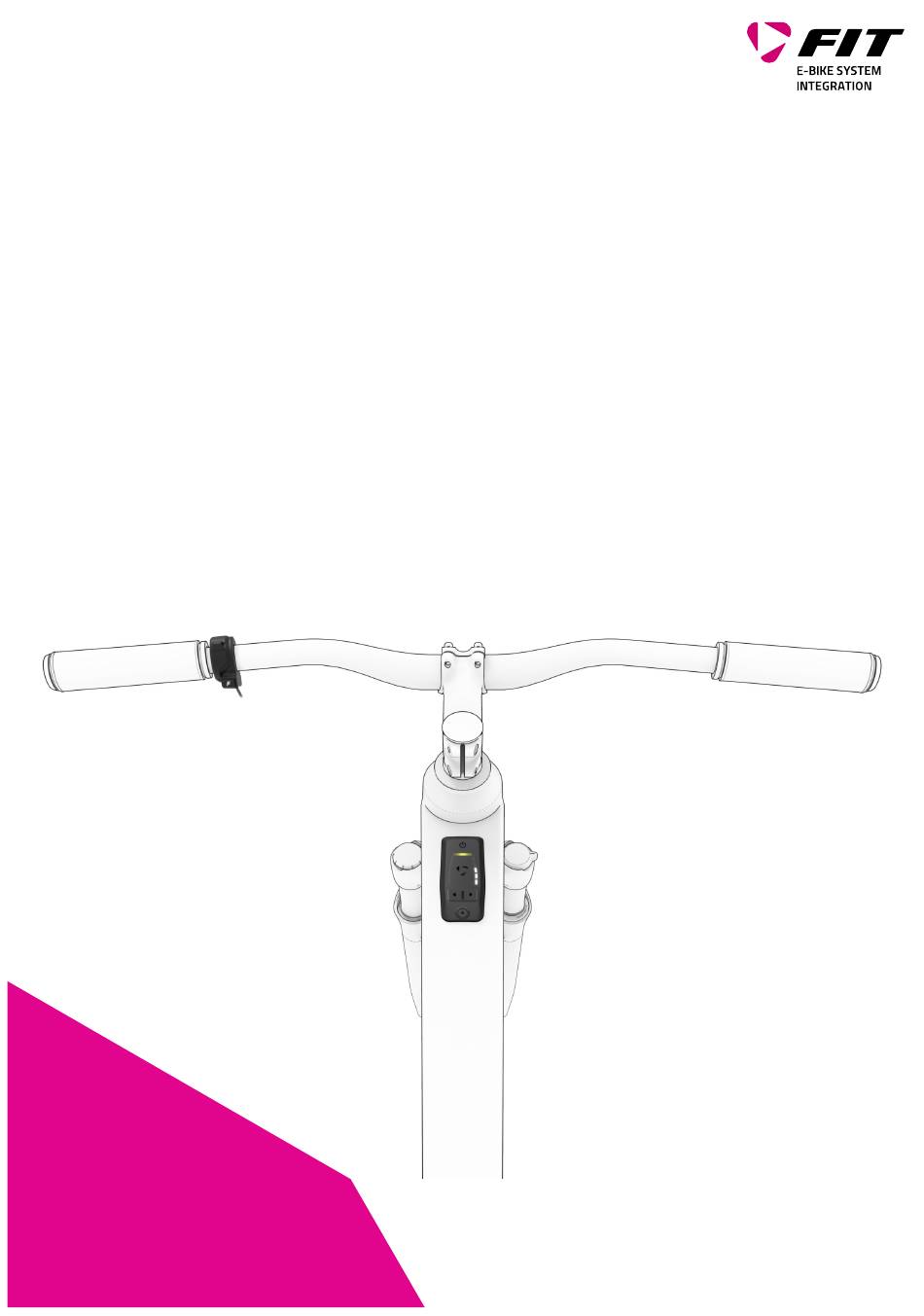

- Page 1 INSTRUCTION MANUAL FIT MASTER NODE BASIC + FIT REMOTE PURE LEFT PINION 501301 | 501303 Biketec GmbH Luzernstrasse 84 NETWORKED CH-4950 Huttwil CUSTOMISED T +41 62 959 53 00 INTELLIGENT info@biketec.ch fit-ebike.com...
-
Page 2: Table Of Contents
3.1 GENERAL INFORMATION ..........3.2 CONTROL ELEMENT AND FIT MASTER NODE BASIC ...... - Page 3 8.1 TESTING AND TROUBLESHOOTING ........38 8.1.1 THE DRIVE SYSTEM OR FIT MASTER NODE BASIC DO NOT START ....38 8.1.2 ERROR IN ASSISTANCE .
-
Page 4: Preface
INSTRUCTION MANUAL FIT MASTER NODE BASIC + FIT REMOTE PURE LEFT PINION 1 PREFACE Dear FIT customer, The FIT system offers many useful functions and options and we are pleased that you have decided to choose our system. Please read through the operating instructions carefully to ensure you use the system safely and get off to a quick start. -
Page 5: About These Operating Instructions
INSTRUCTION MANUAL FIT MASTER NODE BASIC + FIT REMOTE PURE LEFT PINION 2 ABOUT THESE OPERATING INSTRUCTIONS 2.1 MANUFACTURER Biketec GmbH Luzernstrasse 84 CH-4950 Huttwil fit-ebike.com/en-en/ 2.2 LANGUAGE The original operating instructions are written in German. A translation is invalid without the original operating in- structions. -
Page 6: Safety Instructions
Don’t let yourself be distracted by the LED display. If you don’t concentrate fully on traffic, you risk becoming in- volved in an accident. Do not open either the control element or the FIT Master Node Basic. They can be damaged if they are opened and any warranty claims will be forfeited. -
Page 7: Product And Technical Specifications
4.1 FIT MASTER NODE BASIC The FIT Master Node Basic controls the e-bike system and uses LEDs to indicate the assistance level and the charge level of the e-bike battery. The Master Node Basic is installed in the upper tube of the e-bike. The Master Node Basic is secured with a spring at the top and a screw at the bottom. -
Page 8: Fit Remote Pure Left
INSTRUCTION MANUAL FIT MASTER NODE BASIC + FIT REMOTE PURE LEFT PINION 4.2 FIT REMOTE PURE LEFT The FIT Remote Pure with ring control and function button is the ideal accessory for every e-bike rider who wants full control of their assistance level. The ring on the remote enables intuitive control of the assistance level by simply rotating it. -
Page 9: Pinion Te1 E-Trigger
INSTRUCTION MANUAL FIT MASTER NODE BASIC + FIT REMOTE PURE LEFT PINION 4.3 PINION TE1 E-TRIGGER The compact Pinion TE1 e-trigger gear lever has been specially developed for shifting with Pinion Smart.Shift shift technology. The goal was to provide clear haptic feedback. With a defined lever path and sophisticated micro button tuning, you can precisely initiate each shifting process. -
Page 10: Intended Use
FIT MASTER NODE BASIC + FIT REMOTE PURE LEFT PINION 4.4 INTENDED USE The FIT Master Node Basic and the FIT Remote Pure Left are designed for controlling a FIT e-bike system and dis- playing riding data. 4.5 IMPROPER USE Improper use refers to use which is not described under proper use or goes beyond proper use. -
Page 11: Operation
INSTRUCTION MANUAL FIT MASTER NODE BASIC + FIT REMOTE PURE LEFT PINION 5 OPERATION 5.1 INITIAL OPERATION 5.1.1 ELECTRIC DRIVE SYSTEM SWITCHING ON THE ELECTRIC DRIVE SYSTEM The system can only be switched on if a sufficiently charged battery is installed. -
Page 12: Assistance Modes
5.1.3 ASSISTANCE MODES You can adjust the assistance level with the buttons Decrease assistance / increase (FIT Master Node Basic) and Ring Down / Up (FIT Remote Pure Left). Each assistance level has a specific position to make things easier for riders who are color blind. - Page 13 INSTRUCTION MANUAL FIT MASTER NODE BASIC + FIT REMOTE PURE LEFT PINION FLOW Motor assistance for energy-saving cross-country trips or moderate off-road terrain Minimal motor assistance with optimum efficiency for maximum range. No motor assistance. The e-bike rides like a normal bicycle. All on-board computer func- tions are available.
-
Page 14: Pushing Aid
INSTRUCTION MANUAL FIT MASTER NODE BASIC + FIT REMOTE PURE LEFT PINION 5.1.4 PUSHING AID (Only available in conjunction with FIT Remote Pure left.) Pushing aid mode enabled: all LEDs light up white. Pushing aid started: the white island moves up slowly. -
Page 15: Lights
Off: LEDs come on in white from top to bottom and then disappear again. The lights are switched on or off by briefly pressing the on /off / light button of the FIT Master Node Basic. Vari- ous lighting systems are installed depending on the area of use and bicycle type. If this has a daytime running light function, the system will always switch automatically between low beam and daytime running light. -
Page 16: During Charging
INSTRUCTION MANUAL FIT MASTER NODE BASIC + FIT REMOTE PURE LEFT PINION 1 to 4% charge The lowest LED flashes quickly 0% charge The lowest LED flashes quickly and the assistance level LEDs light up red. 5.3.2 DURING CHARGING Each battery charging status LED that comes on represents approximately 20% of the bat- tery capacity. -
Page 17: Accessories
INSTRUCTION MANUAL FIT MASTER NODE BASIC + FIT REMOTE PURE LEFT PINION 5.4 ACCESSORIES 5.4.1 BIKE LOCK WITHOUT ELECTRONIC LOCK (Only via FIT E-Bike: Control app or hand-held transmitter) CLOSE LOCKING finished : All LEDs flash blue 4x quickly. LOCKED: All LEDs light up steady blue. -
Page 18: Special Operating Modes
No battery display. All LEDs pulse gently in white always at full brightness The FIT Master Node Basic has to be restarted to quit the Maintenance mode. 5.5.2 OEM, TEST, NOT FOR SALE MODE The upper and lower LEDs flash alternately in green and red when starting... -
Page 19: Software Update Mode
INSTRUCTION MANUAL FIT MASTER NODE BASIC + FIT REMOTE PURE LEFT PINION 5.5.3 SOFTWARE UPDATE MODE Every second LED on the motor assistance indicator lights up green and every second LED on the battery indicator lights up white. 5.6 SIGNAL TONES... -
Page 20: Error Messages
INSTRUCTION MANUAL FIT MASTER NODE BASIC + FIT REMOTE PURE LEFT PINION 6 ERROR MESSAGES 6.1 GENERAL The parts of the e-bike system are constantly monitored for errors during use and charging. 6.2 ERROR DISPLAY LEDs flash orange. No motor assistance The motor assistance is not available again until the error has been remedied and the sys- tem restarted. - Page 21 INSTRUCTION MANUAL FIT MASTER NODE BASIC + FIT REMOTE PURE LEFT PINION Error code Error message displayed Action / Restriction 0A-0A, 0B-0A Remote charger communication 1. Restart the system. error 2. Switch the system off. 3. Disconnect the charger from the system and socket.
- Page 22 INSTRUCTION MANUAL FIT MASTER NODE BASIC + FIT REMOTE PURE LEFT PINION Error code Error message displayed Action / Restriction 0C-0B Remote lock identification error 1. Restart the system. 2. If the problem persists, please contact your specialist dealer. 0D-01 Motor authentication error 1.
- Page 23 INSTRUCTION MANUAL FIT MASTER NODE BASIC + FIT REMOTE PURE LEFT PINION Error code Error message displayed Action / Restriction 0F-02 Display update error 1. Restart the system. 2. Switch the system off. 3. Remove display from holder, check contacts and clean if necessary.
- Page 24 INSTRUCTION MANUAL FIT MASTER NODE BASIC + FIT REMOTE PURE LEFT PINION Error code Error message displayed Action / Restriction 12-03, 12-04, Remote battery pairing error 1. Restart the system. 12-05, 12-06 2. Switch the system off. 3. Remove the battery from the holder, check contacts and clean if necessary.
- Page 25 INSTRUCTION MANUAL FIT MASTER NODE BASIC + FIT REMOTE PURE LEFT PINION Error code Error message displayed Action / Restriction 15-07 Remote speed node pairing error 1. Restart the system. 2. If the problem persists, please contact your specialist dealer.
- Page 26 INSTRUCTION MANUAL FIT MASTER NODE BASIC + FIT REMOTE PURE LEFT PINION Error code Error message displayed Action / Restriction 16-0A Charger theft detection 1. Restart the system. 2. Switch the system off. 3. Disconnect the charger from the system and socket.
- Page 27 INSTRUCTION MANUAL FIT MASTER NODE BASIC + FIT REMOTE PURE LEFT PINION Error code Error message displayed Action / Restriction 17-0B Lock defective component 1. Restart the system. 2. If the problem persists, please contact your specialist dealer. 18-00 Remote start error 1.
- Page 28 INSTRUCTION MANUAL FIT MASTER NODE BASIC + FIT REMOTE PURE LEFT PINION Error code Error message displayed Action / Restriction 1A-02 Manipulation detected 1. Check mounting position of the magnet and Speed sensor missing speed sensor. 2. Restart the system.
- Page 29 INSTRUCTION MANUAL FIT MASTER NODE BASIC + FIT REMOTE PURE LEFT PINION Error code Error message displayed Action / Restriction 26-xx Battery lock (ABUS) error 1. Restart the system. 2. If the problem persists, please contact your specialist dealer. 29-xx up to 47-xx...
- Page 30 INSTRUCTION MANUAL FIT MASTER NODE BASIC + FIT REMOTE PURE LEFT PINION Error code Error message displayed Action / Restriction 49-07 Motor error 1. Switch the system off. E-bike battery not ready 2. Remove the battery. 3. Check plug contacts on the battery and e-bike and clean if necessary.
- Page 31 INSTRUCTION MANUAL FIT MASTER NODE BASIC + FIT REMOTE PURE LEFT PINION Error code Error message displayed Action / Restriction 4D-03 Gear error 1. Release pedals so that wheel can shift into the Release pedals required speed for the pushing aid, wait 3 seconds.
- Page 32 INSTRUCTION MANUAL FIT MASTER NODE BASIC + FIT REMOTE PURE LEFT PINION Error code Error message displayed Action / Restriction 67-01, 67-03, Battery voltage error 1. Restart the system. 67-06, 67-12 2. If the problem persists, please contact your specialist dealer.
- Page 33 INSTRUCTION MANUAL FIT MASTER NODE BASIC + FIT REMOTE PURE LEFT PINION Error code Error message displayed Action / Restriction 69-02, 69-09 Battery temperature error 1. Turn off the e-bike. 2. Allow the battery to cool down (> 60 minutes).
- Page 34 INSTRUCTION MANUAL FIT MASTER NODE BASIC + FIT REMOTE PURE LEFT PINION Error code Error message displayed Action / Restriction 6D-xx Battery authentication error 1. Check whether the correct battery is installed (36V / 48V). 2. Check the plug contacts on the battery and bicycle and clean if necessary.
- Page 35 INSTRUCTION MANUAL FIT MASTER NODE BASIC + FIT REMOTE PURE LEFT PINION Error code Error message displayed Action / Restriction 97-xx Charger current error 1. Check whether the correct battery is installed (36V / 48V). 2. Disconnect the charger from the system and socket.
- Page 36 INSTRUCTION MANUAL FIT MASTER NODE BASIC + FIT REMOTE PURE LEFT PINION 8B-xx up to 92-xx Error code Error message displayed Action / Restriction 8B-xx Gears authentication error 1. Restart the system. 2. If the problem persists, please contact your specialist dealer.
-
Page 37: Cleaning And Servicing
INFO-CIR Note If water enters the FIT Master Node Basic or the FIT Remote Pure Left, they will be destroyed. Never immerse the FIT Master Node Basic or the FIT Remote Pure Left in water. Never clean with a high-pressure cleaner, water jet or compressed air. - Page 38 8 TROUBLESHOOTING, FAULT CLEARANCE AND REPAIR 8.1 TESTING AND TROUBLESHOOTING 8.1.1 THE DRIVE SYSTEM OR FIT MASTER NODE BASIC DO NOT START If the display and/or drive system do not start, proceed as follows: 1. Check if the battery is inserted correctly. If not, insert the battery correctly.
- Page 39 INSTRUCTION MANUAL FIT MASTER NODE BASIC + FIT REMOTE PURE LEFT PINION Symptom Cause / Possibility Remedy The assisted The battery properties deteriorate This does not indicate a problem. journey distance in winter weather. is too short. The journey distance may be 1.
- Page 40 INSTRUCTION MANUAL FIT MASTER NODE BASIC + FIT REMOTE PURE LEFT PINION 9 RECYCLING AND DISPOSAL 9.1 DISPOSAL Mechanical and electrical equipment, accessories and packaging should be recycled in an environmentally sound manner. Don’t throw them in the garbage! Only for EU countries: According to European Directives 2012/19/EU, 2006/66/EC and their transposition into national law, defective or unusable waste electrical and electronic equipment, rechargeable batteries and batteries must be collected separately and recycled in an environmentally sound manner.
