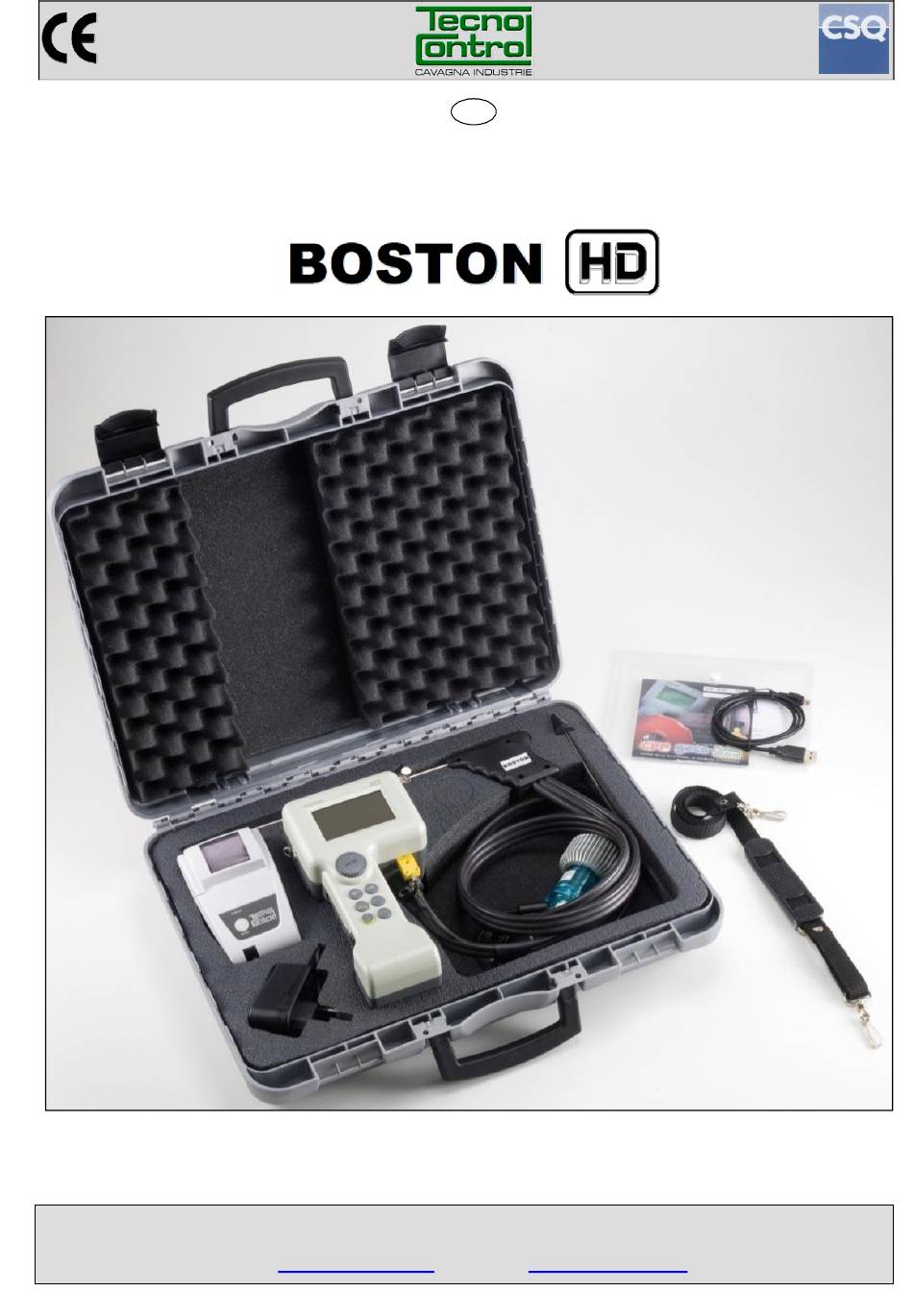

- Page 1 IST-5110.BS01.02 File: IST-5110.BS01.02_BOSTON.docx Portable Flue Gas Analyser Instruction manual TECNOCONTROL S.r.l. Via Miglioli, 47 20090 SEGRATE (MI) Italy - Tel. (+39) 02 26922890 - Fax (+39)02 2133734 http: www.tecnocontrol.it E-mail: info@tecnocontrol.it...
- Page 2 NOTE: The present manual is valid for instruments with firmware 3.00 versions and later versions Documento / Document name: IST-5110.BS01.02_BOSTON.docx Oggetto / Subject : Rev. Data / Date Da / By Note 10/06/2012 UT/AF Prima release Tecnocontrol S.r.l . - Via Miglioli, 47 - 20090 SEGRATE (Milano) Tel. +39 0226922890 - Fax +39 022133734...
-
Page 3: Table Of Contents
“Store” ............................21 4.4.2 “Show” ............................21 4.4.3 “Archive” ............................21 4.4.3.1 “Status” ............................. 21 Tecnocontrol S.r.l . - Via Miglioli, 47 - 20090 SEGRATE (Milano) Tel. +39 0226922890 - Fax +39 022133734... - Page 4 9.3 Formulas for calculation of parameter (air-tight) ................30 9.4 Characteristics ............................. 31 Guarantee ..............................32 Notes ............................... 33 Tecnocontrol S.r.l . - Via Miglioli, 47 - 20090 SEGRATE (Milano) Tel. +39 0226922890 - Fax +39 022133734...
-
Page 5: Introduction
USB cable for PC PC. Power supply: the plug where to connect battery charger (from main). Flue gases Ejection: Where analyzed flue gasses are ejected. Tecnocontrol S.r.l . - Via Miglioli, 47 - 20090 SEGRATE (Milano) Tel. +39 0226922890 - Fax +39 022133734... -
Page 6: Warnings And Preliminary Operations
The “status” led of the printer start blinking, indicating that charging is in progress d) At charging end the “status” led of printer shuts down. Tecnocontrol S.r.l . - Via Miglioli, 47 - 20090 SEGRATE (Milano) Tel. +39 0226922890 - Fax +39 022133734... -
Page 7: Flue Gasses Probe Connection
To use the probe, connect it to the instrument (by the plug indicated in the side image) and access to the menu external probe. See paragraph 4.3.6“06 External probe” of this manual Tecnocontrol S.r.l . - Via Miglioli, 47 - 20090 SEGRATE (Milano) Tel. +39 0226922890 - Fax +39 022133734... -
Page 8: User Interface: Keyboard And Display
End of charging icon: it appears at the end of the battery charging. Indicates the end of charge. Tecnocontrol S.r.l . - Via Miglioli, 47 - 20090 SEGRATE (Milano) Tel. +39 0226922890 - Fax +39 022133734... - Page 9 Memorization screen Memorized Message displayed as confirmation of memorizing a Value parameter Printing screen PRINTING Message displayed during printing PROGRESS Tecnocontrol S.r.l . - Via Miglioli, 47 - 20090 SEGRATE (Milano) Tel. +39 0226922890 - Fax +39 022133734...
-
Page 10: Use Of The Instrument
Customer test…. Oxygen autocheck….. sensor OXYGEN In case of sensor fault, the instrument indicates the SENSOR problem. FAULT Replace cartridge Tecnocontrol S.r.l . - Via Miglioli, 47 - 20090 SEGRATE (Milano) Tel. +39 0226922890 - Fax +39 022133734... - Page 11 “Combustible” of this manual For more details on suction measuring please see section 4.3.2 “02 Draught” of this manual. Tecnocontrol S.r.l . - Via Miglioli, 47 - 20090 SEGRATE (Milano) Tel. +39 0226922890 - Fax +39 022133734...
-
Page 12: Flow Chart
Store Analysis Show actual analysis File Show analysis archive Store Show Archive Print analysis (1 or more copies) Print Customers Show customers archive Tecnocontrol S.r.l . - Via Miglioli, 47 - 20090 SEGRATE (Milano) Tel. +39 0226922890 - Fax +39 022133734... -
Page 13: Menu
T f = 6 5 . 7 °C M = Z e r o E = Print Cancel M e m o r y Tecnocontrol S.r.l . - Via Miglioli, 47 - 20090 SEGRATE (Milano) Tel. +39 0226922890 - Fax +39 022133734... -
Page 14: 03 Pressure
In this case, before the CO ambient screen, a message will appear with a warning, requesting the confirmation of the use of standard CO sensor. Tecnocontrol S.r.l . - Via Miglioli, 47 - 20090 SEGRATE (Milano) Tel. +39 0226922890 - Fax +39 022133734... -
Page 15: Parameters
A, B, CONFIRM CO2max are not known. ENTER: m o d i f y Tecnocontrol S.r.l . - Via Miglioli, 47 - 20090 SEGRATE (Milano) Tel. +39 0226922890 - Fax +39 022133734... -
Page 16: O 2 Reference
The calculation of the concentration of undiluted gas is carried out with reference to the O2 set in [Menu]-[05 Parameters]-“02 Ref. O ” Tecnocontrol S.r.l . - Via Miglioli, 47 - 20090 SEGRATE (Milano) Tel. +39 0226922890 - Fax +39 022133734... -
Page 17: Boiler Temp
Pressurize the system at a pressure equal to or greater than 100mbar and start the procedure with "menu" Tecnocontrol S.r.l . - Via Miglioli, 47 - 20090 SEGRATE (Milano) Tel. +39 0226922890 - Fax +39 022133734... -
Page 18: 07 Leak Test - Uni 11137-1
Q = 0 , 0 0 d m 3 / h 0 0 m 5 2 s E = Start M = Z e r o E = Print Tecnocontrol S.r.l . - Via Miglioli, 47 - 20090 SEGRATE (Milano) Tel. +39 0226922890 - Fax +39 022133734... -
Page 19: 07 Leak Test - Preliminary Uni 11137-1
"Menu" and "left arrow" keys. 4.3.8.2 “Language” Configuring the instrument language (user interface language and language of printing) 4.3.8.3 “CO Alarm” Configuring the CO alarm Tecnocontrol S.r.l . - Via Miglioli, 47 - 20090 SEGRATE (Milano) Tel. +39 0226922890 - Fax +39 022133734... -
Page 20: Co Exclusion
C u s t o m e r s An analysis can be seen, memorized, retrieved from archive, printed, insert or select a customer, check the Tecnocontrol S.r.l . - Via Miglioli, 47 - 20090 SEGRATE (Milano) Tel. +39 0226922890 - Fax +39 022133734... -
Page 21: Store
"left arrow" to the previous one, with "Enter" go to the next line. To delete letters, press and hold simultaneously the "Menu" and "left arrow" keys Tecnocontrol S.r.l . - Via Miglioli, 47 - 20090 SEGRATE (Milano) Tel. +39 0226922890 - Fax +39 022133734... -
Page 22: Infrared Printer
2. Remove the 4 batteries and insert the new ones matching the polarity For more information about the printer please consult the manual supplied with the product. Tecnocontrol S.r.l . - Via Miglioli, 47 - 20090 SEGRATE (Milano) Tel. +39 0226922890 - Fax +39 022133734... -
Page 23: Maintenance
When the filter becomes gray (number of Bacharach scale soot of about 2-3), must be replaced Tecnocontrol S.r.l . - Via Miglioli, 47 - 20090 SEGRATE (Milano) Tel. +39 0226922890 - Fax +39 022133734... -
Page 24: Additional Filter
6.6 Sensor cartridges replacement With the new Tecnocontrol models of sensors, it is possible, in case of emergency, the replacement of the single sensor or of all sensors. It is also possible to replace the pump or even... -
Page 25: Firmware Update
Start update " 5. Wait for the confirmation of completion of programming, the instrument restarts in normal operation mode. Tecnocontrol S.r.l . - Via Miglioli, 47 - 20090 SEGRATE (Milano) Tel. +39 0226922890 - Fax +39 022133734... -
Page 26: Accessories And Spare Parts
Additional filter kit Power Internal suction pump Lithium battery supplier/charger SP100 Heat EL010 KP400 exchangers/radiators Selenoid valve Leak test kit cleaning brush Tecnocontrol S.r.l . - Via Miglioli, 47 - 20090 SEGRATE (Milano) Tel. +39 0226922890 - Fax +39 022133734... -
Page 27: Further Reading
The temperature of condensation of the flue moisture What is the reference of O2 (Oxygen) ? The data according to the norm for dry CO calculation Tecnocontrol S.r.l . - Via Miglioli, 47 - 20090 SEGRATE (Milano) Tel. +39 0226922890 - Fax +39 022133734... - Page 28 Air test pressure, expressed in Pascal What is Pe ? System working pressure What is f ? Coefficient of viscosity of the gas Tecnocontrol S.r.l . - Via Miglioli, 47 - 20090 SEGRATE (Milano) Tel. +39 0226922890 - Fax +39 022133734...
-
Page 29: Formulas For Calculation Of Parameter (Flue Gas Analysis)
CO is not always zero, but it may vary rifO depending on the regional standards, the calculation on the side is applied. Tecnocontrol S.r.l . - Via Miglioli, 47 - 20090 SEGRATE (Milano) Tel. +39 0226922890 - Fax +39 022133734... -
Page 30: Formulas For Calculation Of Parameter (Air-Tight)
Qe is the dispersed gas flow operating in working conditions previously calculated, Pg and Pe are defined by the standards depending on the family of gas Tecnocontrol S.r.l . - Via Miglioli, 47 - 20090 SEGRATE (Milano) Tel. +39 0226922890 - Fax +39 022133734... -
Page 31: Characteristics
Bluetooth (optional) Protection index IP40 Dimensions 240mm x 130mm x 110mm Weight Approx 1,4 Kg Weight (with case) Approx 3 Kg (with case) Tecnocontrol S.r.l . - Via Miglioli, 47 - 20090 SEGRATE (Milano) Tel. +39 0226922890 - Fax +39 022133734... -
Page 32: Guarantee
DURATION Tecnocontrol Srl, in the presence of defects for which it is established the liability of the manufacturer, guarantees the product for a period of 24 months from date of purchase by the end Customer (hereof named the Customer), which is proven by a valid receipt issued by the authorized dealer. -
Page 33: Notes
IST-5110.BS01.02 BOSTON/ Users’s instructions Page.33/36 11 Notes Tecnocontrol S.r.l . - Via Miglioli, 47 - 20090 SEGRATE (Milano) Tel. +39 0226922890 - Fax +39 022133734... - Page 34 IST-5110.BS01.02 BOSTON/ Users’s instructions Page.34/36 Tecnocontrol S.r.l . - Via Miglioli, 47 - 20090 SEGRATE (Milano) Tel. +39 0226922890 - Fax +39 022133734...
- Page 35 IST-5110.BS01.02 BOSTON/ Users’s instructions Page.35/36 Tecnocontrol S.r.l . - Via Miglioli, 47 - 20090 SEGRATE (Milano) Tel. +39 0226922890 - Fax +39 022133734...
- Page 36 Improper disposal of the product by the holder imply the application of administrative penalties provided by law. Tecnocontrol S.r.l . - Via Miglioli, 47 - 20090 SEGRATE (Milano) Tel. +39 0226922890 - Fax +39 022133734...
