Sealey RPS5 Instructions

thank you for purchasing a sealey product. Manufactured to a high standard this product will, if used according to these instructions and
properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS.
USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE
DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
 WARNING! Before use, ensure that there is nothing attached to the front forks, the fairing, or the rear end of the motorcycle, that
will foul the stand.
Maintain the stand in a good clean condition for the best and safest performance.

Locate the stand and motorcycle in a suitable area. Keep area clean and tidy and free from unrelated materials and ensure that

there is adequate lighting. Also ensure that the floor/ground is level and strong enough (preferably concrete) to take the weight
of the stand and the motorcycle.
 DO NOT mount the stand on tarmacadam, as the surface may be unstable.
Maintain correct balance and footing whilst positioning the motorcycle on the stand, do not over reach and wear non-slip footwear.

Ensure that the floor is not slippery.

Keep children and unauthorised persons away from the work area.

 DO NOT use the stand for a purpose it is not designed to perform.
 DO NOT operate the stand if it is damaged.
 DO NOT use the stand when you are tired or under the influence of alcohol, drugs or intoxicating medication.
 DO NOT allow untrained persons to operate the stand.
DO NOT make any modifications to the stand.

Before removing a motorcycle from the stand, ensure that there are no obstructions or persons around the motorcycle.

Keep hands and fingers away from moving parts and support pins.

If using as a front stand, always use in conjunction with another suitable rear stand to ensure full stability.

 DO NOT operate the stand if parts are missing or damaged.
 DO NOT attempt to transport a load on the stand.
When not in use, store in a safe, dry, childproof location.

2. INTRODUCTION & SPECIFICATION
2.1. Introduction.

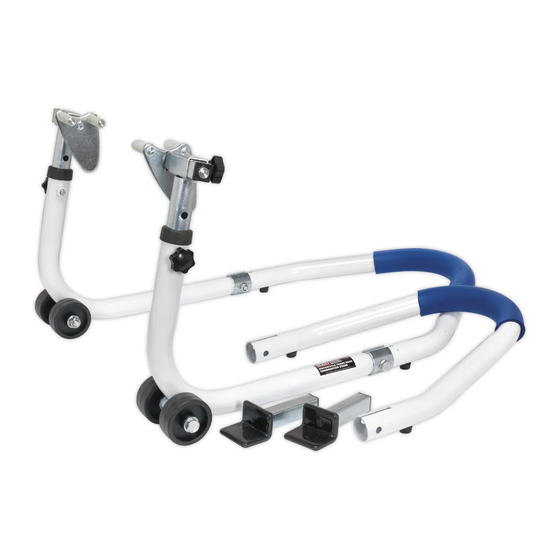

Lifts and stabilises any dual arm sports bike quickly and easily. Fitted with width and angle adjustable rubber support pads.
Rubber supports mounted on heavy-duty box section for continuous professional use. Bobbin Supports available as an
optional extra - Model No. RPS1BS.
2.2. Specification.
Model No: ....................................................................... RPS5
Minimum/Maximum front support Width: ............. 135-250mm
Minimum/Maximum rear support Width: .............. 220-365mm
Minimum/Maximum Height Adjustment: ................ 320-385mm
3. ASSEMBLY INSTRUCTIONS
3.1. The stand is flat packed and requires minimal assembly before first use.
3.1.1. Attach the two side frames to the main handle frame using two metal clamps and a nut and bolt for each side. use the narrow handle
for front fitment and the wide handle for rear fitment. Ensure that the clamps, nuts and bolts are fitted correclty, and tighten them so
that there is no movement in the stand. Ensure that the stand sits squarely when placed on the ground.
3.1.2. slide the two fork support frames into the side frame tops and lock in place with the plastic handled locking clamps. fit the required
supports - the flat rubber supports for rear fitment (fig.1) or the fork supports for front fitment (fig.2). note that the fork supports are
handed and should be assembled as in fig.2.
© Jack sealey Limited
InstructIons for:
Motorcycle Height Adjustable Front/Rear
Combination Stand
MoDEL no:
fig.1
Original Language Version
RPS5
fig.2
rPs5 Issue: 1 - 25/05/12
