1 Overview
1

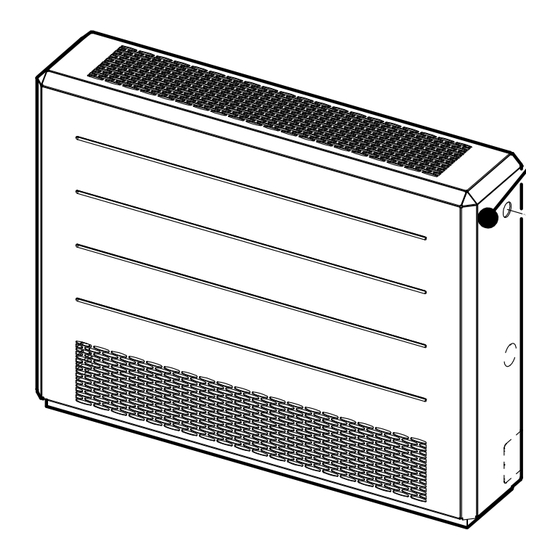

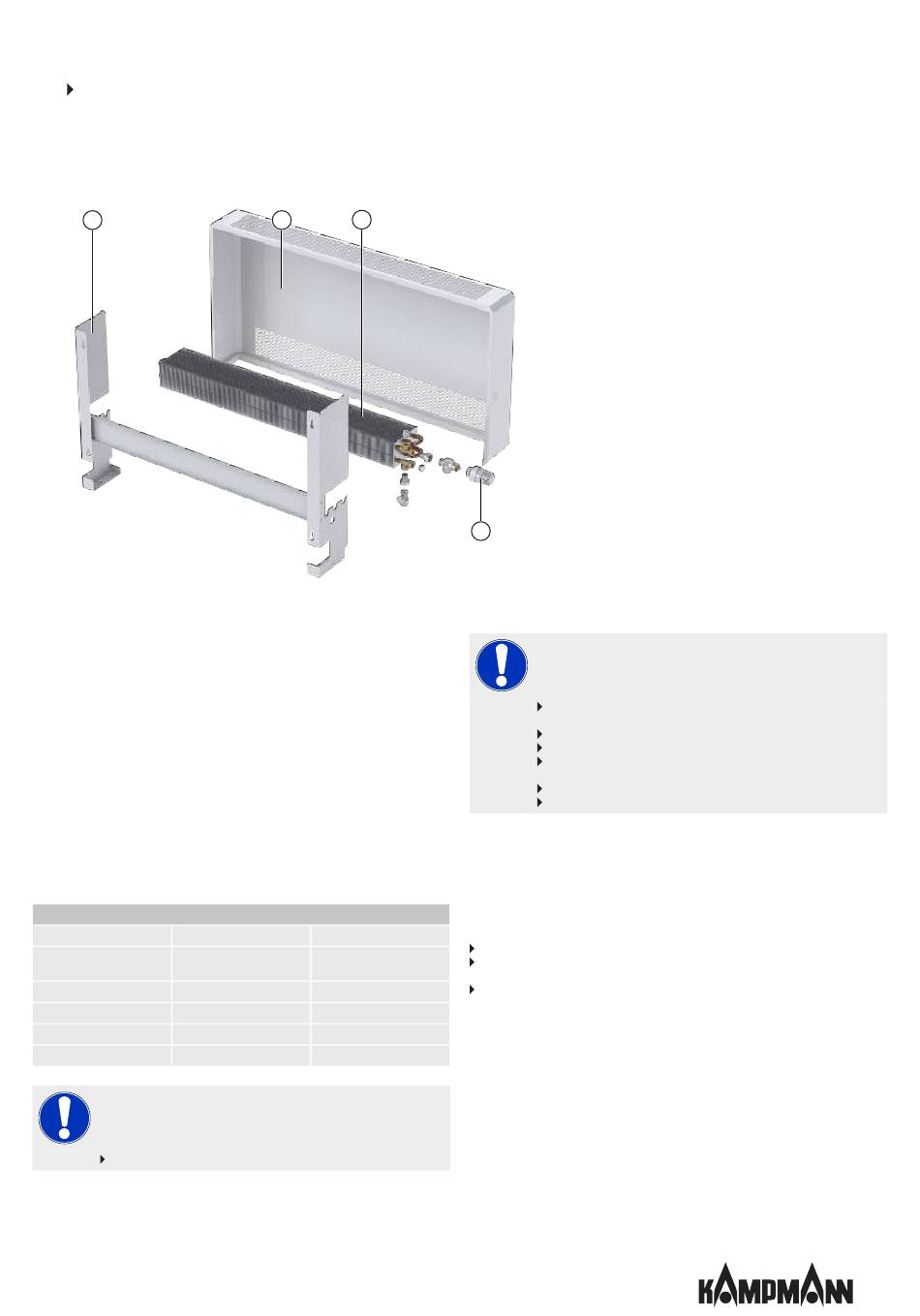

PowerKon ST at a glance
2 Safety
This section provides an overview of all important safety aspects to ensure optimum protection
of personnel as well as safe and trouble-free operation. In addition to the safety instructions in
these operating instructions, the valid safety, accident prevention and environmental protection
regulations must be observed for the area of use of the unit. It is the duty of the operator to en-
sure that instructions relating to maintenance (e.g. relating to hygiene) are complied with.
2.1 Correct use
The units are used to heat all areas of buildings that need to be heated in winter. Within the
room to be heated, the unit needs to be connected to the building's heating/cooling/ventilation
system and to the building's sewage system and power grid. The operating limits and limits of
use described in Chapter 2.2 [} 5] must be observed.
Intended use of the unit also includes adherence to these instructions.
Any use beyond or other than the stated intended use is considered as misuse.
Any modification to the unit or use of non-original spare parts will cause the expiry of the war-
ranty and will invalidate the manufacturer's liability.
2.2 Limits of operation and use
Limits of operation
Min./max. water temperature °C
Min./max. air intake temper-
°C
ature
Min./max. air humidity %
Min. operating pressure bar/kPa
Max. operating pressure bar/kPa
Min./max. glycol percentage %
IMPORTANT NOTE!
Danger of frost in cooling mode!
There is a risk of the heat exchanger freezing when used in unheated rooms.
Protect the unit from frost.
SAP 1995455 04/24
3
2
15-90
15-40
15-75
-
10/1000
25-50
4
1
2
3
4
IMPORTANT NOTE!
Warning of misuse!
In the event of misuse, as itemised below, there is a danger of limited or failing
operation of the unit. Ensure that the airflow can circulate freely.
Never operate the unit in humid areas, such as swimming pools, wet areas
etc.
Never operate the unit in rooms with an explosive atmosphere.
Never operate the unit in aggressive or corrosive atmospheres (e.g. sea air).
Never operate the unit above electrical equipment (such as switch cabinets,
computers or other electrical units, or contacts that are not drip-proof).
Never use the unit as a construction site heater.
Never operate the unit in areas with a high dust content.
2.3 Personnel requirements - Qualifications
Expertise
The installation of this product requires specialist knowledge of heating, cooling, ventilation, in-
stallation and electrical engineering.
Damage caused by improper installation is the responsibility of the operator or installer. The in-
staller of these units should have adequate knowledge of the following gained from specialist
professional training
Safety and accident prevention regulations
Country-specific guidelines and recognised technical regulations, i.e. Association of German
Electricians (VDE) regulations, DIN and EN standards.
VDI 6022; maintenance personnel must be trained to Category B (possibly Category C) to
comply with hygiene requirements (as required).
2.4 Personal Protective Equipment
Personal protective equipment is used to protect people from impaired safety and health when
working with the unit. The applicable accident prevention regulations at the place of use apply
in all cases.
PowerKon ST
Assembly instructions
Kampmann GmbH & Co. KG
Friedrich-Ebert-Str. 128-130
49811 Lingen (Ems)
T: +49591/7108 0
E: info@kampmann.de
www.kampmann.de
Wall bracket
Casing
Coil
Actuator
1
