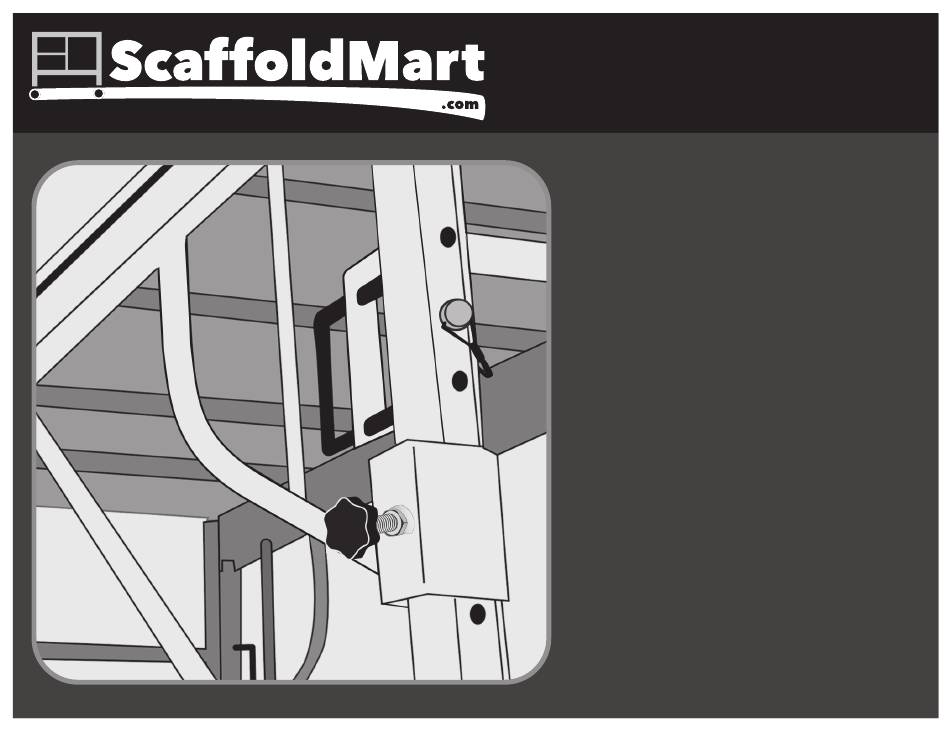

MULTIFUNCTION STABILITY KIT
USERS MANUAL
& SAFETY GUIDE
Thoroughly read this
manual before assembling
or using scaffolding unit.
Failure to do so can result in
injury or death.
Seriously... read it.
One Year Warranty
This product is guaranteed for one year
against flaws in materials and craftsmanship
MODEL: MFSTABKIT
1
Advertisement
Related Manuals for ScaffoldMart MFSTABKIT
Summary of Contents for ScaffoldMart MFSTABKIT
- Page 1 MULTIFUNCTION STABILITY KIT MODEL: MFSTABKIT USERS MANUAL & SAFETY GUIDE Thoroughly read this manual before assembling or using scaffolding unit. Failure to do so can result in injury or death. Seriously... read it. One Year Warranty This product is guaranteed for one year...
- Page 2 Prior to Use ` Only use ScaffoldMart caster jacks to adjust height of casters. Never attach any other material to extend leg of unit. Do not increase height of scaffold units by any means other than utilizing manufacturer parts designated for that purpose.
- Page 3 STABILITY KIT INSTRUCTIONS APPLYING STABILITY BRACES Set up the 6’ Multifunction Unit by following the instruction manual supplied with your unit before installing the stability kit. A. Loosely secure clamp around square frame tube, with brace extending up and inward of frames. Fully assembled B.
- Page 4 Set up the 6’ Multifunction Unit by following the instruction manual supplied with your unit before installing the stability kit. APPLYING RAIL CLAMPS APPLYING CASTER LOCKS A. Apply rail clamp around siderail bracket and frame tube. A. Caster locks must be used in conjunction with span pins. B.
