Summary of Contents for Riegl RBLI 8S1P
- Page 1 RIEGL DUAL CHARGER RIEGL CHARGING STATION for RBLI 8S1P Technical Data and User Instructions...
- Page 2 In no event shall RIEGL be liable for any loss of profit or any other commercial damage caused or alleged to have been caused directly or indirectly by this document.
- Page 3 Rev. 2023-09-05 (BA 01) Revision History: RIEGL technology is protected by one or more of the following patents: AT 408 701, AT 408 818, AT 411 299, AT 412 029, AT 412 030, AT 412 031, AT 412 032, AT 413 452,...
-
Page 4: Table Of Contents
Electrical and Environmental Specifications ............8 LED and Power Connector ..................9 Cables ........................10 Safety and Warning Instructions ................11 Charging Station RBLI-CS150 for RBLI 8S1P (optional) ....... 12 Mechanical Specifications ..................12 Electrical and Environmental Specifications ............13 LED and Power Connector ..................13 Cables ........................14... -
Page 5: Warnings, Signs, And Symbols
NOTE The “NOTE” information alerts to a situation that may cause equipment damage but no personal injury. GENERAL WARNING OPTICAL RADIATION TEMPERATURE ELECTRICITY RELATED HAZARDS LASER RADIATION EXPLOSION Dual Charger and Charging Station for RIEGL RBLI 8S1P... - Page 6 Improper use or use in contradiction to the instructions given may cause danger and/or injury. It is imperative to read these operating instructions as well as the complete Scanner’s Manual and the General Warnings & Instructions for RIEGL Laser Measurement Instruments carefully before using the device.
-
Page 7: Dual Charger Rbli-Dc100 For Rbli 8S1P

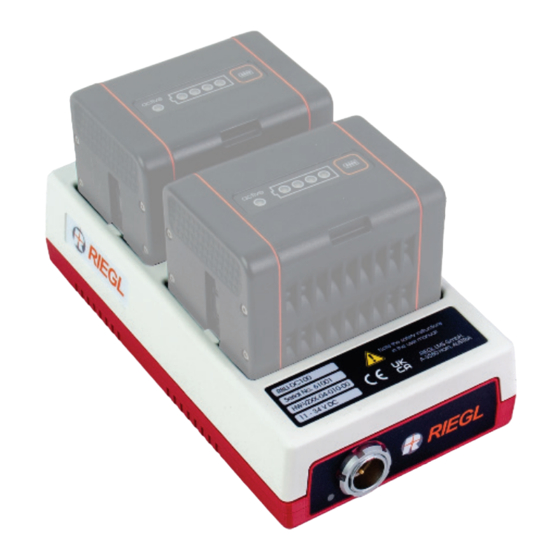

Dual Charger RBLI-DC100 for RBLI 8S1P 7 of 23 2 Dual Charger RBLI-DC100 for RBLI 8S1P The Dual Charger for RIEGL RBI 8S1P can charge two RBLI 8S1P at the same time and is part of the scope of delivery. Part-No. HW-VZXX-04-010-00 Dual Charger for RIEGL RBLI 8S1P 2.1 Mechanical Specifications... -
Page 8: Electrical And Environmental Specifications
40 @ +30°C) Temperature Range Operation 0°C up to +40°C Storage 0°C up to +40°C NOTE The temperature limits of the RBLI 8S1P differ from the temperature limits of the VZ-i scanner! Dual Charger and Charging Station for RIEGL RBLI 8S1P... -
Page 9: Led And Power Connector
CAUTION: voltage or temperature are out of red, blinking specification (try again later or use another power supply source) See chapter 2.2 “Electrical and Environmental Specifications” Signal Note Power Supply + Power Supply Ground Dual Charger and Charging Station for RIEGL RBLI 8S1P... -
Page 10: Cables
2.4 Cables Part-No. HW-VZXX-04-000-00 AC Power Supply Unit for VZ-xx NOTE The power supply network connector of the power supply unit may differ from country to country. For details, please contact support@riegl.com Dual Charger and Charging Station for RIEGL RBLI 8S1P... -
Page 11: Safety And Warning Instructions
Never expose the Dual Charger RBLI-DC100 to direct sunlight during charging. Please be careful when inserting the RBLI 8S1P into the Dual Charger RBLI-DC 100. Do not insert the RBLI 8S1P at an angle! Never use force when inserting the RBLI 8S1P into the Dual... -
Page 12: Charging Station Rbli-Cs150 For Rbli 8S1P (Optional)
Charging Station RBLI-CS150 for RBLI 8S1P (optional) 3 Charging Station RBLI-CS150 for RBLI 8S1P (optional) The Charging Station for RIEGL RBI 8S1P can charge up to six RBLI 8S1P at the same time. Charging Station for RIEGL RBLI Part-No. HW-VZXX-04-011-00 8S1P 3.1 Mechanical Specifications... -
Page 13: Electrical And Environmental Specifications
CAUTION: voltage or temperature are out of red, blinking specification (try again later or use another power supply source) 1) See chapter 2.2 “Electrical and Environmental Specifications” Dual Charger and Charging Station for RIEGL RBLI 8S1P... -
Page 14: Cables
14 of 23 Charging Station RBLI-CS150 for RBLI 8S1P (optional) Signal Note Power Supply + Power Supply Ground 3.4 Cables Part-No. HW-VZXX-04-000-00 AC Power Supply Unit for VZ-xx Dual Charger and Charging Station for RIEGL RBLI 8S1P... -
Page 15: Transport Position And Charge Position
Charging Station RBLI-CS150 for RBLI 8S1P (optional) 15 of 23 3.5 Transport Position and Charge Position In RBLI-CS150 for RBLI 8S1P there are two positions for each RBLI 8S1P: The charging position on the one hand, and the transport position on the other hand. -
Page 16: Operating Notes And Requirements
NOTE Recharge the battery RBLI 8S1P immediately after discharging it. An empty RBLI 8S1P battery should not be stored for more than one month before recharging. If this is not observed, the battery may be damaged or become unusable!! -
Page 17: Delivery Status
17 of 23 4.1 Delivery Status NOTE After receiving the RBLI 8S1P, please immediately charge the battery fully! Due to transport conditions and self-discharge, the battery may not be fully charged on receipt of delivery. E.g., for transport by air flight the battery may only be charged to 24%. -
Page 18: Safety Instructions
Safety Instructions 5 Safety Instructions 5.1 General Safety The RBLI 8S1P meets or exceeds the requirements of the following European Standard: EN 61010-1:2010 Safety requirements for electrical equipment for measurement, control, and laboratory use Part 1: General Requirements Note the following explanations and important instructions:... -
Page 19: Electromagnetic Compatibility
For details, please refer to the corresponding CE declaration document of the Dual Charger and the Charging Station, which is included in the printed version of manual package in the chapter “Certificates & Licenses”. Dual Charger and Charging Station for RIEGL RBLI 8S1P... -
Page 20: Additional Safety Hints And Requirements
WARNING Do not place the RBLI 8S1P near a device that may generate sparks (such as a switch or fuse) and do not place the RBLI 8S1P close to open fire. The RBLI 8S1P may generate a flammable gas when charged excessively. -
Page 21: Handling And Operation
CAUTION Keep the RBLI 8S1P, the Dual Charger and the Charging Station out of the reach of small children at all times! NOTE Fully charge the RBLI 8S1P after receiving. -
Page 22: Storage
Additional Safety Hints and Requirements 6.3 Storage NOTE Before storing the RBLI 8S1P, charge the RBLI 8S1P to 40 %. Store the RBLI 8S1P in a dry place to prevent rust from forming on the terminals. Recharge the RBLI 8S1P every 3 months! CAUTION Keep the RBLI 8S1P away from rainwater that could cause corrosion on the terminals of the RBLI 8S1P. -
Page 23: Disposal
23 of 23 6.5 Disposal When your RIEGL instrument finally reaches the end of its life-cycle, please take care for proper disposal according to Directive 2006/66/EC on batteries and accumulators and waste batteries and accumulators as well as Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).
