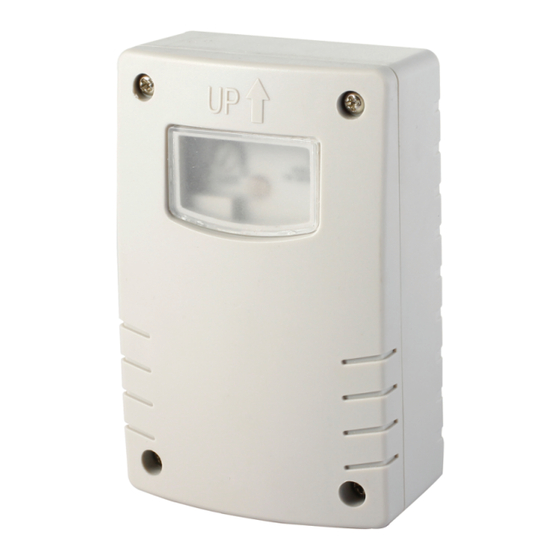

ZINK ZN25156 User Instructions

Photocell Timer
With Dusk to Dawn Feature
ZN25156
User Instructions
This product should be disposed of responsibly at the end of its life. Please recycle
where facilities exist. Check with your Local Authority or retailer for recycling advice
(Waste Electrical and Electronic Equipment Directive)
Helpline
If you receive this item with parts broken or missing, please telephone:
Please have ready your name, address, tel. no., product reference, where purchased and parts
required. An answering service is in operation outside office hours and during busy periods.
We regret that we are unable to give advice on internal house wiring.
Cascade Holdings Ltd, Gorse Mill, Gorse Street, Chadderton, Oldham. OL9 9RJ
V6
0333 0050077
Welcome to use ST300 light-control sensor!
This item is an automatic photocell switch for lamps. When the ambient-light
that you set in advance, the light will turn on. The light will turn off at the preset time or
ambient-light is more than the setting LUX. It adds the functions of LUX adjustable and TIME
setting. It is easy and comfortable to use.
SPECIFICATION:
Power source: 220-240V/AC
Rated Current: 10A
Working Temperature: -20~+40
Built-in Timer: 1, 2, 3, 4, 5, 6, 7, 8, 9 Hours
FUNCTION:
LUX setting: turn LUX knob anti-clockwise to "3"position, the photocell will only work in the
dark (less than 3LUX). If turn clockwise to "500" position, it will work when the ambient light is
less than 500LUX.
TIME setting: you can set the regular working hours of the photocell as needed
INSTALLATION:
Switch off the power.
Loose the four screws on the cover and take down the cover.
Connect the wire with the product as per the connection-wire diagram.
According to the correct installation place, install the product with the enclosed inflated
screws.
Install back the cover. Switch on the power,
And then test it.
FIGURE
darken
Power Frequency: 50/60Hz
Ambient Light: <3-500LUX (adjustable)
Working Humidity: <93%RH
IP class: IP65
INCORRECT CORRECT
to the LUX
