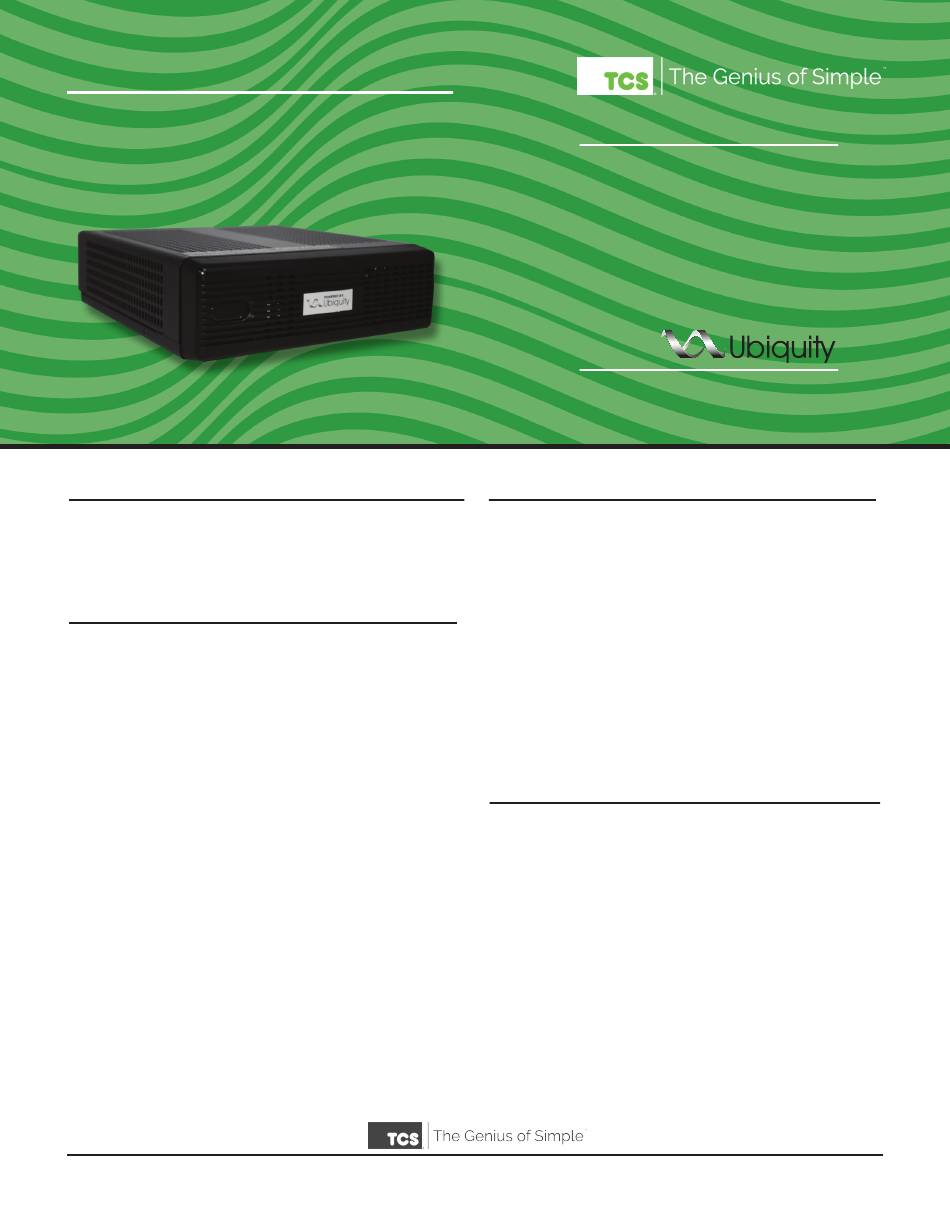

Product Manual

Description

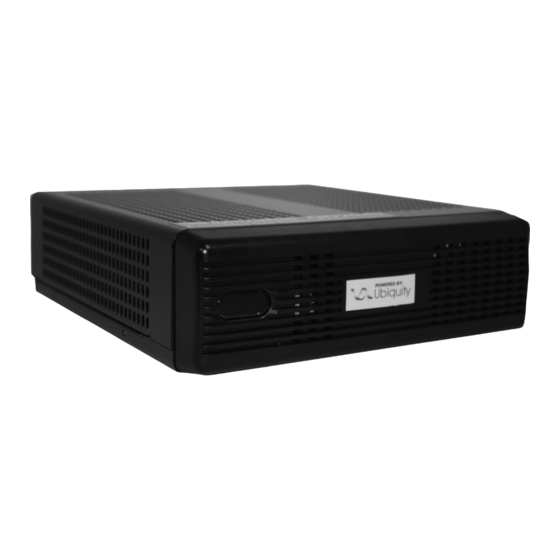

The QD2040a Ubiquity Site Gateway connects
the site controller network with the central Ubiquity
server.

Features

• Site gateway to Ubiquity: enables controller's interoper-
ability with Ubiquity
• Enables Ubiquity to maintain controller programming and
scheduling
• Compatible with all TCS Basys supported controllers
• Controller protocols supported: TCSbus and Modbus
• Supervisory control routines
• Supervisory override strategy
• Auto discovery of networked controllers
• Two integrated RS-485 serial ports
• Additional serial ports can be added via USB ports
• Integrated Ethernet controller with firewall
• Integrated configuration web page
• User adjustable controller monitoring rate
• Remotely upgradeable gateway software
2800 LAURA LANE • MIDDLETON, WI 53562 • (800) 288-9383 • FAX (608) 836-9044 • www.tcsbasys.com
QD2040a
Ubiquity Site Gateway
Contents
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mounting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . .
Checkout and Troubleshooting. . . . . . . . . . . . . . . . . . 6
LED Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Material List

•
QD2040a Ubiquity Site Gateway
•
External Power Supply
•
Wall Mounting Bracket
1
1
1
1
. . . . . . . .
2
2
2
. . . . . . . . 3
. . . . . . . . . . . . . . . . . . .
4
5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QD2040a and is the answer not in the manual?

Questions and answers

Summary of Contents for Ubiquity Smart Technology QD2040a

  • Page 1: Table Of Contents

    Description Contents The QD2040a Ubiquity Site Gateway connects Description ....... . .

  • Page 2: Factory Ip Network Address Configuration

    Upon connection the unit may power up automatically. If it does not, press the power button. Mounting The QD2040a is designed to be hung on a wall using Ethernet: Connect an Ethernet cable to the specific the included mounting bracket and mounting screws. It port on the specified switch on the LAN (this informa- may also be set on a shelf or table.

  • Page 3: Rs-485 Controller Network Wiring & Setup

    RS-485 Controller Network "B" wires. If the QD2040a will be at one end of the net- work, hard wired a 120 Ω terminating resistor across the Wiring & Setup "A" and "B" terminals at the QD2040a (See 1 below). If the QD2040a will be in the middle of the network, do...

  • Page 4: Gateway Configuration Page

    Application Options: You must select a Network Poll- accessed by logging into the Central Server (www.ubiqui- ing Cycle Time for the QD2040a. This is the time interval tysystems.net) not by using this configuration page. that the unit will poll the entire network of controllers on all ports.

  • Page 5: Commissioning Tools

    This section contains settings which control how the to change these login credentials. QD2040a connects out through the LAN or WAN to the Internet. All of these settings are determined by your local Once you are finished entering information in this section, network administrator or IT department.

  • Page 6: Checkout And Troubleshooting

    Power LED does not light up Be sure that the power supply module, included with the QD2040a, is plugged in to an outlet that has power. This is a 12V, 5A, tip positive power supply. No Communications with Controllers on the network...
