User Manual

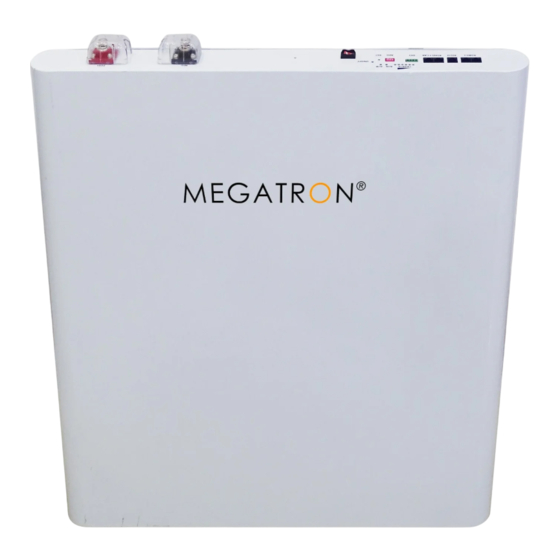

Ultra Slim LiFePO4 Battery Series User Manual
MEG-BATT-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Powerwall 1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Megatron Powerwall 1

  • Page 1 MEGATRON SA LTD 1 / 19 User Manual Ultra Slim LiFePO4 Battery Series User Manual MEG-BATT-1...
  • Page 2 MEGATRON SA LTD 2 / 19 User Manual Change history Change Change time Versions Describe Record 00/01 2023/11/6 New Issue...
  • Page 3: Table Of Contents

    7. Preparation before Inspection..............................7 8. Installation Dimension Drawing..............................8 Appendix......................................9 1. MEGATRON lithium battery RS485/CAN Communication Cable Order (sequence) Instruction........9 2. Dial-up switch settings.................................. 9 3. Schematic diagram of parallel connection..........................11 4. How to set the communication for multiple brands of inverters by host computer............12 5.
  • Page 4: Application

    MEGATRON SA LTD 4 / 19 User Manual 1.Application Be specially designed for multiple energy storage application scenarios including household, data center, and commercial building, bank, hospital, school, railway station, airport and telecom, etc. 2.Feature 3.Advantages ➊ Long Design Life ➋...
  • Page 5: Meg-Batt-1 Specification

    MEGATRON SA LTD 5 / 19 User Manual 4. MEG-BATT-1 Specification Items Specification Product Name Ultra Slim LiFePO4 Battery Module Model MEG-BATT-1 Battery Type LFP 16S Nominal Capacity 5.12kWh Usable Capacity 4.86kWh (95% DOD) Nominal Voltage 51.2V Working Voltage 43.2 ~58.4Vdc Charging Voltage 58.4V...
  • Page 6: Capacity Expansion Solution

    MEGATRON SA LTD 6 / 19 User Manual 5. Capacity Expansion Solution Product Name High Capacity Expandable Battery System Product Model MEG-BATT-1-2P MEG-BATT-1-3P MEG-BATT-1-4P MEG-BATT-1-5P Normal Capacity 10.24 15.36 20.48 25.6 (kWh) Normal Voltage 51.2 51.2 51.2 51.2 Working 43.2~58.4Vdc 43.2~58.4Vdc...
  • Page 7: Folding Inspection

    MEGATRON SA LTD 7 / 19 User Manual 6. Folding Inspection Please check the product before installation. Make sure nothing in the packaging is damaged or missing. You should receive the following items in the package: Picture Category Quantities Ultra Slim LiFePO4 Battery User’s Manual (Please keep it for future...
  • Page 8: Installation Dimension Drawing

    MEGATRON SA LTD 8 / 19 User Manual 8. Installation Dimension Drawing NOTE: The following picture is only a schematic diagram of the equipment. If the actual chassis does not conform to the schematic due to a structural upgrate, it is subject to prior notice.
  • Page 9: Appendix

    User Manual Appendix Communication Setting With Multiple Brands’ Inverters 1. MEGATRON lithium battery RS485/CAN Communication Cable Order (sequence) Instruction as below: 2. Dial-up switch settings when PACK is used in parallel 2.1 Different PACK can be distinguished by setting the dialing switch on BMS to avoid setting the same address.
  • Page 10 MEGATRON SA LTD 10 / 19 User Manual Dial switch: 2.3 BCD CODE:...
  • Page 11: Schematic Diagram Of Parallel Connection

    MEGATRON SA LTD 11 / 19 User Manual 3. Schematic diagram of parallel connection 3.1 1-4 batteries, connect the positive power line of each battery with the positive power line, and the negative power line with the negative power line, as follows: 3.2 5-15 batteries in parallel connection diagram (The positive cable connected to the inverter...
  • Page 12: How To Set The Communication For Multiple Brands Of Inverters By Host Computer

    MEGATRON SA LTD 12 / 19 User Manual 4. How to set the communication for multiple brands of inverters by host computer Factory default setting of inverter communicate, RS485 is Growatt, CAN is DEYE, SUNSYNK,LUXPOWER. If need switch to other protocol, the RS232 crystal head of the communication cable is inserted into the battery communication port, the USB end is inserted into the computer;...
  • Page 13: Chy Inverter Rs485 Communication Setting

    MEGATRON SA LTD 13 / 19 User Manual 4.5 Remark of inverter protocol code: Inverter protocol code remark RS485 Protocol CAN Protocol Protocol code Inverter brand Protocol code Inverter brand ChuangHuiYuan 创汇原 PYLON TECH PYLON TECH 派能 GROWATT GROWAT 古瑞瓦特...
  • Page 14: Luxpower Inverter Can Communication Setting (Default Protocol)

    MEGATRON SA LTD 14 / 19 User Manual Process of installation: Step 1. Use the RS485 cable to connect inverter and lithium battery . Step 2. Replace the battery BMS protocol to “CHY” by BMS tool and host computer.(Please refer to page 4,point 4.2)
  • Page 15: Voltronic Inverter Rs485 Communication Setting

    MEGATRON SA LTD 15 / 19 User Manual Process of installation: Step 1. Use the CAN cable to connect inverter and lithium battery . Step 2. Replace the battery BMS protocol to “LUXPOEWR” by BMS tool and host computer.(Please refer to page 4,point 4.2) Step 3.
  • Page 16: Deye Inverter Can Communication Setting (Compatible Sunsynk,Default Protocol)

    MEGATRON SA LTD 16 / 19 User Manual Process of installation: Step 1. Use the RS485 cable to connect inverter and lithium battery .Please choose the RS485 inverter Step 2. Replace the battery BMS protocol to “VoltronicPower” by BMS tool and host computer.(Please refer to page 4,point 4.2)
  • Page 17 MEGATRON SA LTD 17 / 19 User Manual Process of installation: Step 1. Use the CAN cable to connect inverter and lithium battery . Step 2. Press the button to start lithium battery , power output ready . Replace the battery BMS protocol to “DEYE”...
  • Page 18: Growatt Inverter Rs485 Communication Setting (Default Protocol)

    MEGATRON SA LTD 18 / 19 User Manual 9. Growatt Inverter RS485 Communication Setting (Default protocol) RS485 Dual RJ45 Port(RS485 & CAN): Process of installation: Step 1. Use the RS485 cable to connect inverter and lithium battery . Step 2. Replace the battery BMS protocol to “GROWATT” by BMS tool and host computer.(Please refer to page 4,point 4.2)
  • Page 19: Victron Inverter Can Communication Setting

    MEGATRON SA LTD 19 / 19 User Manual 10. VICTRON Inverter CAN Communication Setting Dual RJ45 Port(RS485 & CAN): Process of installation: Step 1. Use the CAN cable to connect inverter and lithium battery . Step 2. Press the button to start lithium battery , power output ready . Replace the battery BMS protocol to “VICTRON”...
