ALP DESIGN COMPACT Manual

NOMENCLATURE
F
G
E
I
A
C C H
B
A Waist belt | B Leg loops | C Leg loops adjustment buckles | D Belt adjustment buckle | E
Ventral attachment point – made by two webbing loops | F Chest straps | G Rope clamp
webbing | H Gear loops | I Rear buckle
Main materials: aluminium alloy, polyamide and polyester
A Cintura | B Cosciali | C Fibbie di regolazione dei cosciali | D Fibbia di regolazione della
cintura | E Punto di attacco ventrale – composto da due anelli di fettuccia | F Bretelle | G
Fettuccia per bloccante ventrale | H Porta-materiali | I Fibbia posteriore
Principali materiali: lega di alluminio, poliammide e poliestere
A Ceinture | B Passages de jambes | C Boucles d'ajustement aux passages de jambes
| D Boucle d'ajustement à la ceinture | E Point d'attache ventrale – composé de deux
boucles de sangle| F Sangles de poitrine | G Sangle pour le bloqueur ventral | H Support
porte-matériel | I Boucle arrière
Matériaux principaux: alliage d'aluminium, polyamide et polyester
A Gürtel | B Beinschlaufen | C Verstellschnallen an den Beinschlaufen | D Gurtverstellung
Schnalle | E Bauchbefestigungspunkt – aus zwei Schlingen | F Schultergurte | G
Gurtband für die Seilklemme | H Materialträger | I Hintere Schnalle
Hauptmaterialien: Aluminium Legierung, Polyamid und Polyester
A Cinturón | B Perneras | C Hebillas de ajuste de las perneras | D Hebilla de ajuste
del cinturón | E Punto de enganche ventral – compuesto por dos anillos de cinta | F
Hombreras| G Cinta para el bloqueador ventral | H Soporte de material | I Hebilla trasera
Principales materiales: aleación de aluminio, poliamida y poliéster
9T0.064 COMPACT
www.alpdesign.it
Read and always follow the information supplied by the manufacturer
Leggere e seguire sempre le informazioni fornite dal fabbricante
Toujours lire et suivre les informations fournies par le fabricant
Die Angaben des Herstellers müssen immer gelesen und befolgt werden
Lea siempre y respete la información proporcionada por el fabricante
Download the declaration of conformity at:
Scarica la dichiarazione di conformità da:
Télécharger la déclaration de conformitè sur:
Laden Sie die Konformitätserklärung herunter von:
Descargar la declaratión de conformidad en:
www.kong.it/conformity
Please calculate the lifespan of the device according to:
Calcola la vita utile del dispositivo in accordo a:
Calculer la durée de vie de le dispositif selon:
Berechnen Sie die Lebensdauer der Vorrichtung nach:
Calcular la vida útil del dispositivo según:
www.kong.it/en/life/
KONG S.p.A. - Via XXV Aprile, 4 23804 Monte Marenzo (LC) - Italy
Y5883000BEK
+39 0341 630506 | info@kong.it
SPECIFIC INFORMATION
Category III Personal Protective Equipment 9T0.064 COMPACT (fi g. 1)
is a sit harness:
- equipped with a ventral attachment point (E) composed by two
webbing loops;
- certifi ed according to EN 12277:2015+A1:2018 type C;
- conforming to UIAA 105;
- suitable for use in mountaineering, including rock climbing, and for
supporting a conscious body in a sitting position;
- to be used in prevention and protection against fall from a height.
D
Wearing
- Loosen the adjustment straps on the belt (A) and leg loops (B);
H
- thread the legs through the belt (A) and leg loops (B) – (fi g. 2);
- tighten the adjustment straps on the belt (A) and leg loops (B);
- lock the belt webbing back into the buckle (D), ensuring that the
"DANGER" writing remains covered (fi g. 2);
- it is possible to join the two webbing loops of the ventral attachment
point (E) with a quick link (fi g. 3).
How to attach the rope clamp: connect the rope clamp to the harness
using the quick link and support it through the webbing (G) – (fi g. 4).
Note: The upper part of the harness facilitates the positioning of the
ventral rope clamps; when not in use can be removed by pulling out the
webbing from the rear buckle (I).
Important:
- the belt (A) should be always above the waist. The user should be
able to shove 2 fi ngers between the harness and the body (fi g. 5);
- before using the harness, in an absolutely safe position, carry
out movements and suspension tests to ensure that it is correctly
adjusted and comfortable for the intended use;
- check the buckles regularly during use.
Use
The ventral attachment point (E), suitable for use in mountaineering
including climbing (fi g. 6, 7 and 8), is composed by two webbing loops
that must be used together.
Tie a fi gure-of-eight knot at the attachment point (fi g. 9).
Important: Regularly check the knot closure.
It is also possible to connect to the ventral attachment point using two
connectors with screw sleeves positioned opposite each other (fi g. 10).
Caution: do not tie on using only one connector (fi g. 11).
Compatibility
This device is designed to be used with:
- ropes according to EN 892, EN 1891;
- slings according to EN 566;
- connectors according to EN 362, EN 12275;
- energy absorbers according to EN 958.
Caution, danger of death:
- prolonged suspension on the harness, especially in motionless
conditions, may cause harness hang syndrome (or suspension
trauma) that can lead to loss of consciousness and even death;
- the ventral attachment point (E) is not suitable for creating a fall arrest
system;
- examples of incorrect and dangerous tying (fi g. 12).
Checks before and after use
Before and after use, make sure that the device is in an effi cient
condition and that it is working properly, in particular, check that:
- it is suitable for the intended use;
- textile parts do not have cuts, burns, chemical residues, excessive
hair, wear, in particular check the areas in contact with metal
components (buckles, attachment point, etc.);
- stitching is intact, and there are no cut or loose threads;
- metal parts are free of cracks, corrosion, mechanical deformation
and that any wear and tear is only of an aesthetic nature;
- buckles work correctly (adjusting, closing and locking);
- markings, including labels, are legible.
Certifi cation
This device has been certifi ed by the notifi ed body no. 2008 Dolomiticert
S.c.a.r.l. Zona Industriale Villanova 7/a - 32013 Longarone BL – Italy

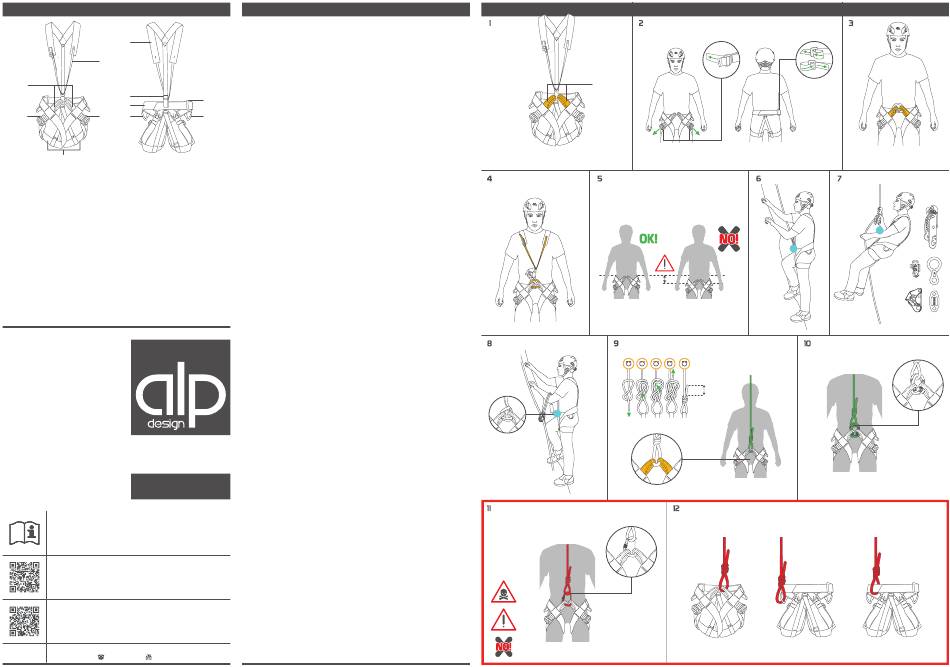

DRAWINGS
Master Text
EN 12277/C
10 cm
