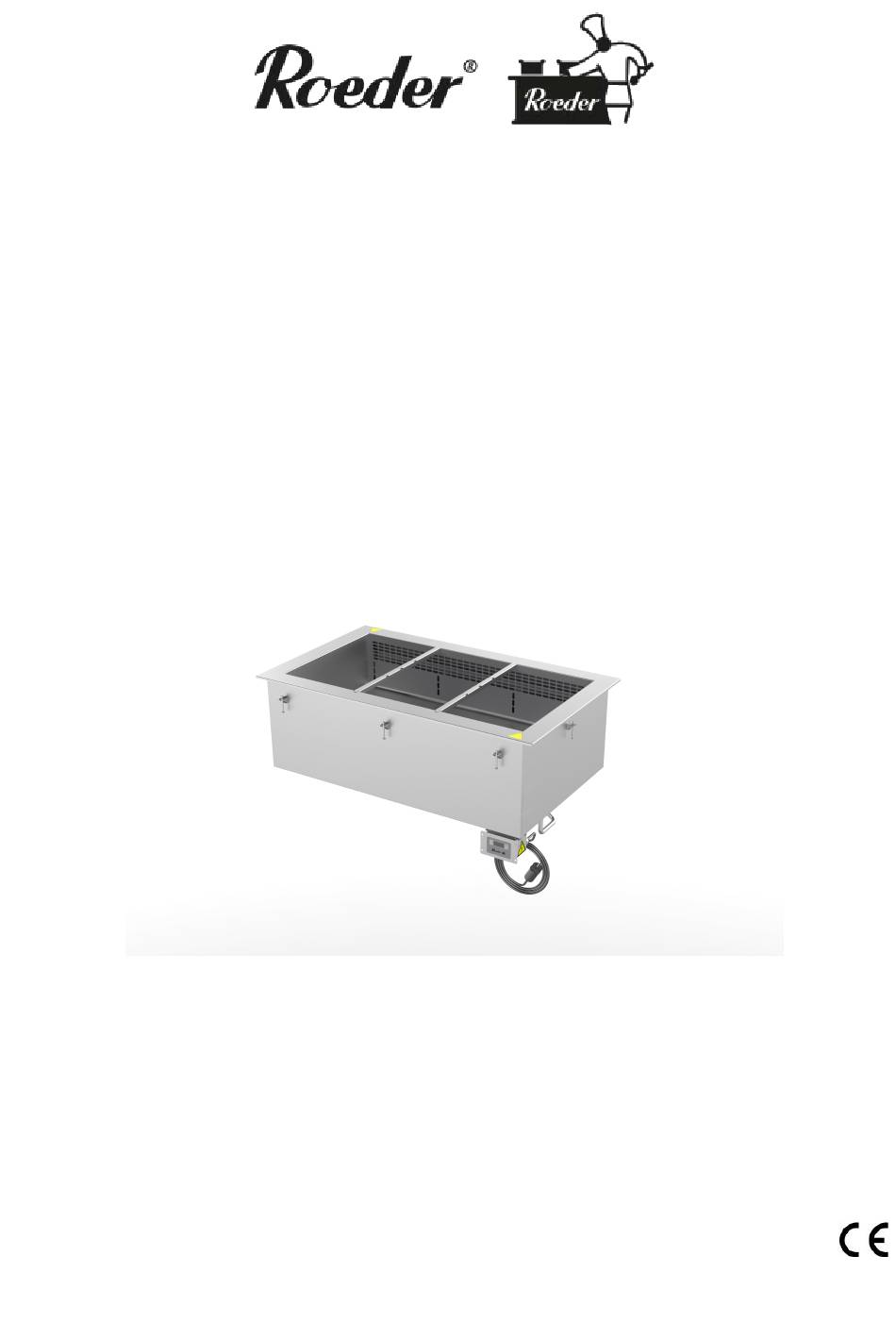

- Page 1 DROP-IN DRY BAIN MARIE Z-UWMV1, Z-UWMV2, Z-UWMV3, Z-UWMV4, Z-UWMV5, Z-UWMV6 Installation, Operation and Maintenance Manual VALID FROM 2022...
- Page 2 One of the key issues in catering sector is serving hot food and therefore being able to keep needed temperatures for as long as needed. There Roeder can offer a variety of efficient appliances, designed to keep prepared foods at serving temperature without affecting quality. The used materials are selected for attractive appearance, optimum performance and maximum durability.
-
Page 3: Table Of Contents
Contents General information ........................... 4 1.1. Specifications .............................. 4 1.2. Instruction for use ............................4 1.3. Receiving equipment ..........................4 1.4. Operating ..............................5 1.5. Service ................................ 7 Installation ..............................9 2.1. General requirements ..........................9 2.2. Location ..............................10 2.3. -
Page 4: General Information
1. General information 1.1. Specifications Model Z-UWMV1 Z-UWMV2 Z-UWMV3 Z-UWMV4 Z-UWMV5 Z-UWMV6 Type Drop-in dry bain marie Number of GN1/1-200 pans Working temperature, +30°C…+85°C °C Dimensions LxBxH, mm 452x650x351 774x650x351 1099x650x351 1424x650x351 1749x650x351 2074x650x351 Shipping weight, kg Power, W 1000... -
Page 5: Operating
Monitor food temperatures closely for food safety. Roeder is not responsible for actual food product serving temperature. It is the responsibility of the user to ensure that food product is held and served at a... - Page 6 ELECTRIC SHOCK, FIRE OR BURN INJURIES CAN OCCUR IF THIS EQUIPMENT IS NOT USED PROPERLY. TO REDUCE RISK OF INJURY: • Have the unit installed by qualified service personnel; • Plug only into grounded electrical outlets matching the required voltage; •...
-
Page 7: Service
1.5. Service To avoid serious injury or damage, never attempt to repair this equipment or replace a damaged power cord yourself. Contact a qualified professional repair service. Always disconnect the product before servicing or replacing any electrical component. Replacement of controller. To replace the controller, disconnect the power supply, and unscrew the bolts holding the control panel. - Page 8 Replacement of the heater drop-in. To replace the heating element(s), disconnect the power supply, unscrew the bolts, washer and the screws holding the cover. Remove the cover. Disconnect heating element(s) wires from the connecting chokes. Replace the heating element (s) and assemble in reverse order.
-
Page 9: Installation
N.B. When changing heating element, note that the power must be 1000 W (originally 2000 W). 2 wires are used for connection. 2. Installation 2.1. General requirements This unit must be installed by qualified, trained installers. Installation must conform to all local electrical and plumbing codes. -
Page 10: Location
2.2. Location Locate the unit a minimum of 25 mm from combustible walls and materials. If save distances are not maintained, combustion or discoloration could occur. Locate the unit at proper counter height in an area that is convenient for use. The appliance must be installed on a stable, strong enough to support the weight of unit and contents and level surface. -
Page 11: Mounting
2.3. Mounting The drop-in unit should be levelled before the electrical supply is connected. Level the appliance from side- to-side and front-to-back with the use of a spirit level. Place the drop-in unit to the cut-out in the counter (the cut-out dimensions are given in the table of specifications provided on page 4;... -
Page 12: Electrical Connection
Separate installation of control panel: Control panel can be installed separately. To mount the remote controller, perform the following steps: • Prepare the cutout and drill the holes for the screws or bolts (Fig. 5) in the selected surface. • Turn off the control panel books from the marmite or the heated surface bottom;... -
Page 13: The Wiring Diagrams
2.5. The wiring diagrams Conventions: CN – controller; EK – electrical heater SN – sensor BL - blower Fig.8.The wiring diagram Z-UWMV1 Fig.9.The wiring diagram Z-UWMV2... - Page 14 Fig.10.The wiring diagram Z-UWMV3 Fig.11.The wiring diagram Z-UWMV4...
- Page 15 Fig.12.The wiring diagram Z-UWMV5 Fig.13.The wiring diagram Z-UWMV6...
-
Page 16: Drain Line
2.6. Drain line Connect drain pipe to a drain valve on the bottom of the unit. Drain line must be connected to general drain system or container which must place all amount of water from unit. The drain valve(s) must be installed in an easily accessible location for the operator. -
Page 17: Ec Declaration Of Conformity
EC DECLARATION OF CONFORMITY Manufacturer: ROEDER Herewith declares that: Drop-in dry bain marie (Models: Z-UWMV1, Z-UWMV2, Z-UWMV3, Z-UWMV4, Z-UWMV5, Z-UWMV6 Do comply with the provisions of the Directives: • 2006/42/EC “Machinery Directive”; • 2006/95/EC “Low Voltage Directive”; • 2004/108/EC “Electromagnetic Compatibility Directive”... -
Page 18: Terms And Conditions
Provided in the proforma invoice. Liability for cargo depends on INCOTERMS 2010 specified in the proforma invoice. In case of ex-works Roeder shall not be liable for delays and the distributor shall not be permitted to terminate the purchase due to delays unless agreed to in writing. - Page 19 Roeder does not take any responsibility for damages that occur due to ignorance of cautions, improper maintenance or mechanical damages of the unit, including those, caused during the delivery. The warranty in these Terms is not...
- Page 20 Roeder‘s obligations. Distributor is not entitled to any kind of damages in case of cancellation or delayed delivery due to such circumstances.
- Page 21 Protection of personal data As a part of handling sales and service requests from distributor, Roeder shall process contact and invoice data. Any personal data Roeder may process may be shared with other Roeder group companies. Personal data will not be shared with any third parties other than data processors who process data on behalf of Roeder based on a data processor agreement.
