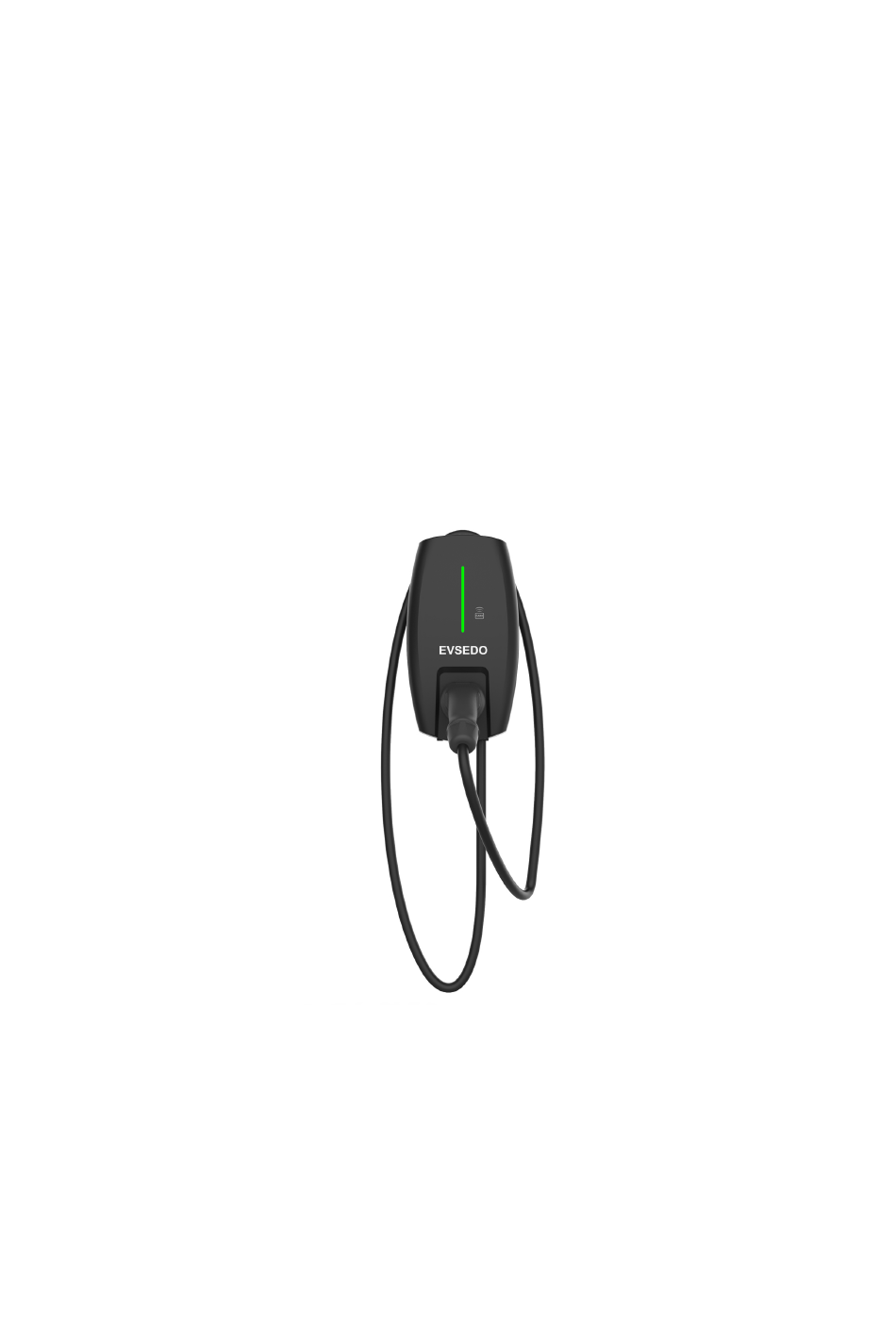

- Page 1 EVSEDO_AC011K-AE-25 EVSEDO_AC011K-AE-25 Installation Guide 01.02.001.2021/12-en Page | 1 2021© IPC2U GmbH. All rights reserverd 01.02.001.2021/12-en...
- Page 2 Neither IPC2U, EVSEDO nor any of its affiliated companies or subsidiaries can be held responsible for incorrect use of the information contained in this document. If you have any suggestions for improvements or correction, or have found errors in this publication, please notify us.
-
Page 3: Table Of Contents
EVSEDO_AC011K-AE-25 Table of Contents Safety Information ........................... 4 1.1. Important Information ........................4 IMPORTANT NOTE ........................... 4 SAFETY INFORMATION ..........................4 About This Manual ..........................4 2.1. Aim of This Document ........................4 2.2. Area of Application .......................... 4 2.3. Related Documents ......................... -
Page 4: Safety Information
The EVSEDO range of charging stations is designed exclusively for charging electric vehicles. This equipment cannot be used to switch on/off the site ventilation at the vehicle's request. -
Page 5: Overview
The EVSEDO charging station can connect to the internet via WiFi. Charging starts and stops by RFID carte or via app, when your vehicle is connected to EVSEDO_AC011K-AE-25 charging station. The EVSEDO charging station is intended for the AC charging of electro vehicles. -
Page 6: Installation
EVSEDO_AC011K-AE-25 4. Installation 4.1. Physically installation Installation Notice Electrical device should be installed, operated, serviced, and maintained only by qualified personnel. No responsibility is assumed by the manufacturer for any consequences arising out of the use of this device. A qualified person is one who has skills and knowledge related to the construction, installation and operation of electrical device and who has received safety training to recognize and avoid the hazards involved. -
Page 7: Electrical Installation
EVSEDO_AC011K-AE-25 4.2. Electrical installation Installation Notice Electrical device should be installed, operated, serviced, and maintained only by qualified personnel. No responsibility is assumed by the manufacturer for any consequences arising out of the use of this device. A qualified person is one who has skills and knowledge related to the construction, installation and operation of electrical device and who has received safety training to recognize and avoid the hazards involved. -
Page 8: Basic Mode
EVSEDO_AC011K-AE-25 Charging station can be installed in two modes: • Basic mode – The station uses whole available power • Load balancing mode – The station takes into account household consumption Basic mode Basic mode is recommended to use in most cases. With this type of connection, the charging station will be guided by the needs of the electric vehicle or the limitation from the App. -
Page 9: Load Balancing Mode
EVSEDO_AC011K-AE-25 Load balancing mode Load balancing mode is recommended to use if you have large power consumers in your household, or if you have low input power. For connection in balancing mode, you will need additional equipment: CT – Current transformer SM –... - Page 10 EVSEDO_AC011K-AE-25 Load balancing mode with Current transformer Load balancing mode with Smart Powermeter Page | 10 2021© IPC2U GmbH. All rights reserverd 01.02.001.2021/12-en...
-
Page 11: Software Installation
EVSEDO_AC011K-AE-25 4.3. Software installation Installation Notice Charging station can be set up and configured from the App “ChargeIn”. You can make the charger online and start/stop charger by APP, add/delete user card etc. 1. Installation of APP(IOS or Android) 2. Connectiontion to WLAN. •... - Page 12 EVSEDO_AC011K-AE-25 5. Add the charger to your account In this step, the charger will connect to internet via your WLAN. In step of charger network configuration, ChargeIn communicates with charger through Bluetooth. After network configuration, charger will shut down Bluetooth. Page | 12 2021©...
- Page 13 EVSEDO_AC011K-AE-25 Page | 13 2021© IPC2U GmbH. All rights reserverd 01.02.001.2021/12-en...
- Page 14 6. Finish network configuration Wait around 30-60 second for charger connecting to internet, ChargeIn will show status of charger，network configuration finish. www.evsedo.de Tel.: +49 (511) 807 259 - 0 IPC2U GmbH www.ipc2u.de Fax.: +49 (511) 807 259 - 22 Frankenring 6 E-Mail: sales@ipc2u.de...
