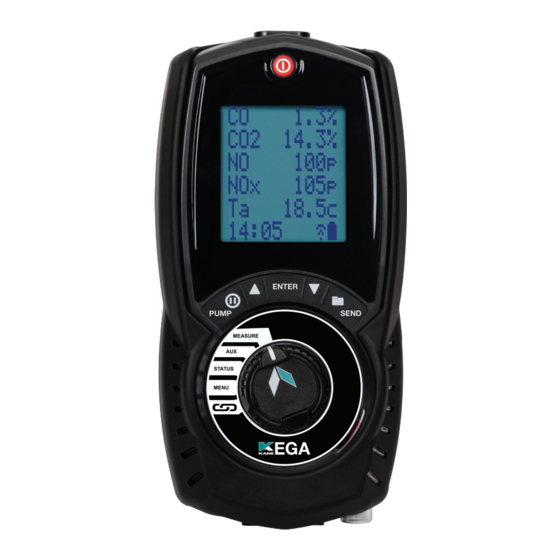

KANE EGA OVERVIEW Your KANE exhaust gas analyzer has the ability to measure up to 3 different gases, Depending on your options it measures or calculates: Carbon Monoxide 0-10,000ppm (CO) • Carbon Monoxide 0-10% (CO) • Carbon Dioxide (CO2) • Nictric Oxide (NO) •... -
Page 5: Analyzer Features And Keypad
ANALYZER FEATURES & KEYPAD KANE EGA SERIES MANUAL 5... -
Page 6: Keypad Buttons
KEYPAD BUTTONS ICON DESCRIPTION Long press to store data SAVE LOG Short press to print a report - Analyser offers a destination choice when wireless & irda fitted PRINT REPORT Short press to scroll up NAVIGATE UP Use to select current option - also selects torch in some dial positions ENTER KEY Short press to scroll down... -
Page 7: Analyzer Layout
ANALYZER LAYOUT On/Off Function keys - see below Rotary switch Water trap & particle filter Inlet temperature T2 Battery Exhaust gas probe charger temperature T1 Exhaust Gas inlet Watertrap drain with red plug Red connector - plugs into Exhaust Exhaust Gas Probe Gas Inlet Temperature Plug - Into T1 Narrow (+ve) pin must be on... -
Page 8: Back Of Analyzer - Probe Etc
Magnets x2 EPAUTO1 exhaust (P10) Watertrap drain with red plug 8 KANE EGA SERIES MANUAL... -
Page 9: Batteries
BATTERIES BATTERY TYPE Your KANE-EGA uses rechargeable Nickel Material Hydride (NiMH) batteries - Using other battery types may void your analyzer’s warranty. WARNING Although you can use Alkaline batteries you must not charge your analyzer with Alkaline batteries fitted. Do not mix NiMH cells with different capacities or from different manufacturers - All batteries must be identical. -
Page 10: General Safety
GENERAL SAFETY SAFETY WARNING Your analyzer extracts combustion gases that may be toxic in relativity low concentrations. These gases are exhausted from the back of the analyser. This analyzer must only be used in well-ventilated locations by trained & competent persons after due consideration of all the potential hazards. Portable gas detectors should conduct “bump”... -
Page 11: First Time Use
FIRST TIME USE Charge your analyzer batteries for 8 hours - an overnight charge should be sufficient for an average 8 hour day. Take time to read this manual fully & be aware your analyzer configuration may not support all features explained in this manual. Before using your analyzer ensure it is set up for your requirements. -
Page 12: Status
STATUS Rotate dial to “Status” : Current ambient temperature Current atmosphereic pressure (mbar) No. of days until next calibration due Serial number Status bar STATUS BAR Status bar shows analyzer status & offers options based on your settings. Navigate through status bar options via &... -
Page 13: Status Bar Layout
STATUS BAR LAYOUT Status bar splits into 2 zones, Message & Icons shown below: STATUS BAR MESSAGE ZONE CLOCK FUNCTION Displays current time DATA HOLD Display alternates FUNCTION between hold symbol & Time stamp of held data CALIBRATION DUE Display alternates WARNING MESSAGE between calibration due and current time... -
Page 14: Status Bar Message Area
STATUS BAR ZONES Icons give quick & simple status information: STAUS BAR ICON LEVEL ICON LIST PUMP Pump status On or Off Analyzer has logged/ LOGGED DATA stored data Data being sent to SENDING DATA App or Printer BATTERY Battery Status indication 14 KANE EGA SERIES MANUAL... -
Page 15: Status Bar Menu Options
STATUS BAR MENU OPTIONS Status Bar offers you contextual menu items based on your screen display. STANDARD OPTIONS Date Turn rotary dial to AUX position to make changes to AUX screen then long press button until cursor flashes USING MENU Rotate dial to MENU to customise your analyzer default setting to your requirements. -
Page 16: Menu Items
MENU ITEMS MENU ITEM MENU TEXT OPTIONS/COMMENTS HH:MM:SS format TIME TIME E.G.. 7am = 07:00:00, 7pm = 19:00:00 DATE DATE DD/MM/YY format HEADER HEADER Edit 2 Line Header on your printouts PRINTER TYPE IR PRINT Select, KMIRP, IRP-2 View current memory usage & stored LOGS LOGS logs... -
Page 17: Measuring Exhaust Gases
MEASURING EXHAUST GASES After countdown is finished & your analyzer is ready to use, put your exhaust probe into the vehicles exhaust. For normal emission testing, ensure that the engine has been pre-conditioned to normal operating temperature. The engine conditions must be constant &... -
Page 18: Co Sensor Protection Pump Operation
CO SENSOR PROTECTION PUMP OPERATION Your analyzer CO sensor is automatically protected from high levels of CO. When CO is above the maximum range of your analyzer the main pump stops & CO Purge pump starts. Your analyzer displays - - - - until CO levels fall below the maximum measurement range. -
Page 19: Measure Screen
MEASURE SCREEN CO2 reading CO reading NO reading (if fitted) COK reading NOx reading (if fitted) Status bar STORED MEMEORY REPORTS Your KANE-EGA utilises a shared memory system which means stored logs are not limited by type. An icon displays when your analyzer has stored data. To view current memory rotate dial to MENU then select LOGS to display. -
Page 20: Viewing Stored Logs
VIEWING STORED REPORTS To view your reports, select VIEW option from LOGS Menu: List of available LOGS To navigate and select use & LOG VIEW MENU OPTIONS View stored Tests Returns to previous menu FINDING STORED REPORTS Once you select your report type the first stored log is displayed: LOG Number of that type Time &... -
Page 21: Report Menu Options
REPORT MENU OPTIONS Print currently selected report Use to find next available report if available Use to find previously selected report once navigation begins Return to main menu VIEWING & PRINTING Press button to send full Pressure & Temperature reports to your optional KANE-IRP3 printer or wirelessly to a KANE APP. -
Page 22: Printouts
PRINTOUTS Tests 22 KANE EGA SERIES MANUAL... -
Page 23: Kane Link
KANE LINK WIRELESS MEASUREMENT & DATA TRANSFER You can wirelessly connect optional KANE LINK devices to your analyzer. Rotate dial to KANE LINK on your analyzer to manage how your analyzer communicates with wireless devices. To wirelessly transfer data to a connected smart device running our KANE APPS, select APP using To ADD, REMOVE &... -
Page 24: Specifications
SPECIFICATIONS PARAMETER RANGE RESOLUTION ACCURACY Temperature Measurement T1 Temperature 0 - 600°C 0.1°C ±0.5°C T2 Temperature 0 - 600°C 0.1°C ±0.5°C Inlet temperature 0.50°C 0.1°C ±1°C (Internal Sensor) Exhaust Gas Measurement Carbon Monoxide 0 - 10,000ppm 1ppm ±5ppm or ±5% of reading (whichever is greater) Carbon Monoxide 0-10.0%... -
Page 25: Eu Declaration
EU DECLARATON OF CONFORMITY This declaration of conformity is issued under the sole responsibility of the manufacturer:- Kane International Ltd. Kane House, 11 Bessemer Road, Welwyn Garden City, Hertfordshire, AL10 1GF, UK. Tel: + 1707 375550 Web: www.kane.co.uk The KANE EGA is in conformity with the relevant Union harmonization legislation below: UK Directive The Electromagnetic Compatibility Regulations 2016 (EMC) The Restriction of the Use of Certain Hazardous Substances in Electrical and... -
Page 26: Cold Weather Precautions
‘ON’ sampling fresh air for up to 3 hours - Connect charger to avoid draining batteries. If you still experience problems please contact ANSED Customer Service. ANSED Diagnostic Solutions LLC 1528 Walnut Street Suite 1600... - Page 27 KANE EGA SERIES MANUAL 27...
-
Page 28: Welcome To Kane Care & Recycling
★ 10 Year warranty with annual Service & Recertification KANE CARE applies to any KANE analyser Service & Recertification registered & booked in via www.anseddiagnostics.com/pages/product-registration or use QR code below ANSED Diagnostic Solutions LLC 1528 Walnut Street Suite 1600 Philadelphia, PA 19102 1–888–685–7287...
