Standby CCS4 BASIC Technical Manual

Hide thumbs
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

Download this manual
CCS4 PACK BASIC PROGRAM
1.
PRODUCT PRESENTATION ........................................................................................................... 5
2.
CONTROL BOX CCS4 BASIC PACK ................................................................................................. 5
3.
POWER OUTPUTS CCS 292 MODULE ........................................................................................... 6
4.
TYPICAL CONNECTION DIAGRAM ................................................................................................ 6
5.
EXAMPLE OF APPLICATION.......................................................................................................... 7
6.
ASSEMBLY OF THE CONTROL BOX ............................................................................................... 7
6.1.
KEYS PROVIDED ....................................................................................................................... 7
6.2.
ASSEMBLY OF THE CONTROL BOX ........................................................................................... 8
7.
CONFIGURATION SHEET .............................................................................................................. 8
7.1.
KEY ASSIGNMENT .................................................................................................................... 8
7.1.
WIRING DIAGRAM EQUIPMENT .............................................................................................. 9
8.
REMINDER OF HOW THE CONTROLS WORK ............................................................................... 9
IDENTIFICATION : TM-0705-MLTPX Indice A
CODE : 36263-00EN
25/03/2024
ENGLISH
www.standbygroup.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CCS4 BASIC and is the answer not in the manual?

Questions and answers

Summary of Contents for Standby CCS4 BASIC

  • Page 1: Table Of Contents

    CCS4 PACK BASIC PROGRAM PRODUCT PRESENTATION ......................5 CONTROL BOX CCS4 BASIC PACK ....................5 POWER OUTPUTS CCS 292 MODULE ................... 6 TYPICAL CONNECTION DIAGRAM ....................6 EXAMPLE OF APPLICATION......................7 ASSEMBLY OF THE CONTROL BOX ....................7 6.1. KEYS PROVIDED ........................7 6.2.
  • Page 2 25/03/2024 www.standbygroup.com Head office : Zone d’Activités « Les Gailletrous » - rue Louis Pasteur- 41260 LA CHAUSSEE SAINT VICTOR Tel : +33 (0)2 54 57 52 52 – Fax +33(0)2 54 56 80 00 SAS au capital de 102. 400 € - APE (NAF) 2790 Z – SIRET 310 999 891 00040 : Zone d’Activités «...
  • Page 3 STANDBY-FRANCE is not liable for any damage or consequences resulting from the use of this information : ▪...
  • Page 4 RESPONSIBILITIES OF THE USER AND OPERATOR STANDBY-FRANCE products are professional equipment that must be used for this purpose only. Their use is subject to the legal obligations in terms of occupational safety to which the operator must comply.

  • Page 5: Product Presentation

    The CCS4 BASIC program assigns a button to an output. The system is delivered with a pre- mounted control box and a set of buttons. It is up to the installer to finalise the system according to the application.

  • Page 6: Power Outputs Ccs 292 Module

    25/03/2024 www.standbygroup.com 3. POWER OUTPUTS CCS 292 MODULE A. Output 3 (3A) controlled by BP3 B. Output 4 (3A) controlled by BP4 C. Output 12 (-100mA) controlled by BP3 D. Output 13 (-100mA) controlled by BP4 E. Output n°2 (15A) controlled by BP2 F.

  • Page 7: Example Of Application

    www.standbygroup.com 25/03/2024 5. EXAMPLE OF APPLICATION Equipment to be connected & functions Siren power module Blue beacon Power supply 6A (> RADIO) Auxiliary Penetration lights Not used SIREN NIGHT 6. ASSEMBLY OF THE CONTROL BOX 6.1. KEYS PROVIDED ON/OFF (Qty 1) Projector 1 (Qty: 1) Not used black (Qty: 11) Projector 2 (Qty: 1)

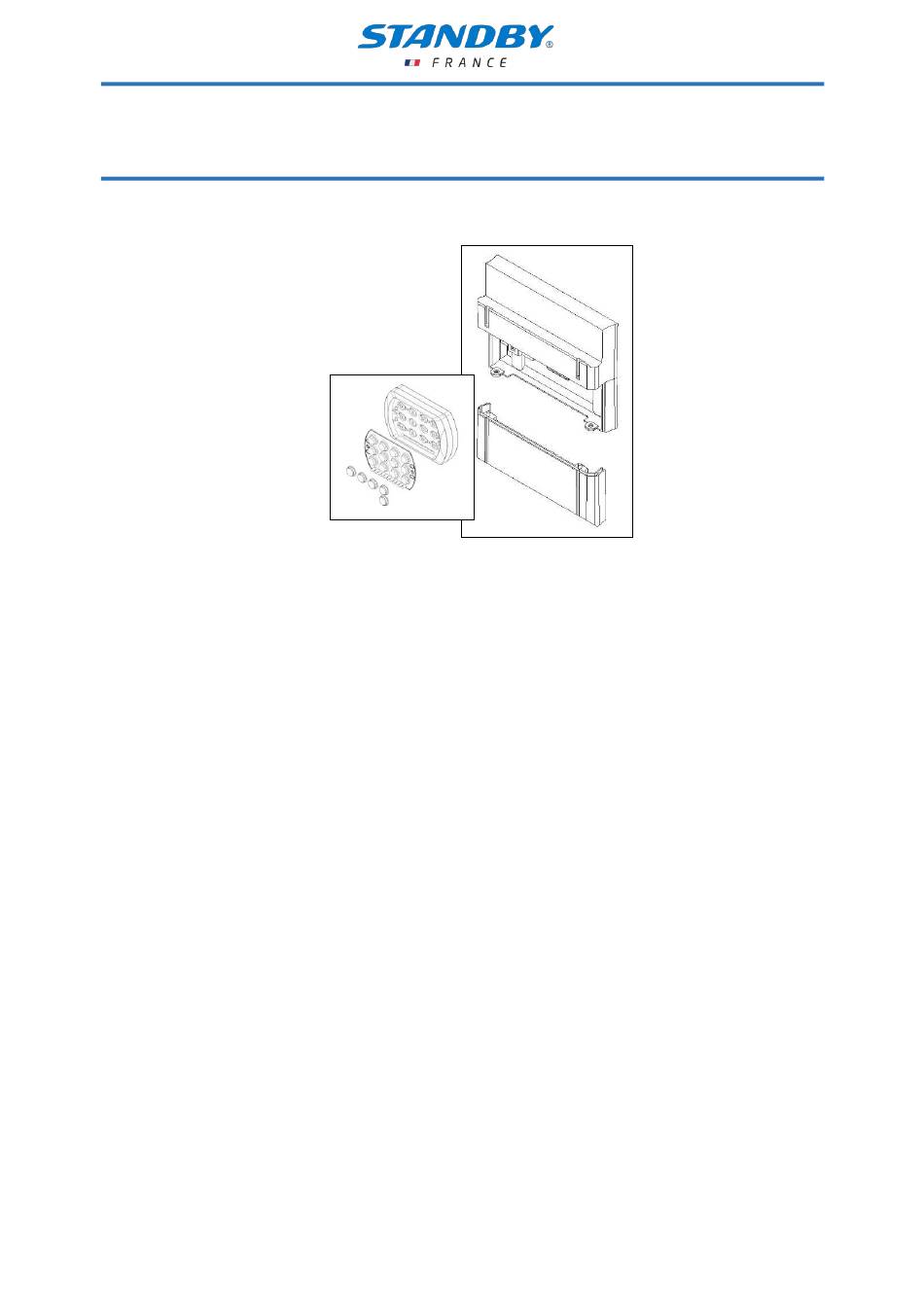

  • Page 8: Assembly Of The Control Box

    25/03/2024 www.standbygroup.com 6.2. ASSEMBLY OF THE CONTROL BOX 7. CONFIGURATION SHEET To help you identify the controls, please fill in the empty boxes with the name of the equipment to be controlled. 7.1. KEY ASSIGNMENT BP3 Outputs 3A & -100mA: ........BP2 Output 15A: ........

  • Page 9: Wiring Diagram Equipment

    www.standbygroup.com 25/03/2024 7.1. WIRING DIAGRAM EQUIPMENT Names of Equipments and functions .................................................................. 8. REMINDER OF HOW THE CONTROLS WORK POWERING UP The system is switched on by pressing any key. Manually shuts down the entire system. The system automatically shuts down if the voltage drops below 11.5V (12V vehicles) or 23V (24V vehicles).
