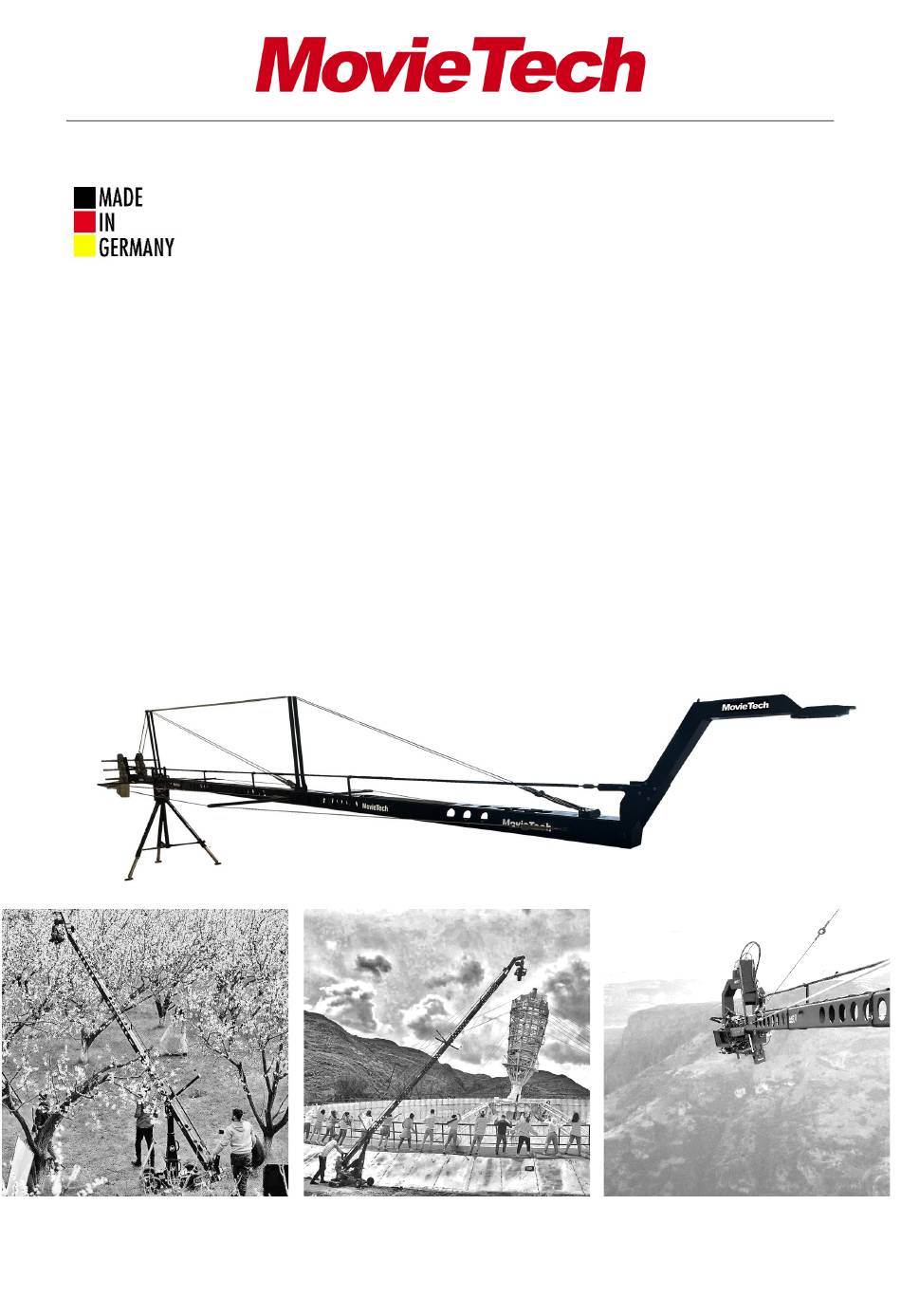

- Page 1 GRIP EQUIPMENT YOU CAN RELY ON! CRANE 120 TECHNICAL USER GUIDE Version: 10/2022 Language: English MovieTech AG Martin-Kollar-Str. 9 80801 Munich – Germany +49 (0) 89 /436 891 3 | info@movietech.de...
- Page 2 GRIP EQUIPMENT YOU CAN RELY ON!
-
Page 3: Table Of Contents
How to set it up ..........................11 Quick Guide - Video ........................11 Set-Up: step by step ........................12 Technical Description ........................17 Crane 120 – 9.0 ........................... 18 Crane 120 – 10.5 ......................... 20 Crane 120 – 12.0 ......................... 22 Crane length overview ........................24 Setup overview .......................... -
Page 4: Introduction
GRIP EQUIPMENT YOU CAN RELY ON! 1. Introduction We are very glad that you decided to work with our MovieTech / ABC Crane 120 System. We hope you enjoy it as much as we do ! Everyone at MovieTech is passionate about grip equipment. In case you have useful feedback for us or you have a question concerning our products, please do not hesitate a second to contact us –... -
Page 5: General Information
2. General Information 1) Intended use: The Crane 120 is a mobile camera crane system which shall only be used to carry cameras remote heads for use in motion picture productions in a stationary position (on levelling legs) or on tracks (with track wheels). -
Page 6: Warranty
In the event that the purchaser should report that the products do not correspond to the warranty, we may require at our discretion that either the defective equipment or the defective part is to be sent to MovieTech for repair and subsequent return, or the purchaser keeps the defective equipment or the defective part available, and we shall commission an expert who will be sent to carry out the repair. -
Page 7: Eu - Declaration Of Conformity
EC machinery directive. This declaration is no longer valid if the machine is modified without out our consent. Camera Crane System Type: Crane 120 Appropriate regulations: DIN EN ISO 12100 Richtlinie für Veranstaltungs- und Produktionsstätten für szenische Darstellung (VGB 70) entspricht. -
Page 8: Safety Guidelines
GRIP EQUIPMENT YOU CAN RELY ON! 4. Safety Guidelines • Training for a safe operation of the system is offered by Movie Tech. Contact us +49 (0) 89 436 89 1 3 • Two people are required to set up the crane. Personnel must wear safety shoes, since the counterweights can present a particular danger if they fall. - Page 9 GRIP EQUIPMENT YOU CAN RELY ON! • All elements of the crane must be within the field of vision of the operating personnel when in use. Visual obstructions can include window blinds, fog or darkness. The crane can only be moved by line of sight. •...
- Page 10 Please immediately inform MovieTech about how the accident took place, how severe it was and about any kind of damage to the crane. Damaged parts should be sent back to the MovieTech factory for evaluation, repair and replacement. Operating the crane with damaged parts is not allowed –...
-
Page 11: How To Set It Up
5. How to set it up 1) Quick Guide - Video The easiest way to learn how to set up the Crane 120 is by watching the tutorial video “MovieTech Crane 120 - How to set it up”. In order to do so, simply scan the QR-Code below: Alternatively contact us and we will send you the video via email. -
Page 12: Set-Up: Step By Step
GRIP EQUIPMENT YOU CAN RELY ON! 2) Set-Up: step by step Step Description Details 1 . Secure work area Make sure that there unauthorized persons or objects in the working area of the crane. If necessary, markings with barrier tapes or warning signs are required. 2. - Page 13 GRIP EQUIPMENT YOU CAN RELY ON! 4. Attach Crane DEPENDING ON CRANE VERSION Segments Always use crane support Add crane segments and outrigger segments according to the version you want to set up (see plan below Close all three M6 star screws between every segment 6.
- Page 14 8. Add tower cables - connect the tower cables to the rear end of the crane by using the allen key. Please note: the new versions of the Crane 120 have a double tower bracing for increased stability.
- Page 15 GRIP EQUIPMENT YOU CAN RELY ON! Raise the second and third tower (depending on the setup-version) 9.outrigger cables Add the outrigger cables Please note: the 12m version does not use the caps on the outriggers. The ropeset is prepared to directly connect to the outrigger Close all rope locks Open the outrigger (for the 12m...
- Page 16 GRIP EQUIPMENT YOU CAN RELY ON! 10. Add your camera - Add your Remote Head and/or your camera. 11. Add - insert the counterweight bars counterweight - add counterweight 12.fine adjust the - fine adjust the crane with the help of weight the trim weight and the lever on your crane head...
-
Page 17: Technical Description
MovieTech Crane120. ATTENTION The Crane 120 is a lightweight construction made of a special squared tube. Despite its low self-weight, it can hold cameras and remote heads as heavy as 30 kg (66 lbs) in the Versions L, M and S. Please note that the maximum load capacity decreases with an increase in crane length. -
Page 18: Crane 120 - 9.0
GRIP EQUIPMENT YOU CAN RELY ON! 1) Crane 120 – 9.0 The Star, not only behind the Goal Posts! HDV, HD, Film High weight capacity of 25kg (55.11 lb), Versions L, M, S even 30kg /66.12lb) The Version 9.0 may be set in the full length or in sub-lengths L, M, S. - Page 19 GRIP EQUIPMENT YOU CAN RELY ON! CRANE120 – 9.0...
-
Page 20: Crane 120 - 10.5
GRIP EQUIPMENT YOU CAN RELY ON! 2) Crane 120 – 10.5 The crane for ambitious travelogue HDV, HD, Film High weight addition of 20 kg (44.09 lb) Package includes: Main bags 1 and 2 including: 1 Crane-head segment 1 End segment... - Page 21 GRIP EQUIPMENT YOU CAN RELY ON! CRANE120 - 10.5...
-
Page 22: Crane 120 - 12.0
GRIP EQUIPMENT YOU CAN RELY ON! 3) Crane 120 – 12.0 The Goliath among the Light Cranes! HDV, HD, Film Weight addition of 20kg (44.09 lb - version 12) Package includes: Main Bags 1 / 2 / 3 with: 1 Crane-head segment 1 End segment 2 Extension segments with outrigger (without caps –see accessory bag) - Page 23 GRIP EQUIPMENT YOU CAN RELY ON! CRANE120 - 12.0...
-
Page 24: Crane Length Overview
GRIP EQUIPMENT YOU CAN RELY ON! 7. Crane length overview Max camera Front crane arm Back crane arm Total length weight Version – 12.0 44.09lb / 20kg 35.66ft / 10,87m 5.28ft / 1,61m 40.94ft /12,48m Version – 10.5 44.09lb / 20kg 30.74ft / 9,37m 5.28ft / 1,61m 36.02ft / 10,99m... -
Page 25: Setup Overview
GRIP EQUIPMENT YOU CAN RELY ON! 8. Setup overview... -
Page 26: Recurrent Inspection
Ref. safety-related and und maschine-related equipment on stages and in studios. Certification of recurrent inspection according to „§34 UVV Veranstaltungs- und Produktionsstätten für szenische Darstellung (VBG 70).“ Product: MovieTech – Crane 120 The following inspections have been performed: Date: Description of maintenance:... - Page 27 GRIP EQUIPMENT YOU CAN RELY ON! Test Sheet Movie Tech AG Confirmation of expertise for installation, inspection and maintenance of specific camera cranes in accordance with BetrSichV and DGUV regulation 17. The expert inspection must be repeated annually from year 1 - 3. An expert inspection is required in year 4. Examiners: Date: Manufacturer/ Type:...
- Page 28 GRIP EQUIPMENT YOU CAN RELY ON! Test Sheet Movie Tech AG Confirmation of expertise for installation, inspection and maintenance of specific camera cranes in accordance with BetrSichV and DGUV regulation 17. The expert inspection must be repeated annually from year 1 - 3. An expert inspection is required in year 4. Examiners: Date: Manufacturer/ Type:...
- Page 29 GRIP EQUIPMENT YOU CAN RELY ON! Test Sheet Movie Tech AG Confirmation of expertise for installation, inspection and maintenance of specific camera cranes in accordance with BetrSichV and DGUV regulation 17. The expert inspection must be repeated annually from year 1 - 3. An expert inspection is required in year 4. Examiners: Date: Manufacturer/ Type:...
- Page 30 GRIP EQUIPMENT YOU CAN RELY ON! Test Sheet Movie Tech AG Confirmation of expertise for installation, inspection and maintenance of specific camera cranes in accordance with BetrSichV and DGUV regulation 17. The expert inspection must be repeated annually from year 1 - 3. An expert inspection is required in year 4. Examiners: Date: Manufacturer/ Type:...
- Page 31 GRIP EQUIPMENT YOU CAN RELY ON! Test Sheet Movie Tech AG Confirmation of expertise for installation, inspection and maintenance of specific camera cranes in accordance with BetrSichV and DGUV regulation 17. The expert inspection must be repeated annually from year 1 - 3. An expert inspection is required in year 4. Examiners: Date: Manufacturer/ Type:...
- Page 32 In order to meet the high demands of our customers and to fulfill our motto “Grip-Equipment you can rely on”, we produce all our MovieTech products with passion and care in our factory in Munich. Always with the aim of developing user-friendly, versatile, robust and reliable camera support systems that users will love.
