Futech WS2300 User Manual

USER MANUAL [EN]
WS2300 – STUD DETECTOR

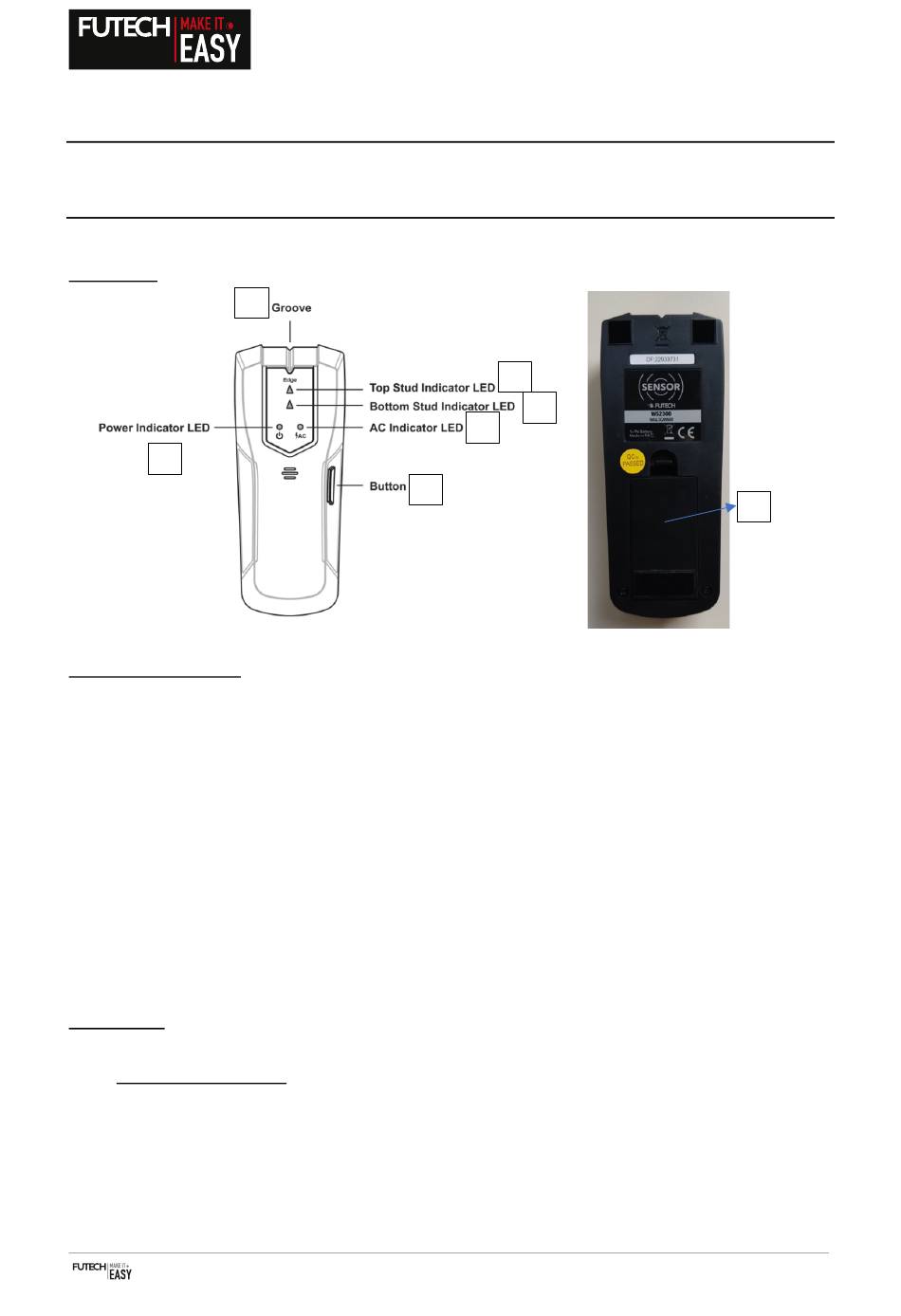

OVERVIEW
F
SAFETY & WARRANTY
Read the complete safety and warranty instructions provided together with the device before using.
Depending on the proximity of electrical wiring or pipes to the wall surface, the unit may detect them in the same manner as studs.
Caution should be used when nailing, sawing or drilling into walls, floors and ceilings that may contain these items.
Turn the wires' power of when working near electrical wires.
Shielded wires, dead wires, live wires in metal conduits, casings, metal walls or thick dense walls will not be detected as live wires.
Certain environmental conditions fundamentally impair the measurement results, such as the proximity of devices that generate
strong electric, magnetic or electromagnetic fields, moisture, metal building-materials, foil-laminated insulation materials or
conductive wallpapers or tiles. Therefore, also check other information sources (e.g. construction plans of the walls, floors or ceilings).
Do not use the unit if it is damaged or if it operates abnormally.
The stud detector can be carried normally on papered walls. However, it may not function on some type of foil backed or metallic
fabric surfaces.
OPERATING
1 INSTALLING BATTERY
1.1 Open the battery cover [G].
1.2 Insert a battery of 9 Volt (6F22 or equivalent) by clicking the smallest round into the largest round.
1.3 Place inside.
1.4 Close the battery cover [G].
MANUAL WS2300 [EN]
A
B
C
D
E
G
www.futech-EASY.com 1
