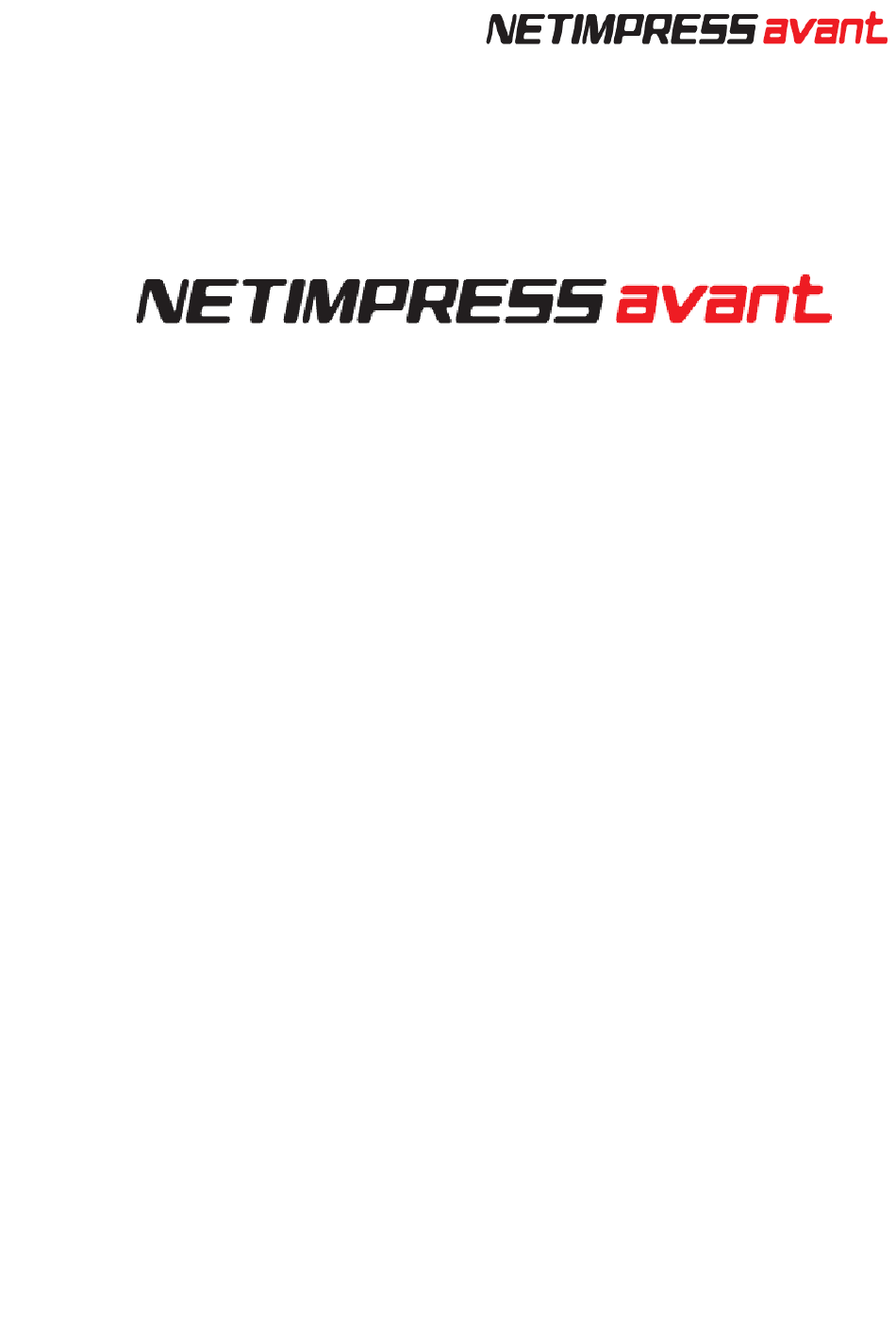

- Page 1 ACX500 Hardware Manual DTS INSIGHT CORPORATION...
- Page 2 (3) If any question about the contents of this manual arises, contact DTS INSIGHT CORPORATION. (4) DTS INSIGHT CORPORATION shall not be held responsible for direct or indirect adverse effects resulting from operation of this system irrespective of the above item (3).
-
Page 3: Introduction
Introduction ACX500 Hardware Manual (hereinafter “manual”) describes specification of Re-timer IC writing device of NETIMPRESS avant series products, and the precautions. The wording Programming in this manual means writing data into a target IC flash memory. -
Page 4: For Your Safety
Action to be taken if abnormality is found If any failure is found, such as smoke or burnt odor, disconnect and the target. And then turn off the power of main unit. Contact the support center of DTS INSIGHT Corporation. 注意... - Page 5 NETIMPRESS avant is an electronic device which consists of high-precision electronic components. Please be sure to understand and follow the caution listed below in order to avoid any accidents and as well as to make the most of your NETIMPRESS avant. Note ・Power On Sequence Make sure to the following sequence the switch ON/OFF a host computer, AFX series main unit, and...
-
Page 6: Important
ACX500. NETIMPRESS avant refers to Re-timer IC writing products of NETIMPRESS avant series manufactured by DTS INSIGHT Corporation. A target system and the host computer are strictly excluded. NETIMPRESS avant is an electronic device which consists of high-precision electronic components. -
Page 7: Packing Contents

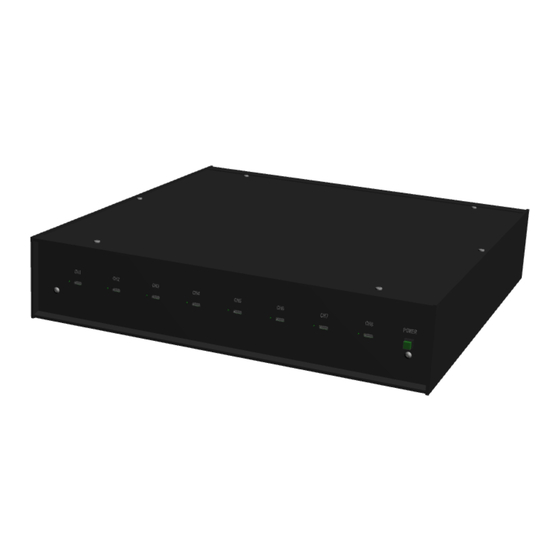

Packing Contents If you purchased ACX500, please find the following items in the packing box. ACX500×１ One end MIL Connector D-Sub harness (OCX501) ×8 pieces After unpacking, keep the package box contained the NETIMPRESS avant because it will be used at the time of maintenance service for the equipment. -
Page 8: Table Of Contents
Contents ......................2 NTRODUCTION ......................3 AFETY IMPORTANT....................... 5 ....................... 6 ACKING ONTENTS 1. O ....................8 VERVIEW AND EATURE 1.1. Product description ....................8 2. G ....................9 ENERAL RECAUTIONS 3. N ..............10 AME AND UNCTION OF THE OMPONENTS 3.1. -
Page 9: Overview And Feature
For programming, AFX series main unit (AFX100 or AFX200/AFX210), PHX400 and peripheral accessories must be purchased separately. Please purchase the appropriate accessories for your use environment. If there is anything we can help you, please do not hesitate to contact your dealer or the sales department of DTS INSIGHT Corporation. -
Page 10: General Precautions
2. General Precautions (1) Do not use NETIMPRESS avant in dusty areas, where there is direct sunlight or corrosive gas is generated. (2) Use NETIMPRESS avant in environments with temperature between 5 and 40℃ and humidity between 20% and 80% (no condensation). (3) In case there is noise in the AC power line, use a noise filter to eliminate the noise. -
Page 11: Name And Function Of The Components
3. Name and Function of the Components 3.1. Name of Components ⑥Terminal Block ⑤Main Power switch ➀Front power switch ④Bracket (別売品） (Optional) - Page 12 【Front】 ① Front power switch (with indicator light) When this switch is pressed while the main power switch is on, the ACX500 turns on and lights OFF（Lights out） ON (Lights up) ② USB TYPE-C Connector Connect the USB4 cable to the write target. ③...
- Page 13 ⑧PHX Connection Connector ⑦PHX Cover 【Inside】 ⑦ PHX Cover This cover is for empty slots that do not incorporate PHX400. ⑧ PHX Connection Connector This connector is used to disengage the PHX400 D-Sub harness.
- Page 14 When attaching or detaching other units (AFX series main unit/PHX400) to or from this unit (ACX500), turn off the power to this unit and each unit. Note Do not use probes other than the PHX400 with this unit. Be sure to install the supplied PHX cover on the slot to which the PHX400 is not connected.
-
Page 15: Specifications
4. Specifications 4.1. General Specifications Item Specifications Storage environment -5～50℃ Ambient temperature 20 to 80% RH, no condensation Ambient humidity Operation environment Ambient temperature 5～40℃ Ambient humidity 20 to 80% RH, no condensation Input voltage range DC 5.5V(For supplying power to Power Supply equipment and USB4 cable ) Consumed power... -
Page 16: Interface
4.2. Interface 4.2.1. PHX Connector Item Specification PHX Connector Type PS-26PE-D4T2-M1E(JAE) Male/Female Male Number of ports Pin arrangement １ ２ Connector pin layout signal table viewed from the mating surface Table 1: AFX100 Probe Connector Signal List Signal Name Signal Name TTXD TRXD... -
Page 17: Accessory (Optional)
5. Accessory (Optional) 5.1. Bracket Type Overview ACX505 Bracket (JIS)（2 pieces） ACX506 Bracket (EIA)（2pieces） × 2 × 2 ACX505 ACX506... -
Page 18: Maintenance Parts
5.2. Maintenance Parts Type Overview ACX501 Replacement USB connector board（8 pieces） OCX501 One end MIL Connector D-Sub harness（1piece） × 8 × 1 ACX501 OCX501... -
Page 19: Power Supply Operation
6. Power Supply Operation 6.1. External Power Supply Connection Procedure ① Make sure the main power switch on the back of the equipment is in the OFF state. ② Make sure that the front power switch on the front of the equipment is in the OFF state. OFF(Lights out) ON(Lighting) ③... -
Page 20: Power On Sequence
6.2. Power On Sequence ① Connect the power supply according to "5.1 External Power Supply Connection Procedure" and be sure to check each power switch is in the OFF state. ② Turn ON the main power switch. ③ Turn ON the external power supply output. ④... -
Page 21: Phx400 Installation
7. PHX400 Installation 7.1. How to Install ① Remove the six silver screws on the top surface and open the top panel. ② Remove the hold-down bracket. - Page 22 ③ Connect the D-Sub harness to the PHX400. ④ Remove the screws on the back of the device, remove the PHX cover, install the PHX400, and secure it with the screws.
- Page 23 ⑤ Connect the D-Sub harness to the main board and attach the hold-down bracket. ⑥ Attach the top panel and secure with screws.
-
Page 24: Replace Usb Connector Board
8. Replace USB connector board 8.1. How to replace ① Remove the six silver screws on the top surface and open the top panel. ② Remove the two fixing screws from the USB connector board. - Page 25 ③ Pull the USB connector board straight up. ④ Install the new USB connector board and secure it with screws. ⑤ Install the top panel and tighten it with screws.
-
Page 26: Install Bracket
9. Install Bracket 9.1. How to Install Bracket ① Remove the two screws on the front side of the device. ② Install the bracket and tighten it with the provided countersunk head screws. ③ Install the bracket on the opposite side in the same way. -
Page 27: Faq
10. FAQ LED does not light up when USB4 cable is connected ■Check the PHX400 If there is no PHX400 connected to that slot, the LED will not light up even if the USB4 cable is connected. If this is the case, open the ACX500 housing and check to see if the PHX400 is properly connected to the slot. -
Page 28: Contact
Contact NETIMPRESS Support Center E-mail ：support-impress@dts-insight.co.jp 9th Floor Shinjuku MIDWEST BLDG. 4-30-3 Yoyogi, Shibuya-ku, Tokyo, 151-0053, Japan ACX500 Hardware Manual DTS INSIGHT CORPORATION https://www.dts-insight.co.jp/en/support/support_netimpress_avac 4th Edition published on 23 Oct, 2023 © 2023 DTS INSIGHT CORPORATION. All rights reserved.
