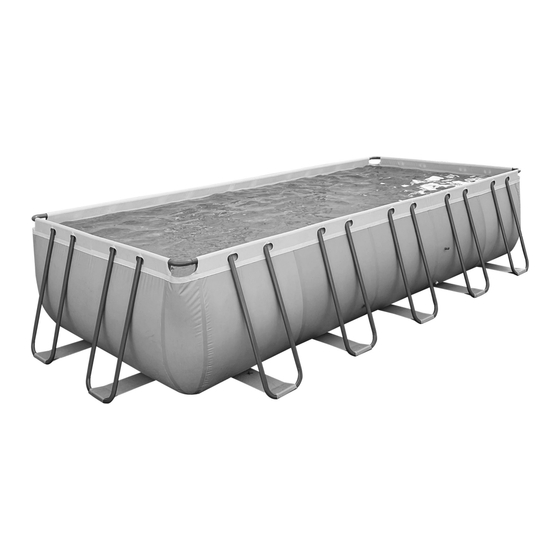

21ft Deluxe Steel Frame Swimming Pool, Rectangular with
Step Ladder, Filter Pump
Model No. DL150
Thank you for purchasing a Dellonda product. Manufactured to a high standard, this product will,
if used according to these instructions, and properly maintained, give you years of trouble free performance.
DL150 Issue:5 19/02/24
www.dellonda.co.uk
Advertisement
Table of Contents
Related Manuals for dellonda DL150
Summary of Contents for dellonda DL150

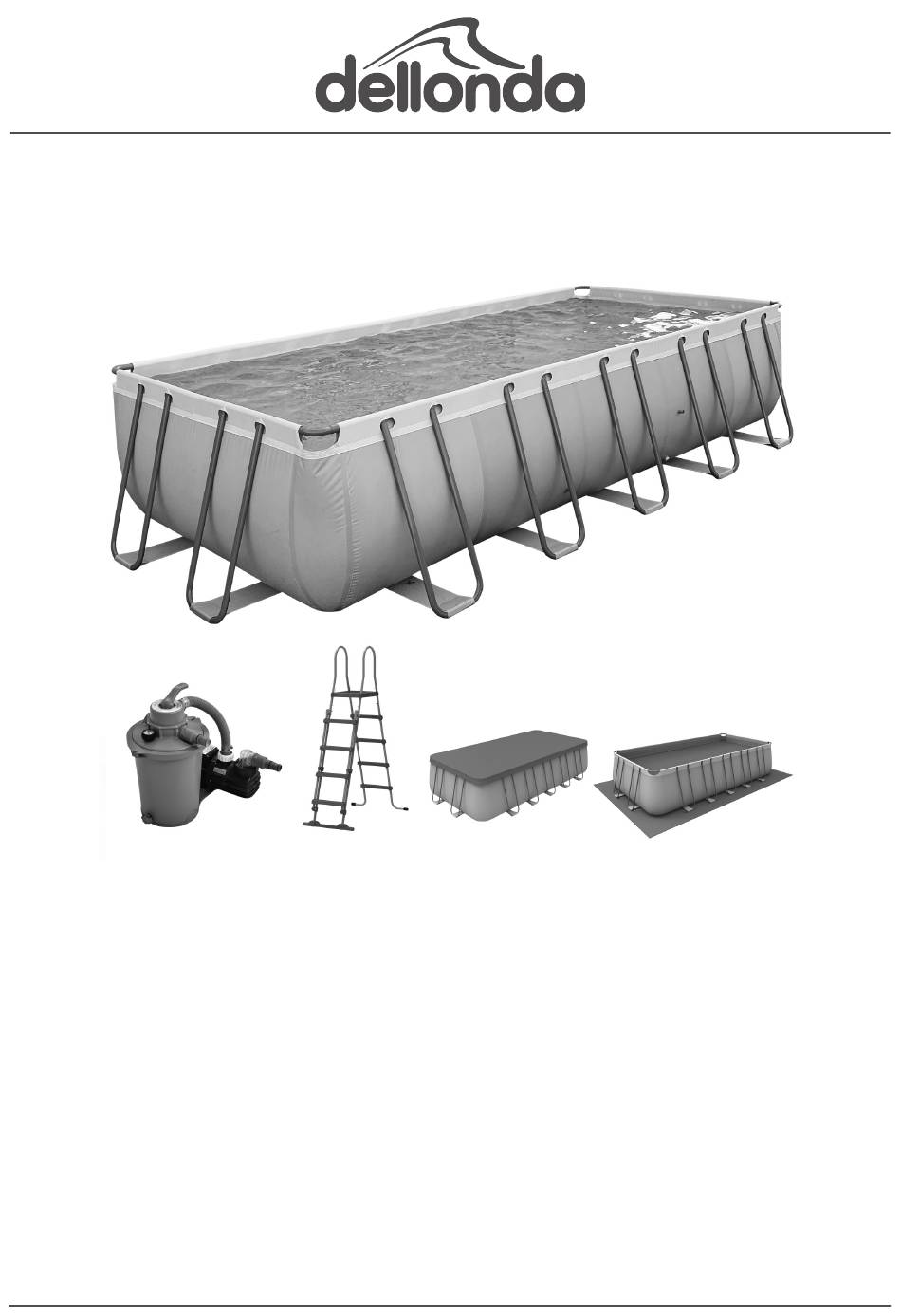

- Page 1 Step Ladder, Filter Pump Model No. DL150 Thank you for purchasing a Dellonda product. Manufactured to a high standard, this product will, if used according to these instructions, and properly maintained, give you years of trouble free performance. DL150 Issue:5 19/02/24...
- Page 2 Contents IMPORTANT: DO NOT start assembly if any pieces are missing. For replacement pieces contact Dellonda. NAME Horizontal beam 1 Horizontal beam 2 Horizontal beam 3 L-tube U-tube Plastic spring pin...
-
Page 3: Safety Instructions
Safety Instructions • ELECTRICAL SAFETY • WARNING! REFER TO AND FULLY COMPLY WITH THE ELECTRICAL AND SAFETY INSTRUCTIONS IN THE ENCLOSED FILTER PUMP MANUAL. • WARNING! The pool must be accessible to a 110 or 230V AC outlet protected by a Ground Fault Circuit Interrupter. •... -
Page 4: Site Selection
Site Selection • WARNING!: Pools installed on inadequately level surfaces are subject to leaking, forming irregularities, or collapse, which can result in property damage or serious injury for those in or around the pool area! • WARNING! DO NOT use sand during setup process. If it appears that there is a need for use of a “levelling agent”, then your set-up site is likely unsuitable. - Page 5 • Step 4. INSTALL HORIZONTAL BEAM • For the long side sleeve of the pool: • For the short side sleeve of the pool: Step 5. INSTALL HORIZONTAL BEAM AND L-TUBE • Step 6. CONNECT ALL FOUR SIDES TOGETHER...
- Page 6 Fill The Pool With Water • WARNING! DO NOT leave pool unattended while filling with water. • WARNING! If more than 1~2 inches of water collects on any one side before you start filling in the centre, the pool is not level enough, and must be corrected! Pull out the drain plug, release the water completely, disassemble the pool completely, locate the pool on a level surface, repeat set up instruction.
- Page 8 • IMPORTANT When not in use the steps MUST be folded up as per the raised image (20) above. This is an important safety feature to prevent children from accessing the pool.
- Page 9 Winter and Long-Term Storage • WARNING! DO NOT let your children stand at the outlet and face the water outlet during drainage. The water current may sweep children away. • WARNING! Pool should be stored in a cool and dry place, with no sharp objects around, and no heavy objects lying above, which may cause damage to the pool.
-
Page 10: Troubleshooting
• C: We recommend that you purchase a Dellonda test kit (pool Starter Kit: Model no. DL63 and Test Strips: Model no. DL32 test kit) and frequently test your pool water to make sure that your PH balance and chlorine levels are optimal. - Page 11 PROBLEM DESCRIPTION CAUSE REMEDY Coloured water • Water turns blue, brown, or • The chlorine is oxidizing • Adjust pH to recommended black when first treated with minerals in your water. This level. chlorine. commonly occurs with water • Run filter until water is clear. from different sources.
-
Page 12: Filter Pump
30mA. • Dellonda recommend that an RCD (Residual Current Device) is used with all electrical products. If the product is used in the course of business duties, it must be maintained in a safe condition and routinely PAT (Portable Appliance Test) tested. - Page 13 Description Control valve Filter body Water distributor Centre connecting tube M8 connector bolt Hoop Centre connecting tube cap Upper cover seal Straight connector Ø38mm bellows Water inlet Water inlet connector nut Water inlet connector seal Filter sieve Water outlet connector nut Water outlet connector seal Manometer (pressure gauge) Drain tube cap...
- Page 14 Filter and Pump Assembly...
-
Page 17: Filter Operation
Filter operation... - Page 18 Air leakage in the inlet pipe Tighten the nozzle and check for damage Motor or blade is blocked Contact Dellonda customer support. Water leakage from the control The seal ring of the body is lost or too dirty Remove the upper cover of the control valve, refit...
- Page 19 It is our policy to continually improve products and we reserve the right to alter data, specifications and parts without prior notice. No liability is accepted for incorrect use of this product. Guarantee is 12 months from purchase date, proof of which is required for any claim. Dellonda Limited Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR 01284 757575 support@dellonda.co.uk...
