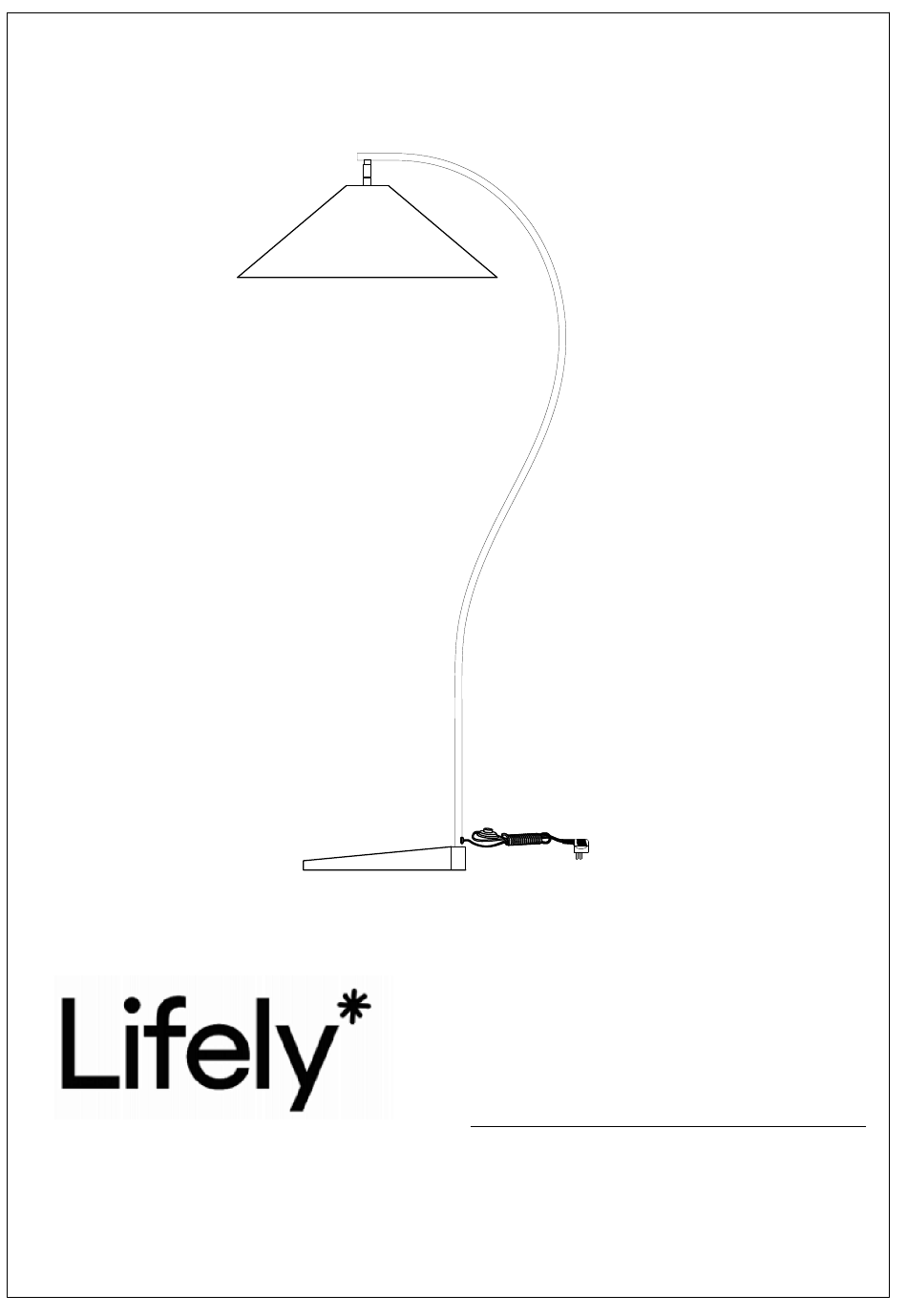

Assembly Instructions
Achie Series
Product Code
Achie-FLAMP
Achie Floor Lamp
(
Dimensions
W x D x H
780*560*1550mm
)
Important
Please read through instruction carefully
Before assembly and keep for future reference.
For our full catalogue of assembly instructions,
Visit: lifely.com.au/assembly.
Advertisement
Related Manuals for Lifely Achie Series
Summary of Contents for Lifely Achie Series
- Page 1 Assembly Instructions Achie Series Product Code Important Achie-FLAMP Achie Floor Lamp Please read through instruction carefully Before assembly and keep for future reference. Dimensions W x D x H For our full catalogue of assembly instructions, 780*560*1550mm Visit: lifely.com.au/assembly.
-
Page 2: Care Instructions
IMPORTANT SAFETY INSTRUCTIONS: 1.Use an authorized and certified electrician for consultation and installation. 2.To avoid the risk of fire, do not exceed the recommended wattage. Use 220-240V~50/60 Hz Max. 60 W or LED Max. 7 W E27 Bulb. 3.The manufacturer and distributor accepts no liability for incorrect installation. 4.For indoor use only. - Page 3 So your relationship is strong. But is it flat-pack furniture strong? Unless you're an aerospace engineer, assembling furniture can be slightly stressful. We recommend medita- ting quietly, pouring yourself a herbal tea (or slightly less herbal wine) and tackling things one step at a time.
- Page 4 Component Hardware Please check you have all the fittings part or tools are listed in below. No. A (Not Included) Quantity:1 Pc E27 Bulbs φ65*140mm ACHIE-FLAMP...
- Page 5 Component Panels part List Please check you have all the panels are listed below. Shade CTN 2/2 Bending tube-upper CTN 1/2 Bending tube-down CTN 1/2 Base 1 CTN 1/2 ACHIE-FLAMP...
- Page 6 STEP 1 Unscrew the screws on upper of the bending tube 3, then insert the tube 2, fasten back by the screws Pull out the supply cord a bit, unscrew the screws on the 3, then insert the part 2 into the 3, fasten by the screws. ACHIE-FLAMP...
- Page 7 STEP 2 Unscrew the screws on the end of the 3, then insert the part 3 into the base 4, fasten by the screws. ACHIE-FLAMP...
- Page 8 STEP 3 Overall flip 130 ° Open the shade follow the drawing shows after get it from box. Twist out the plastic ring on the lampholder, install the shade, then install the shade, tighten the plastic ring back. ACHIE-FLAMP...
- Page 9 STEP 4 Install the bulb. ACHIE-FLAMP 9...
- Page 10 STEP 5 ACHIE-FLAMP...
- Page 11 Great job. You're done! Don't forget to share how it looks in your space and tag us on lnstagram. @lifelyhome #homewithlifely!
