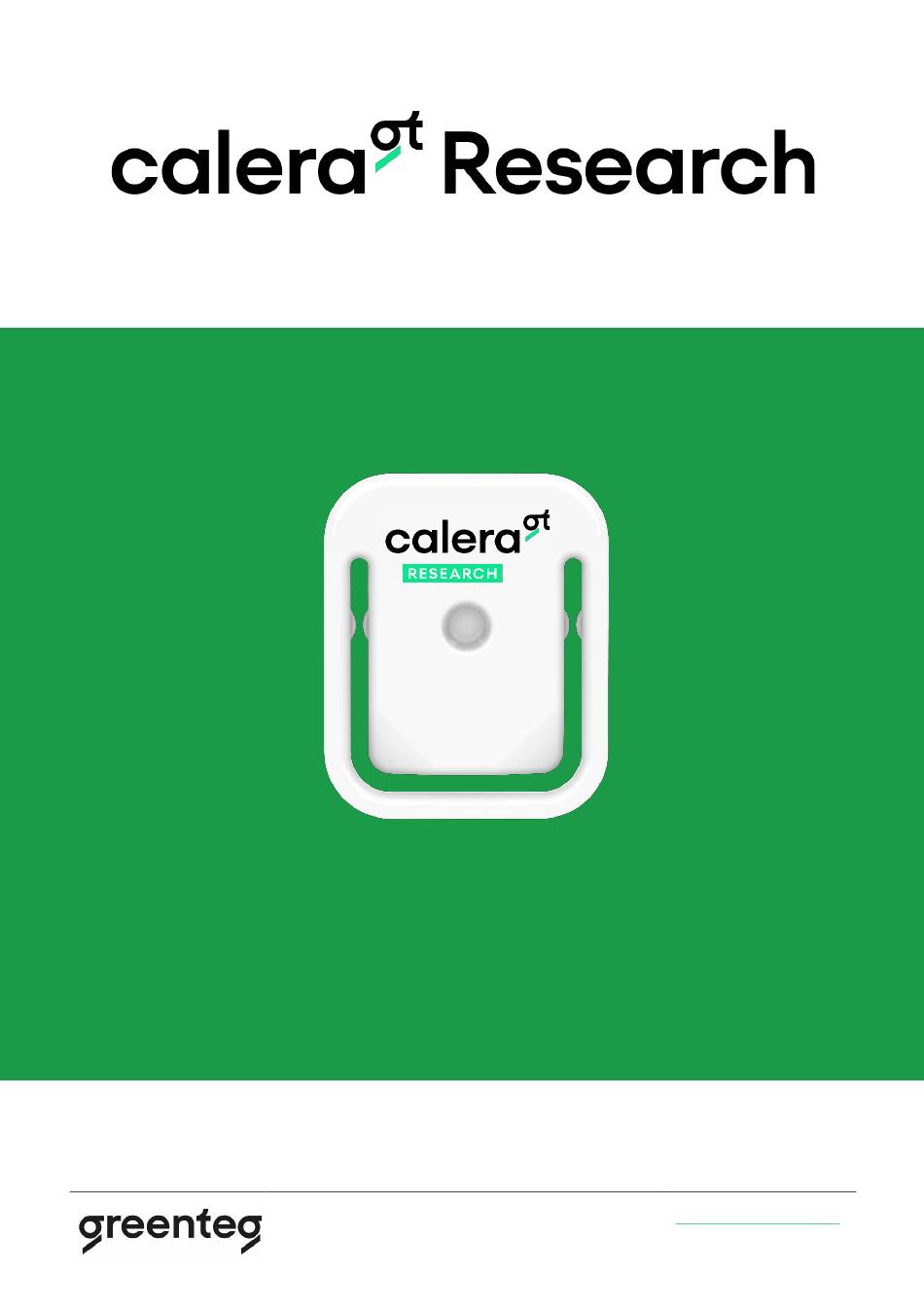

- Page 1 CALERAresearch Manual Continuous Core Body Temperature Monitoring greenTEG T: +41 44 515 09 15 www.greenteg.com/caleraresearch Hofwisenstrasse 50 A info@greenteg.com 8153 Rümlang, Zürich - CH...
-
Page 2: Table Of Contents
Access Logging Mode .......................... 8 Encryption levels ..........................10 Data export file ..........................11 Pricing ............................12 Accessories ............................ 12 Clinically Validated Solution ......................14 greenTEG AG @ A GLANCE ....................... 14 Datasheet ............................15 Disclaimer ............................16 Page 2 of 16... -
Page 3: Introduction
CALERA ® is a new thermometer technology developed by greenTEG that enables the monitoring of the core temperate with a wearable device. CALERA is accurate, non-invasive, and continuous. This... -
Page 4: Core Vs. Caleraresearch
2. CALERAresearch Description CALERAresearch has the same functionalities as CORE plus some additional benefits tailored for research purposes. The main operating difference is that CALERAresearch has two modes: standard and logging. CORE users will only have access to the standard mode. Standard Mode: In standard mode, CALERAresearch needs to be used in combination with the CORE Android or iOS app. -
Page 5: How To Use Core & Caleraresearch
How to use CORE & CALERAresearch How to Wear CORE & CALERAresearch Our algorithm is optimized for measurements on the chest. It will also give acceptable results on the upper arm, stomach and back, but for research studies, we urge you to measure on the left apical position to get the best possible accuracy. -
Page 6: Connect Caleraresearch
PC. To use the Research tool you need to use our special Bluetooth dongle. Example functions • Download data • Update Firmware • Start / stop measurements The Research tool (previously called COREtool) can be downloaded from www.greenteg.com/download-caleraresearch/ (PW = HotHotHot) Page 6 of 16... -
Page 7: How To Get The Best Out Of Your Measurements
How to get the best out of your measurements? All the instructions for CORE are also valid for CALERAresearch. For the most up-to-date instructions, have a look at our online CORE manual: CORE Manual – An Introductory guide to using and maintaining CORE Data Quality: The app indicates the data quality of the body temperature. -
Page 8: Research Mode
3. Research Mode Access Logging Mode With logging mode, you can save high-resolution data. Please follow these steps to record a measurement. Please make sure you have updated to the newest firmware. STEP 1 Connect device STEP 2 Settings menu ➔... - Page 9 STEP 4 Start Measurement STEP 5 Show Temperature ➔ Fill in measurement fields ➔ The measurement will start. ➔ Next measurement will take ➔ You can now close the APP. the same values ➔ Press Start Recording STEP 6 End Measurement Note: You can also share your ➔...
-
Page 10: Encryption Levels
Encryption levels There are three encryption levels that give access to different raw-data streams. Encryption C is our standard encryption level for CALERAresearch. The device can also be used as a heat-flux sensor using encryption level B. Encryption level A gives full access, but this is rarely shared. Please contact us if you need A or B access. -
Page 11: Data Export File
Data export file The generated CSV file is separated by a semicolon (;). The file contains a header section with 11 to 13 rows of metadata (can vary depending on firmware version) followed by the measurement data (see figure below). First save file as .XLSX if you want to work directly in this file, otherwise you will lose data. -
Page 12: Pricing
4. Products Article Number Description A-166255 COREreserach / CALERAresearch -Individually calibrated devices (highest accuracy) ogging -Indefinite access to l mode A-166251 CORE ogging -Consumer version w/o l mode or individually calibration -upgrade available for logging mode 5. Accessories The latest updates can be found on our webshop. The most important accessories are summed below. - Page 13 (24 Pack) CORE adhesive patches Our specially designed medical-grade patches are a convenient way to wear your CORE. These custom patches are explicitly produced for CORE using high- grade, medically certified materials. The patches are designed to minimize skin irritation. The medical patches are suited for every-day use and can be used while sleeping.
-
Page 14: Clinically Validated Solution
AG @ A GLANCE greenTEG is focused on delivering the highest quality thermal sensing solutions. Founded as a spin-off from ETH Zürich, greenTEG’s expertise in thermal sensing solutions has been developed for more than 10 years through partnerships with our international customer base. greenTEG develops, manufactures and markets thermal sensor solutions for a growing customer base active in photonics, building physics, MedTech, automotive, processing industry, and R&D. -
Page 15: Datasheet
7. Datasheet Product Name CALERAresearch Article Number A-166255 A rechargeable wearable device for continuous monitoring of CALERAresearch Core Body Temperature CALERAresearch Body Temperature Patch Set of medical-grade adhesive tapes In the box USB charging cable Quick Start guide, warranty and manual Smartphone Apps: Android &... -
Page 16: Disclaimer
If the CALERAresearch causes any redness or skin irritation, remove the product immediately. greenTEG is not responsible for any decisions, and potential subsequent incidents, you or someone that takes care of you might make, based on the measured core body temperature by CALERAresearch.
