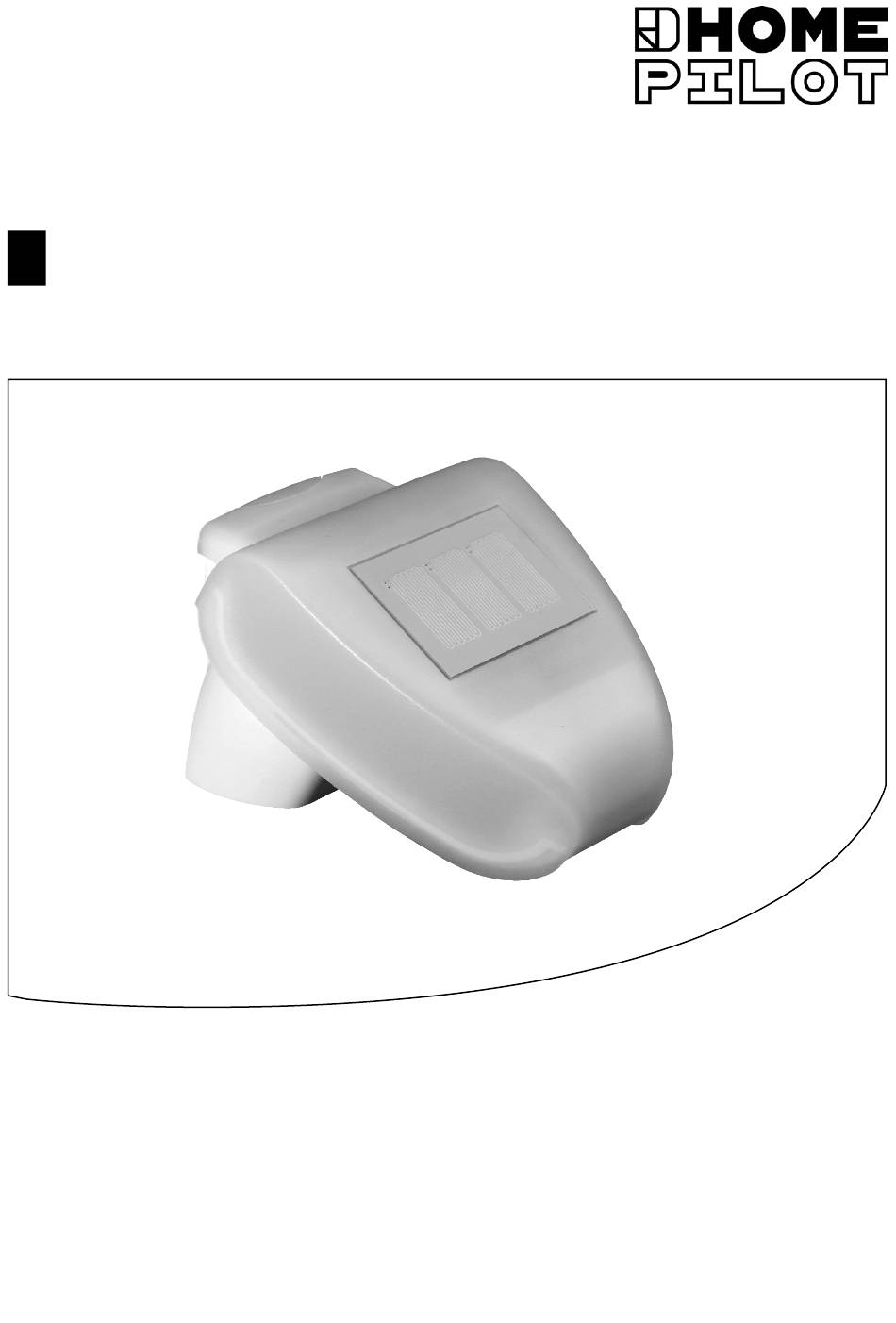

Smart weather sensor
EN
Installation and operating manual
Item no. 10771001
The Smart weather sensor can only be used unrestrictedly with a Premium gateway.
UM E104-2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 10771001 and is the answer not in the manual?

Questions and answers

Summary of Contents for HOME PILOT 10771001

  • Page 1 Smart weather sensor Installation and operating manual Item no. 10771001 The Smart weather sensor can only be used unrestrictedly with a Premium gateway. UM E104-2...
  • Page 2: Table Of Contents

    Contents This manual......................27 How to use this manual ....................27 Hazard symbols ......................27 Levels of danger and signal words ................27 Symbols and depictions used ...................28 Safety instructions ....................29 Intended use ......................30 Improper use ......................30 Functional description....................31 Important information prior to installation and commissioning........34 Installation of the Smart weather sensor ..............35 Safety instructions for the electrical connection ............38 Electrical connection....................39...
  • Page 3: This Manual

    This manual... describe how to install, connect and operate the Smart weather sensor. How to use this manual ◆ Before you begin, please read this manual through completely and follow all the safety instructions. ◆ This manual is part of the product. Please store it in an easily accessible place. ◆...
  • Page 4: Symbols And Depictions Used

    Symbols and depictions used Depiction Description Procedures Itemisation ◆ Lists Further useful information Please read the respective manual.
  • Page 5: Safety Instructions

    Safety instructions Danger to life resulting from electric shock when working on all electrical systems. ◆ Installation, testing, commissioning and troubleshooting may only be carried out by an authorised qualified electrician. ◆ Carry out all installation and connection work only in a de-energised state. ◆...
  • Page 6: Intended Use

    Intended use Use the Smart weather sensors solely for the control of DuoFern end units within a DuoFern network. Use the integrated actuator solely for the connection of a tubular motor or awning motor. Operating conditions ◆ A 230 V/50 Hz power supply, together with a site-provided isolating device (fuse), must be available for the electrical connection at the installation location.
  • Page 7: Functional Description

    Functional description The Smart weather sensor captures environmental parameters and can therefore take over most of the automatic control within a DuoFern network. The following environmental parameters are measured: ◆ Outdoor temperature (Can only be used in conjunction with Premium gateway!) ◆...
  • Page 8 Functional description Integrated tubular motor actuator In addition, the Smart weather sensor has an integrated tubular motor actuator. Smart weather sensors and actuators work independently of each other, therefore the integrated actuator can be set and used like an external actuator.
  • Page 9 Functional description Further important information ◆ Saved settings are retained even in the event of a power failure. All settings are active again after reconnection of the power supply. ◆ If it starts to rain, it can take some time before the Smart weather sensor detects rain, depending on the intensity of the rain and the outdoor temperature.
  • Page 10: Important Information Prior To Installation And Commissioning

    Important information prior to installation and commissioning Installation as a stationary controller The Smart weather sensor may only be used as a stationary installation, i.e. only in an installed state and after completion of all installation and commissioning operations and only in the intended environment. Risk of short-circuits when installing in the rain Do not open the Smart weather sensor if water (rain) can penetrate into it;...
  • Page 11: Installation Of The Smart Weather Sensor

    Installation of the Smart weather sensor Location / Minimum height The Smart weather sensor must be installed at a minimum height of 2 metres. Select an installation position on the building where wind, rain and sun can be detected by the sensors without any impeding structures. No structural parts may be installed above the Smart weather sensor from which water can drip onto the pre- cipitation sensor after it has already stopped raining or snowing.
  • Page 12 Installation of the Smart weather sensor Preparation of the Smart weather sensor 1) Cover with rain sensor 2) Cover latch 3) Printed circuit board 4) Lower section of housing Unlock the cover and lift off from above The cover of the Smart weather sensor with the rain sensor is latched at the lower edge on the left and right (see Fig.).
  • Page 13 Installation of the Smart weather sensor Legend Cable connection to the rain sensor in the housing cover Drive connections (spring-loaded terminal, / N / Up / Down), suitable for solid conductor up to 1.5 mm² or fine-wire conductor Opening for a motor cable Power supply connections (230 V/50 Hz, spring-loaded terminal, L1 / N / suitable for solid conductor up to 1.5 mm²...
  • Page 14: Safety Instructions For The Electrical Connection

    Safety instructions for the electrical connection There is a risk of fatal electric shock when touching electrical components. ◆ The electrical connection and all work on electrical systems must only be carried out by a qualified electrician in accordance with the connection instructions in this manual.
  • Page 15: Electrical Connection

    Electrical connection Wiring diagram for the connection of tubular motors. Before connection, please read the operating manuals for the relevant tubular motor. ATTENTION! When connecting HOMEPILOT tubular motors with mechanical end point settings, or the tubular motors of other manufacturers, a circuit bridge on the printed circuit board of the Smart weather sensor must first be removed, otherwise damage may occur to the Smart weather sensor and drive.
  • Page 16: Final Installation Of The Smart Weather Sensor

    Electrical connection Connection of the power supply and drive Insert the cables for the power supply and drive through the rubber seals on the underside of the Smart weather sensor and connect the power supply (L1 / N / ) and the drive ( / N / Up / Down) to the corresponding terminals.
  • Page 17: Important Information For Service Personnel And Fitters

    Commissioning After wiring up the system and checking all connections, proceed as follows: Switch on the mains voltage of the Smart weather sensor. Open the HOMEPILOT app. Connect the Smart weather sensor with your Premium gateway using the radio code. Important information for service personnel and fitters If necessary, the Smart weather sensor can be reset to the factory settings, see page...
  • Page 18: Resetting The Smart Weather Sensor To The Factory Settings

    Resetting the Smart weather sensor to the factory settings Important information for service personnel and fitters If necessary, the Smart weather sensor can be reset to the factory settings. To do this, the housing cover of the Smart weather sensor must be carefully opened with the sensor in use.
  • Page 19: Service / Maintenance And Care

    Service / maintenance and care The Smart weather sensor should be inspected for soiling twice a year and cleaned as necessary. In the event of heavy soiling, the wind sensor may cease to function, display a constant rain alarm or no longer detect sunshine. In the event of a power failure, the data input by you is stored for approx.
  • Page 20: Technical Specifications Of The Smart Weather Sensor

    Technical specifications of the Smart weather sensor ∼ Operating voltage: 230 V / 50 Hz Ambient temperature: -30 °C to +60 °C Protection class: IP44 Output: loadable with max. 1000 W, fused with T 6.3 A micro fuse Dimensions: approx. W = 96 mm, H = 77 mm, D = 118 mm Heating rain detector: approx.
  • Page 21: Factory Settings Of The Smart Weather Sensor

    Warranty terms and conditions Information on the warranty conditions is enclosed with the product. Factory settings of the Smart weather sensor DCF clock: Active limiting value group: Solar function active *: Solar limit value: 31 kLux Sun detection after: 10 minutes Shade detection after: 20 minutes Solar direction function active:...
  • Page 22: Factory Settings For The Integrated Actuator

    Factory settings for the integrated actuator Manual operation: Automatic timer: Automatic solar function: Automatic dawn function: Automatic dusk function: Automatic rain function: Automatic wind function: Running time: 150 seconds Sunshine position active: 100 % Ventilation position active Ventilation position: 80 % Standard travel direction wind: Standard travel direction rain: Rotation direction:...
  • Page 23: Rear Wall View And Drilling Template

    Rear wall view and drilling template All dimensions in mm, technical deviations possible.
  • Page 24 DELTA DORE RADEMACHER GmbH Buschkamp 7 46414 Rhede (Germany)
