Summary of Contents for HOME PILOT Premium 1500 10 01

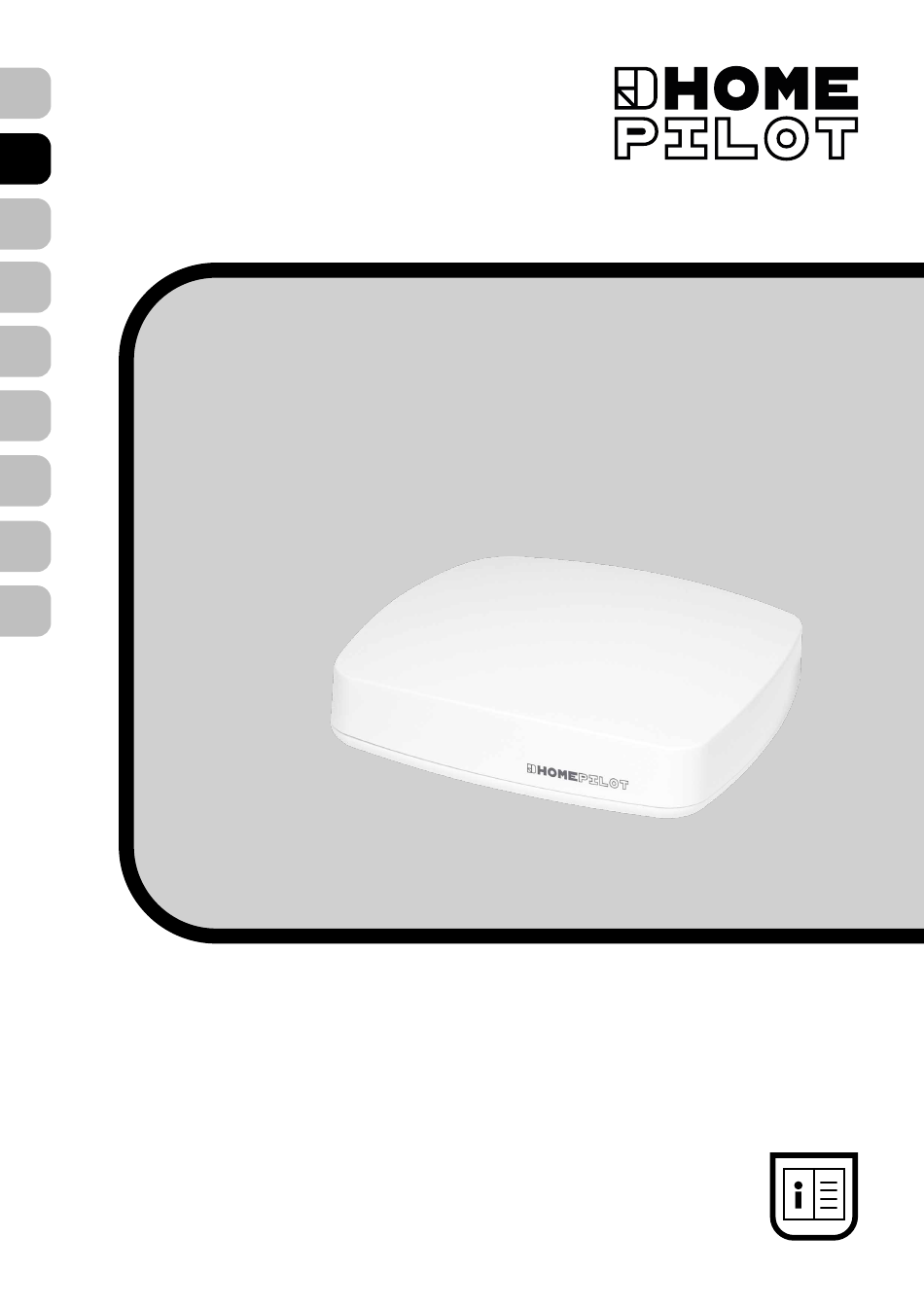

- Page 1 User manual premium Gateway ITEM NO.: 1500 10 01 UM A101-2 (05.2023)
-
Page 2: Table Of Contents
Table of Contents Introduction ............3 Hazard levels . -
Page 3: Introduction
Introduction This manual describes how to commission, connect the electrical system and operate the premium Gateway. • Please read this manual in full and observe all safety instructions before starting with the work. • Read the instruction manuals for the accessories. •... -
Page 4: Safety Instructions
Safety instructions The use of defective devices can lead to personal injury and property damage (electric shocks / short circuiting). • Never use defective or damaged devices. • Check all the components included in the delivery for damage. • Please contact our customer service team in case of damage to the device. Risk of short circuit when using an incorrect power supply. -
Page 5: Intended Use
Intended use The premium Gateway should only be used for configuring and controlling HOMEPILOT radio devices or for integrating smart home components! 2.2 Operating conditions • A 230 V / 50 Hz power supply, together with an isolating device (safety device), must be available at the installation site. -
Page 6: Product Description
Product description 4.1 Connections and buttons on the rear side of the device a) a) b) b) c) c) d) d) LAN connection to the local network 4 x USB port (USB 2.0) Power supply connection Reset button The USB ports are only intended for connecting smart home components that support a radio standard other than DuoFern, e.g. -
Page 7: Functional Description
4.3 Functional description The premium Gateway can be used for logging on, setting up and configuring all devices in the radio network through the HOMEPILOT app. It can be used at any time to adapt the configurable routines to the individual requirements. Network port (LAN) The premium Gateway must be connected to a free LAN port on a router to use it as a central controller. -
Page 8: Commissioning
Commissioning System requirements The following are required to set up the premium Gateway for the first time: • Internet access • A router with an activated DHCP server and a free LAN port • A freely accessible mains socket (230 V / 50 Hz) •... -
Page 9: Connecting The Router
5.2 Connecting the router WARNING! WARNING! The end points of driven products (e.g. belt winders, roller shutter motors) must be configured prior to installation and before ultimately connecting or linking the electronics. CAUTION! • Nobody should stand in the range of motion of the automated product! •... -
Page 10: Setting & Configuration
Creating a user account: Enter the email address and password, an email with a confirmation link will be sent, click on the confirmation link to complete the user registration. The HOMEPILOT app automatically searches the network for the premium Gateway and displays it in the app as soon as it is found. -
Page 11: Maintenance Instructions
Maintenance instructions Software update The premium Gateway is continually updated through firmware updates. You can tell whether an update is available by the flashing green LED or by a red update icon in the HOMEPILOT app. The power supply must not be disconnected during the software update. Open the HOMEPILOT app on the end unit. -
Page 12: What To Do If
7.3 What to do if ... the device is no longer working? Disconnect the premium Gateway from the mains power for approx. 30 seconds and then restart the device. Our customer service team will be happy to help if the problem has not been resolved.. -
Page 13: Technical Specifications
Technical specifications Power supply Supply voltage 5 V / 3 A (DC) Average power consumption < 2.5 W (DuoFern & LAN / WLAN active) Max. power consumption Approx. 15 W Network 1 x Ethernet (100 Mbps) WLAN 802.11 b/g/n WLAN transmission frequency 2.400 GHz - 2.483 GHz WLAN transmission power Max. -
Page 14: Accessories
10. Accessories A wide range of accessories is available to take advantage of the numerous smart home functions in conjunction with the premium Gateway. Information about the accessories is available in our online shop: www.homepilot-smarthome.com 11. Manufacturer's information 11.1 Warranty terms and conditions Information about our warranty terms and conditions is enclosed in printed form with this product. - Page 15 CONTACT Via email: • Germany: service.de@homepilot-smarthome.com • Austria: service.at@homepilot-smarthome.com • Switzerland: service.ch@homepilot-smarthome.com DELTA DORE RADEMACHER GmbH Buschkamp 7 46414 Rhede (Germany)
