INSTRUCTION
M4G951
IN20095 REV. A, 2024-02-02
N N o o t t e e ! ! More information about the product can be found in the manual.
C C a a u u t t i i o o n n ! ! Read and understand the instruction before using the product.
C C a a u u t t i i o o n n ! ! Ensure that the installation complies with local safety
regulations.
W W a a r r n n i i n n g g ! ! Before installation or maintenance, the power supply must first
be disconnected in order to prevent potentially lethal electric shocks! In-
stallation or maintenance of this unit should only be carried out by quali-
fied personnel. The manufacturer is not responsible for any eventual
damage or injury caused by inadequate skills during installation, or through
removal of or deactivation of any safety devices.
Function

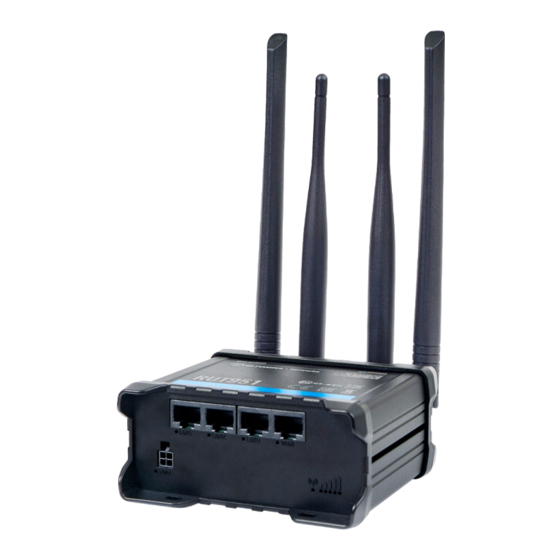

M4G951 is a router used between TCP/IP connected controllers and a
wireless, mobile 4G/GPRS network.
The router has a built in DHCP function and can handle multiple
external units. The router can be used as a WiFi hotspot. It is, however,
recommended to turn off the WiFi or protect the network with a secure
password in order to limit data usage.
M4G951 has built in dynamic DNS which makes the router easy to find
over the internet. The Port Forward software makes it easy to find and
connect to the different units in the application.
The router is not locked to any network provider. It is recommended to
choose a network provider where you can get SIM cards with a fixed rate
or sufficient data traffic since data usage can vary between applications.
Technical Data
Connections
RJ45 (3 LAN, 1 WAN), WiFi
Communication
TCP/IP
Mobile network
4G (LTE) – Cat 4 up to 150 Mbps, 3G – up to 42 Mbps,
2G – up to 236.8 kbps
Ethernet
IEEE 802.3, IEEE 802.3u standards
3 LAN 10/100 Mbps Ethernet ports
1 WAN 10/100 Mbps Ethernet port
WiFi
IEEE 802.11 b/g/n WiFi standards
SIM card slots
2
Software
Open VPN, IPsec, GRE, L2TP, PPTP
Dynamic DNS
SIM-card switch controlled by signal, data limit, roaming
Firmware update from bootloader via WebUI
Power Supply
9 - 30 V DC. Wall adapter included.
Power
<7 W
consumption
Operating
-40 °C ... +75 °C
temperature
Dimensions
110 mm x 50 mm x 100 mm
(HxWxD)
Weight
287 g
Housing
Aluminum
Installation
Place the router in a clear and open space, since walls, doors and other
obstacles can reduce the signal strength.
1. Insert the pointed end of the SIM ejection tool included in the SIM
KIT into the small hole located next to each SIM card slot on the
back of M4G951.
2. Push the SIM ejection tool into the small hole to open each SIM card
slot.
3. Install one or two SIM cards, gently push each SIM card holder to
close it.
4. Attach the mobile to the MOBILE connections and the WiFi
antennas to the WIFI connections on the back of the router.
5. Connect the power adapter to the front of the device. Connect the
other end to a power outlet.
M4G951
Connections and antennas
5
6
7
8
2
3
4
1
11
10
9
Figure 1 Router connections and antennas
LAN1 port
WiFi antenna
LAN2 port
WiFi antenna
LAN3 port
Signal strength
WAN port
Connection status
Mobile antenna
Power
Mobile antenna
1 (5)
