Summary of Contents for Guide Gear WF-037a

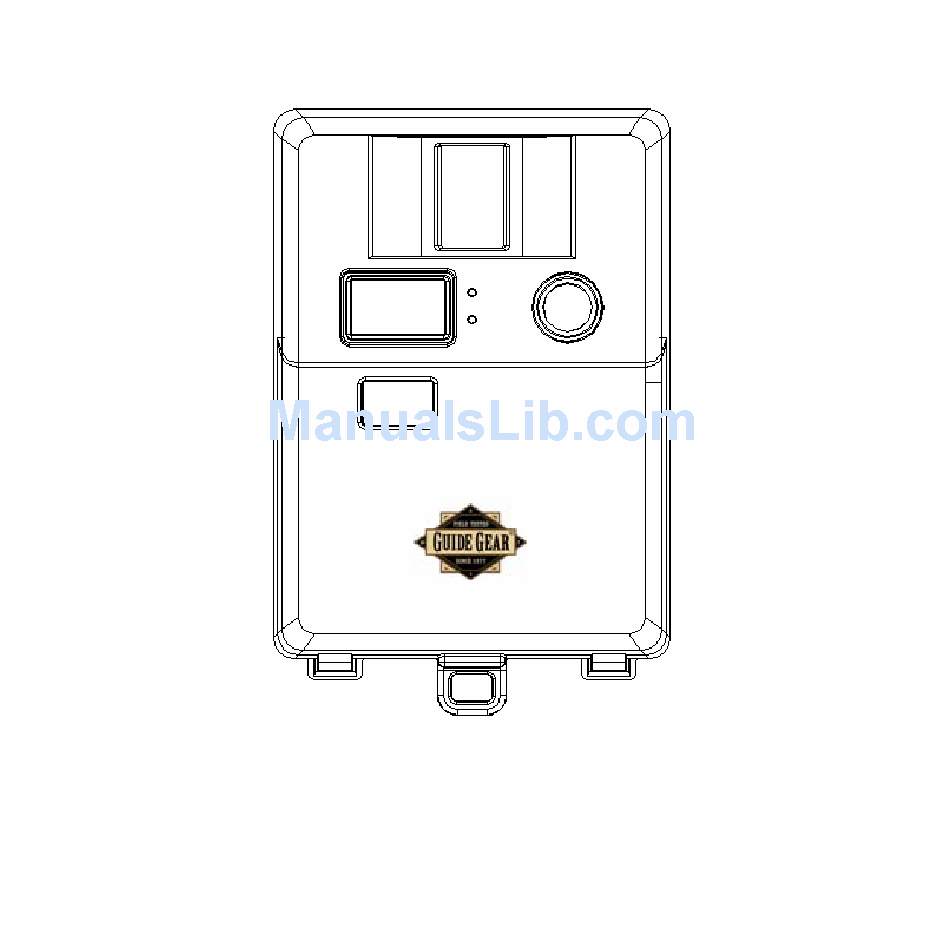

- Page 1 Scouting Camera User’s Manual Model: WF-037a...
- Page 2 Open view image with major parts indication...
- Page 3 Bottom view Side view with major parts indication...
- Page 4 Attention. The software CD-ROM packaged with the camera is designed for PC’s only. Playing this CD-ROM on a stereo or CD player may cause damage to it. This camera is a precision electronic device. Do not attempt to service this camera yourself, as opening or removing covers may expose you to dangerous voltage points or other risks.
- Page 5 Getting to know your Scouting Camera 1. Package contents. Please check if the following items are in the package when purchasing this product. • CDROM (Contented with Ulead PE 8 and driver) • User Manual. • 1.5M USB cable. • 1.5M TV out cable for TV (RCA Jack).
- Page 6 2. Software installation. • Unplug the USB cable from PC. • Insert the CDROM in CD driver of your PC. • The auto-run program will execute. • Follow the instructions shown on screen from your PC to completely install the driver and application program.
- Page 7 If your computer dosen’t run automatically, please click “Start” button and choose “Run”, and then browse the CD drive and click “Setup”. Operation manual of Ulead Photo Explorer is contained on the provided CDROM.
- Page 8 3. Battery and SD memory card installation. • Open the front cover. • Slide the power switch to OFF. • Open the battery door. • Put the battery with correct directions. • Close the battery door. Alkaline batteries should be used and please make sure the batteries polarity is correct.
- Page 9 • Push the SD memory card in to the SD card slot till the end and in the correct direction as shown. • To remove the SD memory card by press the SD card to the end, the SD memory will eject from the SD card slot.
- Page 10 4. Memory Options. You Scouting camera is comes 16MB built in flash memory, the camera is also equipped with an expendable media card slot capable accepting up to 512M SD memory card (sold separately), With no memory card inserted into the slot, the camera will use the built in 16MB memory, If a SD memory card is inserted into the slot then the camera will bypass the built in memory and utilize the compact flash...
- Page 11 the SD card prior use in Scouting Camera. New cards are good to use straight from the package. Display, Controls and Programming. 1. Status Icons on TFT display.
- Page 12 • Time out: To set the time amount of time the camera will sleep between PIR triggering. • Auto Flash: If the brightness is lower then EV 12. the unit will turn on the flash lighting automatically. • Capture mode: It shown the capture mode that you have selected.
- Page 13 a 2.0M pixels image. o 1280 x 1024 1.3M: Select this option to capture a 1.3M pixels image. o 640 x 480 300K pixels image. o 320 x 240 Video resolution: This is the resolution during Video capturing and resolution is 100K pixels.
- Page 14 Please replace with new batteries; otherwise the camera will not work properly. • Day and Time: It shows the date and time that you have set. 2. Controls. • Change the display mode to Preview: By pressing and hold the [CONFIRM] button 2 seconds to switch the TFT display mode to Preview, the TFT display will show the image what you pointed.
- Page 15 • Wake up the unit during PIR detection. By pressing the [UP] or [DOWN] button 2 seconds to wake up the unit inter preview. 3. Settings on Preview. Set the functions during TFT in preview status. 3.1 Set the Capturing mode: •...
- Page 16 If no buttons are pressed within 30 seconds, the unit will return 1minute count down mode then start PIR capturing. 3.2 Set the Resolutions: • Power on the unit, press the [MENU] button to call out the menu. • Press the [UP] or [DN] to move the highlight to RESOLUTION •...
- Page 17 3.3 Set the Time out: • Power on the unit, press the [MENU] button to call out the menu. • Press the [UP] or [DN] button to move the highlight to TIME OUT. • Press [CONFIRM] to into the setting. •...
- Page 18 • Press the [UP] or [DN] to set the TV output in NTSC or PAL system. • Press [CONFIRM] to confirm, then press [MENU] to exit. 3.5 Set Date and Time. • Power on the unit, press the [MENU] button to call out the menu.
- Page 19 Date Time Stamp to stamp the date and time on the captured image. 4. Settings on Playback. Set the functions during TFT in playback status. 4.1 Set to delete one image. • During the image playback. • Press the [UP] or [DN] button to select the image which want to delete.
-
Page 20: Getting Started
• Press the [CONFIRM] button to enter the DELETE ALL. • Press the [UP] or [DN] button to select YES or NO • Press [CONFIRM] to confirm the deleting or exit. • All the captured images will be delete from unit. Once Delete, Delete All or format has been selected, the data or images will be deleted from memory and you will not be able to return again. - Page 21 An image shows how the mount the Scouting Camera to a post or tree. 2. Mounting suggestions. • Camera should be mounted between 4 to 6ft from the ground depending on the subject matter you are trying to capture on the camera. •...
- Page 22 • Clear and branches or debris away from the camera lens and PIR. In order to obtain proper weather resistance, please make sure that both door lockers are securely locked in place. 3. Testing the camera coverage area. One of Scouting Camera’s many features is the ability to test the coverage area.
- Page 23 • After the font LCD screen has powered on. Press the [TEST] button (this must be done with in 30 seconds or the camera will enter count down mode) • Close the front housing. • Walk around in the front of the camera to see if you have mounted camera in the proper position.
- Page 24 minute to leave the coverage area. Then the camera will enter PIR detection mode. b. After 5 minutes in test mode, the camera will then enter count down mode for 1 minutes and the front green indicator will start blinking giving you one minute to leave the coverage area.
- Page 25 • After 30 seconds the camera’s green test light will begin blinking and enter count down mode. This is your indication to leave the coverage area with one minute. • After one minute the camera will take between 1~3 pictures or a 10 seconds AVI video based on your program setting.
- Page 26 lighting conditions. If the lighting conditions are not enough, unit will switch the AVI to single image capturing automatically. When using the AVI function, the camera cannot use the flash. Time/Date stamp will not appear on the AVI video clips. 5.
- Page 27 • A TV icon will appear on the TFT display. • Turn on the Monitor. • Image will be display on the TV screen. • At the bottom of the screen will be an information bar that indicates what picture out of the total stored in memory you are viewing.
- Page 28 • A TV icon will appear on the TFT display. • Turn on the TV and select source to video in. • Image will be display on the TV screen. • At the bottom of the screen will be an information bar that indicates what picture out of the total stored in memory you are viewing.
- Page 29 • Plug the other end of USB cable into the camera. The camera will automatically power ON and display a USB icon on the LCD screen. • At the same time, your computer will recognize the camera as mass storage device and found under MY COMPUTER.
- Page 30 correct before connection. Incorrect voltage or polarity will damage the camera. If you are not sure, please contact your retailer. Maintenance 1. Storing conditions. • Operating Environment: 41 to 104 deg F (5 to 40 deg C). 20-85% relative humidity, non-condensing. 2.
- Page 31 container when it is NOT used. • Take the batteries out, when the Scouting Camera is NOT to be used over a long period. • Avoid dropping the Scouting Camera on to hard ground. Do not to disassemble the Scouting Camera. •...
- Page 32 bit) or above: • Click the Windows Start button. • Click settings and then Control Panel from the pop- UP MENUs. • Double click the Display icon. • Click the Setting tab. • Please select to High Colour (16 bit) or True Colour (24 bit).
- Page 33 • You have used the SD card in other digital devices (the format of the SD card might have changed when using other devices due to un-standard formats). Camera spec and system compatibility. 1. System Requirements and Compatibility. • Windows 98/98se/2000/Me/XP. •...
- Page 34 If you have any questions regarding your PC specifications please call your PC manufacturer. 2. Camera Features and Specification. • Image sensor: 2.1M pixels RGB color. • Built in 1.5” Color TFT display with backlight. • Built in 16M flash memories for image storage. •...
- Page 35 • Battery low indicator. • TV out support for NTSC and PAL system. • Focusing: 1.5m min to Infinity. • High precision 6 P glass lens with IR coating. • Effective viewing Angle: 52 deg. • PIR detection angle 48 deg. •...
- Page 36 Safety. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modification to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
- Page 37 used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If the equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:...
