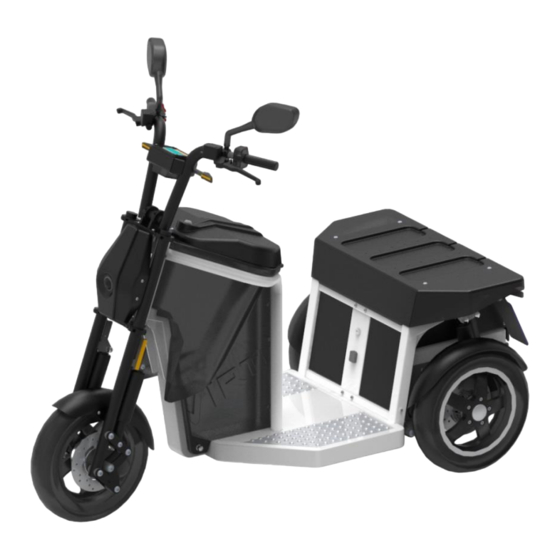

- Page 1 Virto2 User manual Version: january 2020 EUEN www.m-products.nl www.virto.nl...
- Page 2 Virto2 © Copyright M-Products B.V. 2019 All rights reserved. No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of the publisher, except in the case of brief quotations embodied in critical reviews and certain other noncommercial uses permitted by copyright law.
-
Page 3: Table Of Contents
Virto2 Table of Contents INTRODUCTION ........................5 THE VIRTO2 PACKAGE ......................6 2.1 T ........................6 IRTO PACKAGE 2.2 U 2 ........................7 NPACKING THE IRTO SYMBOLS IN THIS MANUAL ....................8 SAFETY ..........................8 ......................... 8 AFETY REGULATIONS USE AND OPERATION ....................... 10 2 ........................... - Page 4 Virto2 ATTACHMENT III – WARRANTY MANUFACTURER ..............29 Page 4 of 30...
-
Page 5: Introduction
M-Products B.V. is NOT responsible for damage and indirect damage as result of operating errors, lack of expert maintenance and any other figurative use of the Virto2. Responsibility of M-Products B.V. expires also, when you or third parties make any changes to the Virto without prior written permission of M-Products B.V. -
Page 6: The Virto2 Package
Virto2 The Virto2 package 2.1 The Virto2 package The Virto2 is delivered in a framework, to optimize use of space during transport. Picture 2.1 Packaging The package includes: ✓ Virto2 ✓ Battery pack ✓ Battery charger ✓ Quick Guide ✓ USB stick, with a.m. this manual. ✓... -
Page 7: Unpacking The Virto2
Virto2 2.2 Unpacking the Virto2 Step 1: Remove all packing material (wrapping foil and plastic bag) Step 2: Unscrew the 4 screws of the transportation framework. Step 3: Tilt the side frames outwards until the Virto2 rests on the floor. Remove the frame parts. Step 4: Loosen the clamp rings and adjust the handle bar to your pleased position. -
Page 8: Symbols In This Manual
Virto2. This is important for ANY person who is going to drive/work with the Virto2! 4.02 It is prohibited to make changes in the Virto2. Prior written permission of M-Products B.V. is always needed. - Page 9 Virto2 4.10 Inform yourself about the local law regarding minimum age to drive a Virto2. 4.11 It is prohibited to drive the Virto2 for people who cannot or are inadequate to see the dangers of driving the Virto2. 4.12 Also people with for example balance disorders, dizziness, have difficulties with walking/standing, are under influence of alcohol, medication and/or narcotics are not allowed to drive the Virto2.
-
Page 10: Use And Operation
The VIN is hammered behind the front wheel into the frame at the right side of the vehicle. This VIN is used for i.a. insurance and type approval purposes, but also for identification when contacting M-Products or dealer in case of faults, questions, repairs, etc. Attention:... -
Page 11: Led-Display Charger
Virto2 LED-Display Charger Operating state during the Note charge process <80% >80% 100% Deep-discharge start blinken Main charge Recharge End of charge / Charge retention Operating state in chase Error number of a fault <80% >80% 100% Battery missing Battery error blinken Time error Control error... -
Page 12: Controls
Virto2 When charging multiple battery packs one after another: Battery chargers must be reset after each charging cycle. This can be done by disconnecting battery charger from 110-230V power supply and connect before connecting another battery pack. Follow connect/disconnect instructions mentioned in paragraph 5.3.1. 5.2.2 Controls Almost ready to drive. -
Page 13: Unlock Virto2
Virto2 Steer – Left handlebar Throttle Steer – Right handlebar 5.2.3 Unlock Virto2 Unlocking of Virto2 can be done in 2 ways: 1. Unlock Virto2 with password a. Press start/stop button (right handle bar, button 6) b. Display will show a small Bluetooth logo blinking in the top left corner c. -
Page 14: Dashboard / Menu Structure
Virto2 5.2.4 Dashboard / menu structure The Dashboard on the Virto2 will display mandatory information on the vehicle status, but also will display error codes in the event of a motor controller error and can be used to personalize some settings. - Page 15 Virto2 Menu structure Toggling the menu by using the 5 round buttons will give access to the following menu ❖ Menu ❖ User interface ❖ Contrast Contrast of the display can be set lighter or darker ❖ Language Toggling the number to set another language (standard English) ❖...
-
Page 16: Automatic Parking Brake
Virto2 5.2.5 Automatic parking brake The Virto2 is supplied with an automatic park brake that act on the drive motor. The park brake automatically releases when throttle is activated and is automatically activated when Virto2 is stopped. Standard leave lever in unlocked position. To release the brake, power is needed. -
Page 17: Seat On Virto2
Virto2 5.2.6 Seat on Virto2 The Virto2 is supplied with a seat. To set the seat at the correct height, follow the following steps 1. Pull out the lever and pull up the seat to adjust to the right height. 2. - Page 18 Virto2 Step1: Switch off main power button Step 2: Unlock electric compartment Step 3: Open electric compartment Step 4: Electrical compartment left side: 1. C3 motor controller Electrical compartment right side: 2. Battery connector 3. Fuse box Page 18 of 30...
-
Page 19: Driving The Virto2
Virto2 Driving the Virto2 5.3.1 Getting ready / daily check Make sure the battery charger is disconnected, and the battery pack is properly inserted and secured into battery compartment. Check the Virto2’s mechanical- and electronic functions before departure. Do not drive when parts do not work, are missing or loose. -
Page 20: Tires
Virto2 5.3.4 Tires Regularly (preferably daily) check the tire pressure. Underinflating may result in drastically shortened range of the Virto2 and shorten the lifespan of the tires. Also the handling gets worse. Inflate tires to 2,8 BAR (40 psi) front- and rear tires. The above mentioned tire pressure may NOT be exceeded! 5.2.5 Brakes (tips and maintenance) Prevent braking hard: anticipate. -
Page 21: Options
Virto2 5.3.6 Options Attention: the availability of the below mentioned options depends on the model and accessories purchased with the Virto2. Lithium NCM battery Standard, the Virto is supplied with an AGM battery 110Ah. Optional, there is the option to supply the Virto2 with a 24V 70Ah battery, which will perform about the same as the AGM battery. -
Page 22: Maintenance
Virto2 Maintenance 5.4.1 General The plastic body panels are made from high quality plastic and therefore resistant to UV-radiation. Even after a long time. The material will not discolor. The body panel material is comparable quality regarding to normal scooter- or motor parts. The material is resistant to oils, fatten and several chemicals. - Page 23 Virto2 Installing new battery pack: Step1: Switch off main power button Step 2: Unlock electric compartment Step 3: Open electric compartment 1. Switch of main power button. 2. Unlock electric compartment by turning the key to the left. 3. Open the electric compartment by giving some pressure at the bottom of the plate. 4.
-
Page 24: Failures
Virto2 Failures Electrical faults Problem Possible cause Possible solution Doesn’t drive Battery pack empty Fully charge battery pack Fuse Replace fuse with fuse of same rating Drives halting Contact your Virto Dealer No power Fuse battery pack Check and replace fuse with fuse with same specs Main relays stuck Reset main relay by removing ignition... -
Page 25: Mechanical Faults
Virto2 When the Virto2 after checking above instructions still not operates properly, contact your dealer and have the VIN number of your vehicle within reach when calling. Mechanical faults In case of mechanical faults, always contact your dealer immediately. Page 25 of 30... -
Page 26: Technical Specifications
Virto2 Technical specifications General Manufacturer M-Products B.V. Dimensions Width Virto 820 mm Length Virto 1699 mm Height Virto 1421 mm Height standing platform 190 mm Properties Maximum load 125 kg (driver + luggage in compartment) Weight empty 135 kg (excl. batteries) -
Page 27: Attachment I - Eu Type Approval Certificate
Virto2 ATTACHMENT I – EU Type Approval Certificate Page 27 of 30... -
Page 28: Attachment Ii - Where Can I Drive
Virto2 ATTACHMENT II – Where can I drive? INFORM YOURSELF ABOUT THE LOCAL TRAFFIC RULES The Netherlands DON’T / NIET DO / WEL Virto2 has to drive on bicyle/moped lane Roads assigned with below traffic signs or roadway when bicycle/moped lane is are NOT to drive with a Virto2 not there De wegen met de volgende... - Page 29 ATTACHMENT III – Warranty manufacturer M-Products B.V. fully supports the quality of Virto2. Including through the use of reliable parts that we buy from reliable suppliers. M-Products B.V. staat volledig achter de kwaliteit van de Virto2. Onder andere door het gebruik van betrouwbare onderdelen die we kopen via betrouwbare leveranciers.
- Page 30 Virto has been treated well. Om deze garantie te behouden is het belangrijk dat de Virto2 (aantoonbaar) goed is onderhouden volgens de opgegeven richtlijnen en dat er netjes mee omgegaan is. M-Products B.V. Page 30 of 30...
