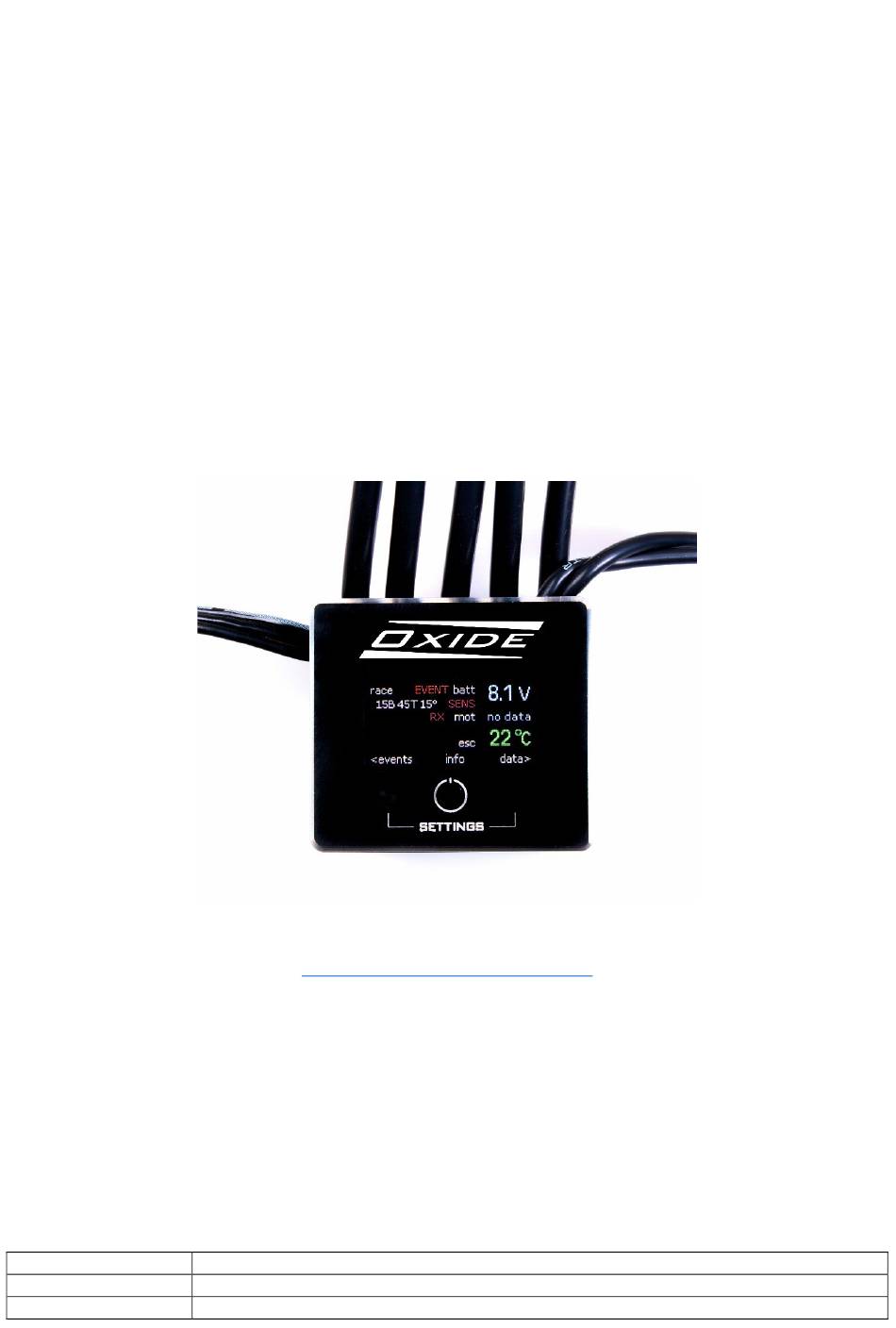

- Page 1 User Manual - Full Version OXIDE 1/10 for Electronic Speed Controller Dated: 22.5.2024 The latest version of manual you will find here http://www.elceram-rc.cz/download/ Datum of Revision Description...
-
Page 2: Manual Contents
17. Conformity and Declarations Introduction Thank you for purchasing OXIDE 1/10 and for your trust in ELCERAM product. By this decision, you have chosen a new generation electronic speed controller (ESC) for brushless motors developed especially for 1/10 RC cars, endowed with many unique features and functions. - Page 3 High power electronics for professional RC racing Advanced Cooling Technology for RC Cars 1/10 ________________________________________________________________________________________________________________________________________________ responsible and knowledgeable adult. Keep this Never wrap your product in plastic film, metal foil or product away from the reach of small children. similar, if it is switched on.
-
Page 4: Installation
Aluminium Oxide Cooler at the bottom side of ESC. The double-sided tape is included in the package. We recommend for example tape type 3M 5915. If better cooling effect desired, you can stick OXIDE on any thermal conductive plate (for example aluminium) in the car, or use the ELCERAM Advanced Passive Heatsink (ELC007). - Page 5 High power electronics for professional RC racing Advanced Cooling Technology for RC Cars 1/10 ________________________________________________________________________________________________________________________________________________ Connections ! WARNING ! Please, double check the polarity of battery interconnection! Make sure, that positive (+) of ESC is connected to the positive (+) of battery. If polarity is reversed, the ESC will be damaged!
- Page 6 High power electronics for professional RC racing Advanced Cooling Technology for RC Cars 1/10 ________________________________________________________________________________________________________________________________________________ Main Screen Description and Basic Control of ESC Basic Description of ESC Using The using of ESC is very simple and there is no other programming interface needed. Turning on After short pressing of ON/OFF/ENTER button, the ESC will be switched on.
- Page 7 High power electronics for professional RC racing Advanced Cooling Technology for RC Cars 1/10 ________________________________________________________________________________________________________________________________________________ Programming and Screens schema GUI uses following design patterns: White is static text. Blue numbers are values updated in real time. Pink are settings that you can change. Exception to that is main screen which is optimized for maximum readability during quick checks before race.
- Page 8 High power electronics for professional RC racing Advanced Cooling Technology for RC Cars 1/10 ________________________________________________________________________________________________________________________________________________ Screens schema:...
- Page 9 High power electronics for professional RC racing Advanced Cooling Technology for RC Cars 1/10 ________________________________________________________________________________________________________________________________________________ RACE DATA Item Comments Main screen Active profile name In top left corner. You can switch profiles in blue PROFILE screen. Shows up when there was at least one event generated. Flag is yellow for warning events, red if there is at least one EVENT flag error event.
- Page 10 High power electronics for professional RC racing Advanced Cooling Technology for RC Cars 1/10 ________________________________________________________________________________________________________________________________________________ GRAPHS ESC TEMP ESC temperature history during this session. Horizontal axis in minutes, vertical is temperature. You can customize temperature units in GUI CUSTOMIZATION yellow screen and horizontal axis scale in yellow “GRAPHS CUSTOMIZATION” screen. GRAPHS MOTOR TEMP Motor temperature history during this session.
- Page 11 High power electronics for professional RC racing Advanced Cooling Technology for RC Cars 1/10 ________________________________________________________________________________________________________________________________________________ Default Typical Max. SETTING 1 Parameter Name Min. value Comments value value value Profile You can choose active profile here. Each profile has its own set of parameters (blue screens, listed below). Throttle Lower PWM frequency = more current through motor 8 kHz...
- Page 12 High power electronics for professional RC racing Advanced Cooling Technology for RC Cars 1/10 ________________________________________________________________________________________________________________________________________________ Similar function like mechanical timing by motor but in specific rpm range using software. It brings more power efficiency for your power Hall Angle system. rpm 0 10000 30000...
- Page 13 Temperature units °C or °F ELCERAM splashscreen enable. Pease not that disabling splashscreen will not speed up boot – Splashscreen ESC starts controlling motor as soon as valid Rx signal is received regardless of screen content.
-
Page 14: Setup Sheet
High power electronics for professional RC racing Advanced Cooling Technology for RC Cars 1/10 ________________________________________________________________________________________________________________________________________________ TC Car TC Car TC Car Default Setup sheet Parameter STOCK STOCK Stock STOCK STOCK STOCK STOCK value carpet asphalt carpet carpet carpet carpet carpet Motor 13.5T 13.5T... - Page 15 High power electronics for professional RC racing Advanced Cooling Technology for RC Cars 1/10 ________________________________________________________________________________________________________________________________________________ RX Calibration ! WARNING ! Keep the sensor cable disconnected during the first power on until ESC is calibrated with your radio system to avoid unexpected motor start! ! WARNING ! We recommend to use one of the radio control systems compatible with OXIDE –...
- Page 16 High power electronics for professional RC racing Advanced Cooling Technology for RC Cars 1/10 ________________________________________________________________________________________________________________________________________________ Battery and BEC voltage Calibration Measure battery/BEC voltage using a multimeter. Then choose the VOLTMETERS CALIBRATION in the Yellow menu (picture below) and set the measured value using edit button and +/-. 11.
- Page 17 High power electronics for professional RC racing Advanced Cooling Technology for RC Cars 1/10 ________________________________________________________________________________________________________________________________________________ 12. The Motor Choice OXIDE was tested with the most of sensored motors available on the market, with or without temperature sensor. If motor has no temperature sensor, “no data” will be displayed. OXIDE has very linear and smooth throttle characteristics especially if boost timing is set to zero.
- Page 18 High power electronics for professional RC racing Advanced Cooling Technology for RC Cars 1/10 ________________________________________________________________________________________________________________________________________________ 13. Troubleshooting and EVENTs Description OXIDE has revolutionary self-diagnostics and you can see the event notifications before and after race immediately on the display. The example of the events you can see in the picture bellow: These events inform you that: In the time 0:00 the ESC has no Rx signal from your Receiver.
-
Page 19: Additional Troubleshooting
High power electronics for professional RC racing Advanced Cooling Technology for RC Cars 1/10 ________________________________________________________________________________________________________________________________________________ Additional Troubleshooting Problem Cause Solution - Hold settings buttons to reset Display is frozen, white or any other Dirty connector or contact display. visible artifacts are present momentarily lost during crash - Check and clean the connector. - Page 20 High power electronics for professional RC racing Advanced Cooling Technology for RC Cars 1/10 ________________________________________________________________________________________________________________________________________________ 14. Display and Maintenance Display is very resistant and does not need any maintenance. We suggest cleaning using microfiber cloth – see picture on the right side.
-
Page 21: Option Parts
Allen key Tool 0,05 ‘’ (1,27 mm) and new screws included Universal Graphite Plate ELC004 50 x 60 x 1 mm External Low ESR Capacitors ELC005 soldered on the ceramic PCB with thick silver layer ELCERAM RC Cables ELC010 AWG14 - 1 m ELC007 ELCERAM Advanced Passive Heatsink... - Page 22 The producer, company ELCERAM a.s., hereby declares that Electronic Speed Controller OXIDE 1/10 complies with the requirements of relevant directives, regulations and harmonized European standards. The full text of the EU Declaration of Conformity is available at following website: www.elceram-rc.com.
