- Page 1 BULLDOG EVC300 QUICK START BULLDOG QUICK START MOUNTING GUIDE Bulldog Quick Start Mounting Guide - Rev_E - Draft.docx...
- Page 2 This valve should shutoff water to your entire residence when closed. Supported Valve Types The Bulldog is compatible with your existing 90° Ball Valve. No plumbing required. Ensure your valve looks like this with a single lever that closes when turned 90°.
- Page 3 Bulldog Quick Start Mounting Guide Valve Robot Mounting Standard Bracket Mounts • Your kit contains 2 Mounts designed to cover most valve types and sizes from 3/4” to 1-1/2”. Select the mount that best suits your valve. • If needed, custom bracket mounts are available for ½”...
- Page 4 Bulldog Quick Start Mounting Guide Custom Gear Clamp Mounts • If needed, custom gear clamp mounts are available for valves having low clearance between the valve body and walls as well as PEX valves with crimped tab rings. o For low clearance valves, we supply the mount below without the PEX Crimp Ring.
- Page 5 Bulldog Quick Start Mounting Guide Affix Mount to Valve 1. Attach Mounting Bracket Assembly to the Valve Collar as shown below. Note: Do Not Fully Tighten the Bracket Clamping Screws or Gear Clamps. Bracket projection should face towards the valve...
-
Page 6: Rotational Alignment
Bulldog Quick Start Mounting Guide Rotational Alignment 2. Rotate the Mounting Bracket Assembly so the center of the Tab Slot is aligned with the Valve Pivot Point. 3. Fully tighten both Bracket Clamping Screws or Gear Clamps. Valve Pivot Tab Slot... - Page 7 Bulldog Quick Start Mounting Guide Pivot Point Alignment 4. Mount the Bulldog Motor to the Tab Slot as shown. IMPORTANT: Slide the Motor forward or backward until the Motors Pivot Point aligns perfectly with the Valve Pivot Point. Then fully tighten the Mounting Screw.
- Page 8 Bulldog Quick Start Mounting Guide Connect Controller 5. Connect the Bulldog Motor Connector and the 12 Volt Connector to the Bulldog Control Module. IMPORTANT: You must align the arrow on the motor Motor connect or body to Connector the slotted side of...
-
Page 9: Battery Backup Option
Bulldog Quick Start Mounting Guide Battery Backup Option 7. If you purchased a Battery Backup Kit, connect the Adapter Cable as shown. Power on the Battery Backup Module. Control Module Adapter Cable 12 Volt Adapter Battery Backup Module... - Page 10 Bulldog Quick Start Mounting Guide Manually Close Valve 8. Ensure that your Water Valve moves freely. Then rotate the Valve Handle manually to it’s closed position as shown below.
- Page 11 Bulldog Quick Start Mounting Guide Power Bulldog Closed 9. Move the Bulldog Control Arm to its closed position by pressing the Control Module Valve Button shown below in Blue. Note your module type below:...
- Page 12 Bulldog Quick Start Mounting Guide Mount Guide Pins 10. Mount the Guide Pins and Lower Bracket to the Bulldog Control Arm. Slide them snug against either side of the Water Valve Handle and tighten the hardware. Guide Pins Bulldog Control...
-
Page 13: Mount Controller

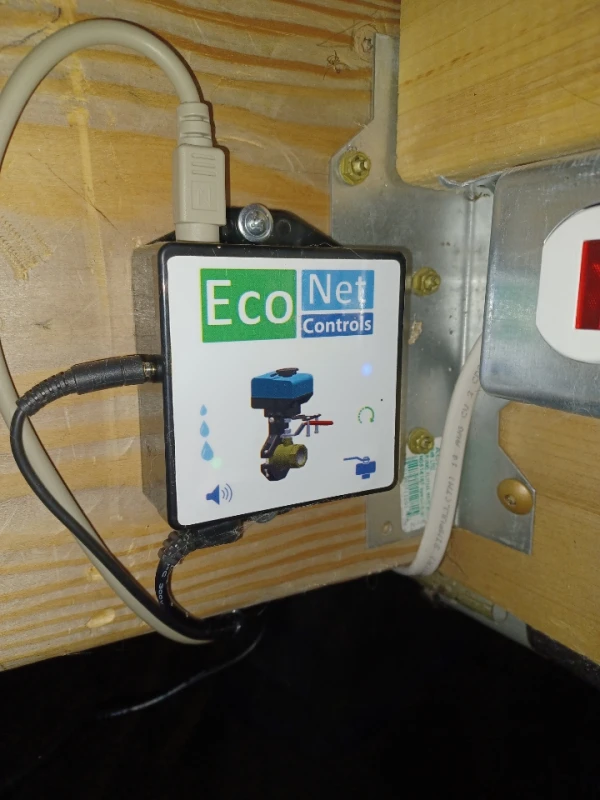

Bulldog Quick Start Mounting Guide Mount Controller 11. Mount the Bulldog Controller to a nearby surface such as wood or drywall using screws (not supplied) and the controllers’ mounting tabs. Secure cables to pipes and walls as needed. IMPORTANT: Mounting the controller on “Bad... -
Page 14: Testing Operation
Bulldog Quick Start Mounting Guide Testing Operation Using the Control Module Valve Button, test the Bulldog Motor. ENSURE THE FOLLOWING: A. The Mount does not move on the Valve Body. B. The Motor and Valve Pivot Points stay aligned with each other. - Page 15 How to Manually Move the Bulldog Valve Control Arm 1. Unplug the Control Module Power Connector, or disconnect the Control Module from the Bulldog Motor. 2. Depress and hold the Clutch Button as shown below while moving the valve handle by hand.
- Page 16 Bulldog Quick Start Mounting Guide SUPPORT Econet Support Email: support@econetcontrols.com Econet Support Phone: (888) 320-9188 Bulldog Quick Start Mounting Guide - Rev_E...
Need help?
Do you have a question about the BULLDOG and is the answer not in the manual?
Questions and answers
Looking to reset my controller
To manually move the Bulldog Valve Control Arm and reset the EcoNet BULLDOG controller:
1. Unplug the Control Module Power Connector or disconnect the Control Module from the Bulldog Motor.
2. Depress and hold the Clutch Button while moving the valve handle by hand.
3. If the Bulldog was manually closed during a power outage and the water must stay off when power returns, unplug the device to ensure it remains off.
This process allows you to manually reset the controller.
This answer is automatically generated
