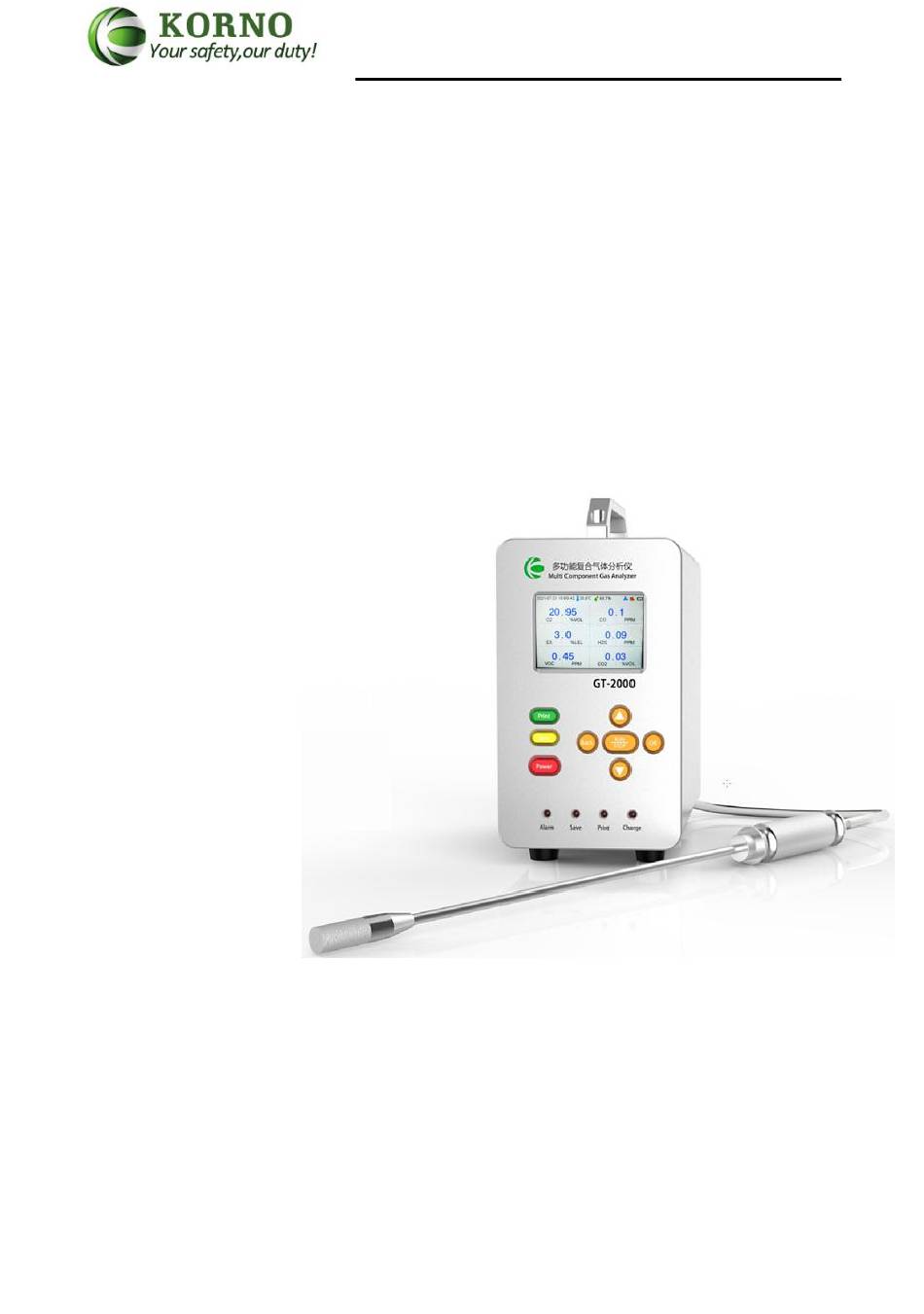

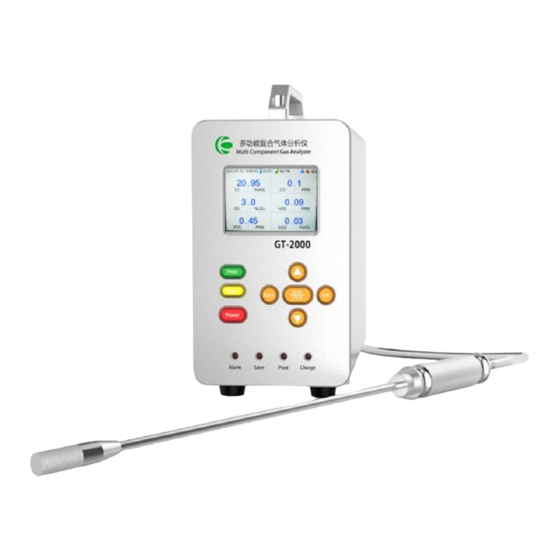

- Page 1 ShenZhen Korno Import&Export Co.,Ltd GT-2000 SERIES MULTIFUNCTIONAL GAS ANALYZER User Manual - 1 -...
-
Page 2: Table Of Contents
ShenZhen Korno Import&Export Co.,Ltd Contents 1. Warranty -------------------------------------------------------------------------------- 3 2. Product Brief Introduction ----------------------------------------------------------- 3 3. Product Features ----------------------------------------------------------------------- 4 4. Product Structure ---------------------------------------------------------------------- 5/6 5. Technical Parameters ------------------------------------------------------------------ 7 6. Detector instructions------------------------------------------------------------------- 8 6.1.Button Definition --------------------------------------------------------------8 6.2.Charging mode ------------------------------------------------------------------ 8 6.3.Parameter modification -------------------------------------------------------- 8... -
Page 3: Warranty
ShenZhen Korno Import&Export Co.,Ltd 1. Warranty Please read the user manual before using the gas detector controller. It is forbidden to disassemble the controller, repair and replace the spare parts without authorization. Installation, commissioning, setting and other operations must be carried out by ... -
Page 4: Product Features
ShenZhen Korno Import&Export Co.,Ltd 3. Product Features With advance nanometer semiconductor technology, ultra-low power 32bit microprocessor, 24bit ADC data acquisition chip, outstanding accuracy clearly. 3.5 inches IPS technical grade display with a pixel up to 320*480, display technical ... -
Page 5: Product Structure
ShenZhen Korno Import&Export Co.,Ltd 4. Product Structure Note: The GT-2000 series detectors are customizable products, please confirm the function with the sales. - 5 -... -
Page 6: Technical Parameters
ShenZhen Korno Import&Export Co.,Ltd 5. Technical Parameters Product type： Multifunctional gas analyzer(Customize according to user’s need) User can customize 1-12 gas sensors, please refer to the sensor Scalable gas sensor: parameters Temperature and Temperature detection range:-40 ～ 120℃ humidity: Humidity detection range:0-100%RH... -
Page 7: Detector Instructions
ShenZhen Korno Import&Export Co.,Ltd 6. Detector instructions 6.1. Button Definition Button Icon parameter setting Name Back Cancel/Return to previous menu Move up/ Move left Down Move down/ Move right OK/Menu Enter menu(press and hold for 5 seconds)/ Confirm Pump switch/... -
Page 8: Charging Mode
The detector will dim out if not operated after 300 seconds. Notice: 1. GT-2000 series multifunctional gas and dust detector could be work normally only in condition of the pump was switched on. Buttons only can be operated when screen light up. -
Page 9: Operation Instructions
ShenZhen Korno Import&Export Co.,Ltd Operation instructions 7.1 Operation Interface Battery Temperature&Humidity(optional) Alarm Date Pump Comcentration Unit Molecular formula Single gas Multi gases Long press the “Power” button, the screen will light up and display the sensor information. It needs about 1 minutes to warm up the gas detector. -
Page 10: Function Menu Instruction
ShenZhen Korno Import&Export Co.,Ltd 7.2 Function Menu Instruction Long press” OK” button for 5 seconds to enter function menu as shown in figure 10. Eleven sub-menus are including in function menu:Basic setting 、 History Log 、 RealTime Curve 、 Zero calibration 、 Target calibration、... -
Page 11: History Data Log
ShenZhen Korno Import&Export Co.,Ltd 7.2.2 History Data Log User can check history log, view history log curve, export history log and clear history log as shown in figure 17. 1.Check History Log:Press “OK” to enter this sub-menu,the sensor name,quantity of history data will be shown,press “OK”... -
Page 12: Real-Time Curve
ShenZhen Korno Import&Export Co.,Ltd 7.2.3 Real-time Curve In this menu users can view all the sensors and corresponding channel.Press “Enter” to check each sensor’s real-time curve as shown in figure 22-23. - 12 -... -
Page 13: Zero Calibration
2.Do not operate zero calibration for those gases which already exist in the air,such as oxygen,carbon dioxide,nitrogen,dust particle. 3.When GT-2000 series gas detector combined with gas sensors, or with dust sensors, the detector has two calibration functions. 4.When GT-2000 series gas detector combined with dust sensor, the dust sensor doesn’t has calibration functions. -
Page 14: Alarm Setting
ShenZhen Korno Import&Export Co.,Ltd standard gas slowly and control gas flow within 600ml/min,observe the real-time concentration value(concentration value should be increasing),wait until real-time concentration value rise to the peak reading and stay still, user can chose a un-calibrate option to operate(√ stand for this level has been calibrated and ×... -
Page 15: Measure Mode
ShenZhen Korno Import&Export Co.,Ltd Procedures: Enter alarm settings sub-menu, Move the cursor to “Enter”,press “Ok” to select and press “Up” and “Down” to switch alarm mode, then press “Ok” to save your modification. 7.2.7 Measure Mode User can choose two measure mode:real time measure and fixed time measure as shown in figure 30.When detector is preset as “real-time measure”mode, it provides continuous monitoring and will shows real-time... -
Page 16: Print Setting
ShenZhen Korno Import&Export Co.,Ltd 7.2.9 Print Setting Manually print、automatically print are optional in this menu. It can print data via a micro printer(the micro printer is optional accessory). The report will print with company name,count,time and unit of time as shown in figure 33 7.2.10 Time Setting... - Page 17 ShenZhen Korno Import&Export Co.,Ltd ◆ Problem: No response or weak response when detecting Possible reasons: 1) Oxygen content value of gas is too low: <5%VOL. 2) Gas pressure is too high, the pump can’t not afford it. 3) Expired sensor might cause the problem too .
-
Page 18: History Data Export Instructions
ShenZhen Korno Import&Export Co.,Ltd 9. History data export instructions Please kindly contact with the sales for the export software and manual. 10. After-sales Service A．WARRANTY 1.We provide 12-Month warranty for the detector and 3-Month warranty for the accessories. 2.We have free calibration once a year during the entire product’s service life.（freight is not included）... -
Page 19: Common Gas Type List
ShenZhen Korno Import&Export Co.,Ltd 11. Common gas type list 0-1000,5000,10000,30000PPM; 0-50,100,500,1000,2000,5000,10000PPM 0-5,25,30,100%VOL 0-100,500,1000,2000PPM 0-2,4%VOL; 0-100%LEL 0-2000,5000,10000,50000PPM; 0-10,20 NH3 0-50,100,500,1000,5000PPM %,50%,100%VOL 0-1,10,20,50,100,500,1000,2000PP CH2O 0-10,20,50,100PPM 0-10,20,50,100,200,500,1000,2000, 0-1,2,5,10,20,50,100,500,1000,2000,5000 5000PPM 0-1,2,5,50,100,250,500,1000,2000, NO2 0-1,20,50,100,500,1000,2000PPM 5000PPM 0-500,1000,5000,20000,40000PPM; CLO2 0-1,5,10,20,50PPM 0-100%VOL 0-100%VOL 0-50,100,500PPM 0-5000,10000,50000PPM; 0-20%, 0-100,500,1000,2000PPM; 0-2%VOL;... - Page 20 ShenZhen Korno Import&Export Co.,Ltd 深 圳 市 科 尔 诺 进 出 口 贸 易 有 限 公 司 ShenZhen Korno Import&Export Co.,Ltd ADD: 2nd Floor,Innovation Building,Qixing Creative Industrial Park,Baotian 1st Road,Xixiang Town, Bao an District,Shenzhen City,Guangdong Province,China TEL: +86 0755 86110165-211...
