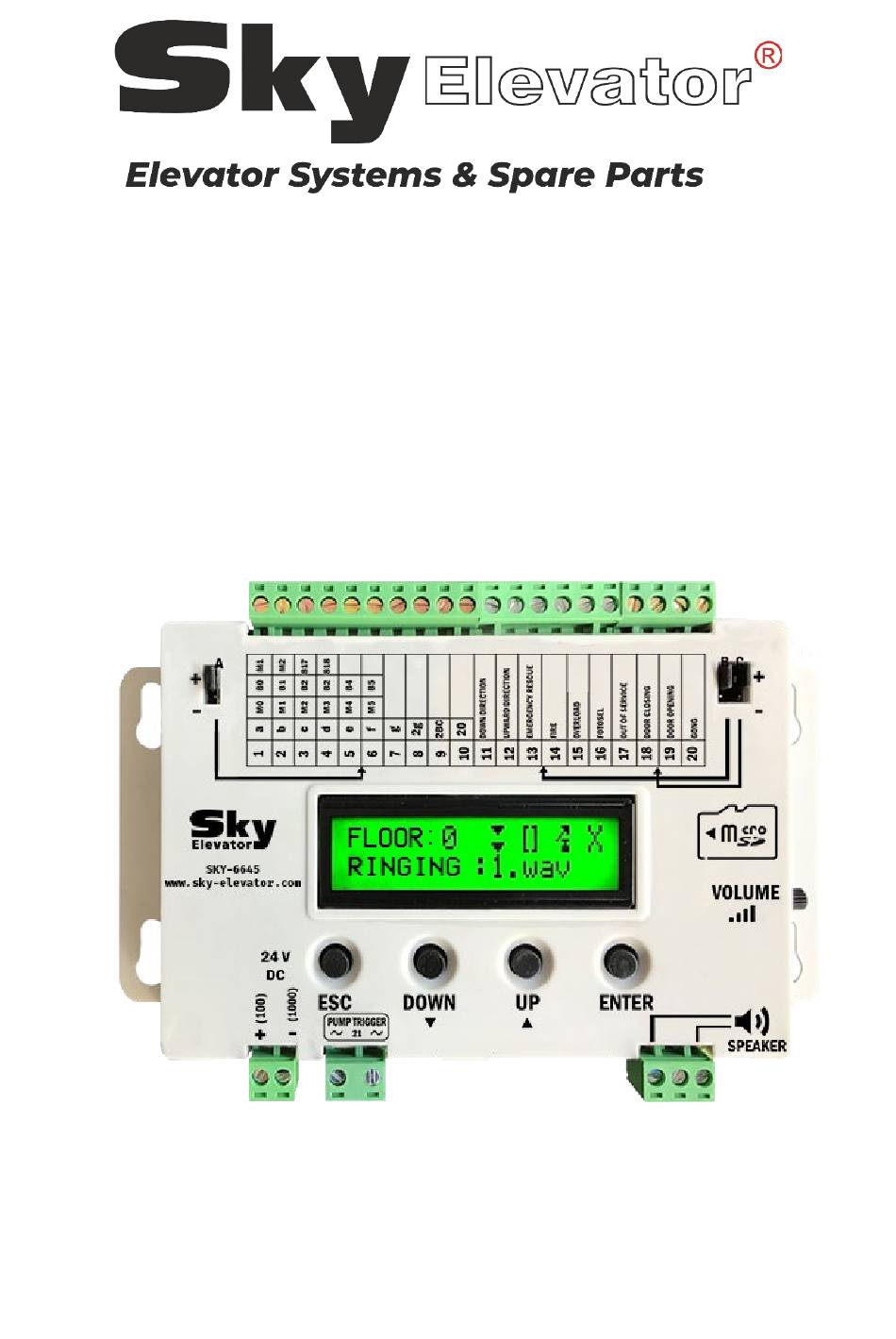

- Page 1 SKY-6645 UNIVERSAL ANONS SYSTEM V2.0 USER GUIDE...
- Page 2 WWW.SKY-ELEVATOR.COM...
- Page 3 EXPLANATION SKY 6645 is a voice announcement system specially developed for elevators. SKY 6645 can work in all parallel installation elevators in the market. The product includes hardware and software features in parallel with today's technology. It supports most of the warning types needed in the elevator.
- Page 4 HIGHLIGHTS • All settings can be made easily and quickly via buttons on the 2x16 LCD screen without making any changes in the microSd card. • Announcement in 7 languages. • On the Main Menu screen, the current Floor Number, the name of the music file being played and the symbols of Overload, Out of Service, Door Opening, Door Closing, Up Direction and Down Direction Signals are displayed.
- Page 5 HIGHLIGHTS WWW.SKY-ELEVATOR.COM...
- Page 6 ELECTRICAL PROPERTIES Recommended Unit Supply Voltage VOLT-DC °C Operating Temperature DC Signal Input Voltage Current Drawn Audio Output Watt Power Speaker Impedance ELECTRICAL PROPERTIES ENTER MENU Press and hold ENTER for 1 second TRANSITION BETWEEN MENUS ENTER key to next menu ESC key to previous menu CHANGING MENU VALUES Increase the menu value with the UP button and decrease the menu value with the DOWN button.
- Page 7 Press ESC and DOWN one more time to check all inputs one by one and to hear the sound of the signal. Then use the UP and DOWN buttons to switch between the inputs. When there is no signal on the input, [O] is displayed, when a signal is given, it becomes [1] and announces the relevant voice announcement.
-
Page 8: Microsd Card Files
Press the ENTER button for 1 second and enter the Menu. Press the ENTER key to select the WELL IDENTIFICATION option activated with the UP and DOWN buttons. Press ENTER button to start and ESC button to cancel. When you press ENTER button, the device will be ready to recognize the floors. SEND THE ELEVATOR TO THE TOP FLOOR. - Page 9 SAMPLE CONNECTION DIAGRAM ANNOUNCEMENT SYSTEM AUDIO FILE NUMBERS WWW.SKY-ELEVATOR.COM...
- Page 10 MESSSAGE MESSAGE MESSSAGE 1. wav Floor 0 33. wav Floor 64 65. wav Floor 64 2. wav Floor 1 34. wav Floor -1 66. wav -1. Floor 3. wav Floor 2 35. wav Floor -2 67. wav -2. Floor 4. wav Floor 3 36.
- Page 11 MESSSAGE 97. wav Roof Floor 98. wav Pool Floor 99. wav Casino Floor 100. wav Main Entrance 101. wav International Arrivals 102. wav Domestic Arrivals 103. wav International Departures 104. wav Domestic Departures 105. wav Going Up 106. wav Going Down 107.
- Page 12 www.sky-elevator.com www.sky-elevator.EU -12- WWW.SKY-ELEVATOR.COM...
