Summary of Contents for Taito S1

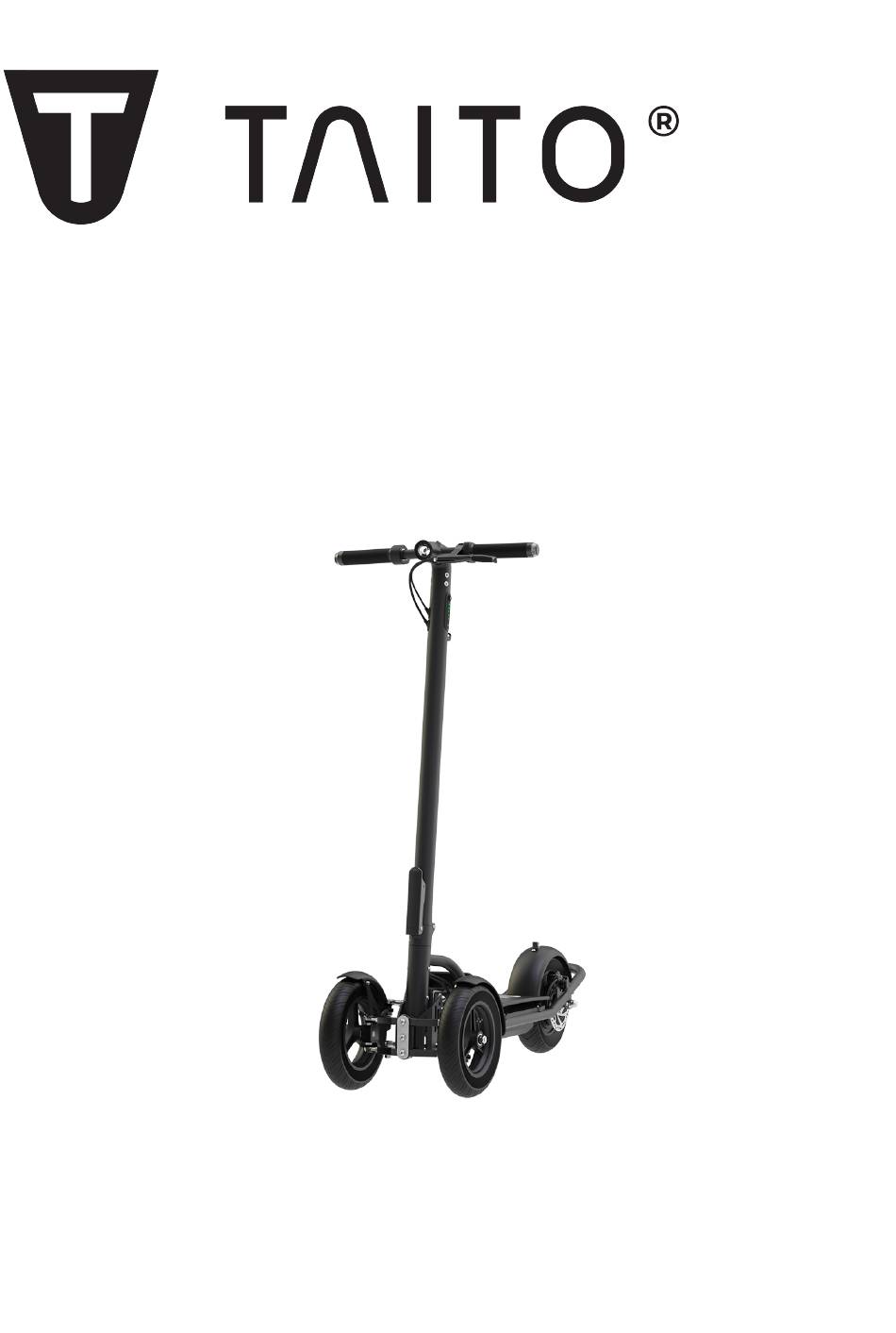

Page 1 User manual Taito S1...
Page 2 All rights and modifications reserved. All trademarks mentioned are the property of their respective owners. No part of this publication may be reproduced and/or published by print, photocopy, microfilm or any other means without prior written permission from Taito Mobility. For the latest version of the manual, visit www.taito.be Taito Mobility Willem Wenemaerstraat 21 9000 GHENT Doc.
Page 3: Table Of Contents
Lifespan........................................... 9 Type designation.......................................9 Technical details....................................... 11 Description Parts identification....................................14 Accessories and options..................................17 Procedure The operation of the Taito................................18 Safety Safety measures.......................................19 Safety instructions....................................19 Battery..........................................21 Personal protective equipment...............................21 What to do if you fall?..................................22 Hazardous substances..................................22 Storage and transport Storing the Taito.....................................
Page 4 Folding the Taito.....................................27 Pushing the Taito (without folding)............................28 Pushing the Taito (folded)................................29 Carrying the Taito....................................29 Unfolding the Taito....................................30 Unlocking the Taito with your smartphone...........................30 Activate the Taito....................................31 8.10 Switching o the Taito..................................31 8.11 Riding the Taito....................................... 32 8.12...
Page 5 Taito S1 Recycling 11.1 Recycling the Taito....................................48 Annexes 12.1 Warranty........................................49 12.2 EC declaration......................................50 12.3 Spare parts........................................51 12.4 Maintenance sheet....................................59 Index...
Page 6 Taito S1...
Page 7: Introduction
Introduction Foreword You made a good choice in buying your Taito. This manual aims to inform you about the operation and maintenance of your new Taito. Your Taito was assembled and delivered ready to use. If not, contact your Taitodealer. This manual is not intended to teach you how to assemble or repair the Taito yourself.
Page 8: Intended Use
Intended use The Taito is a means of transport for one person. The scooter should only be used by adult drivers who have the required driving competence. Respect the minimum age limit applicable in your country.
Page 9: Lifespan
Taito S1 It is forbidden to open the Taito for purposes not described in the chapter on maintenance. It is forbidden to install parts on the product that are not approved by Taito Mobility. These may: • make the operation of the product worse or prevent it, •...
Page 10 Taito S1 Fig. 2: Example of a rating plate Specification (English) Specification Value Model Model Build Year of construction For example: 2023 Nominal Power Rated power 500 W Max. Payload Maximum permissible weight 125 kg Net Weight Net weight ± 18.5 kg Max.
Page 11: Technical Details
Taito S1 Technical details Fig. 3: Dimensions in open and folded position Component Property Specification Dimensions L x W x H (open) • L = 1,060 mm • W1 = 360 mm • W2 = 495 mm • H1 = 1,156 mm L x W x H (folded) •...
Page 12 Taito S1 Component Property Specification Suitable surfaces Recommended: asphalt roads, concrete roads. The rest is trial and error. If the wheels sink, slide or slip, the surface is not suitable. Ambient temperature -10 °C to + 50 °C IP level of protection...
Page 13 Using the motor brake: the more you use the motor brake, the more it will recharge the battery. **The maximum permitted total weight is equal to the weight of the driver + the weight of the Taito as indicated on the rating plate (excluding the weight of the battery) + the weight of the battery + the weight of subsequently added options or accessories + the weight of luggage (e.g.
Page 14: Description
Parts identification Fig. 4: Front view Component Explanation Smartphone connector With this connector, you can attach your smartphone to the Taito. Handle with built-in indicator The handlebar has a built-in indicator and a reflector on both sides. Description Parts identification...
Page 15 Lever This is the lever you need to loosen to fold the Taito. Headlight White lighting at the front of the Taito. Brake lever This brake lever operates the disc brake mounted on the rear wheel. Description Parts identification...
Page 16 This is where you will find the power button, battery indicator and a light sensor. Disc brake Braking is done via the disc brake on the rear wheel. Wheel motor The rear wheel is fitted with a wheel hub motor that drives the Taito. Description Parts identification...
Page 17: Accessories And Options
Always fit supplied accessories and options according to your Taitodealer's instructions. Observe the correct tightening torque for screw connections. To avoid accidents, use only original accessories and parts that fit your Taito and comply with legal regulations. Description Accessories and options...
Page 18: Procedure
Taito S1 Procedure The operation of the Taito The product is an electric scooter equipped with a powerful battery that drives the wheel hub motor in the rear wheel. Speed can be contrlled with a throttle handle. At the front, a manoeuvrable suspension system with 2 front wheels is provided that can be operated via the handlebars.
Page 19: Safety
Taito S1 Safety Safety measures The following safety measures are provided for safe use of the electric scooter: Provision Explanation Lighting • A front light (white headlight) is provided. • A tail light (red) is provided. • A Rider Light is provided. The Rider Light illuminates the driver’s back in a bright red...
Page 20 WARNING The Taito is meant for recreation. But in a public area, it is considered a vehicle, with all the risks that vehicles involve. For your own safety, follow the instructions in the manual and the traic laws and regulations as set out by government and regulatory authorities.
Page 21: Battery
WARNING Don't lend your Taito to people who don't know how it works. When lending it to your friends, make sure they know how it works and that they wear suitable safety equipment.
Page 22: What To Do If You Fall
Brightly coloured and reflective clothing to increase visibility. What to do if you fall? Perform the necessary checks. See Checking the Taito on page 40. 2. Check the entire scooter for changes, such as bent parts and bumps or cracks in the frame.
Page 23: Storage And Transport
Storage and transport Storing the Taito If you do not use the Taito for a long time and want to store it to use again later, recharge the scooter's battery every 3 months. When not in use, store the Taito indoors in a dry, cool place. Do not put the Taito outdoors for long periods of time.
Page 24: Assembly And Installation
• The user manual • A Torx spanner set NOTE Check if all parts are undamaged. Contact Taito Mobility if not. Assembling the scooter The Taito comes fully assembled. Making the Bluetooth pairing Open the Taito app on your smartphone.
Page 25: First Use
First use First use Please read all warnings and guidelines in this manual before using the Taito. If you still have questions after reading this documentation, be sure to contact your Taitodealer. 2. Fully charge the battery (the charging method is irrelevant here).
Page 26: Operation
Name Explanation Light sensor The light sensor determines when the lights of the Taito come on, if set to automatic in the app. Battery indicator If one LED is lit, the battery is 20% charged. If two LEDs are lit, the battery is 40% charged.
Page 27: Folding The Taito
Fig. 6: Folding the Taito Switch o the Taito. 2. Hold the Taito with one hand by the stem so that the stem does not fall down when you operate the release lever. 3. With the other hand, squeeze the metal plate against the release lever (A).
Page 28: Pushing The Taito (Without Folding)
Fig. 7: Pushing the Taito (without folding) Put the Taito in neutral. 2. Hold the handlebar in the middle with one hand to push the Taito forward. 3. Always use the footpath and zebra crossing when on foot and pushing the Taito.
Page 29: Pushing The Taito (Folded)
3. Grab the Taito by the tail light and lift the scooter. 4. Push the scooter like you would a suitcase. 5. Always use the footpath and zebra crossing when on foot and pushing the Taito. Carrying the Taito Fig. 9: Carrying the Taito Put the Taito in neutral.
Page 30: Unfolding The Taito
2. Press the locking mechanism (1) to release the stem from the rear mudguard. 3. Straighten the stem. 4. Hold the Taito with one hand by the stem so that the stem does not fall down when you operate the release lever.
Page 31: Activate The Taito
Your Taito is now unlocked. Activate the Taito You can set what is allowed in the Taitoapp after the Taito is switched on. For example, you can set that the Taito can be used without having to pair a smartphone.
Page 32: Riding The Taito
8.11 Riding the Taito Fig. 11: The throttle handle Turn on your Taito. 2. Hold the handlebars with both hands. 3. Step onto the platform with one foot and dismount with the other. 4. When the scooter starts moving, put both feet on the platform.
Page 33: Braking With The Taito
Taito S1 8.12 Braking with the Taito Fig. 12: The brake The braking distance increases significantly in wet weather conditions. Adjust your driving style. Take extra care in snow or sleet. The brake can get hot. Do not touch the brake after use. The brake lever is located on the left side of the handlebars and with it you activate the disc brake on the rear wheel.
Page 34: Using The Direction Indicators
Taito S1 8.13 Using the direction indicators Fig. 13: Using the direction indicators The direction indicators are integrated into the handlebars. On the handlebars, press the button with the left arrow (3) to operate the left direction indicator (4). 2. On the handlebars, press the right arrow button (2) to operate the right direction indicator (1).
Page 35: Using The Horn
To keep an eye on your speed and battery level while driving, you can use your smartphone as a display. CAUTION Never operate your smartphone while driving. Mount your smartphone. See Mounting your smartphone on page 26 2. Open the Taito app on your smartphone. For more info on the Taitoapp see www.taito.be. 8.16 Turning on the lights The lights can only be controlled via the Taitoapp.
Page 36: Parking The Taito
Put your Taito in the place of our choice. 2. Switch o the Taito by pressing the on/o button. If you press briefly then Taito is in neutral. If you press long (2 seconds) then Taito is locked. 8.18 Charging the battery Fig.
Page 37 Taito S1 2. Lift the rubber flap (1). 3. Connect the power adapter to the charging port. 4. Connect the adapter to the wall socket. During charging, the LEDs (2) light up as an animation by lighting up from bottom to top. The animation of the LEDs stops when the battery is fully charged and thus all LEDs remain lit.
Page 38: Settings
Adjusting the disc brake Switch o the Taito. 2. Make sure the Taito is not being charged while adjusting the disc brake. 3. Loosen the bolts on the caliper using an Allen spanner. a) If the brake is too tight: pull the brake cable slightly back to shorten the free length.
Page 39: Maintenance
Taito S1 Maintenance 10.1 Maintenance schedule NOTE The specified frequency depends on the use of the Taito and the conditions while scooting. Action Frequency Implementation Executed by Inspect Before scooting See Checking the Taito Driver on page 40 Cleaning After scooting...
Page 40: Checking The Taito
6. Repeat steps 2 to 5 if you also want to inflate the other tires on. 10.4 Checking the Taito Perform this check before riding the Taito electric scooter! WARNING If you notice any problems, contact your Taitodealer. Check the battery status. See Checking the battery status on page 44.
Page 41: Fitting Inner Tubes And Tyres
Taito S1 Place the Taito with the battery compartment on a platform, so that the wheels do not touch the ground. 2. Remove the wheel by loosening the nuts. Use spanner 17 for the front wheels and spanner 19 for the rear wheel.
Page 42: Secure The Handlebars
Taito S1 Webbing Pressure Front tyres Up to 2.5 bar (36 psi) Rear tyre Up to 3.1 bar (45 psi) 12. Tighten the valve cap. 13. Mount the wheel by tightening the nuts. Use spanner 17 for the front wheels and spanner 19 for the rear wheel.
Page 43: Required Tools
• TX50 safety bit Place the Taito on a platform, so that the wheels do not touch the ground. Make sure the battery compartment rests on the platform. 2. Hold the stem or let a second person hold the stem.
Page 44: 10.10 Checking The Battery Status
2. Replace the brake shoes and brake disc if necessary. 10.12 Replacing a wheel Place the Taito with the battery compartment on a platform, so that the wheels do not touch the ground. 2. Remove the wheel by loosening the nuts. Use spanner 17 for the front wheels and spanner 19 for the rear wheel.
Page 45: Tightening The Lever Of The Folding Mechanism
2. Turn the axis clockwise to tighten. To do this, place the flat spanner on the hexagon of the shaft. 3. Unfold the Taito and check the tension of the folding mechanism. 4. Repeat from step 1 until the folding mechanism is properly tensioned.
Page 46: 10.15 Problems Solving
Taito S1 Fig. 18: Aligning the wheels and handlebar Check the current position of the wheels in relation to the handlebars(A). 2. Using the Allen spanner, alternately unscrew the bolts a quarter turn until you can unscrew them further by hand (B).
Page 47 In the app, support is set at the The level of support can be set support. lowest level. using the app. Consult the app. NOTE For the latest list of frequently asked questions, see www.taito.be or contact your dealer. Maintenance 10.15 Problems solving...
Page 48: Recycling
11.1 Recycling the Taito Do NOT dispose of the Taito with your household rubbish! Follow the current local legal requirements and contact the local authority in case of doubt. The Taito contains a non-exchangeable rechargeable battery located in the battery compartment under the platform.
Page 49: Annexes
NOTE The warranty is valid only for registered products and when following the service suggestions. The warranty is void in case of prohibited use. See Forbidden use on page 8. For support contact Taito Mobility at www.taito.be. Annexes 12.1 Warranty...
Page 50: Ec Declaration
Taito S1 12.2 EC declaration EU - DECLARATION OF CONFORMITY ACCORDING TO ANNEX II.1.A. OF DIRECTIVE 2006/42/EC This declaration is issued under the full responsibility of the manufacturer and concerns only the state in which the product is placed on the market.
Page 51: Spare Parts
Date: authorised representative Tuesday 24 January 2023 Managing Director Nathan De Baets 12.3 Spare parts NOTE See www.taito.be for the latest spare parts list. Frame Order number Description S1_001_1 Frame S1_000_1 Cable gasket frame S1_001_2...
Page 52 Order number Description S1_002_1 Steering tube S1_002_2 Bearing set S1_002_3 Cockpit S1_002_4 Qi PCB S1_002_5 Qi PCB MCU S1_000_1 S1 Cable gasket frame S1_002_7 Keypad PCB S1_002_8 Keypad housing S1_002_9 Qi Spacer Suspension Order number Description S1_003_1 Suspension S1_003_2 Suspension bracket...
Page 53 Taito S1 Order number Description S1_003_15 Rosta bolt S1_003_16 Connecting axle S1_003_17 Flat bearing small S1_003_18 Steering axle S1_003_19 Wheel bracket S1_003_20 Leaning rubber coverplate S1_003_21 Inside tyre Motor Order number Description S1_004_1 Motor S1_004_2 Disc brake S1_004_3 Brake caliper...
Page 54 Taito S1 Order number Description S1_005_12 Matrix PCB S1_005_13 Air valve Rear mudguard Order number Description S1_006_1 Mudguard rear S1_006_2 Mudguard rear bracket S1_006_3 Mudguard hook S1_006_4 Cable cover plate Lights Order number Description S1_007_1 Backlight top S1_007_2 Backlight bottom...
Page 55 Taito S1 Order number Description S1_008_6 Buttonpanel S1_008_7 Brake lever S1_008_8 Cockpit cover S1_008_9 Cockpit cover seal S1 Platform Order number Description S1_009_1 Board S1_009_2 Board damper Folding mechanism Order number Description S1_010_1 Hinge bottom S1_010_2 Hinge top S1_010_3 Hinge latch...
Page 56 Taito S1 Cables Order number Description S1_011_1 Cable motorcontroller S1_011_2 Cable Iot module S1_011_4 Cable chargingport S1_011_5 Cable charging internal S1_011_6 Cable front peripheral S1_011_7 Cable motor S1_011_8 Cable rearlights S1_011_9 Cable cockpitmodule S1_011_10 Cable harness S1_011_15 Brake cable housing...
Page 57 Taito S1 Locking system Order number Description S1_014_1 Locking bracket S1_014_2 Locking lever S1_014_4 Locking spring Steering system Order number Description S1_015_1 Turning tube S1_015_2 Steering bracket S1_015_3 Steering axle S1_015_4 Turning tube nut Packaging Order number Description S1_016_1 Packaging...
Page 58 Taito S1 Order number Description S1_017_7 Cable guide S1_017_8 Cable EZ bend S1_017_9 Cable protective spiral Annexes 12.3 Spare parts...
Page 59: Maintenance Sheet
Taito S1 12.4 Maintenance sheet Date Executed by Maintenance carried out Annexes 12.4 Maintenance sheet...
Page 60: Index
Taito S1 Index Decommissioning 48 Direction indicators 34 Accessories 17 Disc brake Activate 31 maintenance 44 Adjust Disc brake adjustment 38 disc brake 38 Disposal 48 Assembly 24 smartphone 26 EU declaration 50 Barcode 9 Battery 21 status check 44...
Page 61 Taito S1 Inner tube 41 Pushing the scooter 28 delete 40 folded 29 Inspection before riding it 40 Intended use 8 Rated power 9 Recycling 48 Registration 49 Label 9 Replace Lifespan 9 damping rubber 42 Lock 31 Replace damping rubber 42...
Page 62 Taito S1 Unlock smartphone 30 forbidden 8 intended 8 manual 7 Warranty 49 Wheel replace 44 Year of construction 9...
