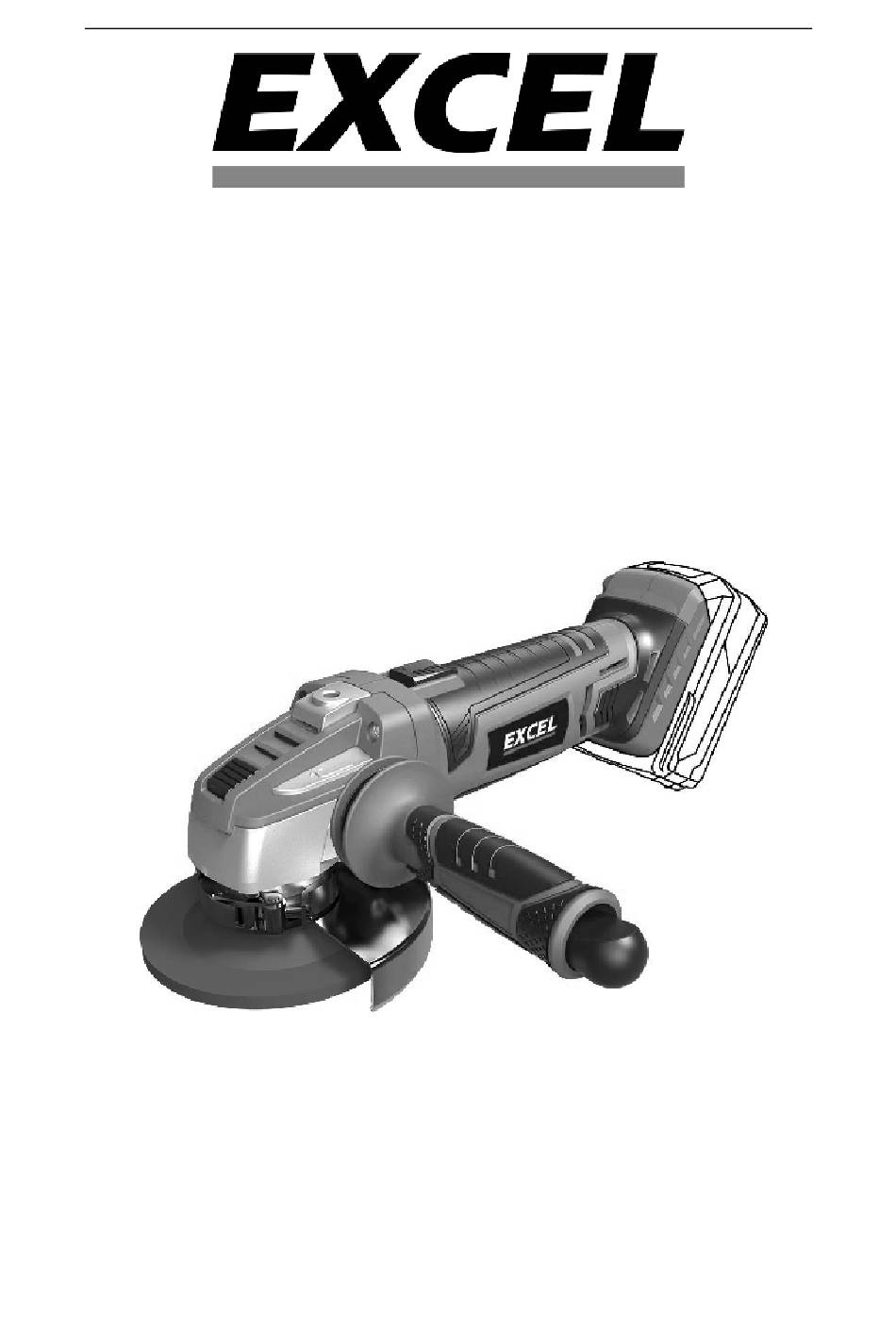

Original Instructions
CORDLESS ANGLE GRINDER 18V
11750/AG-L0118
INSTRUCTION MANUAL
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AG-L0118 and is the answer not in the manual?

Questions and answers

Summary of Contents for Excel AG-L0118

  • Page 1 Original Instructions CORDLESS ANGLE GRINDER 18V 11750/AG-L0118 INSTRUCTION MANUAL...
  • Page 2: Description Of The Symbols

    Original Instructions DESCRIPTION OF THE SYMBOLS Read instructions carefully before any use Complies with relevant European regulations The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal.
  • Page 3 Original Instructions GENERAL SAFETY WARNINGS FOR THE TOOL WARNING Read all safety warnings and instructions. Failure to follow all the warnings and instructions may result in electric shock, fire and/or serious injury. SAVE ALL THE WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE.
  • Page 4 Original Instructions moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
  • Page 5: Safety Instructions For All Operations

    Original Instructions tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from intended could result in a hazardous situation.
  • Page 6 Original Instructions recommended by the tool manufacturer. Just because the accessory can be attached to your power tool, it does not assure safe operation. d) The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fly apart.
  • Page 7 Original Instructions contact with the spinning accessory could snag your clothing, pulling the accessory into your body. n) Regularly clean the power tool’s air vents. The motor’s fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards.
  • Page 8 Original Instructions Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below. a) Maintain a firm grip on the power tool and position your body and arm to allow you to resist kickback forces.
  • Page 9: Special Safety Instructions

    Original Instructions selected wheel. Proper wheel flanges support the wheel thus reducing the possibility of wheel breakage. Flanges for cut-off wheels may be different from grinding wheel flanges. f) Do not use worn down wheels from larger power tools. Wheel intended for larger power tool is not suitable for the higher speed of a smaller tool and may burst.
  • Page 10 Original Instructions 10. Do not scrape wet or dampened materials (e.g. wallpaper) or on moist surfaces. Penetration of water into the machine increases the risk of an electric shock. 11. Hold power tools by their insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord.
  • Page 11 Original Instructions EXTRA SAFETY REGULATIONS CONCERNING BATTERY To ensure the longest battery life and best battery performance, always charge the battery when the temperature is between 18-24°C. Do not charge the battery pack when the temperature is below 0°C, or above 40°C.
  • Page 12 Original Instructions EXTRA SAFETY REGULATIONS CONCERNING BATTERY CHARGER This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Page 13: Intended Use

    Original Instructions or otherwise damaged in any way. Take the charger to an authorized service centre for a check or repair. Do not disassemble the charger. Take it to an authorized service centre when service or repair is required. Incorrect re-assembly may result in the risk of fire, electric shock or electrocution.
  • Page 14: List Of Main Parts

    Original Instructions LIST OF MAIN PARTS Spindle Lock Button On/Off Switch Main Handle Auxiliary Handle Protective Guard Two-hole spanner Battery Pack(excluded) TECHNICAL SPECIFICATIONS Product description 18V Li-ion Angle Grinder Rated voltage of battery Speed, n 9500rpm φ115 mm Wheel size Sound pressure level L =3dB(A)) 76 dB(A) Sound power level L...
  • Page 15: Noise/Vibration Information

    Original Instructions Level of vibration a (K=1.5m/s 9,108 m/s2 Battery and Charger Recommended battery BA-1850B Li-ion 18V d.c. 5.0Ah 1. Model : CH-1802A Input : 100-240V~ 50Hz 60W Output : 20V DC 2.3A Charging time : 140MIN 2. Model :CH-1802B Input : 100-240V~ 50Hz 125W Recommended charger Output : 20VDC, 5A...
  • Page 16 Original Instructions Battery charger (Fig.1) The lithium-ion battery can be charged at any time and will not develop a “memory” when charged after only a partial discharge. It is not necessary to run down the battery pack charge before recharging. Remove the battery pack from the tool when convenient for you and your job.
  • Page 17 Original Instructions assembly, adjustments or changing accessories. b. Insertion and removal of rechargeable battery (Fig.2) Depress the battery-release button located on the front of the battery pack to release battery pack. Pull the battery pack out and remove it from the tool. Fig.
  • Page 18 Original Instructions • Turn the guard to the desired position • Press the quick clamping head Replacing the grinding disc WARNING: Beware that a disc which has been used may be very hot! • Depress and hold down the spindle lock button to secure the spindle.(Fig.5) •...
  • Page 19 Original Instructions WARNING: Before engage on the ON/OFF switch button, check that the grinding disc is properly fitted and run smoothly, the outer flange is well tightened. • Connect the battery pack onto the angle grinder body. • The machine can only be started by depressing the on/off switch left, then push the switch up,you can start the machine •...
  • Page 20 Original Instructions SERVICE & MAINTENANCE Always remove the battery from the tool before performing any adjustment or maintenance operation. Take care not to expose this tool to the rain. Keep the ventilation openings clear and clean the product regularly. Repair of the tool must only be carried out by a qualified repair technician.
  • Page 21 Exceltools.co.uk Sales@exceltools.co.uk...
