Summary of Contents for Biostar MiNi PRO MP-J4125

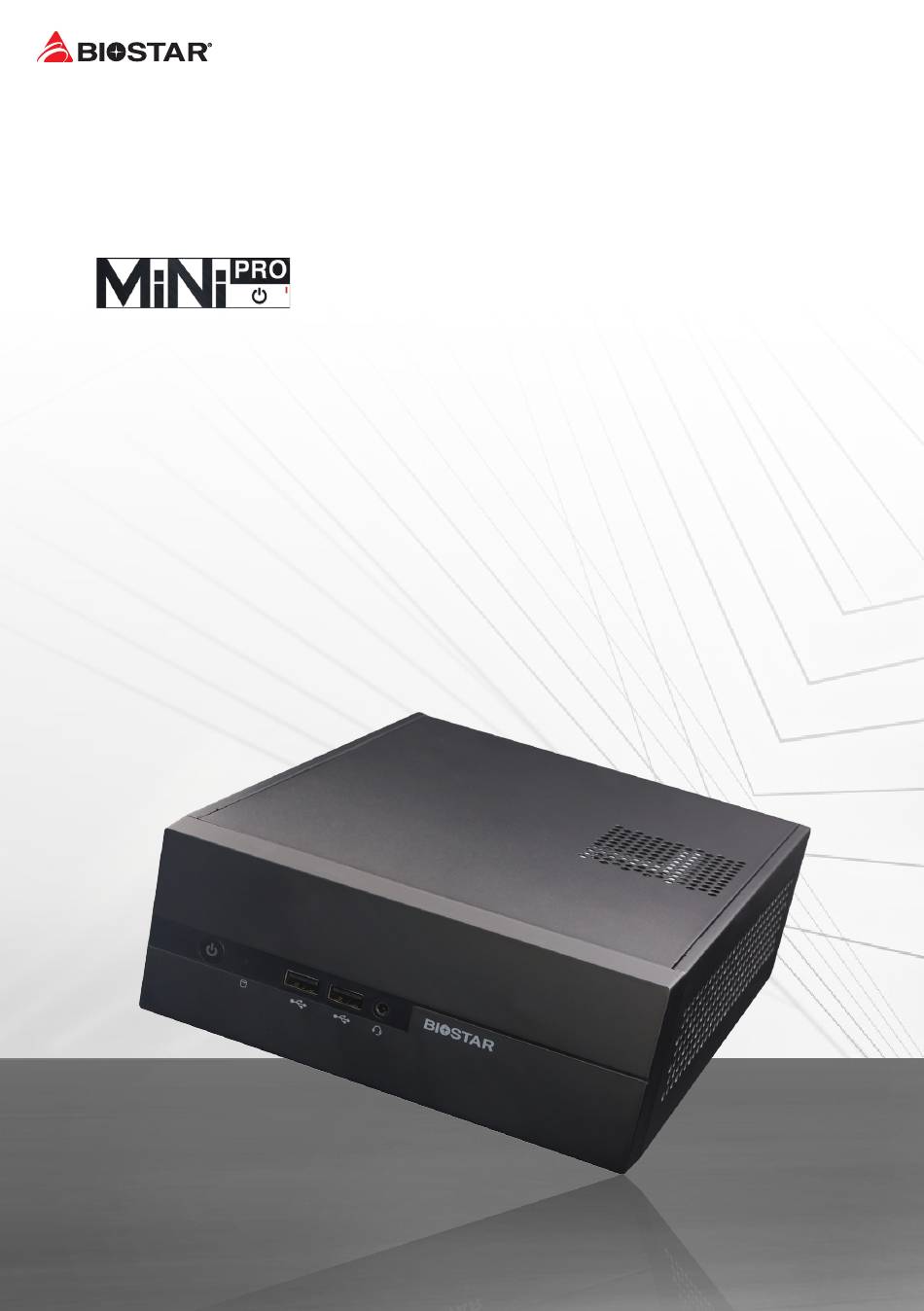

- Page 1 Quick Installation Guide MiNi PRO MP-J4125 商務迷你電腦 快速安裝手冊 : IJ41CIBS 型號...
-
Page 2: Package Contents
Package Contents 1. Package Contents / 包裝內容 • MiNi PRO MP-J4125 x1 / MiNi PRO MP-J4125 商務迷你電腦 (* Note1) • 60W/12V Power Adapter x1 / 60W/12V 電源變壓器 x1 • Power Cord x1 / 電源線 • SATA Cable x1 / SATA 連接線 x1 • ... -
Page 3: Specification
Specification Front View / 前視圖 Rear View / 後視圖 Power LED & Power Button Audio Jack 電源指示燈 & 電源開關按鍵 Hard Disk LED 音源孔輸出連接阜 Power Jack 硬碟指示燈 / 音源孔輸出連接阜 USB 2.0 port 電源轉接孔 10 USB 2.0 port USB2.0 連接阜 Audio Jack USB2.0 連接阜... - Page 4 Hardware Installation/ 硬體周邊安裝說明 A. Begin Installation/ 硬體周邊安裝說明 1. Unscrew the two screws of the back panel 先拆下背板兩顆螺絲 2. Pull out the top cover while holding the handle 將上蓋取下 3. Pull out the Hdd tray 拆下硬碟支架...
- Page 5 B. Installing Memory Modules/ 安裝記憶體 1. Place a HDD/SSD on the tray. Then turn the motherboard tray upside down and secure the HDD/SSD with the four screws 向外按固定夾，解鎖 DIMM 插槽。 對齊插槽上的 DIMM ，使 DIMM 上 的槽口與插槽上的斷口相匹配 Note: If the DIMM does not go in smoothly, do not force it. Pull it all the way out and try again.
- Page 6 When the case is flat, you can stick the rubber feet to the bottom of the case. 可以使用橡膠腳墊黏貼在機殼底部，讓主機平躺 Warranty Term/ 保固條款 1. Warranty of host of MiNi PRO series personal computer (casing excluded): 1 years MiNi PRO 系列準系統主機保固 1 年 ( 但不含外殼 ) 2.
- Page 7 Support/ 支援 Please visit our web site at for: https://www.biostar.com.tw/app/en/ A list of tested memory and operating systems that are supported; for information about downloading the latest driver and BIOS updates; as well as the latest product support information. - 如需參考已測試過記憶體、支援的作業系統清單...
- Page 8 2004/108/CE, 2006/95/CE e 1999/05/ CE quando ad esso applicabili Biostar Microtech International Corp. 2F, No. 108-2, Min Chuan Road, Hsin Tien Dist., New Taipei City 231, Taiwan, R.O.C.
