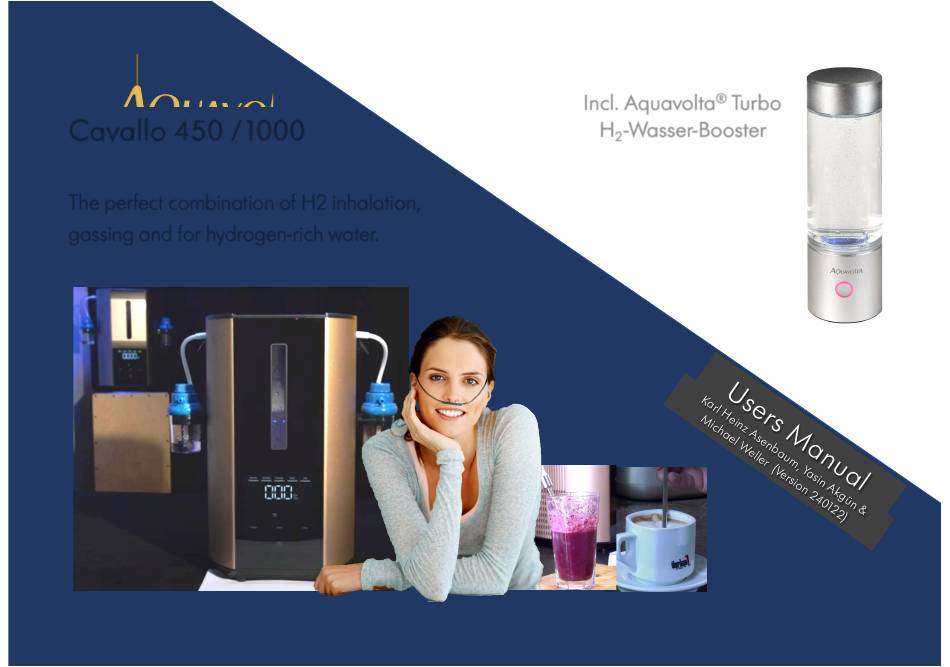

- Page 1 ® Incl. Aquavolta Turbo Cavallo 450 /1000 -Wasser-Booster The perfect combination of H2 inhalation, gassing and for hydrogen-rich water.
-
Page 2: Air
The English aristocrat Henry Cavendish (1731 - 1810), one of the richest people of his time, could afford to live as a secluded scientist and researched completely crazy things: He discovered a gas called " inflammable air", which he described in his treatise on artificial airs ("factitious airs") and which was later called "hydrogen". - Page 3 The beginnings of hydrogen medicine James Watt's -inhaler Thomas Beddoes (1796) (1794) The world's first hydrogen inhalation device was developed in 1796 by the inventor of the steam engine, James Watt , for the English pulmonologist Dr Thomas Beddoes, the inventor of so-called "pneumatic" medicine. His contemporary Tiberius Cavallo , who gave his name Tiberius Cavallo (1798) to the Aquavolta...
- Page 4 Water Before hydrogen inhalation was rediscovered at the beginning of the 21st century, the healing effects of hydrogen-rich water were the subject of scientific debate. Since the 1930s, inventors in Germany and Japan had been experimenting with water that had undergone electrolysis. This allows the pH value of the water to be changed, the redox potential to be shifted in a positive or negative direction and the gases dissolved in the water can also be remixed.
-
Page 5: Table Of Contents
Table of contents The beginnings of hydrogen medicine H2 water Contents Modern H2 medicine since 2007 General information Scope of delivery Description of the inhaler 10 Control panel of the Cavallo 450 11 Cavallo 1000 control panel 12 Notes on operation 13 Safety instructions 14 Safety instructions 2 15 Basic assembly of the inhaler... -
Page 6: Modern H2 Medicine Since 2007
Hydrogen medicine began in England in the 17th century and Modern H medicine since 2007 consisted exclusively of inhalation methods. In the 20th century, ideas for the production of artificial healing waters based on water electrolysis were developed in Germany and Japan. The Main applications of hydrogen gas gases H and O... -
Page 7: General Information
General information • Thank you very much for purchasing this hydrogen inhaler. The only difference between the Cavallo 450 and 1000 models is that they have more powerful electrolysis cells with different outputs of the gases H and O . The same operating instructions therefore apply to both. -
Page 8: Scope Of Delivery
Scope of delivery of the Aquavolta Cavallo component system ® Depending on the model you order, either Cavallo 450 l/min (brown metallic() or 1000 ml/min (blue metallic) The gas output is 2/3 hydrogen gas and 1/3 oxygen gas. 2 x humidifying containers 2 x hoses for humidification tank 2 x mounting clamps Phillips screwdriver (not supplied) - Page 9 Rear view Description Cavallo 450/1000 inhaler Side view left View from above Hydrogen outlet Laboratory water tank Connection Connection Humidifier lid Tank Power input emptying Humidifier Aluminium Housing Frontal view Tank fill level Max/min Power connection Laboratory water Recommended by us Side view right Outlet Oxygen...
- Page 10 Unsatisfactory water Too much quality water Cavallo 450 control panel Maintenance Overheating Too little note display water Indicator LED white: ok red: measure necessary 450 cc/m Total gas output corresponds to 300 cc H + 150 cc O Selected operating time in hours Sensor switch for Pause.
-
Page 11: Cavallo 1000 Control Panel
Cavallo 1000 control panel Unsatisfactory water Too much quality water Too little Maintenance Overheating water note display Indicator LED white: ok red: measure necessary 1000 cc/m Total gas output corresponds to 667 cc H + 333 cc O Selected operating time Selected operating time in hours in hours... -
Page 12: Notes On Operation
Notes on operation • Never open the clean water tank lid when the appliance is in operation. • Each breathing cannula should be assigned to a specific person by labelling. • If the appliance is used for a longer period of time, the outer surface of the appliance heats up, which is a normal phenomenon. -
Page 13: Safety Instructions
Online access to the operating instructions automatically. can be found on the website • When wiping the appliance, make sure that there are www.aquacentrum.com/cavallo under "Downloads" no drops of water on the ventilation grille in particular. • The appliance must not be used by persons (including •... - Page 14 Safety instructions 2 • Never use flammable materials in the vicinity of this appliance. • Never use this appliance on uneven surfaces or in the vicinity of small children. Otherwise, the appliance may be knocked over by vibrations, which may result in injury or appliance failure. •...
- Page 15 Basic assembly of the Cavallo 450/1000 inhaler . attach the humidifying bottle clamps to the device with a screw 2 Attach the two humidification vessels in the brackets sideways. 3. connect the H outlet and the O outlet to the corresponding humidifier using the hoses.
- Page 16 The 3 inhalation options of the Cavallo 450/1000 Hydrogen inhaler You have 2 If you connect the nasal With this With this configuration, humidified safety cannula to the humidifier configuration at oxyhydrogen gas (H2/O2) is gas outlets on your of the H2 outlet, H2 is the O2 outlet blown into the nasal cannula, device, which you...
-
Page 17: Operational Preparation
Operational preparation 1. Remove the top protective film 2. Remove the protective film from the front 3. Open the tank cap. 4. Only use double-distilled laboratory water. 5. As only a small amount of water is used and it still needs to be changed frequently, we recommend filling the tank with only 1 litre of laboratory water. -
Page 18: Carrying Out The Inhalation
Carrying out the inhalation 1. Attach the nasal cannula to the desired gas outlet as described on page 16. 2. Press and hold "Power" for 2 seconds to switch the device to standby. The device displays 0000 cc/min. 3. Press "Time" several times to set the operating time of the appliance in half-hour increments up to a maximum of 2 hours. -
Page 19: Drain And Replace Tank Water
Drain and replace tank water 1. A cap nut for the water outlet is located next to the power cable inlet at the rear. 2. Have a sufficient measuring cup ready to collect the water to be drained and first open the cap nut. -
Page 20: The Diffusion Rod
The diffusion rod for the H output The diffusion rod from the accessories is connected directly to the H outlet humidifier using one of the hoses. This causes the gas to dissolve in 1-3 minutes in the liquid in which the diffusion rod is immersed. Caution. -
Page 21: The Nasal Cannula
The nasal cannula The nasal cannula The nasal cannula should be worn using one of the methods shown in the left-hand illustration and the other end inserted into the hydrogen outlet of the selected humidification bottle. • Nasal cannulae are consumables that should be changed at least once a month. - Page 22 Food additive E 949: H -feeding into storage bell jar The oxygen (O ) in our atmosphere, which accounts for 21 %, causes food to age more quickly. The less O gets into the food, the better. This is why the food industry uses "protective gases" to remove O from packaging.
-
Page 23: Technical Data
Technical data • Product name Aquavolta® Cavallo 450 • Gas output H2 300 ml per min / O2 150 ml per min • Electrolyte type PEM/SPE • Electrolyte Laboratory water (double distilled water) • Power supply 220 V AC • Power consumption 140 W •... - Page 24 Included free of charge Turbo In the still young science of hydrogen medicine, there is widespread agreement that in addition to the Hydrogen-water inhalation of hydrogen gas, the oral intake of Booster 6th generation hydrogen-rich water also has significant benefits. To enjoy the benefits of this other intake route, customers ®...
-
Page 25: Expert Group Information
Expert group information History and background of hydrogen therapy • Interview with Tyler Le Baron (2017): https://www.aquacentrum.de/hydrogen-water-tyler-le-baron-munich- karl-heinz-asenbaum/ • Interview with Shigeo Ohta (2017): https://www.youtube.com/watch?v=hOqxANl- pRM&index=1&list=PLS2_rQEROX8MycX4VrgY59rdINGSQFlXg • Complete video playlist Karl Heinz Asenbaum: https://www.youtube.com/playlist?list=PLS2_rQEROX8MycX4VrgY59rdI NGSQFlXg Videos and texts about the Aquavolta ®... - Page 26 How much hydrogen? Firstly, there is no such thing as too much . Hydrogen that is not needed is excreted a few minutes after absorption, mainly through respiration. When drinking hydrogen-saturated water (1.6 mg H /litre), the amount of hydrogen gas absorbed is limited by the amount of water you drink each day, i.e.
-
Page 27: Stimulant Effect Of H2
Stimulant effect of H Here you can find out why we recommend both inhaling and drinking hydrogen water: Prof Dr Shigeo Ohta (father of modern hydrogen therapy): "At the very beginning, I was only interested in acute illnesses such as strokes or heart attacks, because hydrogen is effective very quickly within 10 to 20 minutes. - Page 28 How quickly does H2 inhalation reach which organ? Hydrogen gas distribution in organs after inhalation: Real-time monitoring of tissue hydrogen concentration in rats Yamamoto R, Homma K, Suzuki S, Sano M, Sasaki J. Hydrogen gas distribution in organs after inhalation: Real-time monitoring of tissue hydrogen concentration in rat.
- Page 29 How long does the maximum H2 blood level last where? Hydrogen gas distribution in organs after inhalation: Real-time monitoring of tissue hydrogen concentration in rats Yamamoto R, Homma K, Suzuki S, Sano M, Sasaki J. Hydrogen gas distribution in organs after inhalation: Real-time monitoring of tissue hydrogen concentration in rat. Sci Rep.
- Page 30 Comparison of H inhalation and H drinking (2017) Molecular hydrogen: a preventive and therapeutic medical gas for various diseases Ge L, Yang M, Yang NN, Yin XX, Song WG. Molecular hydrogen: a preventive and therapeutic medical gas for various diseases. Oncotarget. 2017;8(60):102653-102673. published 2017 Sep 21.
-
Page 31: Physiological Effect Model
Physiological effect models (2014/2019) Graphic: Shigeo Ohta, Molecular Hydrogen as a Preventive and Therapeutic Medical Gas: Initiation, Development and Potential of Hydrogen Medicine, 2014. https://doi.org/10. 1 016/j.pharmthera.2014.04.006 Antioxidant mechanisms against hydroxyl radicals and peroxynitrite anions. This reduces oxidative damage, lipid peroxides and gene mutations. Damage caused by nitrogen dioxide is reduced. - Page 32 (invoice) from your retailer. electrolytic cell moist, otherwise it may dry out and lose Manufacturer (general importer and service centre): its functionality. Aquacentrum, owner Yasin Akgün 2. Only bi-distilled water (laboratory water) is permitted Münchener Str. 4 a for the appliance.
