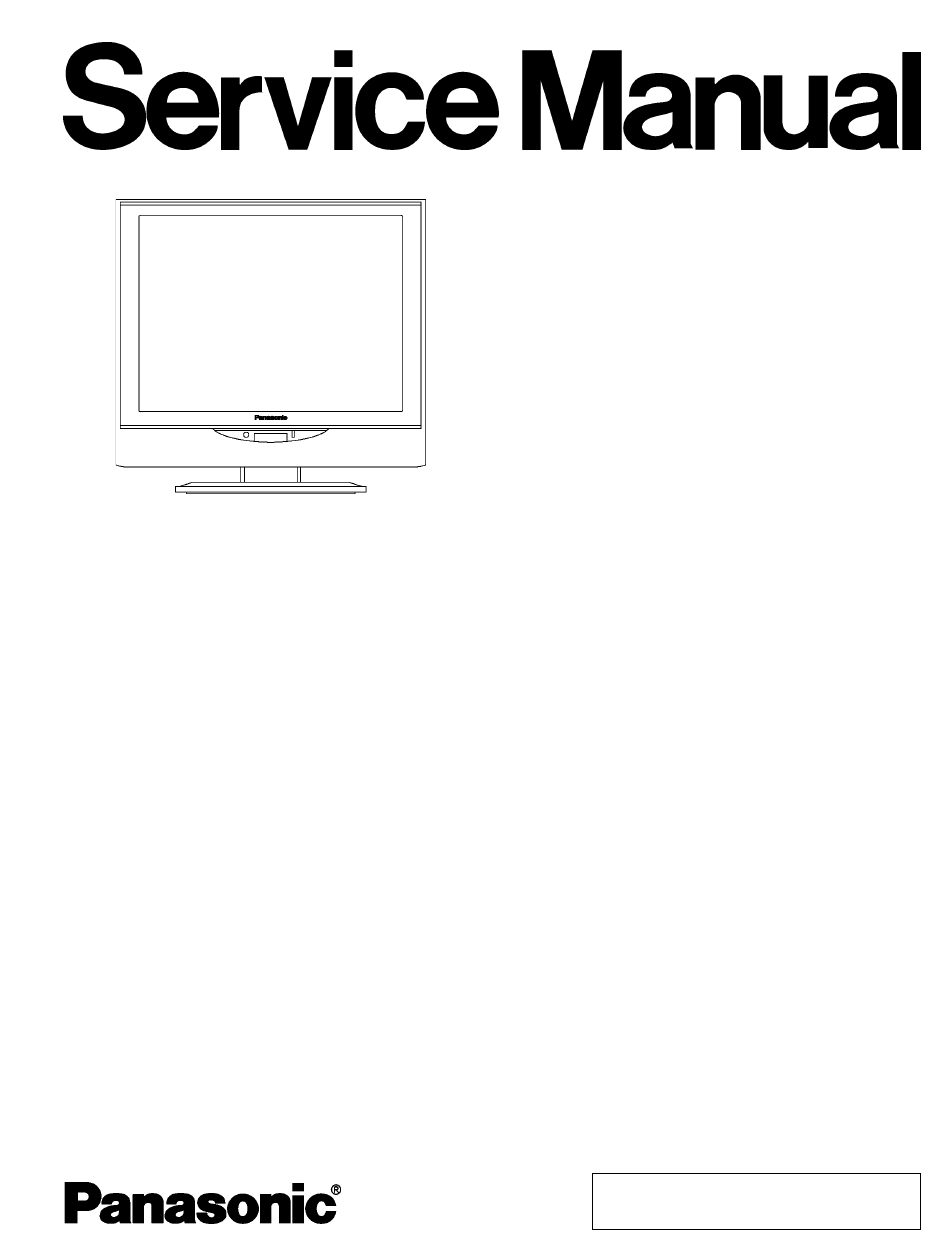

Panasonic TX-17LA1F Service Manual

Power Source
AC 100~240V, 50/60Hz
Power Consumption
Average use:
Stand-by condition: 1.8W
TV set DC 15V, 3.2 A max. (TX-17LA1F/P/V)
TV set DC 15V, 3.4 A max. (TX-20LA1F/P/V)
LCD
17inch (432mm) (TX-17LA1F/P/V)
20inch (510mm) (TX-20LA1F/P/V),
16:9 aspect ratio LCD panel
Screen Size
343.7mm(W) x 261.6mm(H) (TX-17LA1F/P/V)
408.0mm(W) x 306.0mm(H) (TX-20LA1F/P/V)
Sound
Speaker
Ø4cm, 2pcs, 169
Audio Output
6.0W (3.0W+3.0W), 10%THD
Headphones
M3(3.5 mm) Jack x 1
Receiving Systems/ Band name
PAL B, G, H, SECAM B, G SECAM L/ L'
VHF E2-E12
VHF A-H (ITALY)
CATV (S01-S05)
CATV S11-S20 (U1-U10) CATV S21-S41 (Hyperband)
56W (TX-17LA1F/P/V)
60W (TX-20LA1F/P/V)
VHF H1-H2 (ITALY)
UHF E21-E69
CATV S1-S10 (M1-M10)
TX-17LA1F
TX-17LA1P
TX-17LA1V
TX-20LA1F
TX-20LA1P
TX-20LA1V
LH11 Chassis
PAL D, K, SECAM D, K
VHF R1-R2
VHF R6-R12
PAL 525/60
M.NTSC
NTSC (AV input only)
Aerial-Rear
UHF/ VHF
Operating Conditions
Temperature: 5°C-35°C
Humidity: 5%-90% RH (non-condensing)
Connection Terminals
AV1 (Scart Connector)
21Pin socket (Audio/Video in, TV out, RGB in)
AV2
S Video in, 1 x RCA Video in, 2 x RCA Audio in
Dimensions (W x D x H)
Including TV Stand
424mm x 415.2mm x 215mm (TX-17LA1F/P/V)
494mm x 461.4mm x 255mm (TX-20LA1F/P/V)
TV Set Only
424mm x 381.5mm x 64.1mm (TX-17LA1F/P/V)
494mm x 422.3mm x 81.5mm (TX-20LA1F/P/V)
Weight (Mass)
© 2000 Matsushita Electric Industrial Co., Ltd. All
rights reserved.
distribution is a violation of law.
ORDER NO. IDD0308024C2
LCD TV
VHF R3-R5
UHF E21-E69
Playback of NTSC tape from some
PAL video recorders (VCR)
Playback from NTSC 4.43 MHz
Videorecorders (VCR)
Playback from NTSC Videorecorders
(VCR)
Unauthorized copying and
