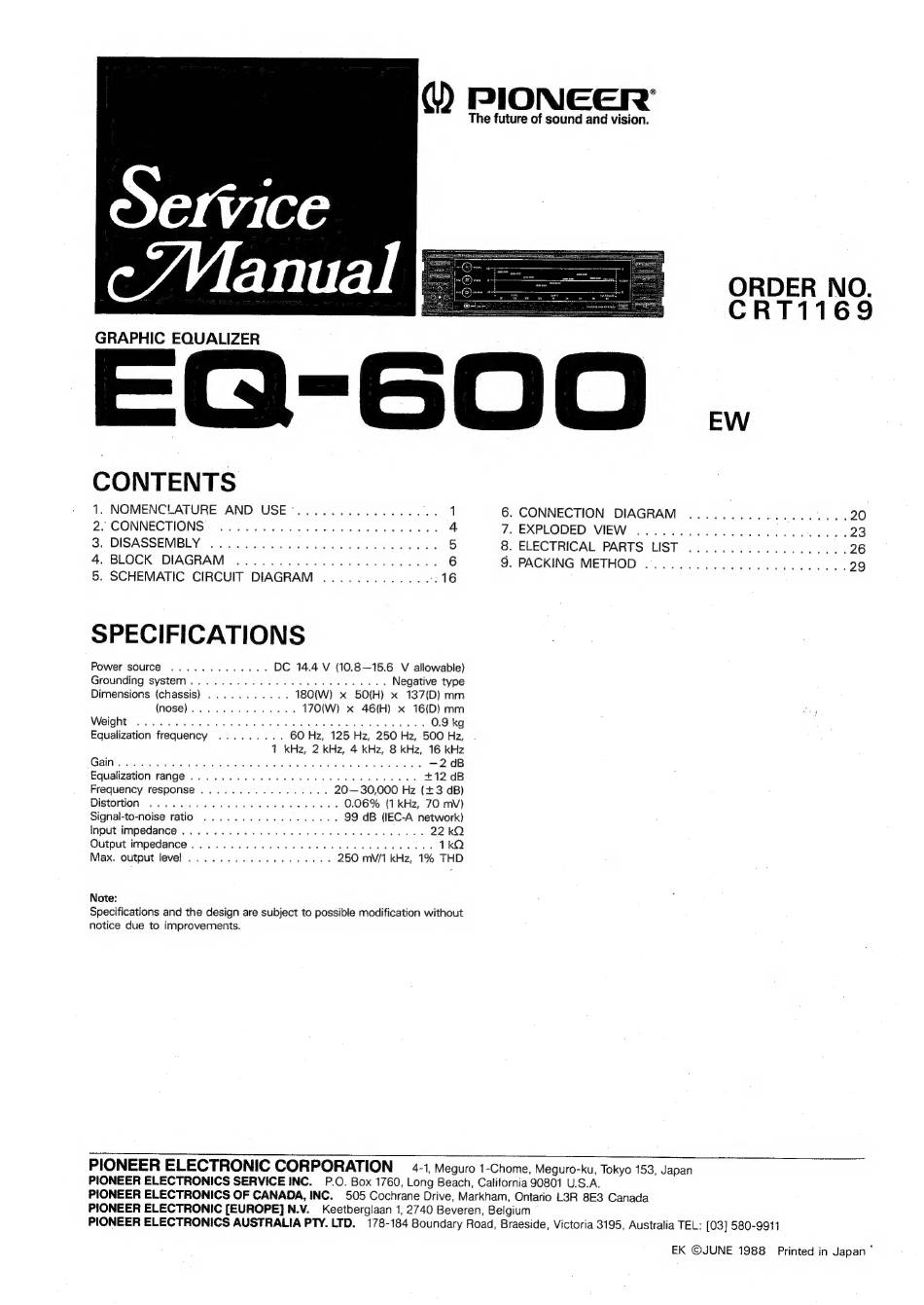

Pioneer EQ-600 Service Manual

PIONEGER'
The future of sound and vision.
Service
ALEVIEY
:
ORDER NO.
GRAPHIC EQUALIZER
Q-600 ..
CONTENTS
SPECIFICATIONS
Power source ............-. DC 14.4 V (10.8—15.6 V allowable)
Grounding system... 2... eee Negative type
Dimensions (chassis) ........... 180(W) x 5O(H) x 137(D) mm
(nose)... .....2.202. 170(W) x 46(H) x 16(D) mm
Weights: 2.) Sehtesas ee iteca eeu ad Se hee es er esa 0.9 kg
Equalization frequency ......... 60 Hz, 125 Hz, 250 Hz, 500 Hz,
1 kHz, 2 kHz, 4 kHz, 8 kHz, 16 kHz
Gain eens 3 sede Bia wed ws 8 Se any oe —2dB
Equalization range... 1. ee ees +12 dB
Frequency response ..............0005 20— 30,000 Hz (+3 dB)
Distortion 2... ee ees 0.06% (1 kHz, 70 mV)
Signal-to-noise ratio»... 6.0... 2. ee eee 99 dB (IEC-A network)
Input impedance... 6. eee eee 22 kQ
Output impedance... 2... . ee ee es 1kQ
Max. output level oo... ee eee 250 mV/1 kHz, 1% THD
Note:
Specifications and the design are subject to possible modification without
notice due to improvements.
PIONEER ELECTRONICS SERVICE INC. P.O. Box 1760, Long Beach, California 90801 U.S.A.
PIONEER ELECTRONIC [EUROPE] N.V. Keetberglaan 1, 2740 Beveren, Belgium
EK ©JUNE 1988 Printed in Japan"
