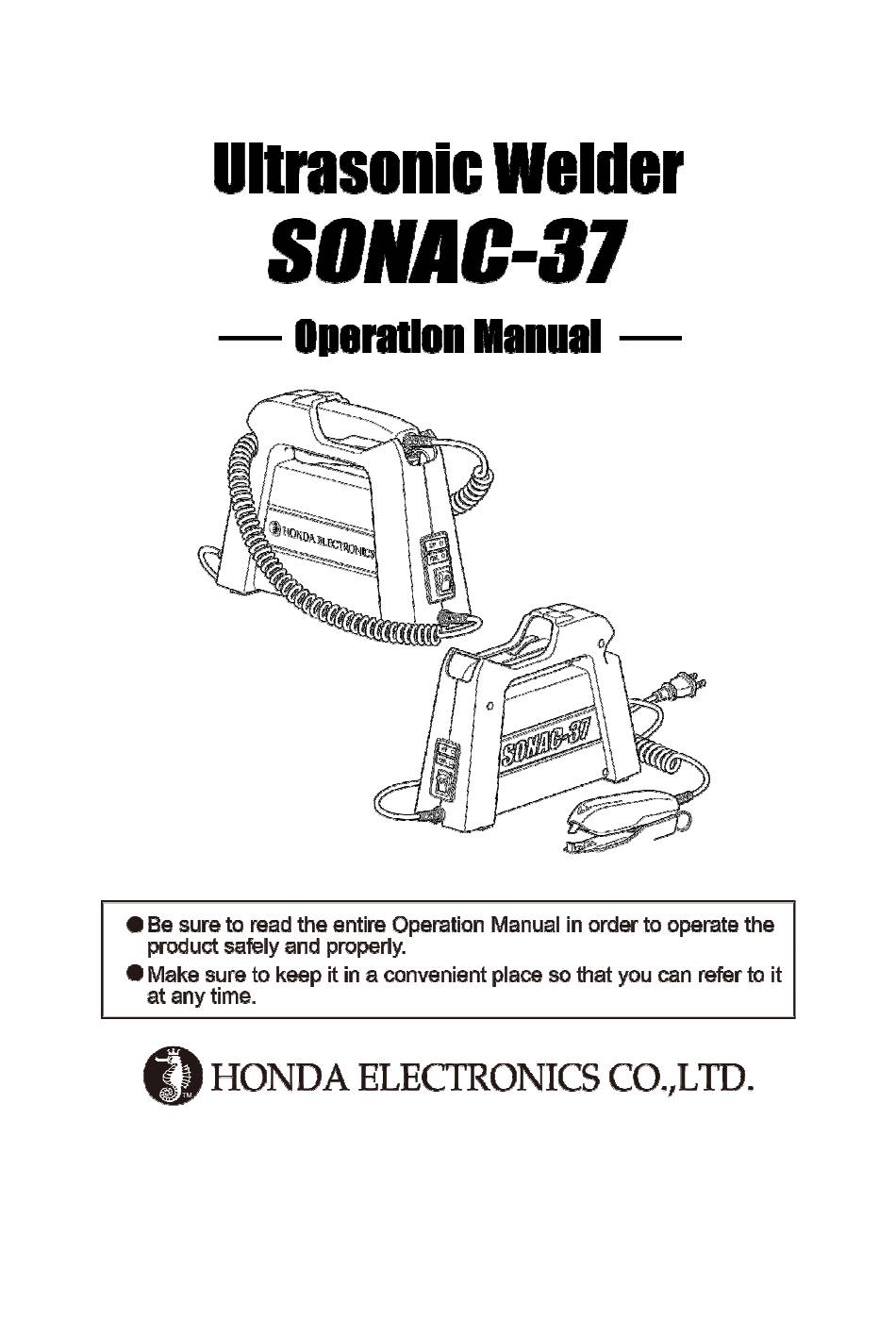

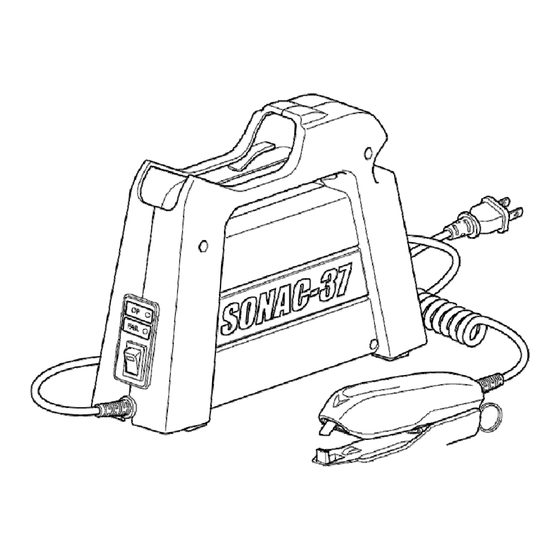

Honda Electronics SONAC-37 Operation Manual
  1. Manuals
  2. Brands
  3. Honda Electronics Manuals
  4. Welding System
  5. SONAC-37
  6. Operation manual

Honda Electronics SONAC-37 Operation Manual

Ultrasonic welder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SONAC-37 and is the answer not in the manual?

Questions and answers

Summary of Contents for Honda Electronics SONAC-37

  • Page 2 ■Make sure to include this operation manual when reselling or transferring the product to another user. ■According to product liability law (PL Law), Honda Electronics accepts no responsibility whatsoever for any bodily harm or other damages arising from incorrect usage of the product, or usage not described in this operation manual ・...

  • Page 3: Table Of Contents

    Contents 1. Safety Precautions (read this section first)..........2 2. Features of this machine.................. 6 3. Main Contents....................7 4. Optional Item...................... 7 5. Specifications..................... 7 6. Dimensional Outline Drawing................8 7. Part Names......................8 8. Operation Method....................9 9. Empty weld prevention Mechanism..............10 10.

  • Page 4: Safety Precautions (Read This Section First)

    Safety Precautions ( read this section first This section contains important information for preventing harm to people and preventing property damage during the use of this product. Definitions of Symbols DANGER Indicates the possibility of accidents that could highly lead to death or serious injury if handled incorrectly.
  • Page 5 Do Not Handle liquid is spilled on the main unit, immediately stop using the With Wet Hands product and contact Honda Electronics. Do not use any other current than 100V (50/60 Hz). (Within Japan) ● Doing so could result in fire or electrical shock.
  • Page 6 WARNING Do not get the product wet, and do not leave it in a place that could become wet. ● Doing so could result in malfunction, electric shock, and Do Not short circuit. Get Wet Do not let children use the product without supervision, and do not store it within reach of children.
  • Page 7 CAUTION Do not topple, drop, or apply physical shocks to the main unit or hand piece. Doing so may cause failure. ● Prohibition Do not spray the product with insecticides, hairstyling products, or cleaners, etc. ● Doing so could deteriorate plastic or painted parts, and cause interior damage.

  • Page 8: Features Of This Machine

    CAUTION Do not forcefully squeeze the hand piece. Doing so can result in improper welding and malfunction. ● This product welds using the frictional heat of ultrasonic ● vibration. Because it is not a thermal welder, you can weld Prohibition by lightly squeezing the device.

  • Page 9: Main Contents

    3. Main Contents Main unit Operation manual 4. Optional Item Welding tip （replacement item） Material ： SUS304 5. Specifications Oscillation frequency 57kHz Max, power output Max. power consumption Power source AC100V 50/60Hz Oscillator (main unit) 70×220×165 External dimensions (without protrusions) (Unit：㎜) Hand piece 32×125×49 (when open) Oscillator (main unit)

  • Page 10: Dimensional Outline Drawing

    6. Dimensional Outline Drawing Unit: ㎜ ■ Front view ■ Right side view ■ Top view ■ Right side view 7. Part names *1 Use a cord, etc. to secure the main unit Main unit （oscillator） to a wall or table. Power plug Oscillator LED （OP）...

  • Page 11: Operation Method

    8. Operation method Insert the power plug into an outlet. Turn the main unit power switch on . Check that the LED light on the switch is on. Power switch Horn Hold the hand piece and place the section to be welded between the horn and welding tip of the hand piece.

  • Page 12: Empty Weld Prevention Mechanism

    Power 9. Empty weld prevention mechanism SONAC-37 is equipped with an empty weld prevention mechanism. If the horn and weld tip touch (empty weld) the empty weld detection LED (FAIL) is on, and the welding operation is stopped.

  • Page 13: Replacing The Welding Tip (Optional)

    10. Replacing the weld tip (optional) Make sure the power is off. Power switch Use a Phillips screwdriver to remove the screw from the rear mount of the weld tip on the hand piece, then remove the weld tip. Hand piece Welding tip Screw Align the screw hole on the replacement...

  • Page 14: Troubleshooting

    11. Troubleshooting If the welder is not working properly, check the following items before requesting ● repairs. Problem Item to check Solution ● Is the power cord connected to Connect the power cord to the the receptacle? receptacle. Cannot turn on ●Is this oscillator hot? The oscillator overheat protection power (the LED...

  • Page 15: Cleaning

    12. Cleaning Periodically clean the tip of the horn and weld tip. Before cleaning, make sure that the power is turned off. If foreign objects become stuck to the tip of the hand piece it may not oscillate properly, resulting in poor welds. Cleaning method Wipe horn part (metal part at the tip of the hand piece) and welding tip with a cloth with alcohol, cotton swab, or brush.
