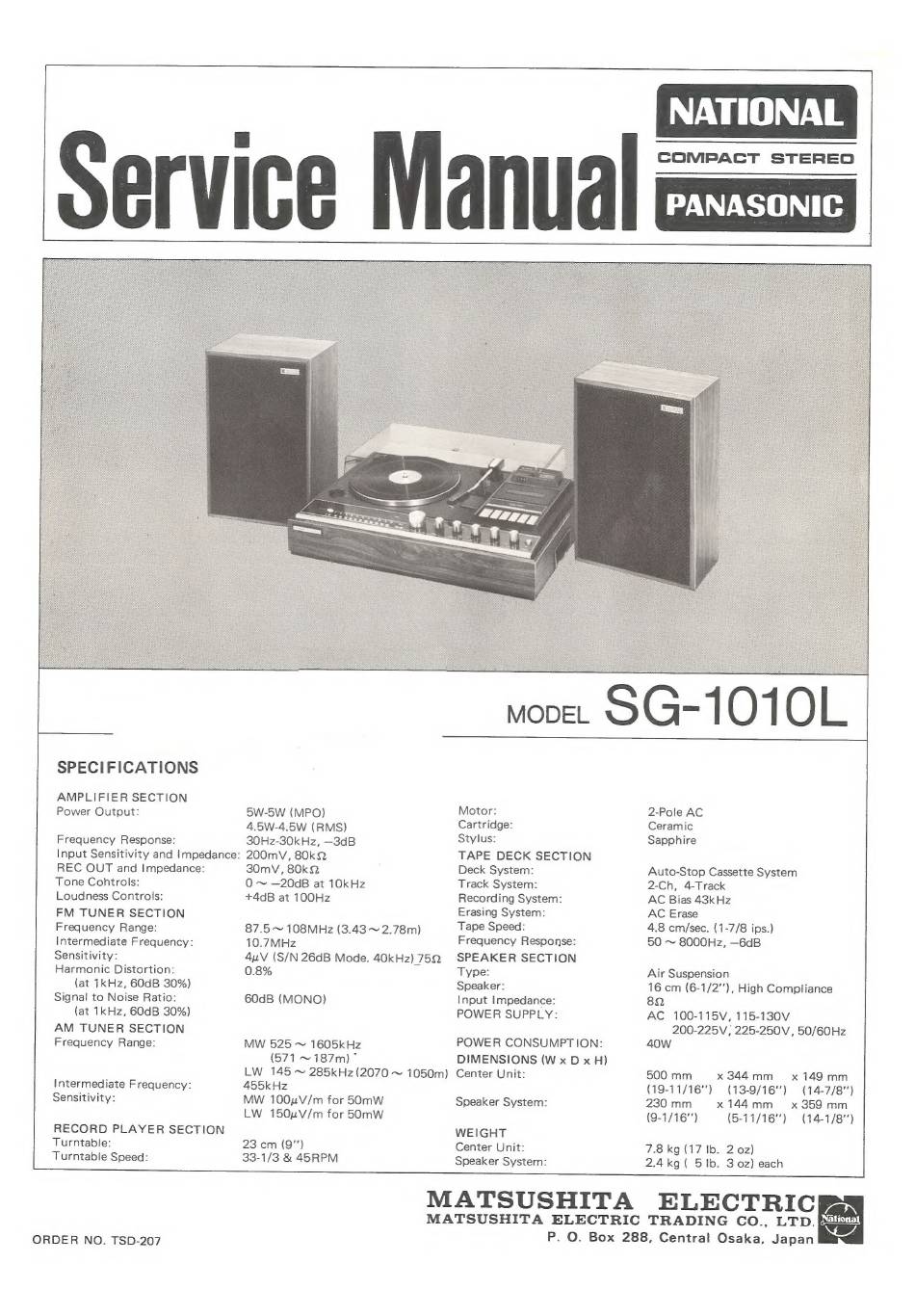

Matsushita Electric Panasonic SG-1010L Service Manual

Service Manual
COMPACT STEREO
PANASONIC
SPECIFICATIONS
AMPLIFIER SECTION
Power Output:
Frequency Response:
Input Sensitivity and Impedance:
REC OUT and Impedance:
Tone Cohtrols:
Loudness Controls:
FM TUNER SECTION
Frequency Range:
Intermediate Frequency:
Sensitivity:
Harmonic Distortion:
(at 1kHz, 60dB 30%)
Signal to Noise Ratio:
(at 1kHz, 60dB 30%)
AM TUNER SECTION
Frequency Range:
Intermediate Frequency:
Sensitivity:
RECORD PLAYER SECTION
Turntable:
| Turntable Speed:
5W-5W (MPO)
4.5W-4.5W (RMS)
30Hz-30kHz, —3dB
200mV, 80k2
30mV, 80k2
O ~ —20aB at 10kHz
+4dB at 100Hz
87.5 ~~ 108MHz (3.43 ~ 2.78m)
10.7MHz
4uV (S/N 26dB Mode. 40kHz) 752
0.8%
60dB (MONO)
MW 525 ~ 1605kHz
(571 ~187m) °
LW
145 ~ 285kHz(2070 ~
1050m)
455kHz
MW 100uV/m for 50mWw
LW 150nV/m for 50mWw
23 cm (9"')
33-1/3 & 45RPM
Motor:
Cartridge:
Stylus:
TAPE DECK SECTION
Deck System:
Track System:
Recording System:
Erasing System:
Tape Speed:
Frequency Response:
SPEAKER SECTION
Type:
Speaker:
Input Impedance:
POWER SUPPLY:
POWER CONSUMPTION:
DIMENSIONS (W x D x H)
Center Unit:
Speaker System:
WEIGHT
Center Unit:
Speaker System:
2-Pole AC
Ceramic
Sapphire
Auto-Stop Cassette System
2-Ch, 4-Track
AC Bias 43k Hz
AC Erase
4.8 cm/sec. (1-7/8 ips.)
50 ~ 8000Hz, —6dB
Air Suspension
16 cm (6-1/2"), High Compliance
82
AC 100-115V, 115-130V
200-225V , 225-250V, 50/60Hz
40W
500 mm x 344mm x 149 mm
(19-11/16") (13-9/16") (14-7/8"")
230 mm x 144mm x 359 mm
(9-1/16"') (5-11/16") (14-1/8")
7.8 kg (17 Ib. 2 oz)
2.4kg( 5 lb. 30z) each
__
ORDER NO. TSD-207
JAN
MATSUSHITA ELECTRIC TRADING CO., LTD. B23)
P. O. Box 288, Central Osaka, Japan
