Summary of Contents for GGMgastro TWA50

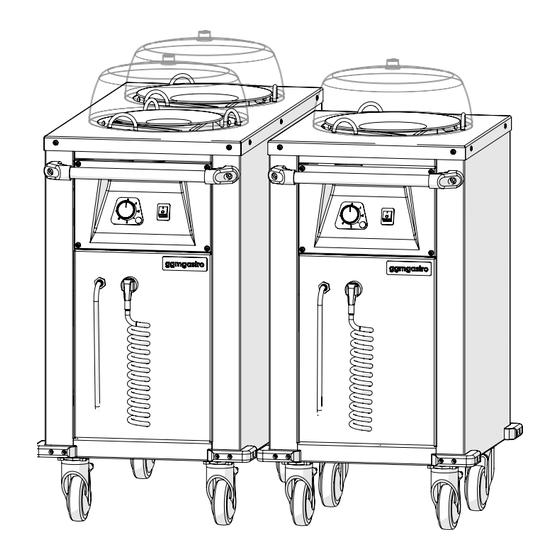

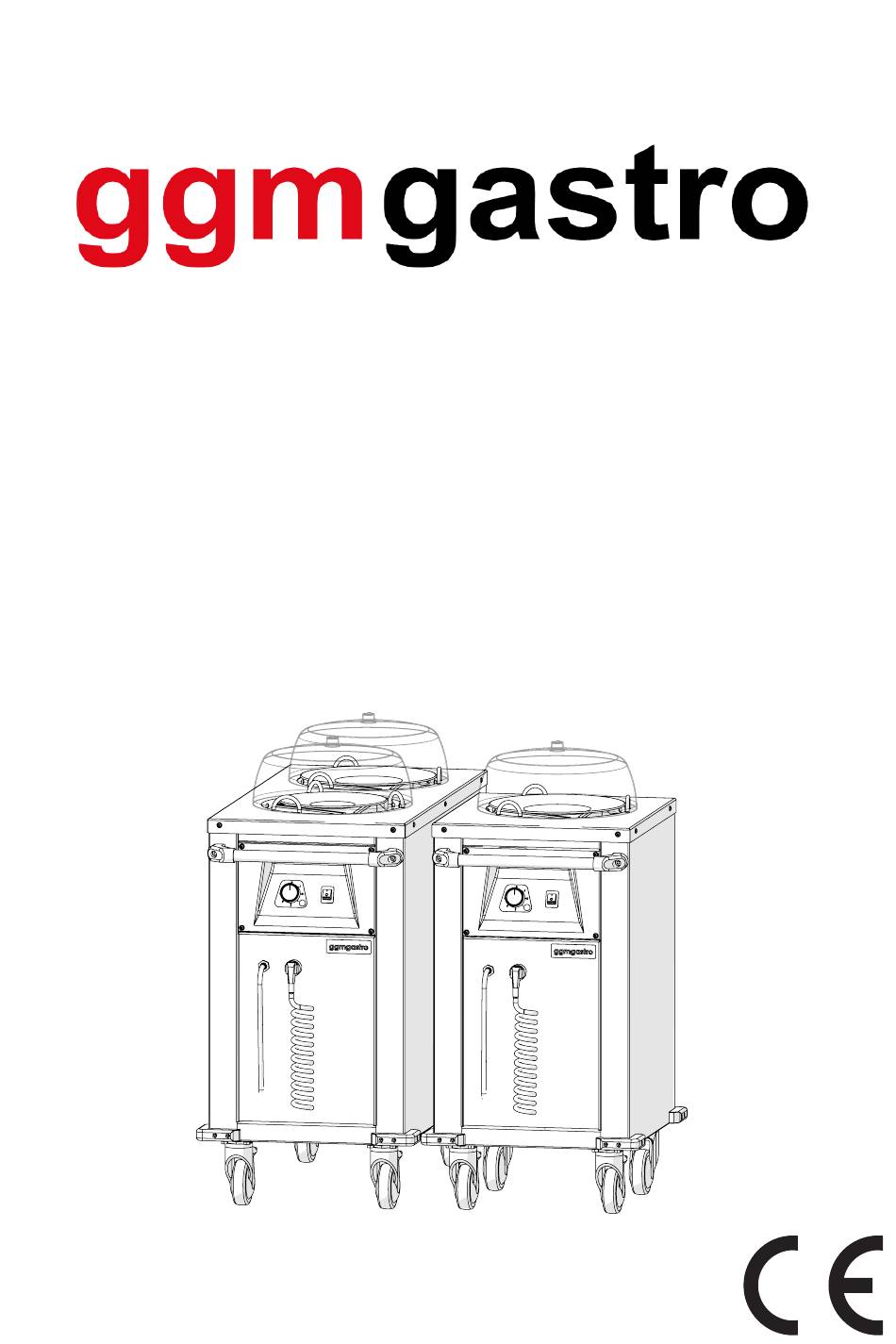

- Page 1 PLATE HEATING VENDING MACHINE Read it before starting it. There are important explanations for you. TWA50 TWA100...
-
Page 2: Table Of Contents
ingredients Technical Information Tables ���������������������������������������������������3 General Warnings and Safety Precautions ������������������������ 4-5 Setup�������������������������������������������������������������������������������������������6 Operation and Use �������������������������������������������������������������������7 Main Features and Technical Specifications ��������������������� 8-9 Electrical Connections�������������������������������������������������������10-11 Electrical Technical Tables and Information�������������������������12 Cleaning and Maintenance��������������������������������������������������13 Spare Parts List ������������������������������������������������������������������������14 When you want to dispose of the product, it is definitely the social responsibility of individuals to deliver it to the valid collection points that do electrical or electronic recycling�... -
Page 3: Technical Information Tables
Technical Information Tables GENERAL INFORMATION TWA50 TWA100 Model Product Dimensions 490x600x1018 1000x490x1018 (mm) 38 kg 55 kg Net Weight(kg) 50 plates 100 plates Plate Capacity Operating December 30°C min; 90 °C 30°C min; 90 °C of the Thermostat PACKAGE INFORMATION... -
Page 4: General Warnings And Safety Precautions
General Warnings and Safety Precautions Dear customer, we wish you to use your product, which is manufactured by undergoing quality controls in a careful and detailed manner, in the best way� We strongly recommend that you read the entire user manual before using the product� This guide will help you use the product quickly and safely�... - Page 5 General Warnings and Security Measures - Always follow the applicable safety instructions� - Keep the user manual in an easily accessible place for future use� - The manufacturer reserves the right to make changes to the product� Please note that this user manual may be intended for several product models�...
-
Page 6: Setup
Setup -Always make the installation of the product and the electrical connections to the authorized service� The manufacturer is not responsible for damage to the product caused by operations performed by unauthorized persons� - Please note that the connection lines are made correctly and completely before installation�... -
Page 7: Operation And Use
Operation and Use The product is plugged in please use heat setting Press the on/off the button button on the device clockwise from we run it by pressing� and your translation� Energy to come it will start Button 1 When the button is in in the position of position 6 minimum energy... -
Page 8: Main Features And Technical Specifications
Main Features and Technical Specifications TWA50 Model dimensions side before E:ELECTRICAL INPUT... - Page 9 Main Features and Technical Specifications TWA100 Model dimensions before side back E:ELECTRICAL INPUT...
-
Page 10: Electrical Connections
Electrical Connections TWA50 - TWA100 - The device must be connected to the electrical installation in accordance with the electrical standards of the country you are using� - Make the ground line of the device through a suitable automatic fuse and fix the fuse in question in a place where you can easily access it�... -
Page 11: Electrical Technical Tables And Information
Product Power and Operating Section Insurance Code HO5RR - F Frequency 230V TWA50 1 kW TTR 3x1.5 mm 4.3 Amp TWA100 2 KW TTR 3x1.5 mm 8.6 Amp - In the plate heating vending machine, the supply is manufactured with a cable and a plug�... -
Page 12: Cleaning And Maintenance
Cleaning and Maintenance Unplug while cleaning the plate heating vending machine Wipe the fan cover with a clean cloth Jul Clean the surface with a cleaning liquid�... -
Page 13: Spare Parts List
Spare Parts List PART explanation CODE P0121862 Heat Setting Button PART explanation Capillary Thermostat CODE P073231 90 C° P121777 Fan Cover Round P026532 3x1.5 spiral plug cable P121769 Plate P033575 Resistance P010145 Automatic Plate Spring P121912 P022403 On-Off Button Ledge P121910 P001508 Signal Light (yellow) - Page 14 NOTES...
- Page 15 NOTES...
