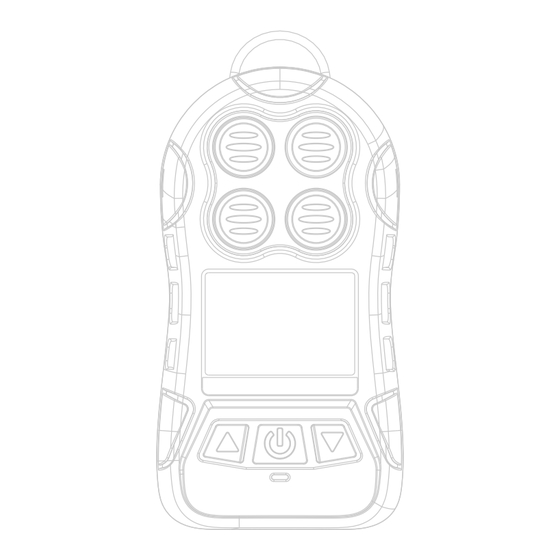

AQUAGAS K-40 User Manual

Portable multi-gas detector
Hide thumbs

Advertisement

Table of Contents

K-40
PORTABLE MULTI-GAS DETECTOR
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K-40 and is the answer not in the manual?

Questions and answers

Summary of Contents for AQUAGAS K-40

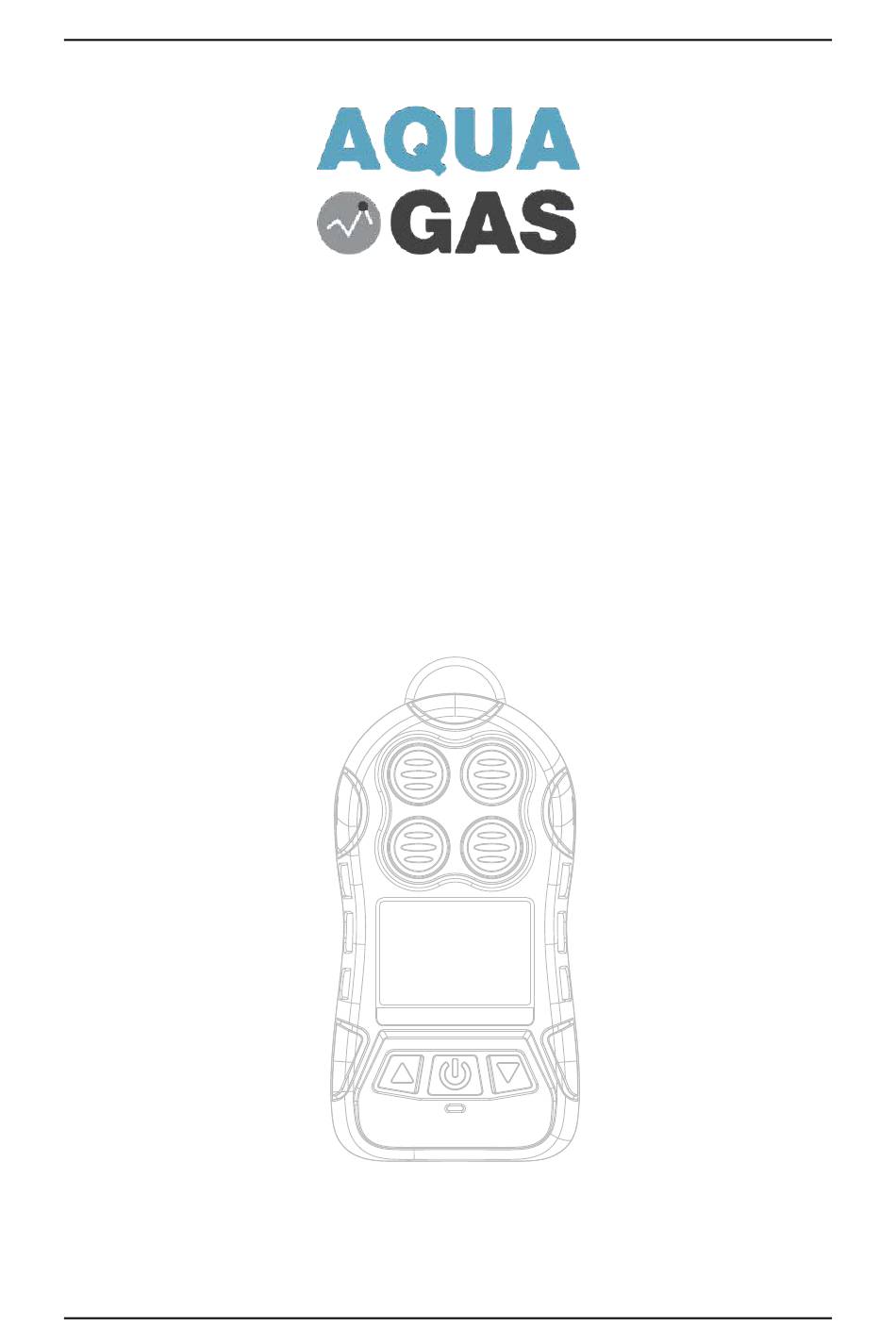

  • Page 1 K-40 PORTABLE MULTI-GAS DETECTOR User Manual...

  • Page 2: Brief Introduction

    1. Brief Introduction K-40 portable multi-gas detector could detect combustible gas, 02 and other two types toxic gases continuously and simultaneously. It is widely used in the area where explosion-proof is required or toxic gas leaks, like underground channels or mining industry, to protect the workers' life and avoid damage on the relevant equipment.
  • Page 3 Charging time: <6h Working time: ≥ 8h continuously (without alarming) Gas Sensor Life: 2 years (Depends on the specific usage environment) Dimensions: 130mm×72mm×32mm (L × W × H) Weight: Appr. 300g Tel: 1300 850 862 | Email: info@aquagas.com.au - 2 -...

  • Page 4: Operation And Function

    At this time, it displays the concentration of 02, H2S, CO and Combustible gas in the environment. The status indicator flashes once every 9S to display the detector is in the normal detecting status. Fig. 2 Fig. 3 Fig. 4 Tel: 1300 850 862 | Email: info@aquagas.com.au - 3 -...
  • Page 5 "Menu" function, the left button to scroll up, the right button to scroll down, as shown in Figure 7. Press the middle button again to enter the relative function. Fig. 7 Tel: 1300 850 862 | Email: info@aquagas.com.au - 4 -...
  • Page 6 Figure 1 O; otherwise, it will display the calibration Zero failures, as shown in Figure 11. Tel: 1300 850 862 | Email: info@aquagas.com.au - 5 -...
  • Page 7 Press the middle button, as shown in Figure 16, press the left button to select, press the right button to increase the value, press the middle button to confirm. After inputting the calibration Tel: 1300 850 862 | Email: info@aquagas.com.au - 6 -...
  • Page 8 Press the middle button to enter the relative channel to view the unit, as shown in Figure 21. Tel: 1300 850 862 | Email: info@aquagas.com.au - 7 -...
  • Page 9 Taking carbon monoxide as an example, part of toxic and harmful gases can be made TWA, STEL alarm value settings, if necessary, contact us in advance, as shown in Figure 23. Fig. 22 Fig. 23 Tel: 1300 850 862 | Email: info@aquagas.com.au - 8 -...
  • Page 10 L is low alarm; H is high alarm; 0 is overrange; P is High concentration protection, the value "2/3" represents the current page/total number of pages, as shown in Figure 27. Tel: 1300 850 862 | Email: info@aquagas.com.au - 9 -...
  • Page 11 Figure 32. Fig. 31 Fig. 32 Tel: 1300 850 862 | Email: info@aquagas.com.au - 10 -...
  • Page 12 3 seconds, it will display whether to shut down (same as Figure 17). Press the middle button for a long time to shut down automatically. Tel: 1300 850 862 | Email: info@aquagas.com.au - 11 -...
  • Page 13 4.6.1 Charging When the detector is charging, the battery progress bar is scrolling circularly, as shown in Figure 34. The charging is completed, as shown in Figure 35. Tel: 1300 850 862 | Email: info@aquagas.com.au - 12 -...
  • Page 14 -20-55 °c and the relative humidity is not more than 85%. Indoors, and the air must not contain harmful gas or impurities that have a corrosive effect on the detector. Tel: 1300 850 862 | Email: info@aquagas.com.au - 13 -...

  • Page 15: Standard Accessories

    And the calibration period should be less than one year. 7.7 Please put the used Lithium batteries to the appointed places or send to our company. Don’t discard them into the dustbin at random. Tel: 1300 850 862 | Email: info@aquagas.com.au - 14 -...
  • Page 16 Minus gas level Gas sensor drift Calibrate zero point displayed Please contact the Sensor fault Sensor fault manufacturer or dealer to indication replace the gas sensor Tel: 1300 850 862 | Email: info@aquagas.com.au - 15 -...
  • Page 17 2000ppm 0-50000ppm 1000ppm 2000ppm 0-250ppm 20ppm 50ppm 0-20ppm 5ppm 10ppm 0-500ppm 10ppm 20ppm 0-50ppm 10ppm 20ppm 0-50ppm 10ppm 20ppm CH2O 0-10ppm 2ppm 5ppm 0-100ppm 20ppm 50ppm C6H6 0-100ppm 20ppm 50ppm Tel: 1300 850 862 | Email: info@aquagas.com.au - 16 -...
  • Page 18 Note: For other gases and ranges, please contact AquaGas.. AQUAGAS PTY LTD 35 Jarrahdale drive, Elanora 4221 QLD Australia Local: 1300 850 862 | International: +61 (0)755 768 295 E-mail: info@aquagas.com.au | Website: www.aquagas.com.au Tel: 1300 850 862 | Email: info@aquagas.com.au...
