Summary of Contents for IP SYSTEMES SH42

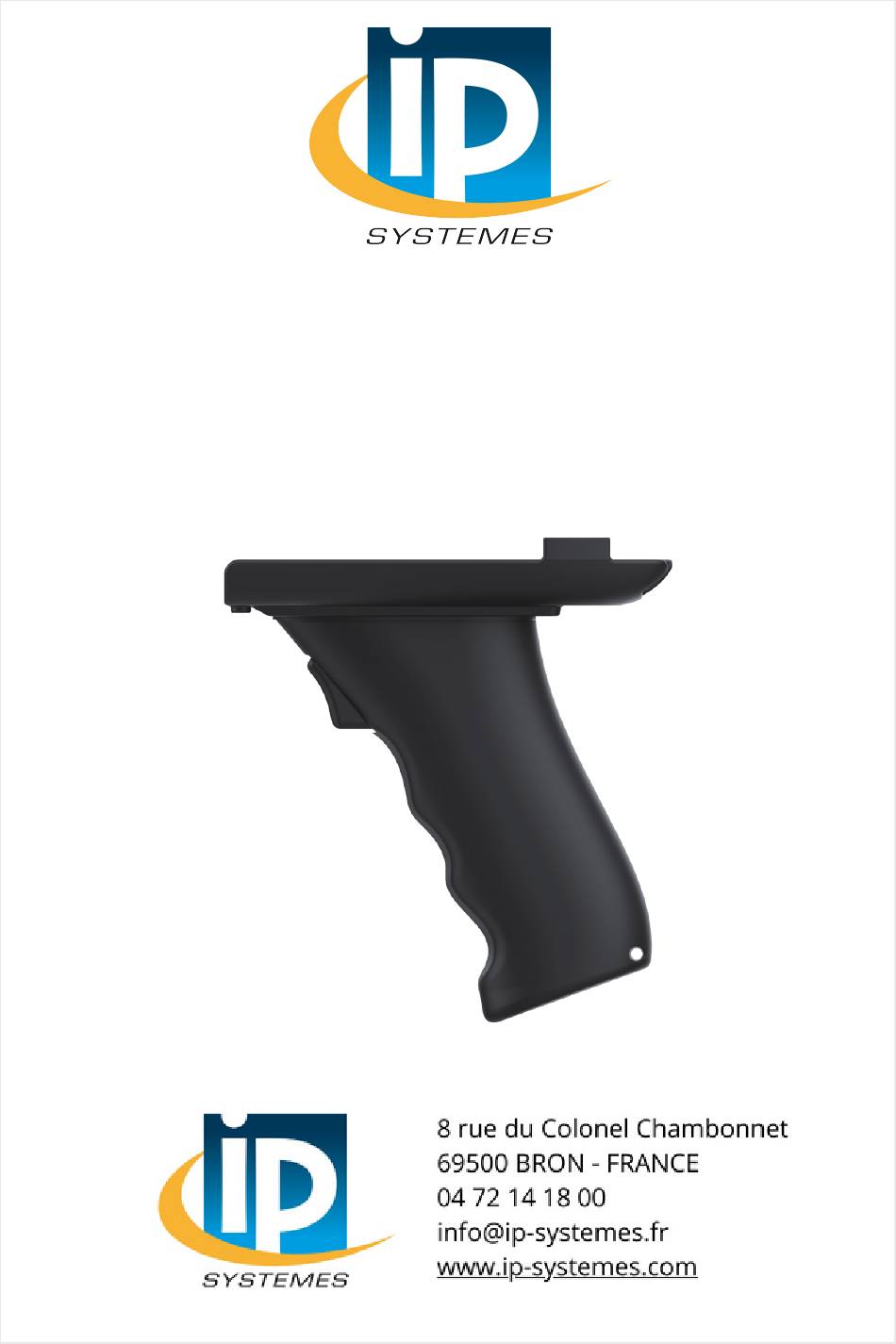

- Page 1 Bluetooth handle instructions SH42/SH52/SH62 User Manual...
-
Page 2: Table Of Contents
Contents Ⅰ. Product Introduction .................... 1. Model introduction ..................2. Appearance description ................Ⅱ. Installation Guide ....................Ⅲ. Scan application ....................1. Android System ....................2. Windows System ....................2.1 Connect the handle .................. 2.2 Install AppService program ..............2.3 Install KeybroadMonitor ................ 2.4 Precautions .................... -
Page 3: Ⅰ. Product Introduction
Ⅰ. Product Introduction 1. Model introduction There are three types of Bluetooth handles: SH42, SH52, SH62, which are used with handheld devices of 42, 52 and 62 respectively. Their grips are common, only the tray size is different. As follows:... -
Page 4: Appearance Description
2. Appearance description 2.1 Button definition: (1)Power switch: Turn on means shut pistol grip, down means open it. (2)Scanner button: when the pistol grip connected with machine successfully, press scanner button can scan 1D/2D barcode. Power switch Scanner button Battery compartment, supporting 9V DC 2.2 Light definition (1)LED light off means pistol grip is shut... -
Page 5: Ⅱ. Installation Guide
Ⅱ. Installation guide 1. Install the device on the 2. Align the two holes on the top Bluetooth handle. of the Bluetooth handle with the two holes next to the battery lock on the back of the device. 3. Tighten the screws, installation is complete. - 3 -... - Page 6 4. The installation process of SH52 and SH62 is the same as above. SH52： SH62： - 4 -...
-
Page 7: Ⅲ. Scan Application
Ⅲ. Scan application 1. Android System 1.1 Connect the handle Open setting>Connected devices>Bluetooth, click the upper right corner to turn on Bluetooth. Choose pair new device, find the Bluetooth device starting with "BLE_", and click Connect. Connection succeeded. - 5 -... - Page 8 1.2 Scanner settings Open the gear icon in the upper right corner to enter the settings. Then turn on the Bluetooth handle opening button. - 6 -...
-
Page 9: Windows System
2. Windows System 2.1 Connect the handle Open Bluetooth settings in the taskbar. Click Add Bluetooth or other device, find the Bluetooth device starting with "BLE_", and connect. Connection succeeded. - 7 -... -
Page 10: Install Appservice Program
2.2 Install AppService program 2.2.1 Installation Double-click “AppService_setup_’DeviceName’_’Version’.exe” (such as AppService_setup_I62H_V1.0.2.0), choose OK to install the Windows service. As shown below： - 8 -... - Page 11 Select "Install" to continue the installation. Select "Finish" to complete the installation. Please reboot your device so that AppService can run normally. - 9 -...
- Page 12 2.2.2 Uninstall Unins000.exe can be found in the C:\OEM\AppService path. Double-click unins000.exe to uninstall AppService. As shown below: Select "Yes". - 10 -...
- Page 13 So far uninstalling AppService has been completed. - 11 -...
-
Page 14: Install Keybroadmonitor
2.3 Install KeybroadMonitor Double-click “KeybroadMonitor_setup_V1.0.2.0.exe” to install KeybroadMonitor tool. As shown below: Click "Install" to continue the installation. - 12 -... - Page 15 Click "Finish" to complete the installation. Reboot your device. - 13 -...
- Page 16 KeybroadMonitor runs automatically after booting. After rebooting, you can see a running icon in the taskbar. As shown below： Double-click this icon to open the KeybroadMonitor display interface: To exit KeybroadMonitor, right-click on the icon and select Exit to exit. As shown below：...
-
Page 17: Precautions
2.4 Precautions 2.4.1 KeybroadMonitor relies on Appservice service. If the Appservice is not installed, then KeybroadMonitor cannot work properly. 2.4.2 After installing KeybroadMonitor, you need to restart your computer to run normally. Ⅳ. Frequently Asked Question 1. If the handle has been paired, then need to connect another machine, the following operations is needed: 1.1 Press and hold the scan key while turning on the power switch;...
