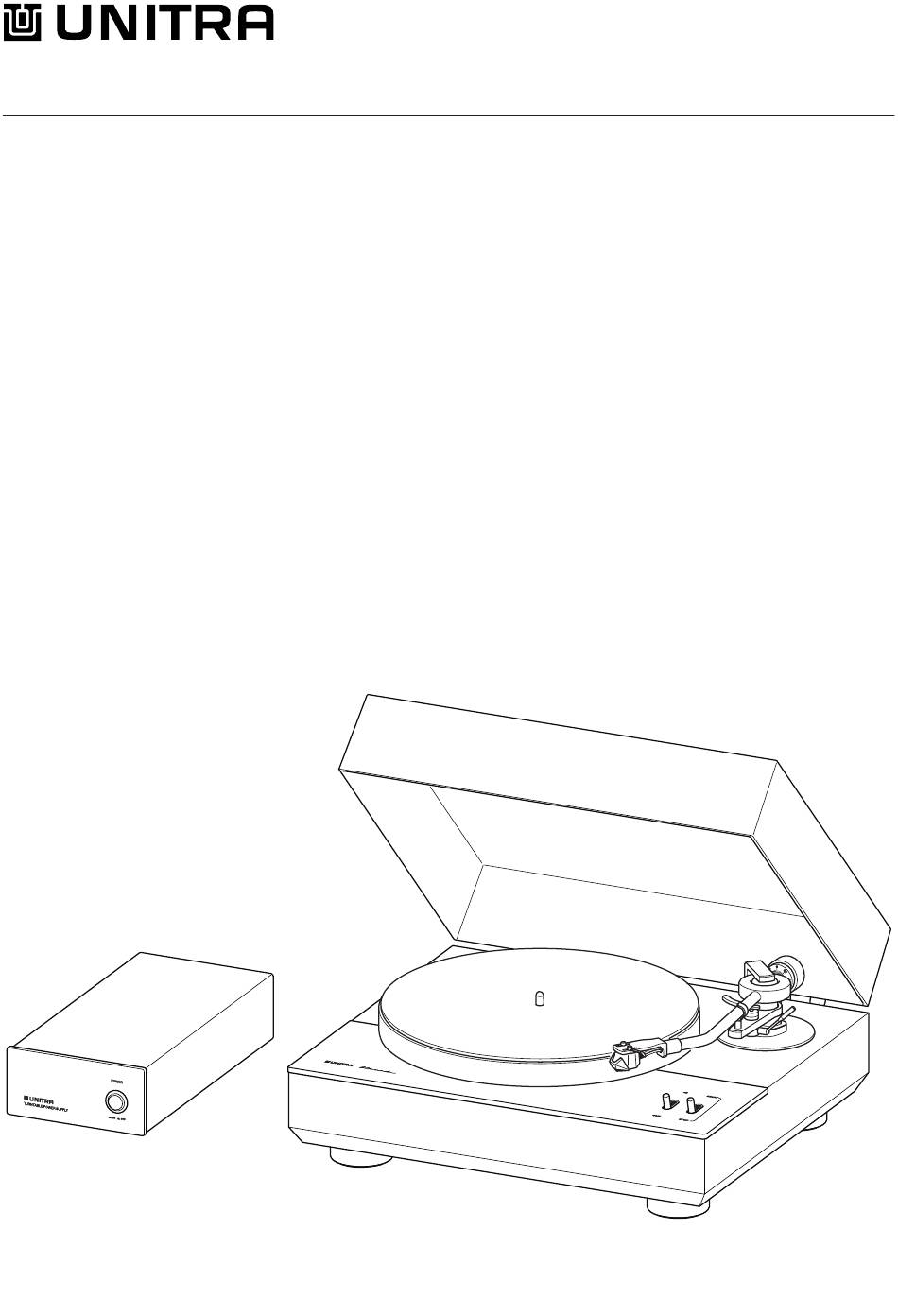

- Page 1 GSH-801 Edmund DIRECT DRIVE TURNTABLE User Manual...
-
Page 2: Table Of Contents
Contents Manufacturer Manufacturer Unitra sp. z o.o. Przejazdowa 2b, About this document 02-496 Warsaw, Poland Symbols used in this manual ......4 website: www.unitra.com... -
Page 3: About This Document
About this document Thank you for purchasing this Unitra product. To ensure proper operation, read this manual carefully and operate the device in accordance with the instructions contained in it. Please keep this manual for future reference after reading it. -
Page 4: Acronyms, Abbreviations, And Technical Terms
Acronyms, abbreviations, and technical terms Grounding Connector type introduced by the Radio Corporation of America Revolutions per minute, a record speed unit Vertical Tracking Angle Description Content of the package Make sure that the following elements are included in the package: •... -
Page 5: Overview
Overview... - Page 6 Dust cover Felt mat Main platter Dust cover hinge DC inlet DC outlet AC inlet POWER button Pressed External power supply is ON. Released External power supply is OFF. Direct drive Speed selection switch Switch up To play records with the speed of 45 RPM. Switch down 33 ⅓...
- Page 7 Tonearm Counterweight Anti-skating weight Tonearm height adjustment flange Tonearm lift lever Tonearm lift Tonearm rest Tonearm tube Headshell Phono cartridge Finger lift...
-
Page 8: Recommendations For Use
Recommendations for use NOTICE If you plan not to use the Device for a long period of time, make sure that the Device is disconnected from the AC power source • When frequent transient states and impulse distractions in the power line happen, distractions on output connectors may occur. -
Page 9: Assembly
Assembly Assembly of the main platter Step Put the main platter on the spindle. Make sure that the correct side of the main platter is facing upwards. Step Put the felt mat on the main platter. Removing the headshell Step Loosen the nut that secures the headshell until the headshell is released. -
Page 10: Attaching The Cartridge
Attaching the cartridge For your convenience, you can remove the headshell from the tonearm to attach the cartridge. p. 10. You can use all types of cartridges with a half-inch mount. Tools: set of hex keys (if a key is not supplied with the cartridge) Step Remove the cartridge from the package and follow... -
Page 11: Aligning The Cartridge
NOTE You can use other tools that support precise cartridge alignment. For more info and instructions visit www.unitra.com. Step Place the cartridge alignment protractor on the main platter. Make sure it lies flat and is secured in place. -
Page 12: Attaching The Tonearm Counterweight
Attaching the tonearm CLICK! counterweight The tonearm counterweight has two parts that are connected magnetically. If these parts are apart, put them together before attaching the counterweight on the tonearm. Step Put the tonearm counterweight on the rear of the tonearm. -
Page 13: Setting The Stylus Pressure
NOTE Alternatively to presented stylus pressure setting technique you can use a weight scale. For more info and instructions visit www.unitra.com. Step Remove the tonearm from the tonearm rest. Step Hold the tonearm and turn the counterweight to adjust the balance until the tonearm is balanced. -
Page 14: Adjusting The Anti-Skating Force
Adjusting the anti-skating force NOTE The anti-skating force depends on the type of cartridge in use and the set stylus pressure. Step Put the anti-skating thread hook on the anti-skating pin with three grooves. Step Put the thread with the anti-skating weight in the groove of the second anti-skating pin, so that the weight hangs freely. -
Page 15: Adjusting The Vertical Tracking Angle (Vta)
Adjusting the vertical tracking angle (VTA) To check if the VTA is set correctly put a record on the platter. When the needle is lowered into the record groove and the tonearm is not resting on the tonearm lift, the tonearm should be parallel to the surface of the record. -
Page 16: Adjusting The Azimuth
Adjusting the azimuth The stylus must be vertical in the record groove. The Device comes with a pre-set azimuth, but after replacement of the cartridge it is possible that adjustment of the azimuth is necessary. Tools: set of hex keys (not included) Step Loosen the screw on the rear side of the headshell. -
Page 17: Adjusting The Feet
Adjusting the feet You can adjust the feet to level the Device. Turn the foot to the right to decrease its height. Turn the foot to the left to increase its height. -
Page 18: Adjusting The Dust Cover
Adjusting the dust cover You can adjust the friction level of the dust cover hinges or remove the dust cover entirely. Adjusting the friction NOTE If the friction is too low, the dust cover can move uncontrollably and there s a risk of damage to the cover. -
Page 19: Connections
Connections Connecting to a preamplifier or amplifier Phono preamplifier CAUTION Connect the Device to the preamplifier or amplifier before you connect the Device to the AC power source p 22 NOTICE Be careful when you connect the cable to the PHONO OUT jacks Secure the tonearm, the main platter and the dust cover before you move the Device... - Page 20 You can connect the Device to the preamplifier or amplifier, if it has an integrated phono preamplifier block. Use the supplied DIN 5-pin to double RCA phono cable.
-
Page 21: Connecting The Power Cables
Connecting the power cables CAUTION Install the Device in accordance with the Safety Brochure (section Installation) enclosed to this product After all connections are ready, you can connect the Device to the AC power source. Step Connect the power cord to the DC inlet on the Device. Step Connect the power cord to the DC outlet on the external power supply. -
Page 23: Operation
Operation Playing a record Step Set the POWER button on the external power supply to ON. Step Put the record on the main platter. Step Set the speed on the speed control switch according to the record speed. Step Remove the cover from the cartridge (if used). Step Make sure that the tonearm lift lever is in up position. -
Page 24: Maintenance
Maintenance Maintenance of the stylus Refer to the instructions of the cartridge manufacturer. Cleaning of the plinth The plinth is made of varnished wood veneer. For occasional cleaning use a soft, slightly dampened cloth. Do not use any cleaner or wax. NOTICE Be careful not to damage the stylus tip Put the cover on the cartridge before cleaning... -
Page 25: Troubleshooting
Troubleshooting Most difficulties in audio systems are the result of incorrect connections, or improper control settings. If you encounter problems, localise the area of the difficulty, check the control settings, determine the cause of the fault and make the necessary changes. -
Page 26: Technical Specifications
Technical specifications Tonearm Model Unitra R10 Material Aluminum Bearings Two pairs of bearings on cone pins Effective length 228.22 mm VTA adjustment Supported cartridge weight range 3 – 12 g Drive Model Unitra NB1 Drive method Direct drive Motor type... -
Page 27: Dimensions
Dimensions 429 mm 375.5 mm 446.24 mm... -
Page 28: Disposal
Disposal This Device is labeled in accordance with the European Directive 2002/96/EC concerning waste electrical and electronic equipment (WEEE). The Device or used and fully discharged batteries should not be disposed of with household waste. Since the transposition of Directive 2002/96/EC into the national law electric and electronic equipment must not be disposed of together with household waste and the user is obliged to dispose of a broken or redundant electrical or electronic device at a dedicated collection point, put it in a special... - Page 29 Copyright: Unitra sp. z o.o. Revision 1 (2023-11-28) For more information go to: https://www.unitra.com/ or scan QR code below.
