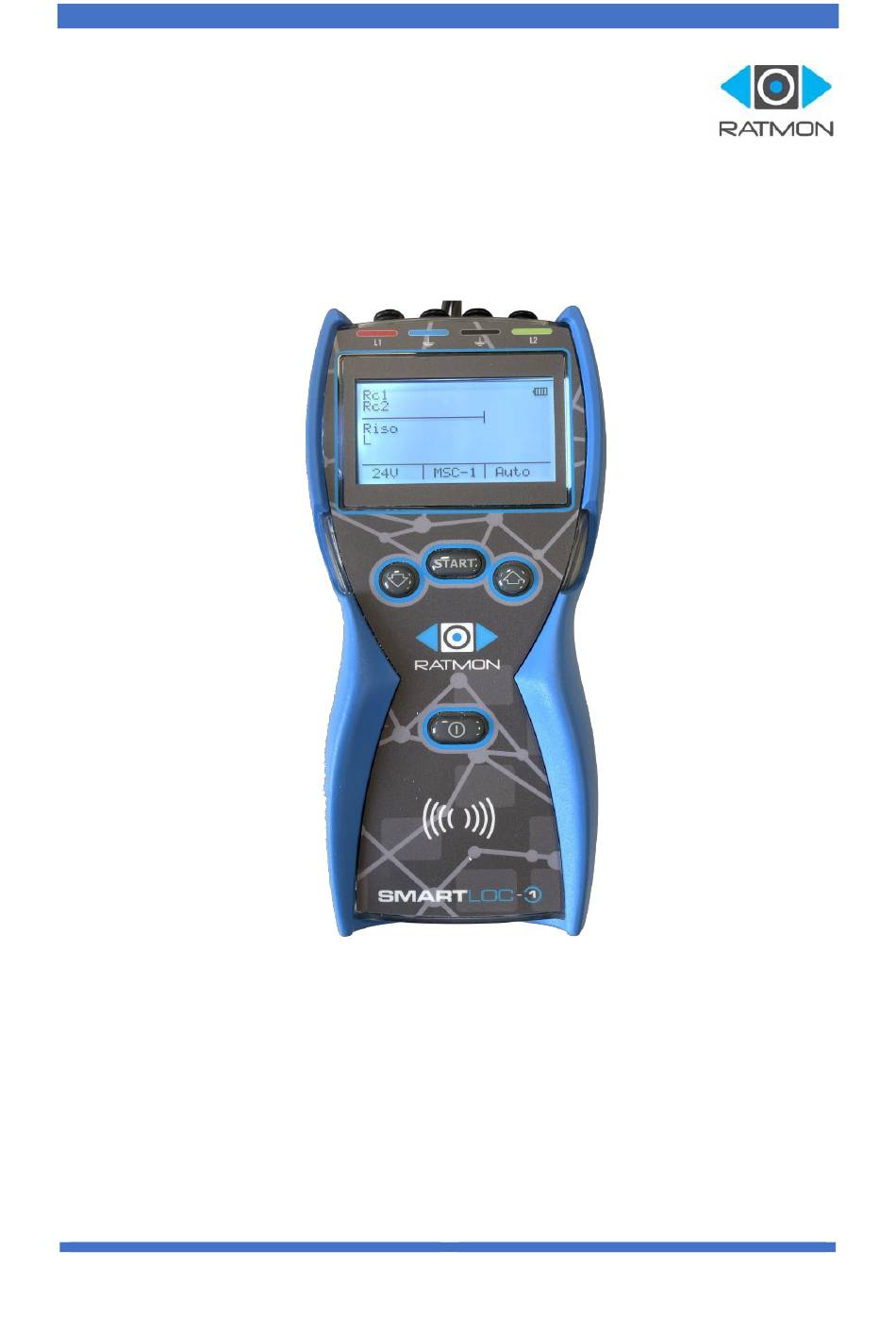

- Page 1 RATMON – SMARTLOC-1 – USER MANUAL User Manual ALARM LOOP TESTER SMARTLOC-1 RATMON LTD.
- Page 2 USER MANUAL ALARM LOOP TESTER SMARTLOC-1 SMARTLOC-1 alarm loop tester is a modern, high-quality measuring instrument that is easy and safe to use. Familiarizing yourself with this manual will help you to avoid errors during the performance of measurements and prevent possible issues during an operation of the device.
-
Page 3: Table Of Contents
RATMON – SMARTLOC-1 – USER MANUAL Table of contents Introduction ............................4 Functional description ........................5 Settings ............................... 7 Measurements............................ 8 Automatic measurements ......................8 Galvanic voltage measurement ....................10 Insulation resistance measurement ..................12 Measurement of alarm loop resistance ................... 14 Connection to the tested alarm network .................. -
Page 4: Introduction
RATMON – SMARTLOC-1 – USER MANUAL 1. Introduction SMARTLOC-1 alarm loop tester is a dedicated diagnostic device for inspecting alarm systems in any type of pre-insulated networks, including impulse, resistance and sensor cable. The tester allows you to measure alarm loop continuity resistance, foam insulation resistance and determine the length of the pipeline. -
Page 5: Functional Description
RATMON – SMARTLOC-1 – USER MANUAL 2. Functional description LCD display START - triggering the measurement DOWN - decreasing value UP - increasing value ON/OFF - switch the instrument on/off RATMON LTD. - Page 6 RATMON – SMARTLOC-1 – USER MANUAL To turn on the tester, press the ON/OFF button. To turn off the tester, press and hold the ON/OFF button for about 3 s. After turning on, the instrument is ready for measurements by displaying...
-
Page 7: Settings
RATMON – SMARTLOC-1 – USER MANUAL 3. Settings Change the settings by pressing and holding the DOWN button. An arrow will appear on the screen as shown in the following image. We move to the selection of the next parameter by pressing the START button. -
Page 8: Measurements
START button to perform all measurements without changing the measurement mode. 4.1 Automatic measurements The SMARTLOC-1 tester has a built-in auto-test, with which we will make one-click measurements of loop resistance, insulation or determine length of the pipeline and the level of moisture. To perform an automatic measurement, connect the meter to the alarm wires accordingly, and during configuration select Auto. - Page 9 RATMON – SMARTLOC-1 – USER MANUAL After the measurement, the results are presented on the tester's screen as follows. If a leak occurs in the pipeline during measurements on the resistance system then a symbol indicating this will be displayed on the screen of the measuring instrument, in addition, the value expressed in percentage and information about where the leak occurred .
-
Page 10: Galvanic Voltage Measurement
In order to check the condition of the pipeline, we provide series of measurements. The measured value of galvanic voltage will help us determine whether there is moisture in a pipeline. The SMARTLOC-1 measuring instrument is capable of making this measurement in the range of 0 to 2000 mV with a measurement accuracy of ±... - Page 11 RATMON – SMARTLOC-1 – USER MANUAL After pressing the START button, the measurement will be initiated, when it is completed the results on the screen are as follows: Where: • U stands for the voltage between the wires L1-L2 • U...
-
Page 12: Insulation Resistance Measurement
4.3 Insulation resistance measurement Measurement of insulation resistance allows us to determine the condition of the foam in the pipeline. SMARTLOC-1 measures the insulation resistance with a voltage of 24 V. The measurement is performed in two polarities. The measuring range of the instrument is from 0 to 100 MΩ. - Page 13 RATMON – SMARTLOC-1 – USER MANUAL After pressing the START button, the tester will begin to perform the measurement, when it is completed the screen will show us the results. Where: • R stands for foam insulation resistance • MH stands for the degree of moisture in a resistance system •...
-
Page 14: Measurement Of Alarm Loop Resistance
We measure the resistance of the alarm loop to verify that the continuity of the test wires is maintained. The SMARTLOC-1 performs this measurement with 24 V, and its range is from 0 to 2kΩ with an accuracy of ± 2% m. + 8 digits. The measurement is made in two polarities. -
Page 15: Connection To The Tested Alarm Network
RATMON – SMARTLOC-1 – USER MANUAL 5. Connection to the tested alarm network To correctly perform measurements to the tester we connect the alligator clips, provided with the device, and the measurement terminals to the pre- insulated pipe. Below are auxiliary connection diagrams. -
Page 16: Msc-1 Sensor Cable
RATMON – SMARTLOC-1 – USER MANUAL 5.2 MSC-1 sensor cable RATMON LTD. -
Page 17: Impulse
RATMON – SMARTLOC-1 – USER MANUAL 5.3 Impulse RATMON LTD. -
Page 18: Resistance
5.4 Resistance 6. Mobile application Thanks to the built-in NFC modem, the SMARTLOC-1 alarm loop tester is able to establish a connection with the Fusion Mobile application. Using the mobile app, we are able to read out the measurement results along with GPS coordinates, perform software updates and configure alarm thresholds for individual measurement results. -
Page 19: Data Reading
RATMON – SMARTLOC-1 – USER MANUAL 6.1 Data reading When the application is ready to work, the screen presents itself as follows: After taking measurements with the tester, the results are visible on its screen. RATMON LTD. - Page 20 RATMON – SMARTLOC-1 – USER MANUAL If we want to read data from the instrument using the app on the smartphone screen, we press the READ button. After pressing the button, Fusion Mobile will ask us to bring the phone close to the NFC module.
-
Page 21: Limitations
RATMON – SMARTLOC-1 – USER MANUAL We can also save the results of the measurements to any location we indicate on our smartphone. Save by clicking on the SAVE button and then indicating the location. 6.2 Limitations The Fusion Mobile app allows you to set alarm thresholds for individual measurement results and send them to the measuring instrument, which is able to make an evaluation based on them. -
Page 22: Software Update
Alarm threshold settings cannot be sent while a measurement is in progress. 6.3 Software update Using Fusion Mobile, we also update the firmware of the SMARTLOC-1 alarm loop tester. To perform the update, you must first start the update mode in the instrument, for this purpose, while holding the UP button, start the meter. - Page 23 RATMON – SMARTLOC-1 – USER MANUAL Now on the application screen, press the Menu button, and then select Update RATMON LTD.
-
Page 24: Power Supply
After a properly performed update, the SMARTLOC-1 tester screen will show us the following message. 7. Power supply The SMARTLOC-1 alarm loop tester is powered by four 1.5V LR6 (type AA) alkaline cells. 7.1 Supply voltage monitoring The battery discharge status is illustrated by the battery symbol in the upper right corner of the measurement screen. -
Page 25: Battery Replacement
RATMON – SMARTLOC-1 – USER MANUAL Measurements made with fully discharged batteries may be subject to additional error or the measurement may not be made at all. In a situation of extreme discharge of the power source, the device is switched off. -
Page 26: Equipment
RATMON – SMARTLOC-1 – USER MANUAL 8. Equipment Standard equipment of the SMARTLOC-1 kit includes:: • SMARTLOC-1 device • Magnetic ground connector • Batteries • Set of cables 4 pcs. • Alligator clips 4 pcs. • Bag 9. Technical data 1. -
Page 27: Manufacturer
RATMON – SMARTLOC-1 – USER MANUAL Measuring accuracy ± 5% 4. Dimensions 200 x 100 x 60 mm 5. Weight 0,6 kg 6. Protection degree IP65 10. Manufacturer The manufacturer of the instrument providing warranty and post-warranty service is: RATMON LTD.
